Operating Frequency
600–690 MHz
Product Overview

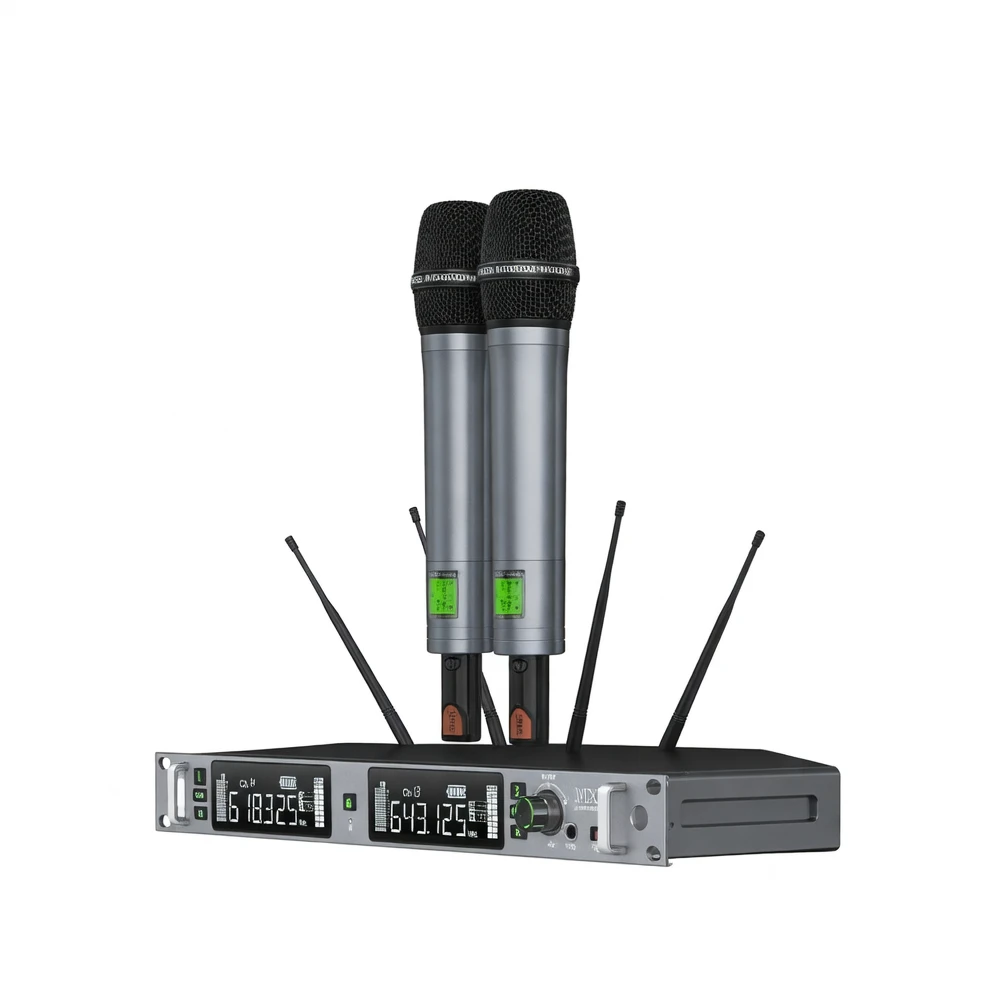

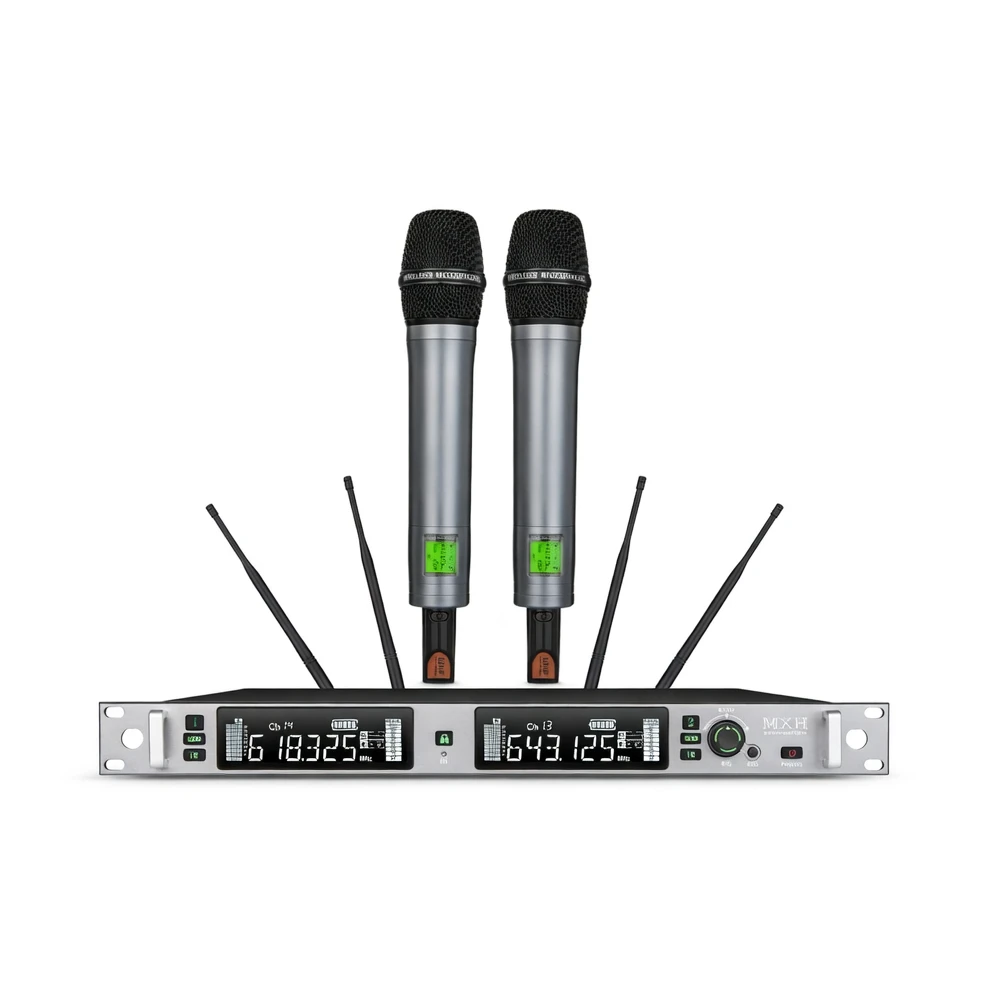

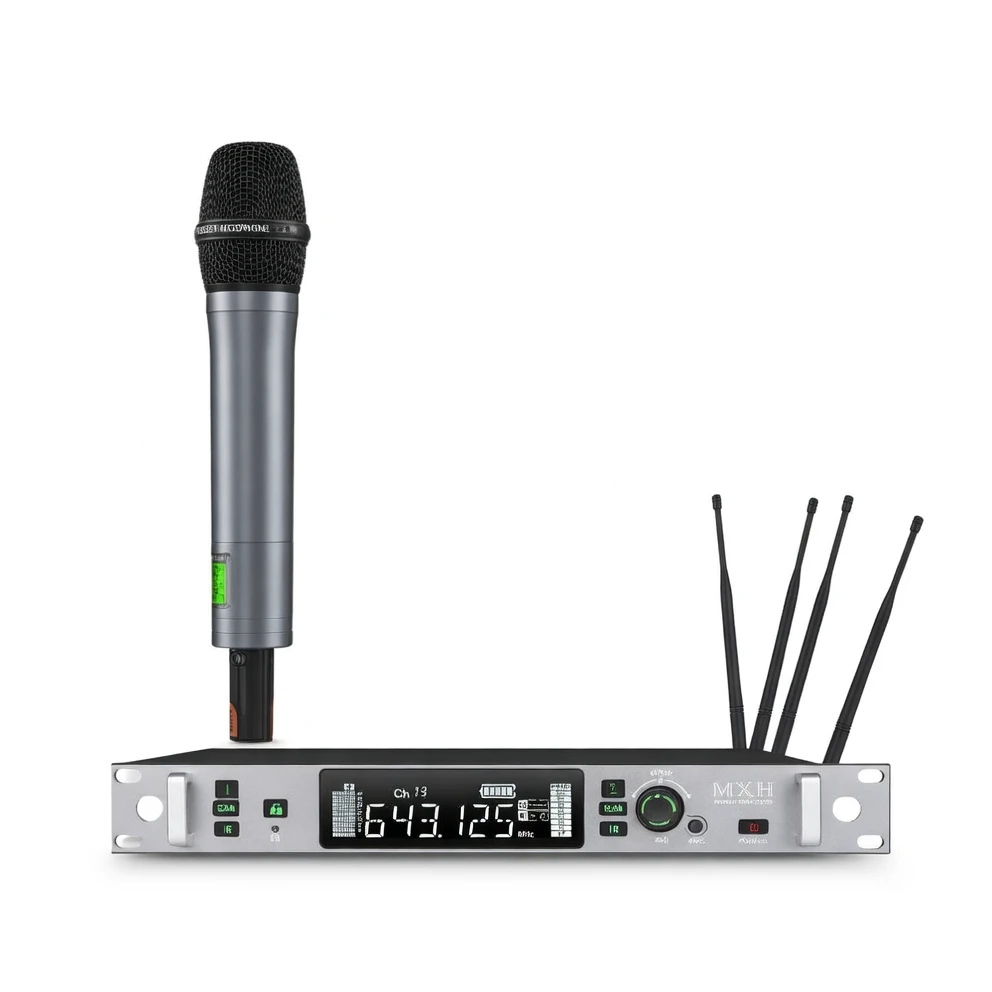

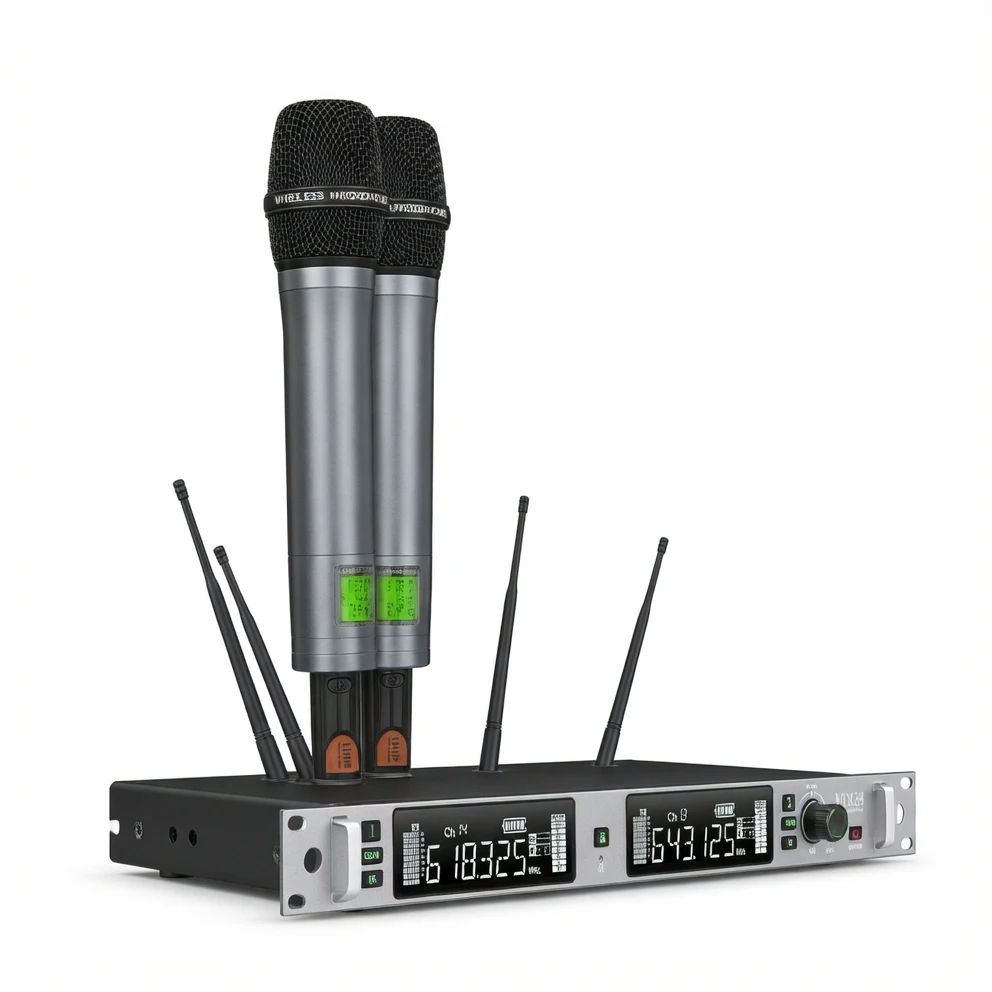

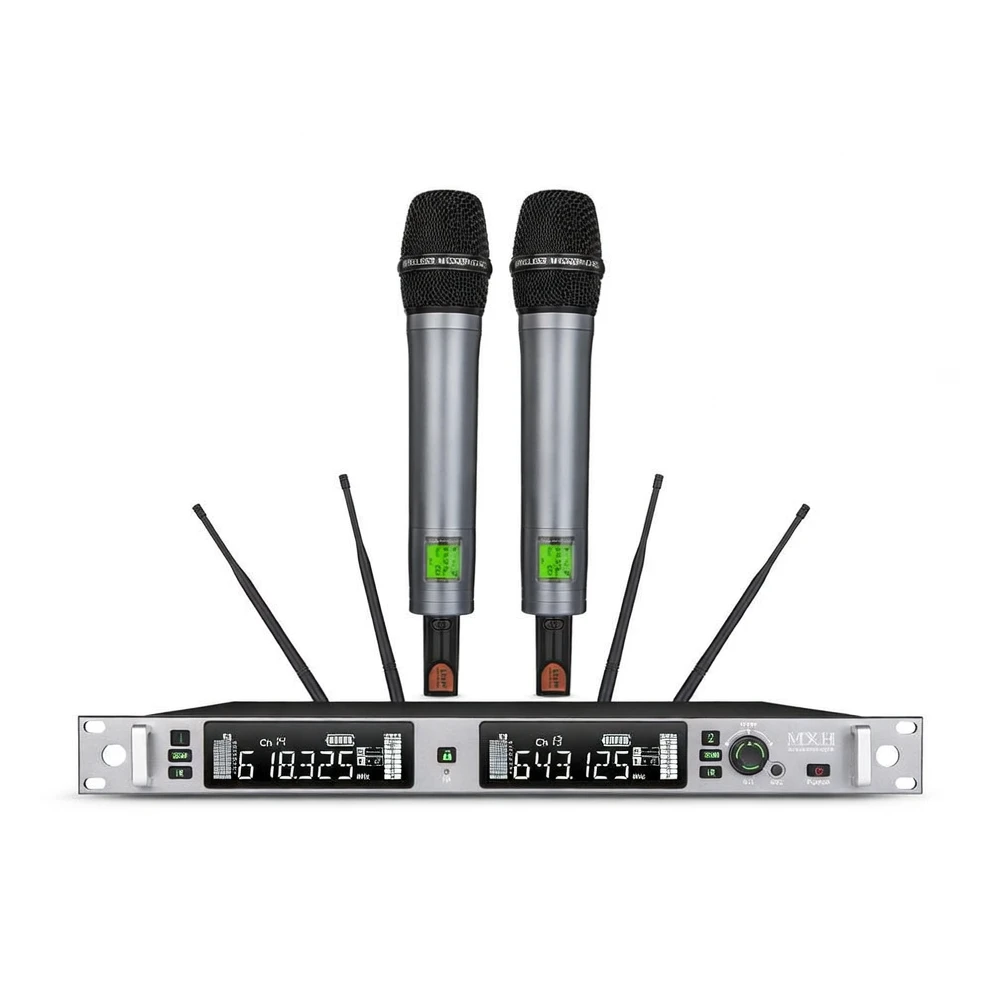

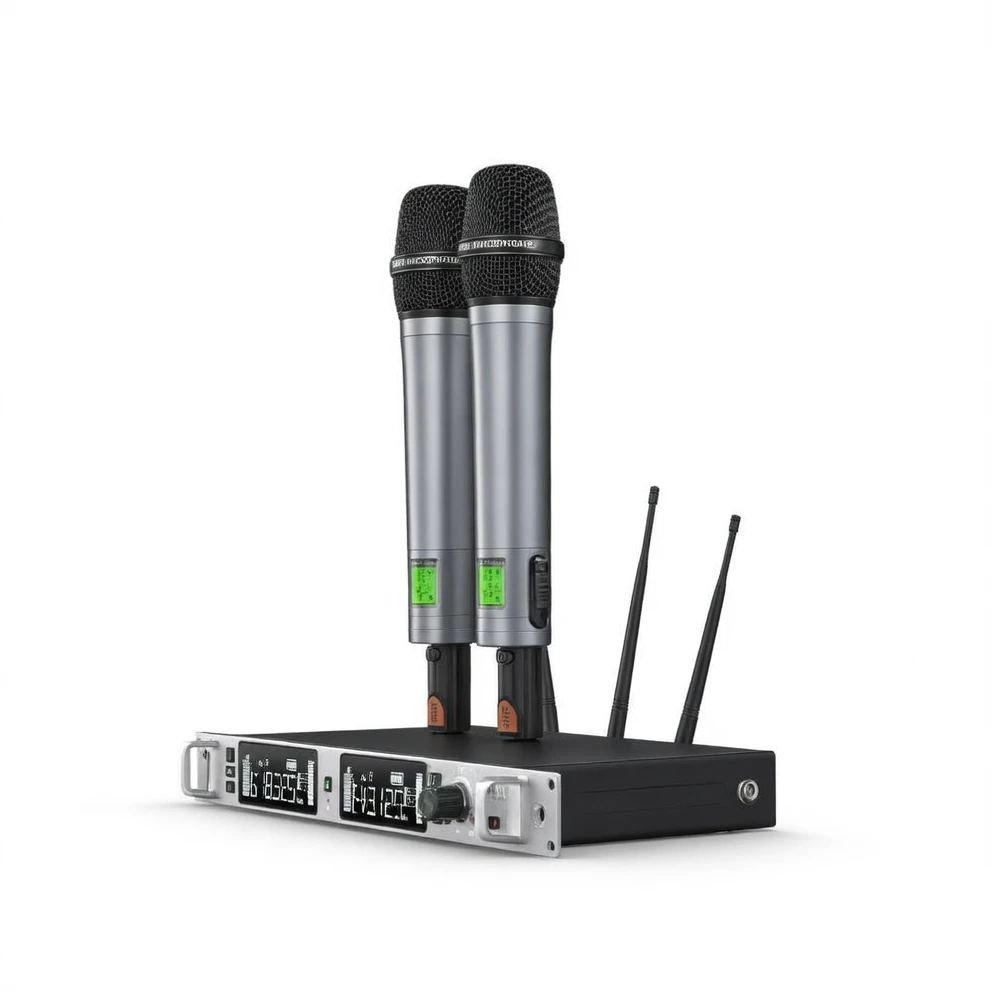

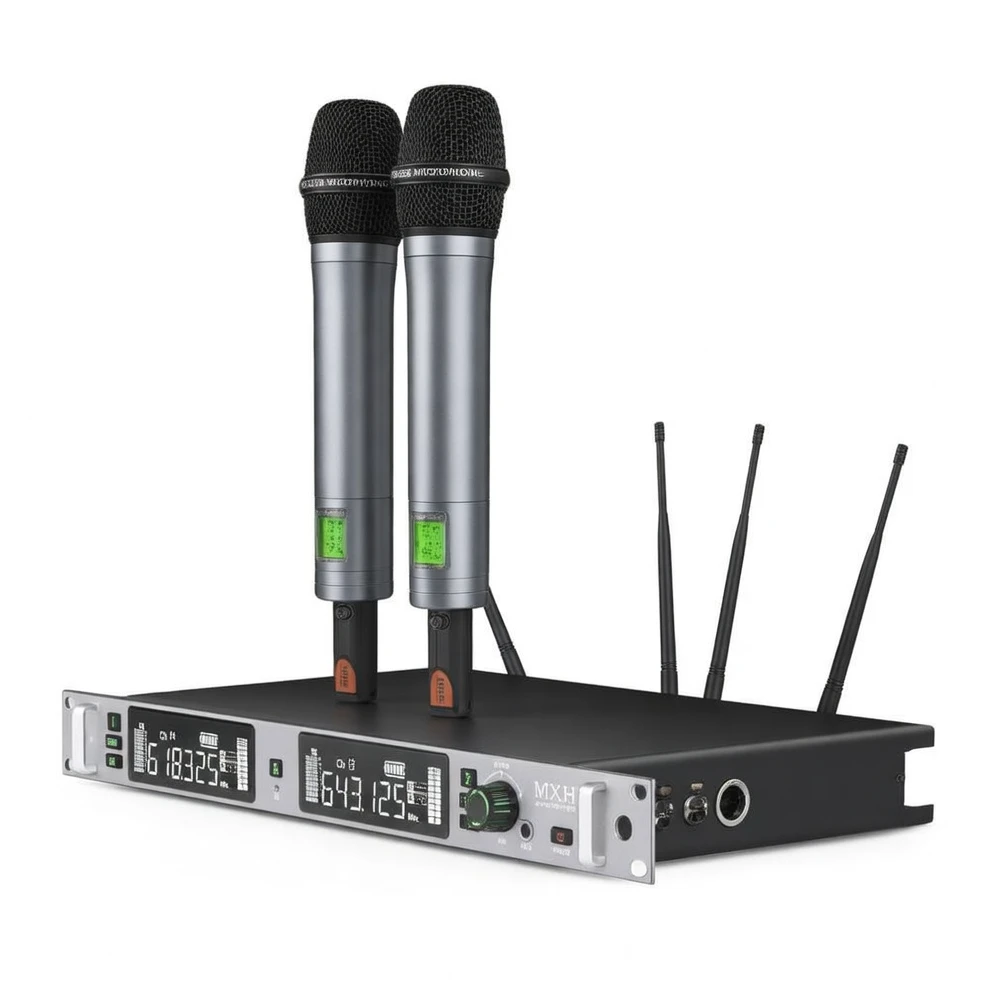

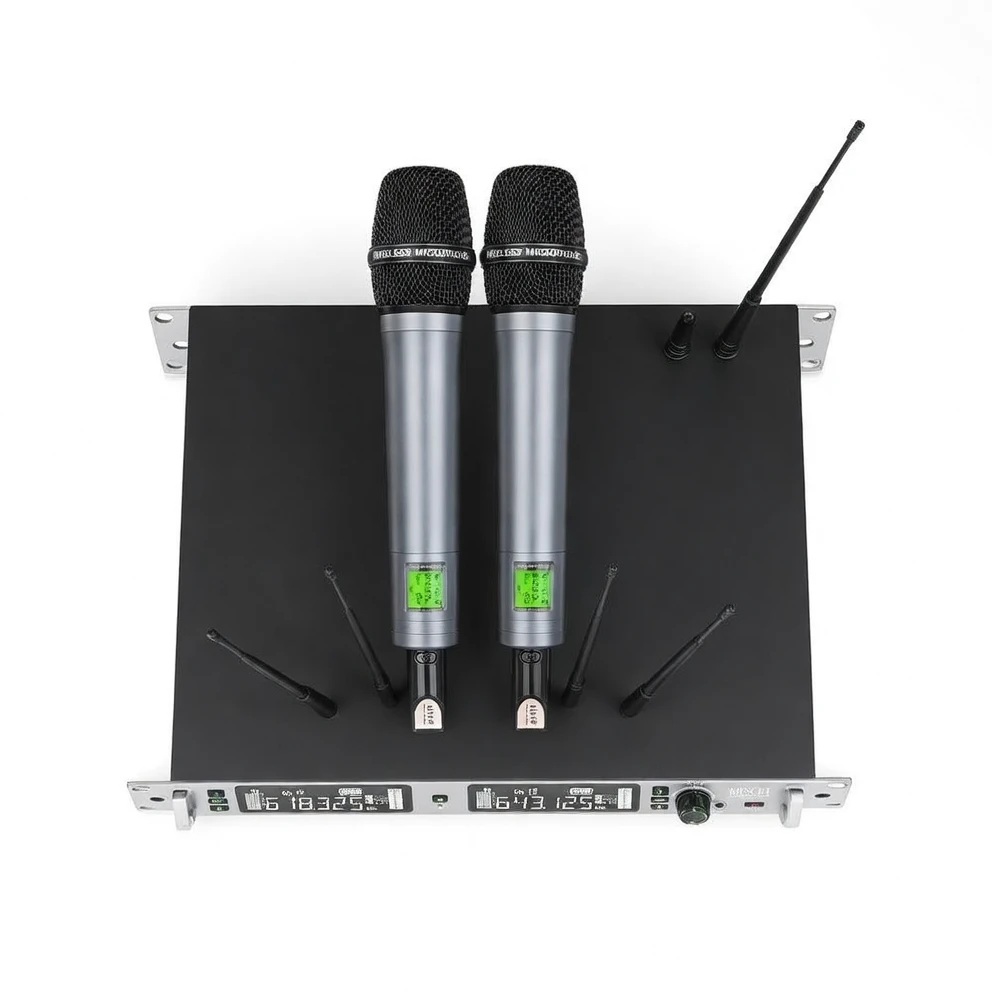

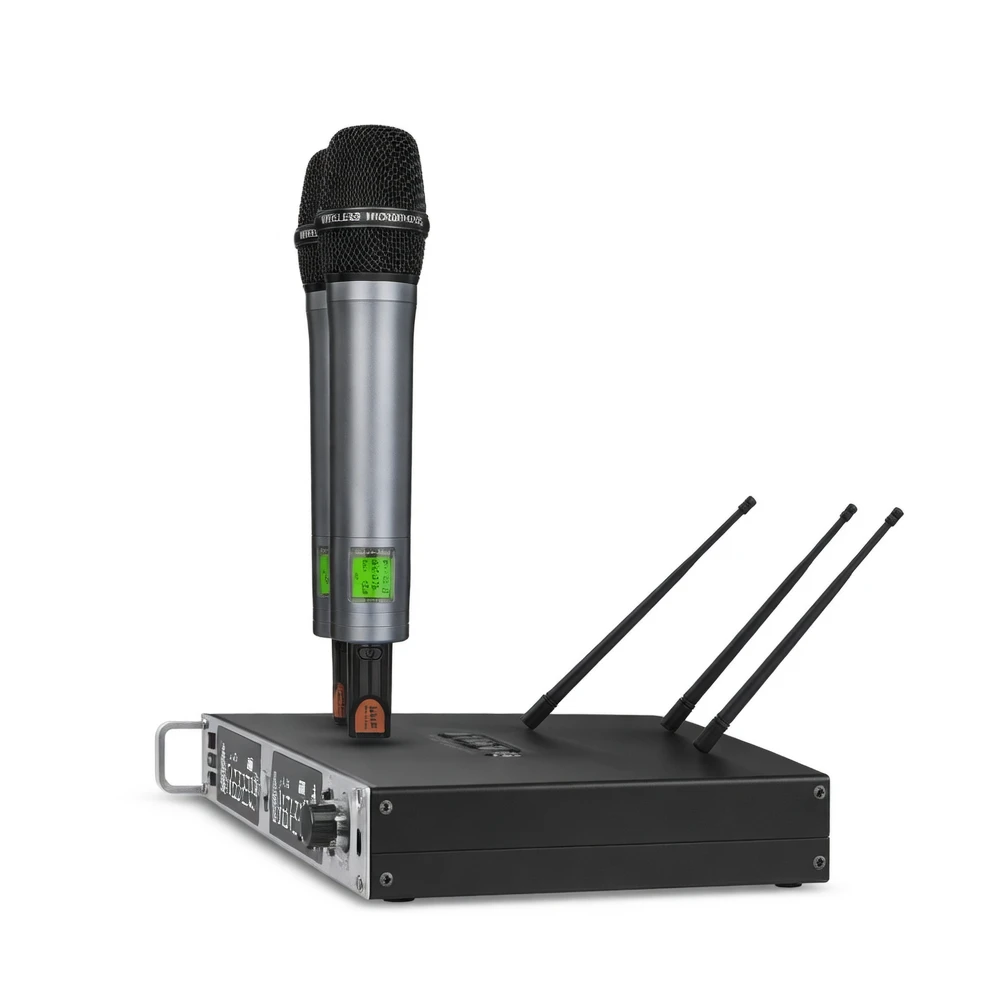

The MXH ACT-720 is a professional true diversity wireless microphone system, built with advanced PLL phase-locked loop frequency synthesis technology and microcomputer CPU control, supporting 700-meter ultra-long-range signal transmission (in open, unobstructed environments). The system offers 2×100 channel switching, infrared auto-synchronization, and interchangeable use of microphones A and B—ideal for professional live performances, conference speaking, and educational training.
The receiver employs a true diversity dual-reception circuit paired with digital pilot tone technology to effectively eliminate signal dropouts and dead zones. Dual noise squelch protection—comprising noise-lock squelch and tone-code navigation squelch—ensures clean, stable audio. Audio dynamic expansion and automatic level control circuits deliver natural, transparent sound reproduction.
Frequency Synthesis Technology
PLL phase-locked loop frequency synthesis, microcomputer CPU control
Frequency Stability
±0.002%
Number of Channels
2×100 channels, freely selectable between 32 or 64 channels
Synchronization Method
Infrared auto-synchronization
Display Type
LCD digital display
Reception Method
True diversity dual-reception circuit, digital pilot tone technology
Squelch Control
Noise-lock squelch + tone-code navigation squelch
Transmission Distance
700 meters (in open, unobstructed environments)
Spurious Emission Rejection
≥80 dB
Image Rejection
≥80 dB
Sensitivity
≤5 dBμV
Audio Output (Balanced)
XLR output, 250 mV / 600 Ω
Audio Output (Unbalanced)
1/4" output, 400 mV / 1 kΩ
EQ Adjustment
3-band EQ
Oscillation Mode
PLL (digital frequency synthesis)
Operating Voltage
DC 12–16 V
Operating Current
650 mA
Applications
The ACT-720 true diversity wireless microphone system is suitable for professional stage performances, large-scale conference presentations, education and training, wedding hosting, and live streaming/recording. Its 700-meter ultra-long transmission range ensures full coverage in large venues, while true diversity reception reliably handles complex electromagnetic environments—making it a trusted choice for professional audio engineering.
For more product details or bulk procurement options, contact us today for professional technical support and quotations.
