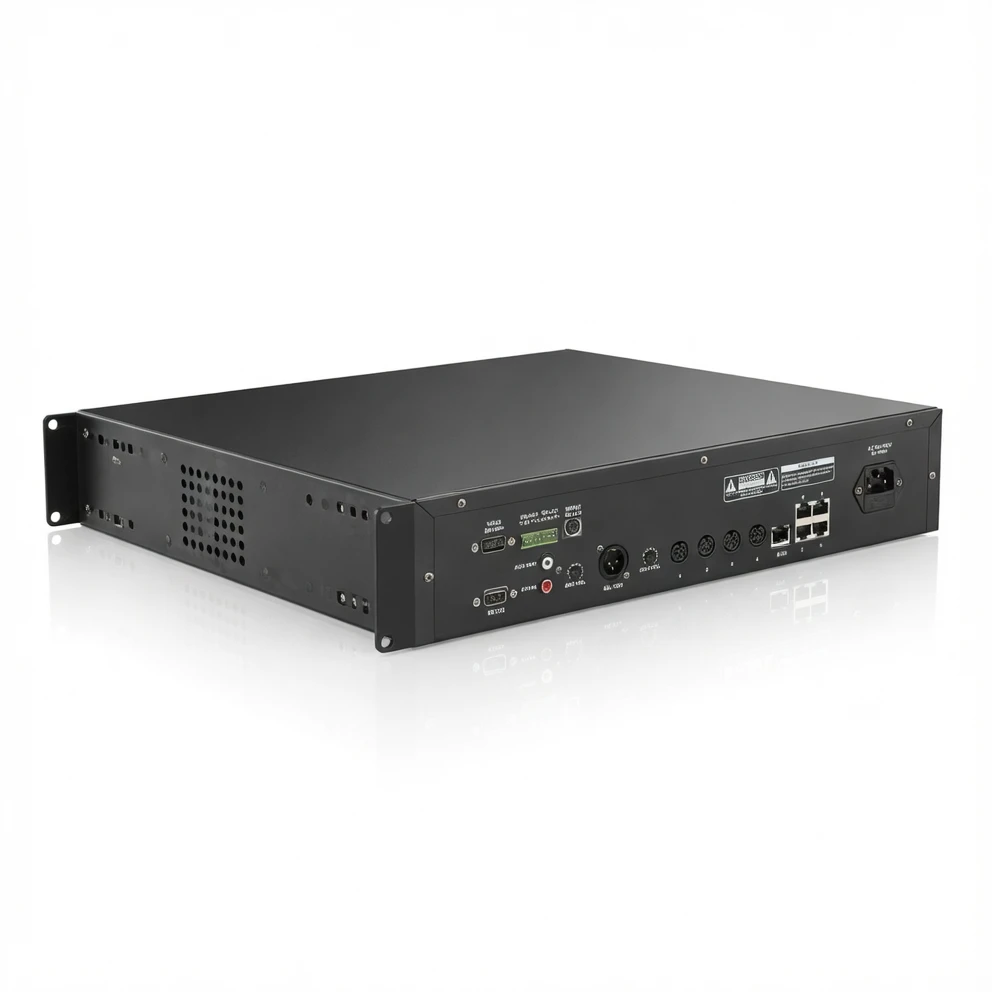

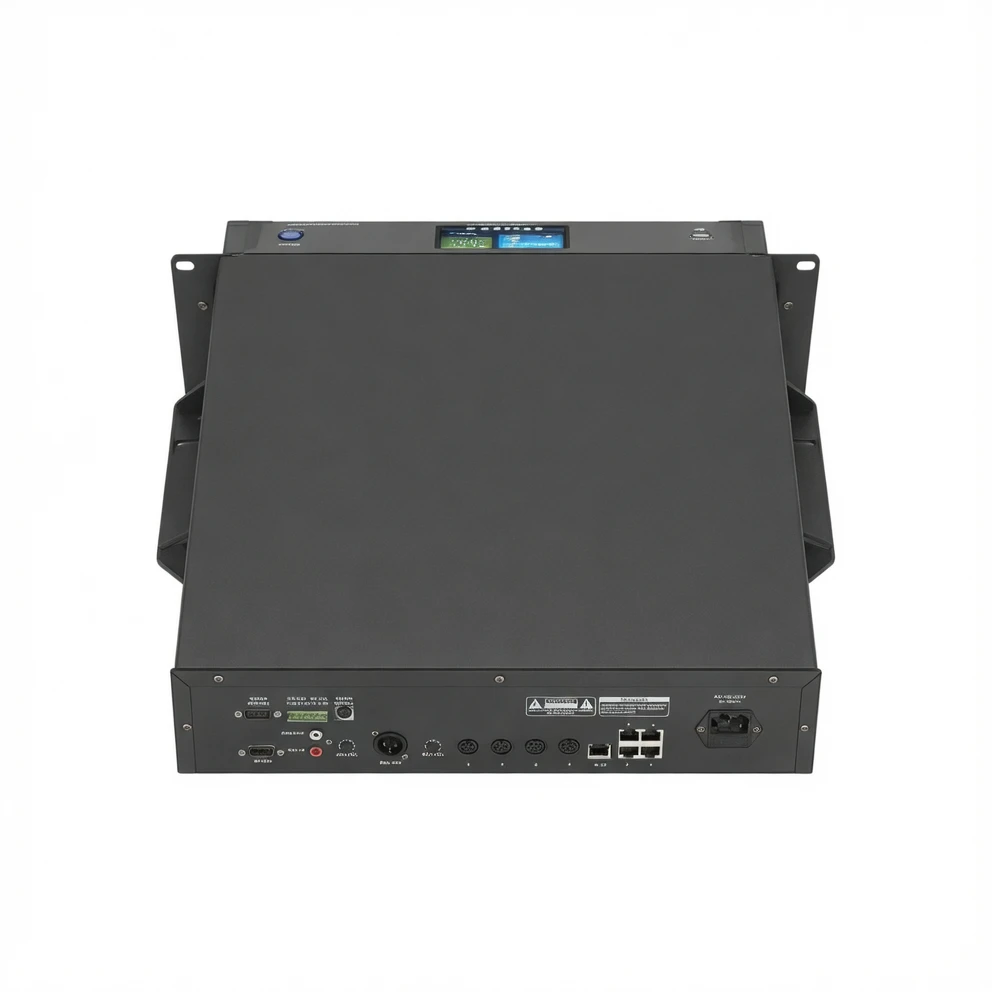

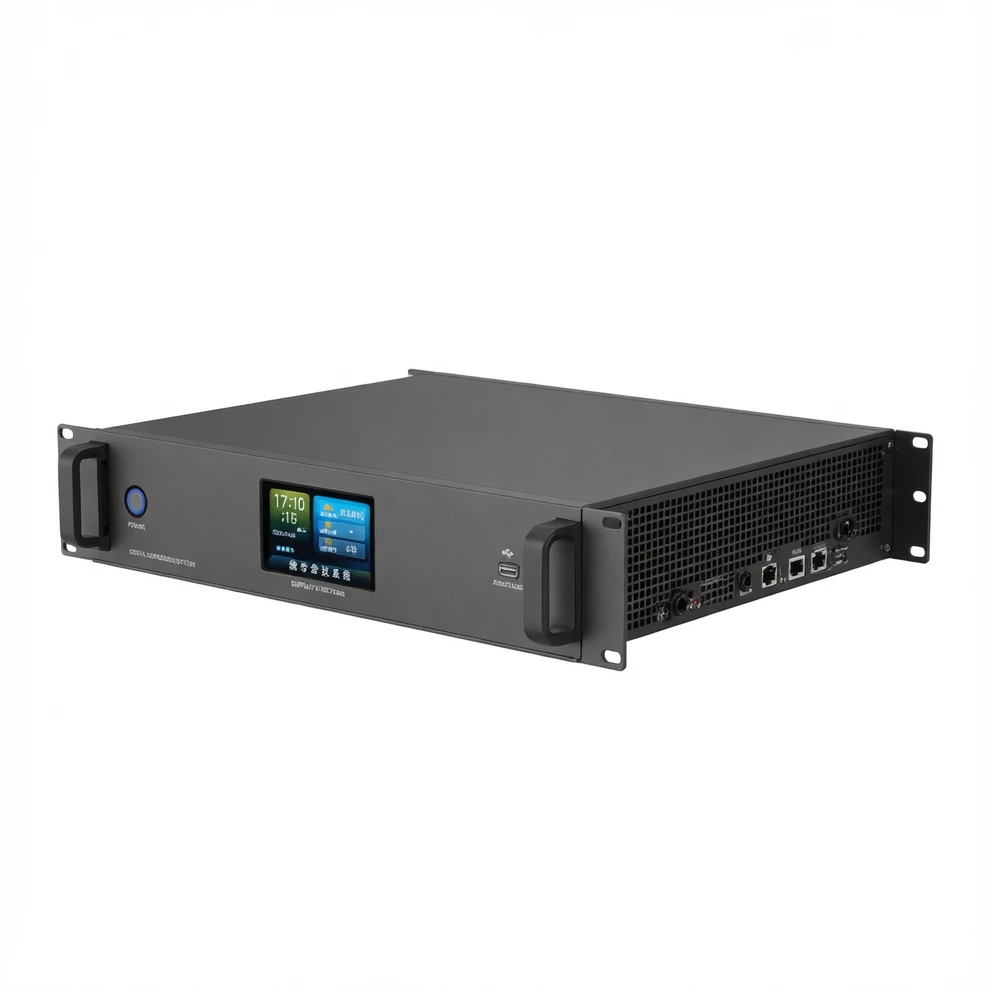

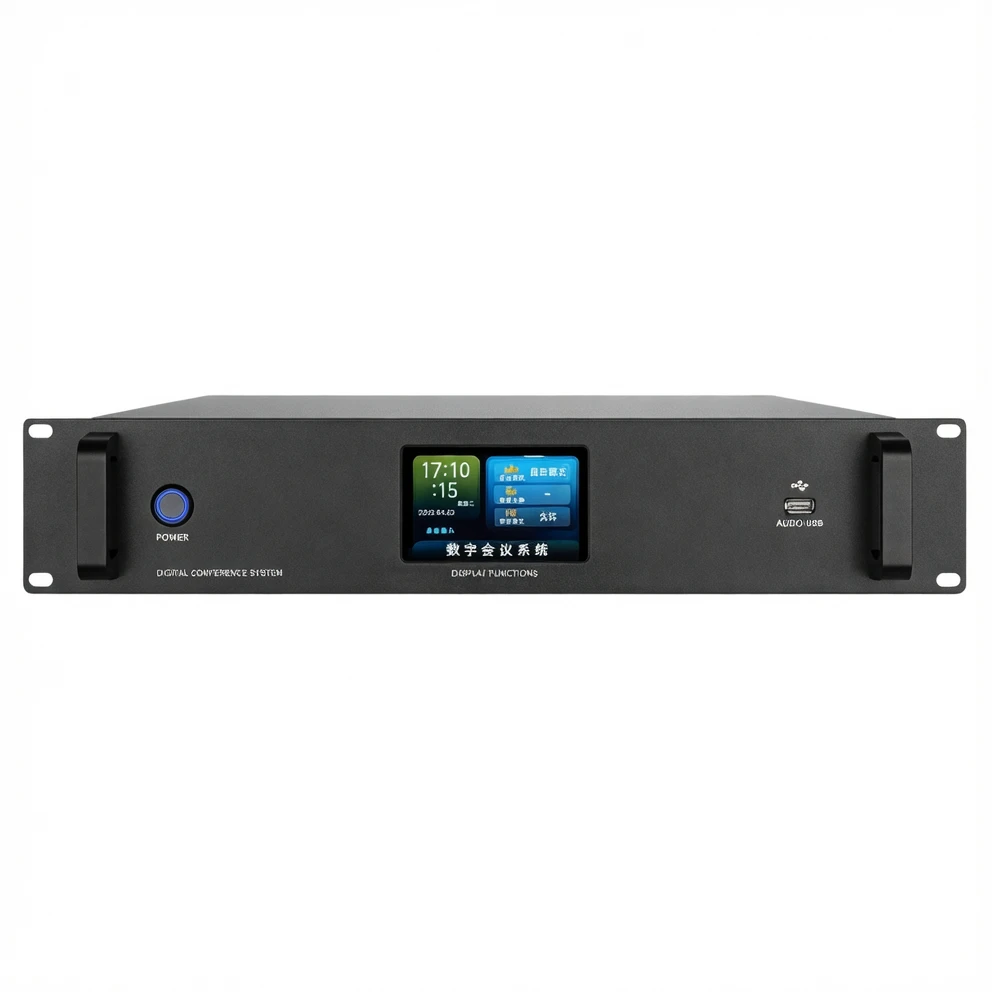

Harmonai GS-880 Wired Daisy-Chain Conference System Main Unit with Voting — Product Image

Product Overview

Harmonai GS-880 is a professional wired daisy-chain conference system main unit with integrated voting functionality, designed specifically for formal medium-to-large-scale meetings in government agencies and enterprises. The system uses a daisy-chain serial connection method and supports hot swapping for easy installation and maintenance. Chairperson and delegate units feature a 3.5" intelligent high-definition touchscreen, displaying real-time unit parameters, volume control, language switching, brightness adjustment, and more—ensuring intuitive and clear operation.

The main unit supports full meeting workflow functions including sign-in, voting, election, scoring, and speaking time management. The chairperson unit holds priority control rights—approving delegate speaking requests and fully managing meeting order. Each unit employs a fully isolated dual-microphone architecture (primary + backup): if the primary microphone fails, the backup continues output seamlessly, guaranteeing zero-interruption meetings.

Operating Voltage

DC 24V (supplied by main unit)

Input/Output Interface

8P-DIN T-type cable

Microphone Capsule Type

Cardioid electret condenser

Sensitivity

-46 dBV/Pa

Frequency Response

20 Hz ~ 20 kHz

Input Impedance

2 kΩ

Directivity

0°/180° > 20 dB (1 kHz)

Equivalent Noise Level

20 dBA (SPL)

Maximum Sound Pressure Level

125 dB (THD < 3%)

Signal-to-Noise Ratio

> 80 dB

Channel Crosstalk

> 80 dB

Total Harmonic Distortion

< 0.05%

Display

3.5" touchscreen

External Dimensions (excluding microphone stem)

160 × 90 × 54 mm

Weight

1.0 kg

Color

Gray-black

Mounting Style

Desktop

Typical Applications

The GS-880 is widely used in scenarios requiring formal voting, sign-in, and election capabilities—including government meetings, NPC and CPPCC voting sessions, corporate board meetings, tender evaluation panels, and academic review committees. The system supports multiple chairperson units operating simultaneously, with no positional restrictions—enabling flexible deployment. Units also support service requests (e.g., water, stationery, staff assistance), enhancing overall meeting professionalism.

For detailed GS-880 system configuration options or pricing information, please contact us for professional technical support.
