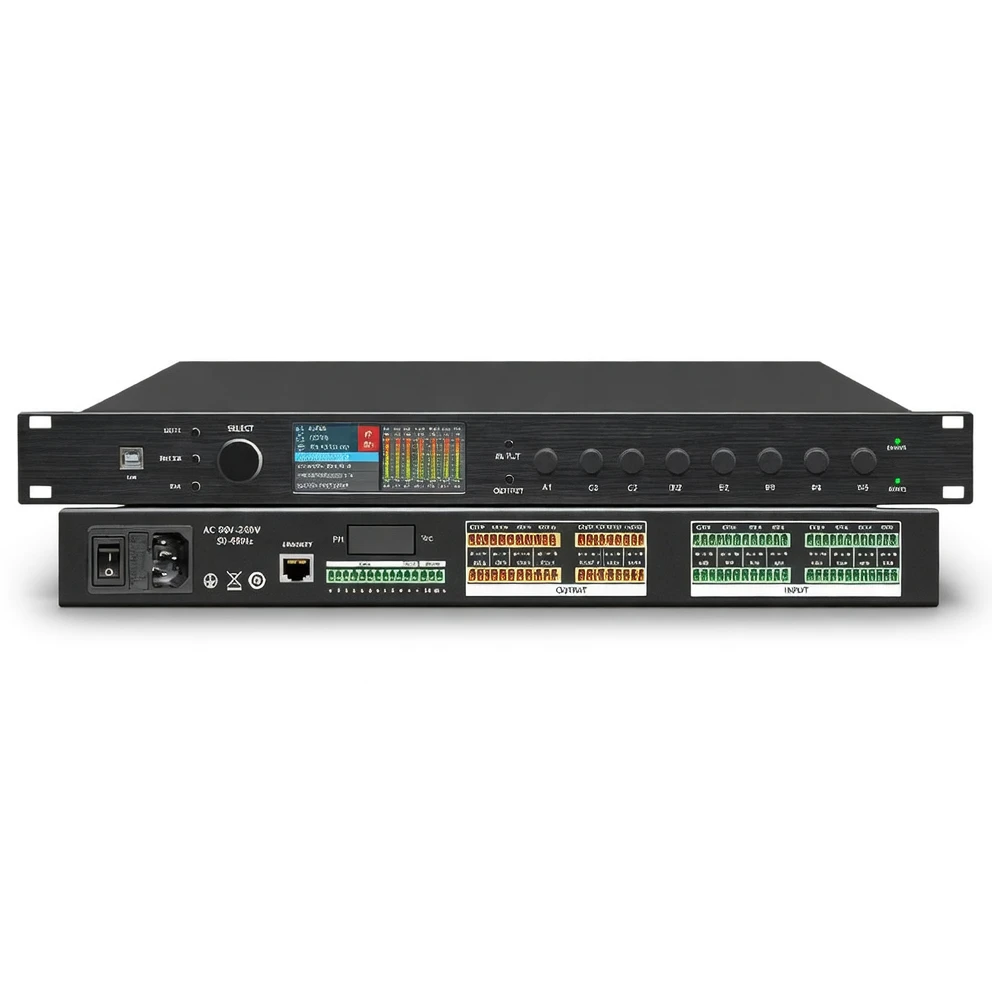

Harmonai DSP1616 16×16 Audio Matrix Processor image 1

Harmonai DSP1616 16×16 Audio Matrix Processor — Professional Digital Audio Signal Processing Platform

A professional 16-in/16-out digital audio matrix processor powered by the ADI SHARC 21489 DSP chip, featuring Dante 16×16 networking, AEC, AFC, and ANS algorithms for large-scale a...

$648.57

Model: DSP1616
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai DSP1616 16×16 Audio Matrix Processor — Professional Digital Audio Signal Processing Platform

Overview

A professional 16-in/16-out digital audio matrix processor powered by the ADI SHARC 21489 DSP chip, featuring Dante 16×16 networking, AEC, AFC, and ANS algorithms for large-scale a...

Price: $648.57
Model: DSP1616
Category: Stage Accessories

Specifications

Parameter	Value
DSP Chip	ADI SHARC 21489 @ 450MHz, 40-bit floating-point DSP engine
DSP Processing Capability	400 MIPS, 1.6 GFLOPS
Analog Input Channels	16 balanced Mic/Line inputs, bare-wire terminal blocks
Analog Output Channels	16 balanced line-level outputs, bare-wire terminal blocks
Dante Channels	16-in/16-out digital audio network
Sample Rate / Bit Depth	48kHz / 24-bit
Dynamic Range (A/D/A)	>107dB (A-weighted)
THD+N	<0.002% @ 1kHz, +4dBu
Frequency Response	20Hz ~ 20kHz (±0.5dB)
Acoustic Echo Cancellation (AEC)	Bus-based AEC, tail length 512ms, convergence rate 60dB/s, suppression depth 60dB
Feedback Suppression (AFC)	Notch-based algorithm, 8 adaptive points per channel, gain increase up to 10dB
Automatic Noise Suppression (ANS)	Next-generation automatic noise suppression, SNR improvement up to 18dB
Parametric EQ (PEQ)	≥8-band PEQ per channel, 5 filter types (Parametric / Low-shelf / High-shelf / Low-pass / High-pass)
Matrix Routing	36 × 33 matrix
Preset Storage	≥16 presets, supporting input/output channel LINK and grouping
System Latency	<6ms
USB Audio Interface	Built-in 1-in/1-out USB audio interface for music playback, recording, and soft video conferencing
Control Interfaces	RS-232 bidirectional serial × 1, RS-485 × 1, RJ45 × 1, GPIO (≥8 logic I/O channels)
Power Supply	AC 110–240V, 50Hz/60Hz
Dimensions	482 × 260 × 45mm (W × D × H)
Weight	3kg (shipping weight)

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

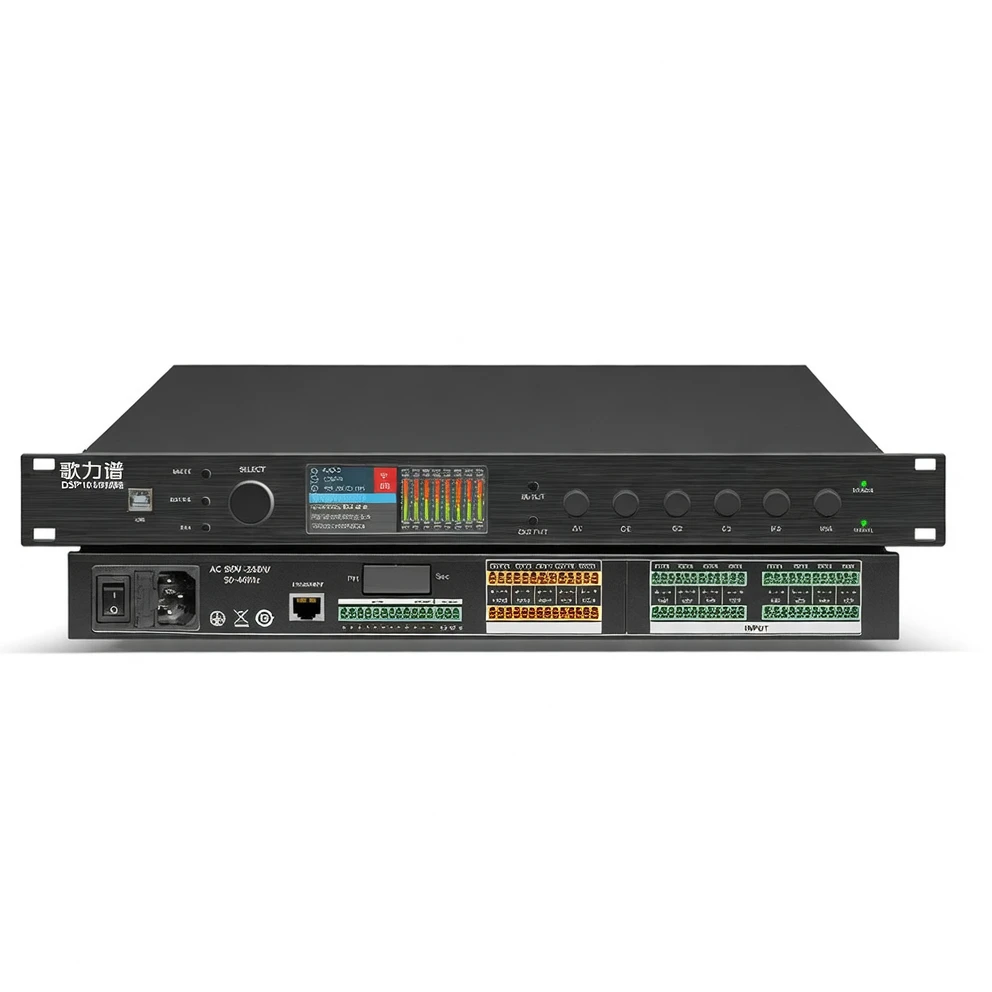

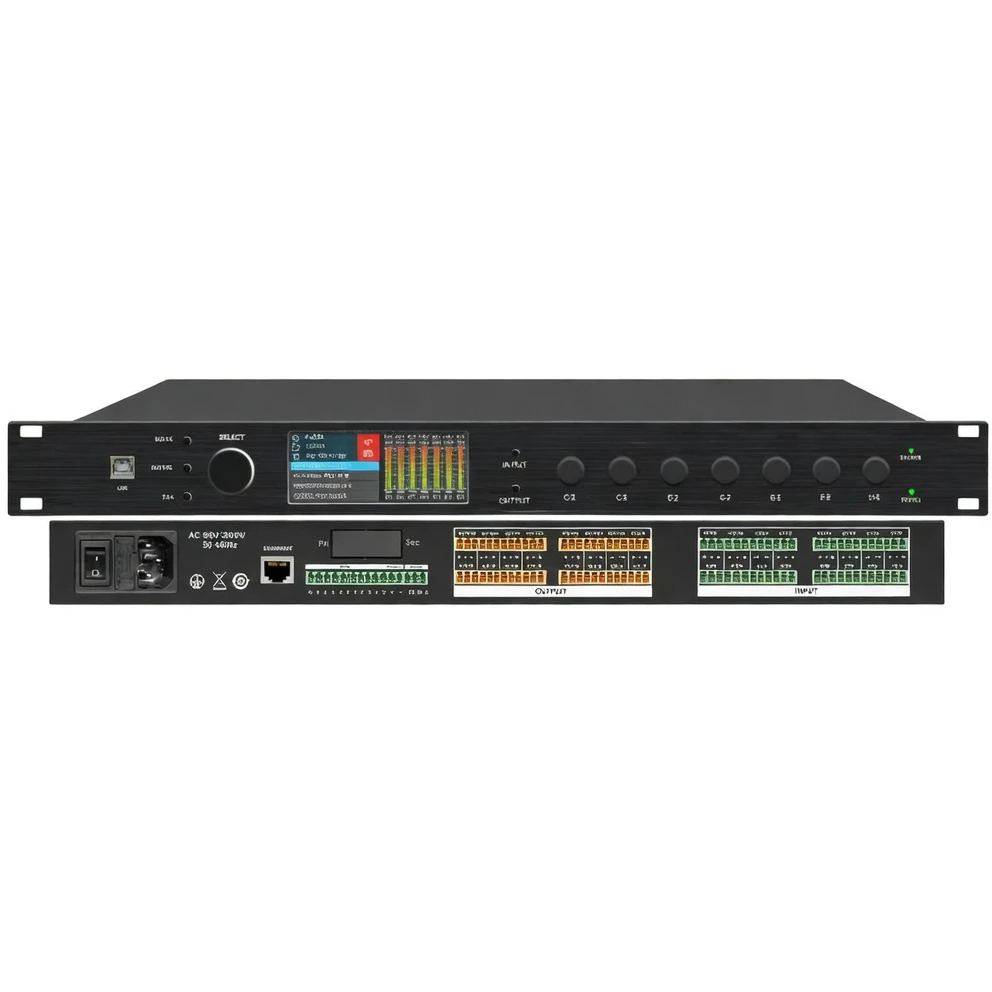

Harmonai DSP1616 16×16 Audio Matrix Processor product image

Product Overview

The Harmonai DSP1616 is a professional-grade 16-input/16-output digital audio matrix processor powered by the high-performance ADI SHARC 21489 DSP chip (450MHz, 400MIPS / 1.6GFLOPS), delivering robust signal processing capabilities for large-scale audio systems. It features 16 channels of Mic/Line analog inputs with phantom power and 16 balanced line-level outputs, plus Dante 16×16 digital audio network transmission—ideal for professional conference halls, broadcast studios, hotel ballrooms, and more.

It integrates three core audio algorithms: Adaptive Distributed Acoustic Echo Cancellation (AEC, tail length 512ms), Adaptive Feedback Control (AFC, gain increase up to 10dB), and next-generation Automatic Noise Suppression (ANS, SNR improvement up to 18dB). Combined with an 8-band parametric equalizer per channel and a 36×33 matrix routing engine, it enables comprehensive audio system optimization and management.

DSP Chip

ADI SHARC 21489 @ 450MHz, 40-bit floating-point DSP engine

DSP Processing Capability

400 MIPS, 1.6 GFLOPS

Analog Input Channels

16 balanced Mic/Line inputs, bare-wire terminal blocks

Analog Output Channels

16 balanced line-level outputs, bare-wire terminal blocks

Dante Channels

16-in/16-out digital audio network

Sample Rate / Bit Depth

48kHz / 24-bit

Dynamic Range (A/D/A)

>107dB (A-weighted)

THD+N

<0.002% @ 1kHz, +4dBu

Frequency Response

20Hz ~ 20kHz (±0.5dB)

Acoustic Echo Cancellation (AEC)

Bus-based AEC, tail length 512ms, convergence rate 60dB/s, suppression depth 60dB

Feedback Suppression (AFC)

Notch-based algorithm, 8 adaptive points per channel, gain increase up to 10dB

Automatic Noise Suppression (ANS)

Next-generation automatic noise suppression, SNR improvement up to 18dB

Parametric EQ (PEQ)

≥8-band PEQ per channel, 5 filter types (Parametric / Low-shelf / High-shelf / Low-pass / High-pass)

Matrix Routing

36 × 33 matrix

Preset Storage

≥16 presets, supporting input/output channel LINK and grouping

System Latency

<6ms

USB Audio Interface

Built-in 1-in/1-out USB audio interface for music playback, recording, and soft video conferencing

Control Interfaces

RS-232 bidirectional serial × 1, RS-485 × 1, RJ45 × 1, GPIO (≥8 logic I/O channels)

Power Supply

AC 110–240V, 50Hz/60Hz

Dimensions

482 × 260 × 45mm (W × D × H)

Weight

3kg (shipping weight)

Typical Applications

The DSP1616 is widely deployed in professional conference rooms, multi-function halls, banquet venues, broadcast studios, hotel audio systems, theaters, churches, educational institutions, and enterprise command centers—anywhere large-scale audio signal processing and distribution is required. Its Dante digital network capability enables seamless integration into IP-based audio infrastructures, while its rich set of control interfaces supports third-party control systems for one-touch scene switching and device synchronization.
