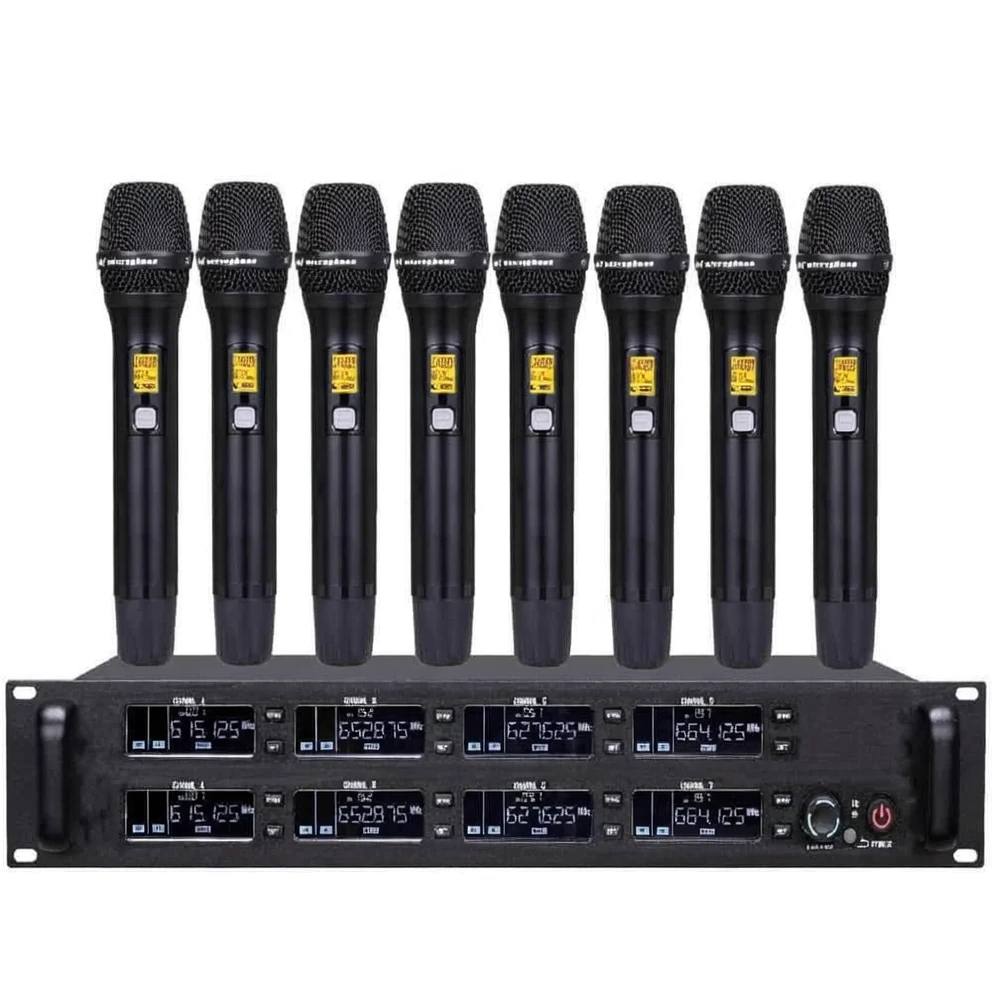

Harmonai F1008 One-to-Eight Wireless Microphone System image 1

Harmonai F1008 One-to-Eight Wireless Microphone System — Professional Multi-Channel Diversity Receiver

The Harmonai F1008 one-to-eight wireless microphone system is engineered for professional installations. Featuring a standard 1U metal chassis, CPU-controlled encrypted channel sel...

$344.12

Model: F1008
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai F1008 One-to-Eight Wireless Microphone System — Professional Multi-Channel Diversity Receiver

Overview

The Harmonai F1008 one-to-eight wireless microphone system is engineered for professional installations. Featuring a standard 1U metal chassis, CPU-controlled encrypted channel sel...

Price: $344.12
Model: F1008
Category: Microphones

Specifications

Parameter	Value
Chassis Specifications	Standard 1U EIA metal chassis
Display	AV black-film full-view screen, clearly showing RF/VF signal and transmitter battery status
Operating Frequency Band	515–933 MHz (compliant with national radio regulations)
Reception Technology	CPU-controlled encrypted channel selection, dual-conversion superheterodyne
Menu Functions	Built-in SQ/EQ adjustment menu, tailored for engineering applications
Antenna System	TNC-connected 4-antenna independent reception; supports external antenna amplifiers to extend range and improve communication quality
Operating Distance (Open Area)	80–100 meters
Operating Distance (Complex Environment)	50–80 meters
Recommended Applications	All types of meetings and speech events

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

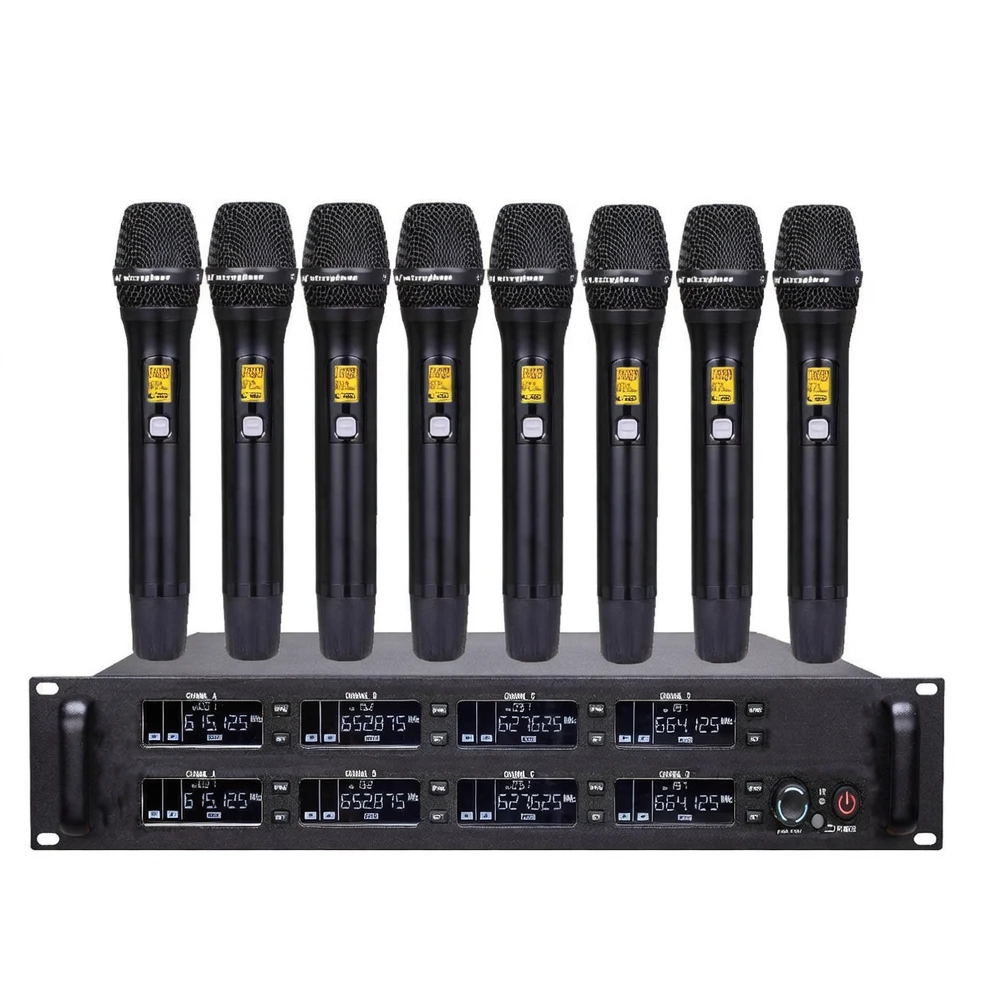

Harmonai F1008 one-to-eight wireless microphone system product image

Product Overview

The Harmonai F1008 one-to-eight wireless microphone system is a high-performance multi-channel wireless microphone solution designed specifically for engineering and professional AV installations. Housed in a standard 1U EIA metal chassis, it features an AV black-film full-view display that clearly shows real-time RF/VF signal strength and transmitter battery status. Combined CPU-controlled encrypted channel selection with a dual-conversion superheterodyne architecture ensures stable signal reception even in complex electromagnetic environments. Equipped with TNC-connected 4-antenna independent reception, it achieves up to 100 meters of transmission range in open areas — ideal for conference systems, lecture halls, multi-function auditoriums, and other professional venues.

Chassis Specifications

Standard 1U EIA metal chassis

Display

AV black-film full-view screen, clearly showing RF/VF signal and transmitter battery status

Operating Frequency Band

515–933 MHz (compliant with national radio regulations)

Reception Technology

CPU-controlled encrypted channel selection, dual-conversion superheterodyne

Menu Functions

Built-in SQ/EQ adjustment menu, tailored for engineering applications

Antenna System

TNC-connected 4-antenna independent reception; supports external antenna amplifiers to extend range and improve communication quality

Operating Distance (Open Area)

80–100 meters

Operating Distance (Complex Environment)

50–80 meters

Recommended Applications

All types of meetings and speech events

Typical Applications

The F1008 one-to-eight system supports eight simultaneous wireless channels — perfectly suited for medium-to-large conference rooms, lecture halls, multi-purpose auditoriums, theaters, and other professional venues requiring concurrent multi-microphone operation. Its built-in SQ/EQ adjustment enables flexible acoustic tuning based on venue-specific acoustics, ensuring outstanding audio performance for every event.

For detailed technical specifications or engineering quotation requests for the Harmonai F1008 one-to-eight wireless microphone system, contact us today for expert consultation and customized solutions.
