Harmonai DT206 Dual-Channel True Diversity Wireless Handheld Microphone image 1

Harmonai DT206 Dual-Channel True Diversity Wireless Handheld Microphone — UHF Professional Stage-Grade System

The Harmonai DT206 dual-channel true diversity wireless handheld microphone features UHF dual-band design (530–580 MHz / 615–665 MHz), digital ID pilot tone technology to eliminate...

$152.94

Model: DT206
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai DT206 Dual-Channel True Diversity Wireless Handheld Microphone — UHF Professional Stage-Grade System

Overview

The Harmonai DT206 dual-channel true diversity wireless handheld microphone features UHF dual-band design (530–580 MHz / 615–665 MHz), digital ID pilot tone technology to eliminate...

Price: $152.94
Model: DT206
Category: Microphones

Specifications

Parameter	Value
Digital ID Pilot Tone Technology	Advanced digital ID pilot tone — fully eliminates frequency interference
Reception Technology	True diversity reception, effective range up to 100 meters
Frequency Bands	UHF 530–580 MHz / 615–665 MHz
Selectable Frequencies	200 channels
Electronic Volume Control	20-step adjustment
Receiver Sensitivity	−94 dBm (30 dB)
Image Rejection	>60 dB
Frequency Stability	±0.005%
Modulation Method	FM
Maximum Deviation	±45 kHz
Audio Response	50 Hz–18 kHz (±3 dB)
Signal-to-Noise Ratio	>105 dB
Dynamic Range	>100 dB
System Distortion	<0.5%
Harmonic Radiation	<−63 dBm
Bandwidth	40 MHz
Maximum Input SPL	130 dB SPL
Current Consumption	<110 mA
Transmitter Output Power	30 mW
Operating Temperature	−10°C to 55°C
Receiver Power Supply	12 V / 1 A
Transmitter Power Supply	2 × 1.5 V

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

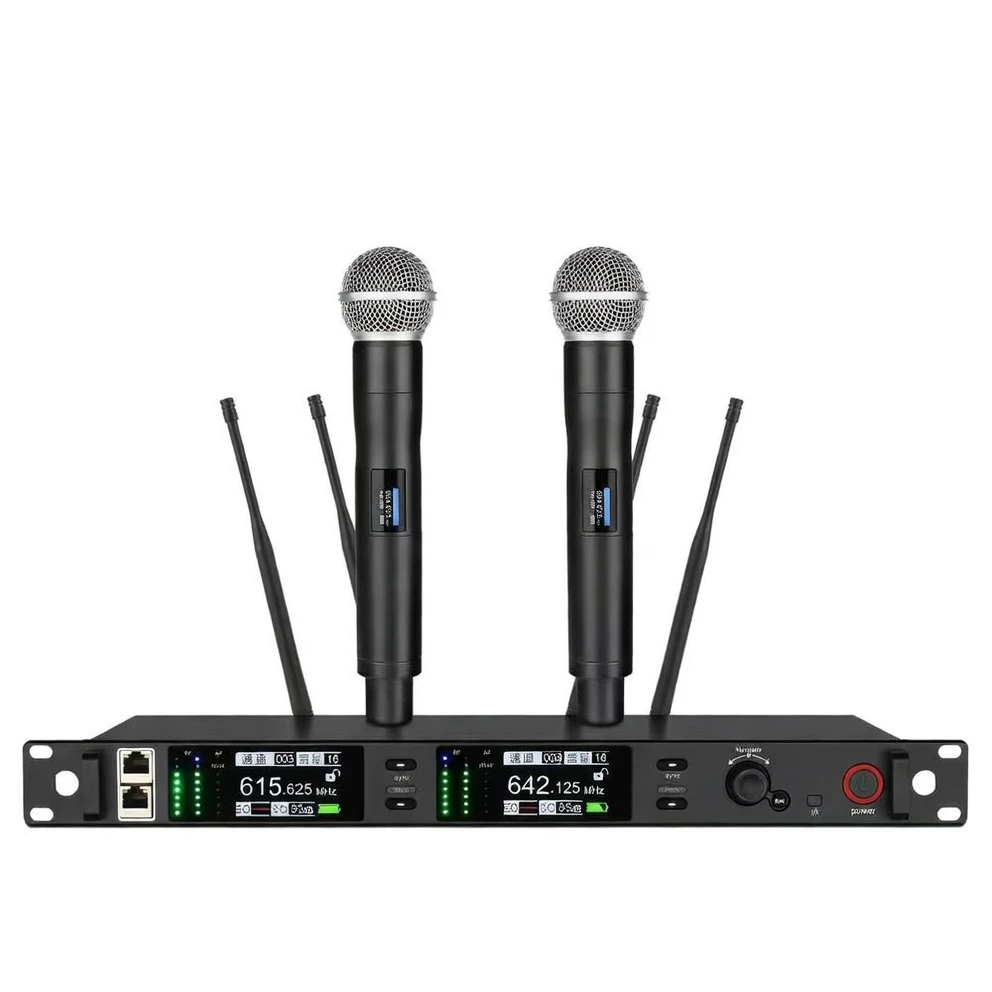

Harmonai DT206 dual-channel true diversity wireless handheld microphone product image

Product Overview

The Harmonai DT206 dual-channel true diversity wireless handheld microphone is a professional-grade system designed for stage performances, conference rooms, and multi-purpose venues. Featuring UHF dual-band operation (530–580 MHz / 615–665 MHz) and advanced digital ID pilot tone technology, it completely eliminates frequency interference. True diversity reception ensures stable, reliable signal transmission with an effective operating range of up to 100 meters. The system includes 200 selectable frequencies, one-touch automatic clean-channel search, and infrared sync pairing. Its 20-step electronic volume control offers precise adjustment. With a signal-to-noise ratio exceeding 105 dB, dynamic range greater than 100 dB, and system distortion below 0.5%, the DT206 delivers high-fidelity audio performance across all professional applications.

Digital ID Pilot Tone Technology

Advanced digital ID pilot tone — fully eliminates frequency interference

Reception Technology

True diversity reception, effective range up to 100 meters

Frequency Bands

UHF 530–580 MHz / 615–665 MHz

Selectable Frequencies

200 channels

Electronic Volume Control

20-step adjustment

Receiver Sensitivity

−94 dBm (30 dB)

Image Rejection

>60 dB

Frequency Stability

±0.005%

Modulation Method

Maximum Deviation

±45 kHz

Audio Response

50 Hz–18 kHz (±3 dB)

Signal-to-Noise Ratio

>105 dB

Dynamic Range

>100 dB

System Distortion

<0.5%

Harmonic Radiation

<−63 dBm

Bandwidth

40 MHz

Maximum Input SPL

130 dB SPL

Current Consumption

<110 mA

Transmitter Output Power

30 mW

Operating Temperature

−10°C to 55°C

Receiver Power Supply

12 V / 1 A

Transmitter Power Supply

2 × 1.5 V

Recommended Applications

The DT206 true diversity wireless handheld microphone system is suited for diverse professional environments: delivering stable, reliable wireless pickup on stages of all sizes, where true diversity reception prevents dropouts even at extended distances; supporting multi-speaker meetings in small, medium, and large conference rooms, with flexible switching among 200 frequencies to avoid interference; enhancing live entertainment, award ceremonies, and banquets in multi-purpose halls and ballrooms with high-fidelity sound; and enabling clear voice transmission during lectures and open classes in educational institutions. Intelligent field-strength (FI) detection monitors RF interference in real time, while feedback suppression and mobile phone interference resistance ensure stable operation in complex electromagnetic environments.

For more product details or customized wireless microphone system solutions, contact the Harmonai professional team — we offer one-on-one technical support and tailored consultation.
