Harmonai FBX2810 Professional Feedback Suppressor — Precisely Eliminates Howling, Restores Pure Audio Quality

The Harmonai FBX2810 feedback suppressor features a 1U rack-mount form factor (48.3 × 4.5 × 15.9 cm), SNR >108 dB, THD as low as 0.005%, XLR-3 and 1/4″ TRS connectors, and full 20...

$197.87

Model: FBX2810
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai FBX2810 Professional Feedback Suppressor — Precisely Eliminates Howling, Restores Pure Audio Quality

Overview

The Harmonai FBX2810 feedback suppressor features a 1U rack-mount form factor (48.3 × 4.5 × 15.9 cm), SNR >108 dB, THD as low as 0.005%, XLR-3 and 1/4″ TRS connectors, and full 20...

Price: $197.87
Model: FBX2810
Category: Stage Accessories

Specifications

Parameter	Value
Max Input/Output Signal Level	Balanced +18 dBV peak / Unbalanced +12 dBV peak
Output Drive	Designed to drive a load >600 Ω per unit specification
Input Impedance	Balanced or unbalanced input impedance >40 kΩ, pin-2 hot
Output Impedance	Balanced or unbalanced output impedance 150 Ω, pin-2 hot
Bypass	True power-off bypass
Headroom	Typical 4 dBV balanced input, max peak +14 dB
I/O Connectors	XLR-3 and 1/4″ TRS
Frequency Response	20 Hz–20 kHz, ±0.3 dB
Gain Matching	±0.2 dB
Spectral Change	+0.25 dB, 20 Hz–20 kHz
SNR / Dynamic Range	>108 dB
THD (1 kHz)	0.005%
THD (20 Hz–10 kHz)	<0.01%
THD (10 kHz–20 kHz)	<0.025%
Power Supply	220 V
Fuse	115 V AC: 0.1 A, 10 W, 0.16 A fast-blow / 230 V AC: 0.06 A, 10 W, 0.16 A fast-blow
Weight	3.6 kg
Dimensions	1U rack-mount, 48.3 × 4.5 × 15.9 cm

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

Product Overview

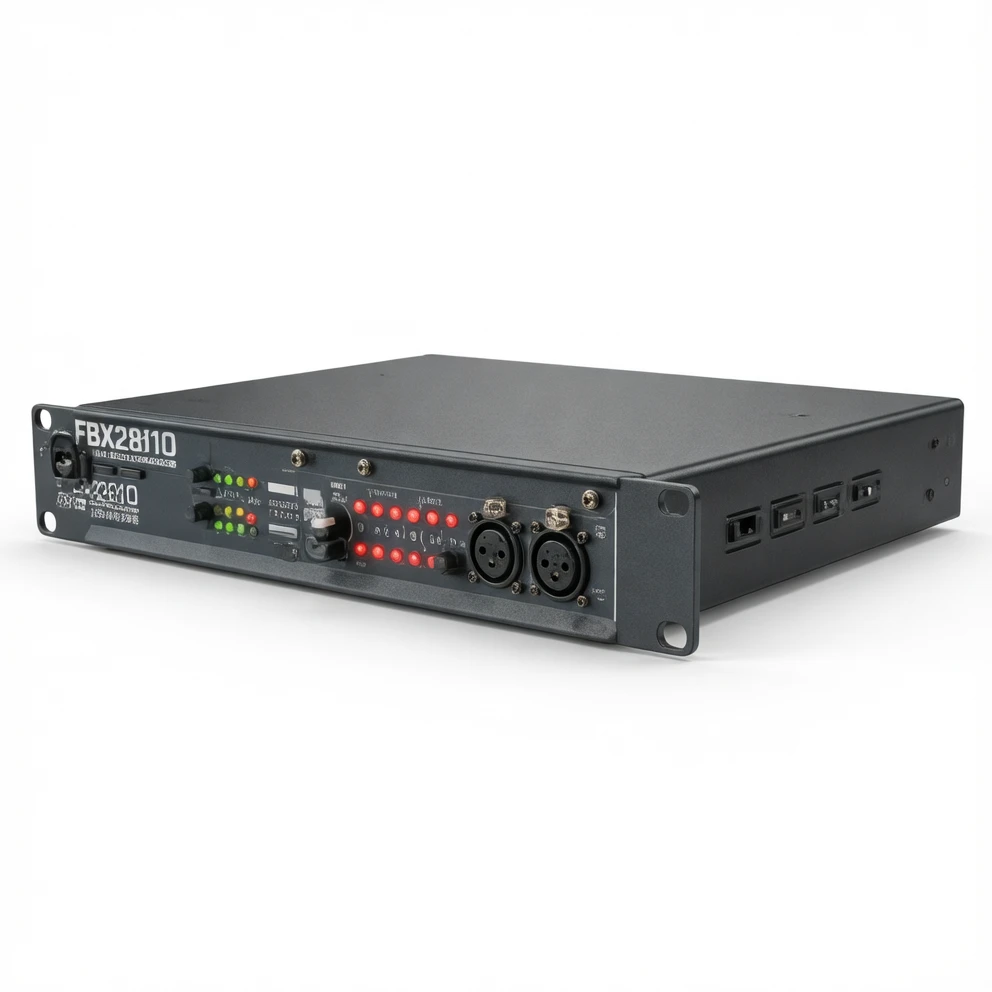

The Harmonai FBX2810 is a professional-grade feedback suppressor, engineered specifically to eliminate howling and acoustic feedback in audio systems. With a standard 1U rack-mount size (48.3 × 4.5 × 15.9 cm) and a lightweight design of only 3.6 kg, it integrates seamlessly into KTV rooms, conference systems, stage performances, and other professional audio signal chains.

The FBX2810 delivers an exceptional SNR of >108 dB and an ultra-low THD of just 0.005%, combined with full-bandwidth frequency response from 20 Hz to 20 kHz (±0.3 dB), ensuring precise, uncolored audio signal reproduction—free from feedback interference. It supports both balanced and unbalanced input/output modes and features XLR-3 and 1/4″ TRS connectors for maximum compatibility.

Max Input/Output Signal Level

Balanced: +18 dBV peak / Unbalanced: +12 dBV peak

Output Drive

Designed to drive a load >600 Ω per unit specification

Input Impedance

Balanced or unbalanced input impedance >40 kΩ, pin-2 hot

Output Impedance

Balanced or unbalanced output impedance: 150 Ω, pin-2 hot

Bypass Mode

True power-off bypass

Headroom

Typical: 4 dBV balanced input; max peak +14 dB

I/O Connectors

XLR-3 and 1/4″ TRS

Frequency Response

20 Hz–20 kHz, ±0.3 dB

Gain Matching

±0.2 dB

Spectral Change

+0.25 dB, 20 Hz–20 kHz

SNR / Dynamic Range

>108 dB

THD (1 kHz)

0.005%

THD (20 Hz–10 kHz)

<0.01%

THD (10 kHz–20 kHz)

<0.025%

Power Supply

220 V

Fuse

115 V AC: 0.1 A, 10 W, 0.16 A fast-blow fuse; 230 V AC: 0.06 A, 10 W, 0.16 A fast-blow fuse

Weight

3.6 kg

Dimensions

1U rack-mount, 48.3 × 4.5 × 15.9 cm

Recommended Applications

The FBX2810 feedback suppressor is ideal for venues requiring high-fidelity audio reproduction, including KTV rooms, multi-function conference halls, professional stage performances, lecture halls, and live music bars (Live Houses). Whether used for vocal performances or speech-based presentations, it reliably eliminates howling and ensures clear, natural, feedback-free sound.

For detailed configuration guidance or bulk purchase quotations for the FBX2810 feedback suppressor, contact the Harmonai professional team.
