Input Type
Stereo input / Mono input
Product Overview

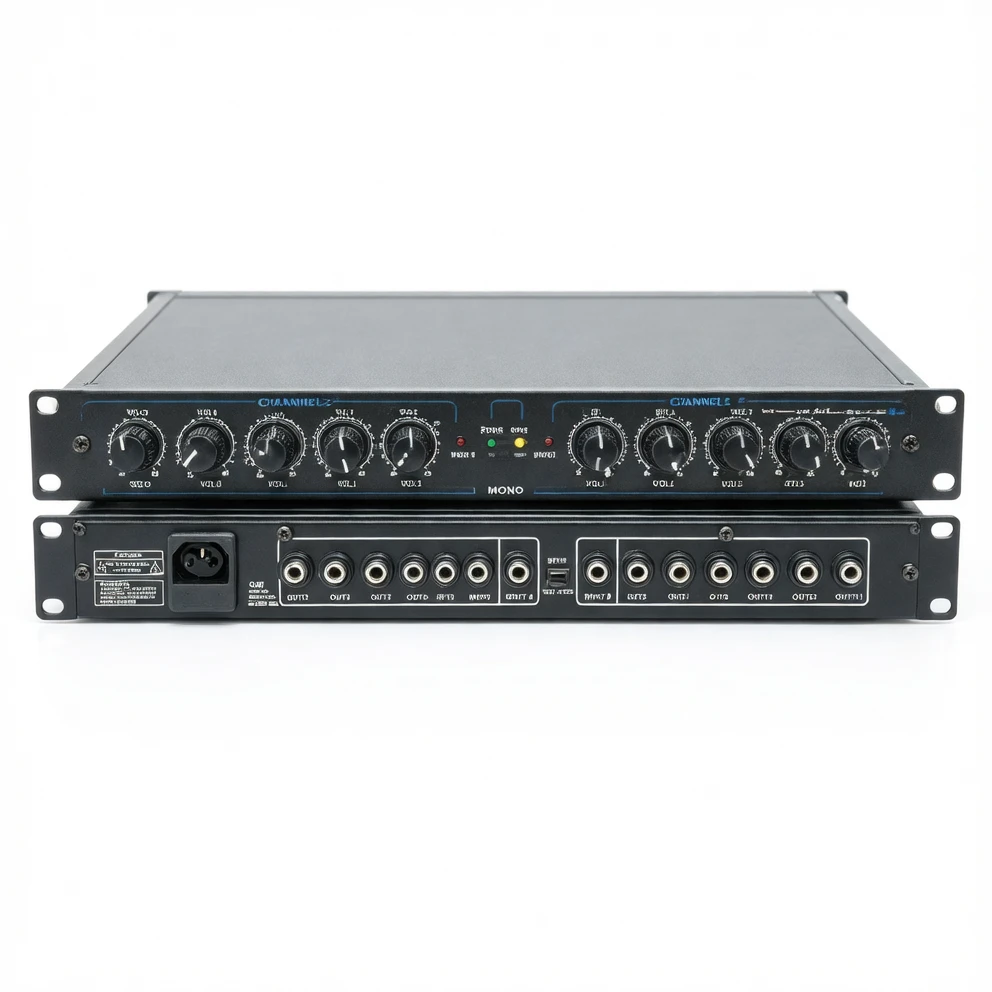

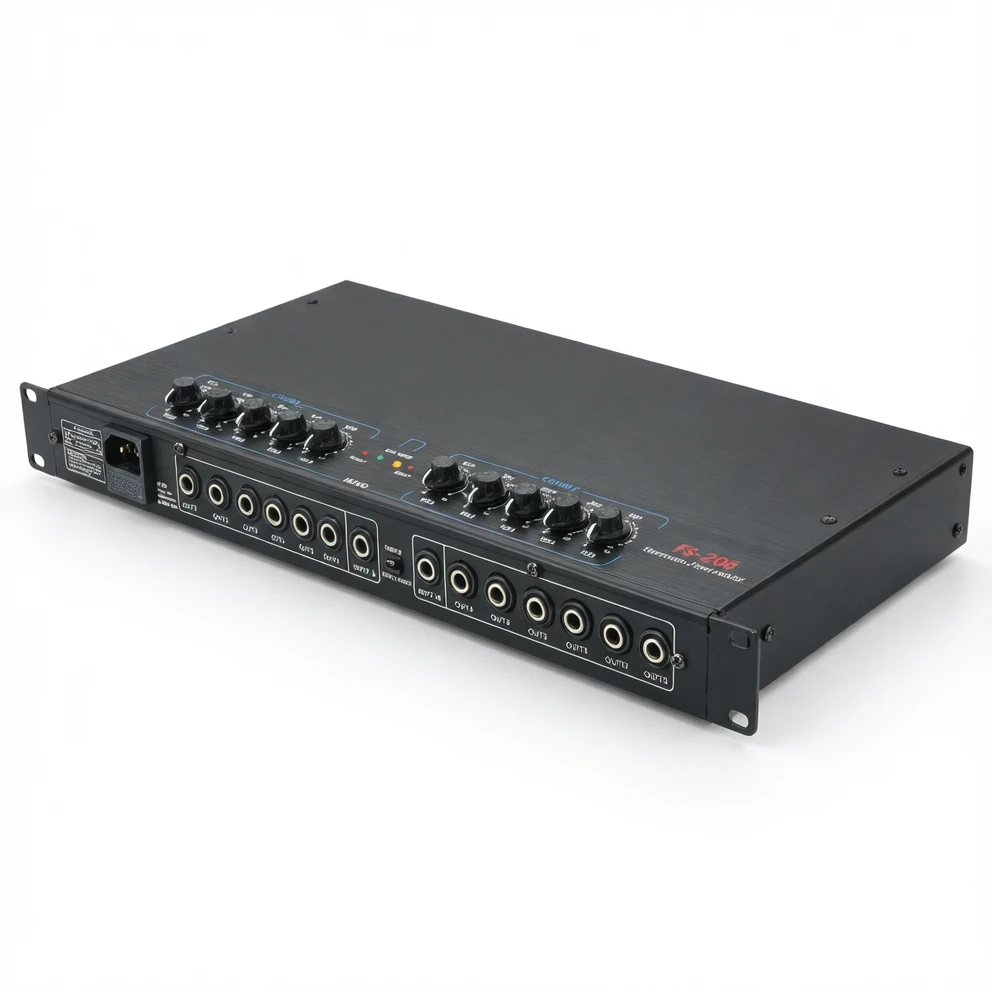

The Harmonai FS206 signal crossover is a professional audio signal distribution and processing device supporting both stereo and mono input modes. In stereo mode, it provides 6 independent branch outputs; in mono mode, it expands to 12 outputs — each fully adjustable for level control to meet the precise signal routing needs of multi-channel audio systems. Engineered with high-performance circuitry, it delivers a frequency response of 0.35 Hz–220 kHz, SNR exceeding 100 dB, and THD as low as 0.04%, ensuring high-fidelity, ultra-low-distortion signal transmission — ideal for live performance, conference systems, recording studios, and broadcast applications.
Stereo Output Channels
6 branch outputs (individually level-adjustable)
Mono Output Channels
12 branch outputs (individually level-adjustable)
Input Impedance
50 kΩ (balanced) / 25 kΩ (unbalanced)
Maximum Input Level
+21 dBu (balanced and unbalanced)
Output Impedance
220 Ω (unbalanced)
Frequency Response
0.35 Hz–220 kHz (+0/−3 dB)
Signal-to-Noise Ratio (SNR)
>+100 dBu (unweighted, 22 Hz–22 kHz)
Total Harmonic Distortion (THD)
0.04% (typical @ +4 dBu, 1 kHz)
Typical Applications
The Harmonai FS206 signal crossover is designed for professional audio signal distribution — including multi-channel audio routing on live stages, multi-path signal transmission in conference systems, signal splitting in recording studios, and audio distribution in broadcast and television studios — wherever independent, per-channel level control is required.
For detailed technical specifications and system integration support for the Harmonai FS206 signal crossover, contact us for expert consultation.
