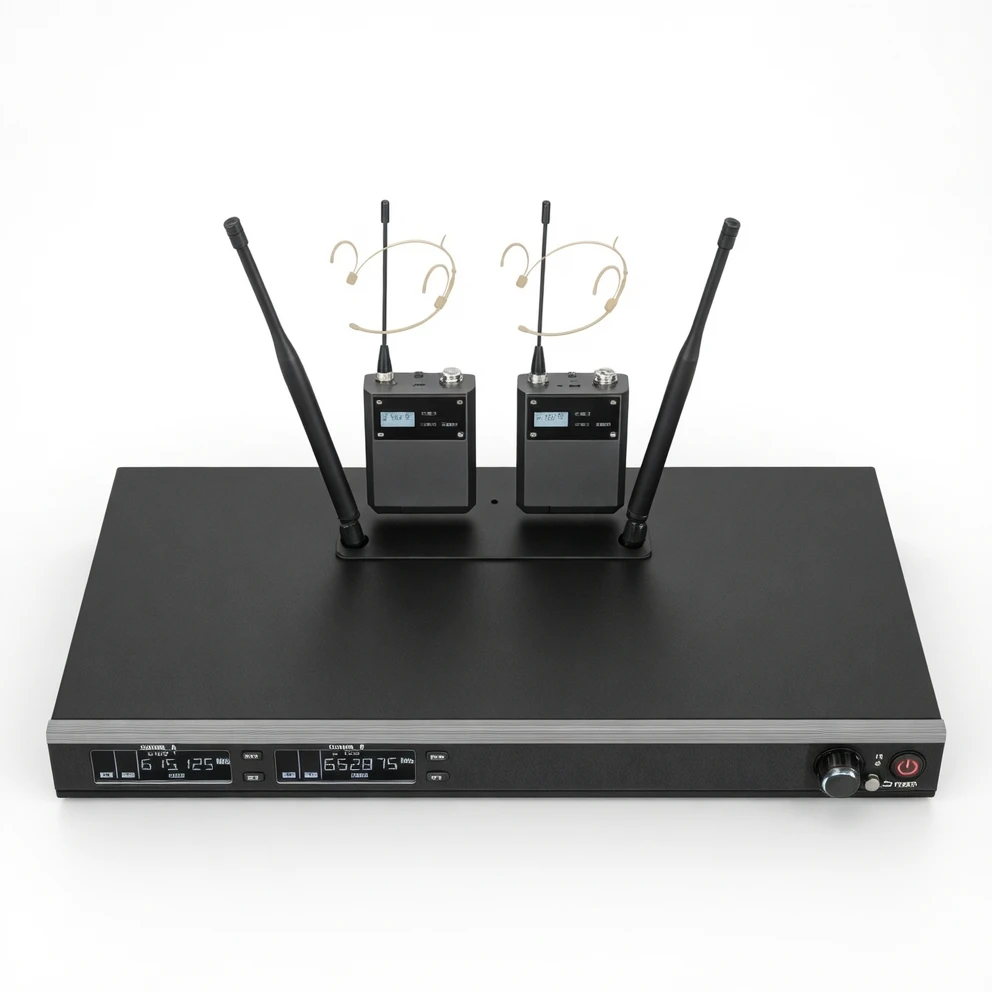

Harmonai F1004 Dual-Channel Professional Wireless Microphone System image 1

Harmonai F1004 Dual-Channel Professional Wireless Mic System with Switchable Diversity Mode

The Harmonai F1004 is a professional-grade dual-channel wireless microphone system featuring CPU-controlled encrypted tuning and double-conversion superheterodyne reception. With a...

$92.34

Model: F1004
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai F1004 Dual-Channel Professional Wireless Mic System with Switchable Diversity Mode

Overview

The Harmonai F1004 is a professional-grade dual-channel wireless microphone system featuring CPU-controlled encrypted tuning and double-conversion superheterodyne reception. With a...

Price: $92.34
Model: F1004
Category: Microphones

Specifications

Parameter	Value
Chassis Specifications	EIA-standard 1U metal chassis
Display	AV black-film full-view screen, clearly showing RF/VF signal and transmitter battery status
Operating Frequency Band	515–933 MHz (in compliance with national radio regulations)
Reception Technology	CPU-controlled encrypted tuning, double-conversion superheterodyne
Audio Enhancement	Built-in menu supports SQ/EQ adjustment, optimized for professional applications
Antenna Configuration	TNC external four-antenna independent reception; compatible with external antenna amplifiers to extend stable reception range and improve communication quality
Transmission Distance (Open Area)	80–100 meters
Transmission Distance (Complex Environment)	50–80 meters
Application Scenarios	Suitable for various conference and presentation environments
Number of Channels	Dual-channel (one receiver, two transmitters)
Product Type	Professional wireless microphone system

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

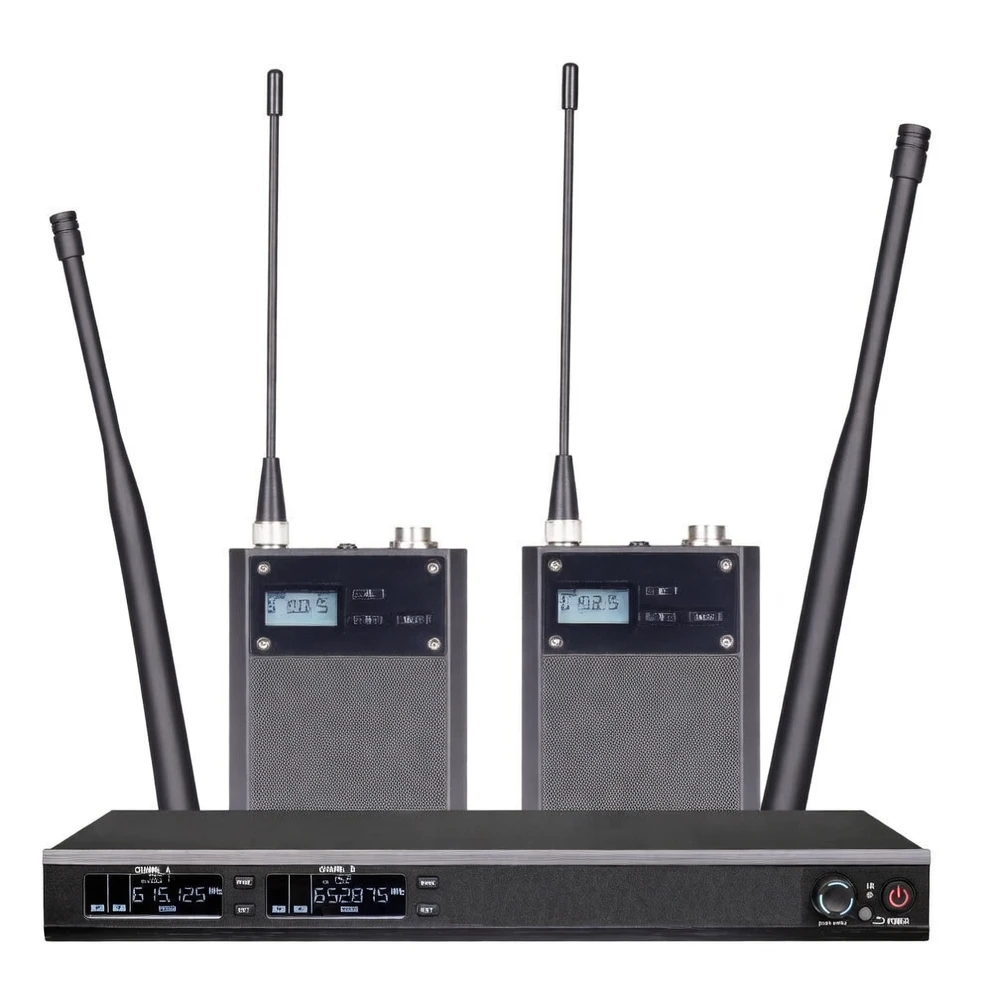

Dual-channel professional wireless microphone system product image

Product Overview

The Harmonai F1004 is a professional-grade dual-channel wireless microphone system, employing CPU-controlled encrypted tuning and double-conversion superheterodyne reception technology. It operates across a 515–933 MHz frequency band and supports independent operation of two channels. Equipped with an EIA-standard 1U metal chassis and an AV black-film full-view display, it shows real-time RF/VF signal strength and transmitter battery status — a dependable solution for conference rooms, lecture halls, and other professional installation environments.

Chassis Specifications

EIA-standard 1U metal chassis

Display

AV black-film full-view screen, displaying real-time RF/VF signal and transmitter battery status

Operating Frequency Band

515–933 MHz (in compliance with national radio regulations)

Reception Technology

CPU-controlled encrypted tuning, double-conversion superheterodyne

Audio Enhancement

Built-in menu supports SQ/EQ adjustment

Antenna Configuration

TNC external four-antenna independent reception; compatible with external antenna amplifiers to improve communication quality

Transmission Distance (Open Area)

80–100 meters

Transmission Distance (Complex Environment)

50–80 meters

Number of Channels

Dual-channel (one receiver, two transmitters)

Recommended Applications

Ideal for conference rooms, lecture halls, multi-functional auditoriums, and other professional installation settings. The built-in SQ/EQ menu allows flexible audio optimization based on actual acoustic conditions — ensuring clear speech and stable signal. The four-antenna independent reception design effectively minimizes dead zones and interference, maintaining reliable 50–80 meter transmission even in complex architectural environments.
