Harmonai LD-350A 8-Channel Power Sequencer | 30A Capacity, 8000W Total Output, Professional Audio Power Management

The Harmonai LD-350A is a professional 8-channel power sequencer with 30A capacity and 8000W total output. It features 8 controlled + 2 bypass outputs, 1-second per-channel delayed...

$51.01

Model: LD-350A
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai LD-350A 8-Channel Power Sequencer | 30A Capacity, 8000W Total Output, Professional Audio Power Management

Overview

The Harmonai LD-350A is a professional 8-channel power sequencer with 30A capacity and 8000W total output. It features 8 controlled + 2 bypass outputs, 1-second per-channel delayed...

Price: $51.01
Model: LD-350A
Category: Stage Accessories

Specifications

Parameter	Value
Maximum Current	30A
Maximum Total Output Power	8000W
Maximum Output Power Per Channel	2860W (13A)
Number of Outputs	8 controlled + 2 bypass
Output Socket Type	Phosphor bronze universal sockets
Delay Interval Between Outputs	1 second per channel
Cascading Support	Up to 10 units
Power Supply Method	Transformer-powered
Input Voltage	AC 220V
Output Current	32A
Power Cable Specification	3×6 mm² cable, 1 meter long
Net Weight	2.9 kg
Gross Weight	3.4 kg
Unit Dimensions (Bare)	480 mm × 195 mm × 48 mm
Unit Dimensions (Packaged)	550 mm × 330 mm × 105 mm
Carton Dimensions	570 mm × 335 mm × 525 mm
Protection Features	Air circuit breaker (leakage/short-circuit/overload protection)
Additional Features	AC voltage display, USB 5V output for LED lighting, rear-panel external master control

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

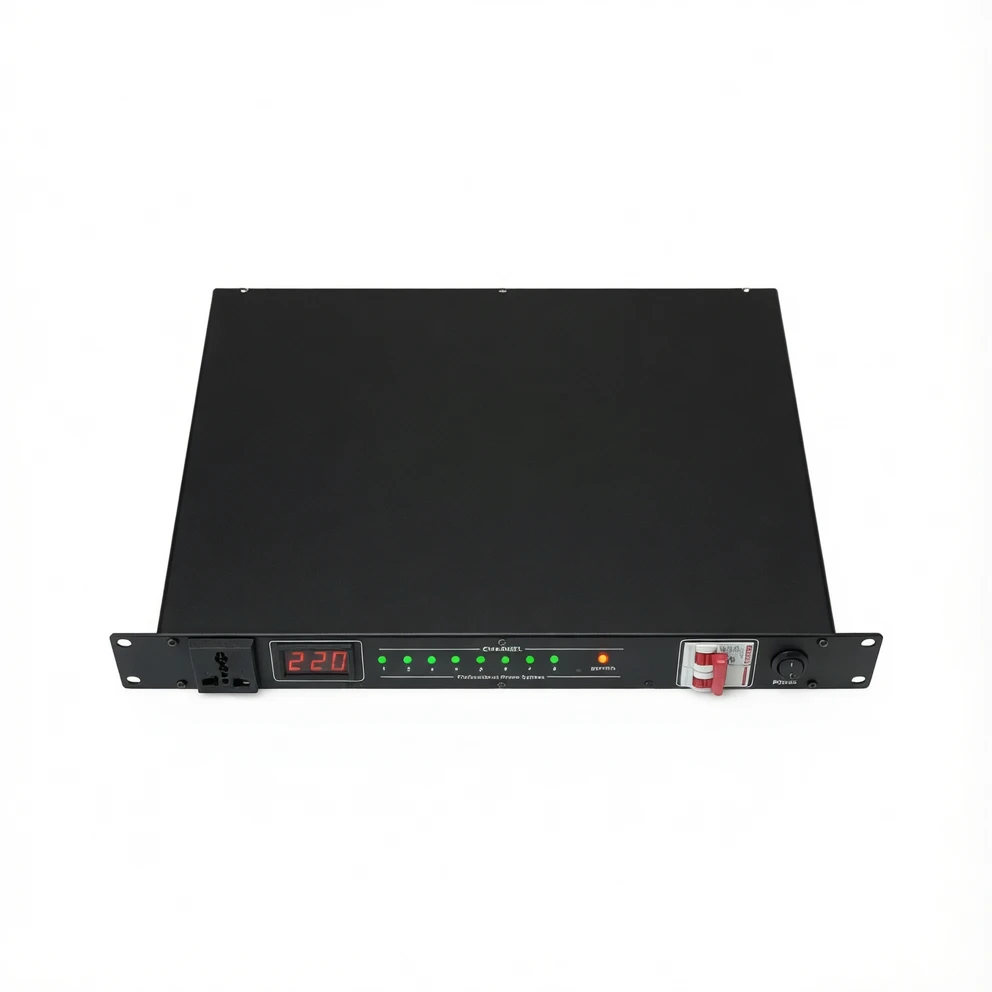

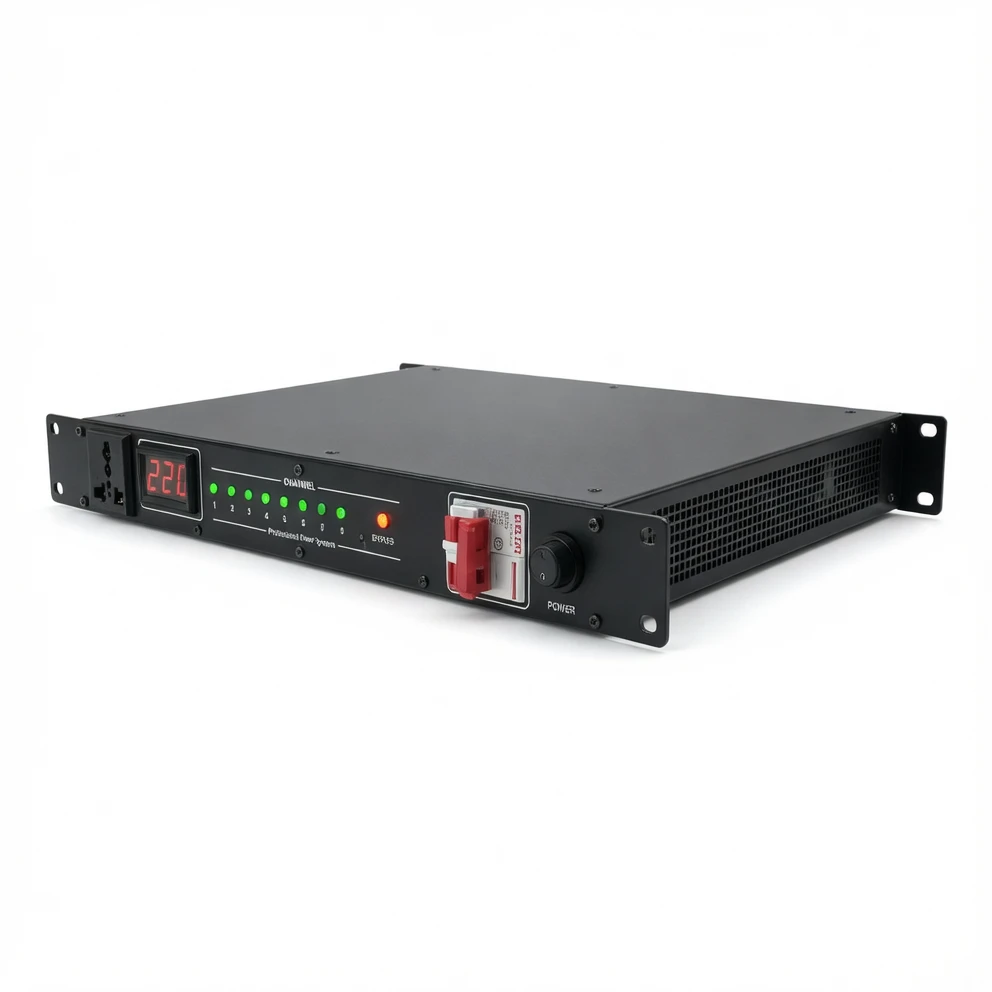

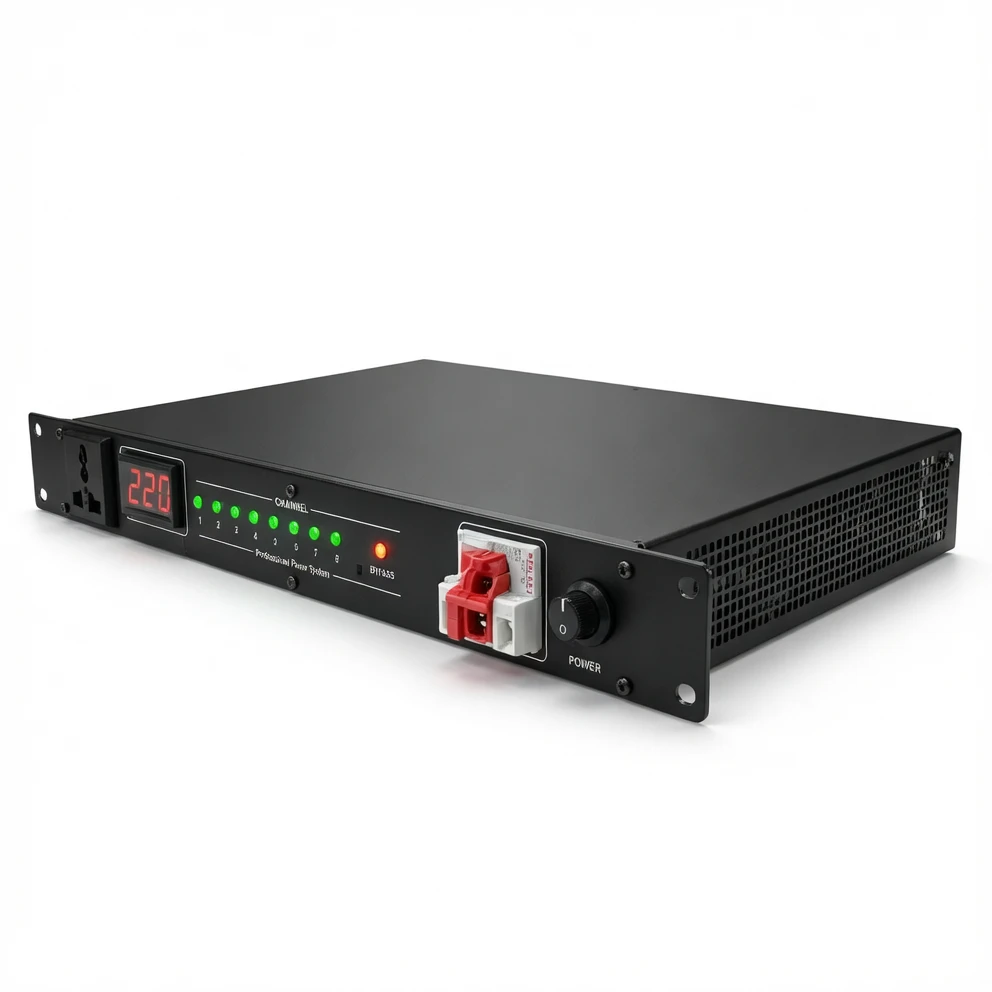

Harmonai LD-350A Power Sequencer product image

Product Overview

The Harmonai LD-350A is a professional-grade 8-channel power sequencer designed specifically for audio system power management. Built with high-quality 30A relays, it delivers a maximum total output power of 8000W — sufficient to drive 3–4 units of 1000W amplifiers. Its 8 controlled outputs feature independent 1-second delayed startup per channel, effectively preventing surge current damage during simultaneous power-on and extending equipment lifespan. A rear-panel AC voltage display enables real-time monitoring of supply voltage, while an integrated air circuit breaker provides comprehensive protection against leakage, short circuits, and overloads — ensuring full-spectrum power safety for your audio system.

Maximum Current

30A

Maximum Total Output Power

8000W

Maximum Output Power Per Channel

2860W (13A)

Number of Outputs

8 controlled + 2 bypass

Output Socket Type

Phosphor bronze universal sockets

Delay Interval Between Outputs

1 second per channel

Cascading Support

Up to 10 units

Power Supply Method

Transformer-powered

Input Voltage

AC 220V

Output Current

32A

Power Cable Specification

3×6 mm² cable, 1 meter long

Net Weight

2.9 kg

Gross Weight

3.4 kg

Unit Dimensions (Bare)

480 mm × 195 mm × 48 mm

Unit Dimensions (Packaged)

550 mm × 330 mm × 105 mm

Carton Dimensions

570 mm × 335 mm × 525 mm

Protection Features

Air circuit breaker (leakage/short-circuit/overload protection)

Additional Features

AC voltage display, USB 5V output for LED lighting, rear-panel external master control

Recommended Applications

The Harmonai LD-350A power sequencer is widely used in KTV venues, professional conference rooms, multi-function halls, and “Ying-K” (home cinema + karaoke) systems — anywhere centralized management of multiple audio devices is required. Independent per-channel control and sequential 1-second startup ensure orderly power-up of amplifiers, mixers, effects processors, and other gear, protecting sensitive audio equipment from damaging inrush currents. Its support for up to 10-unit cascading meets the complex power sequencing demands of large-scale live events and enterprise-level conferencing systems.

For technical specifications, bulk purchasing options, or custom solutions for the Harmonai LD-350A power sequencer, contact us anytime for expert consultation.
