Power Supply
AC110V–240V / 50–60Hz
Product Overview

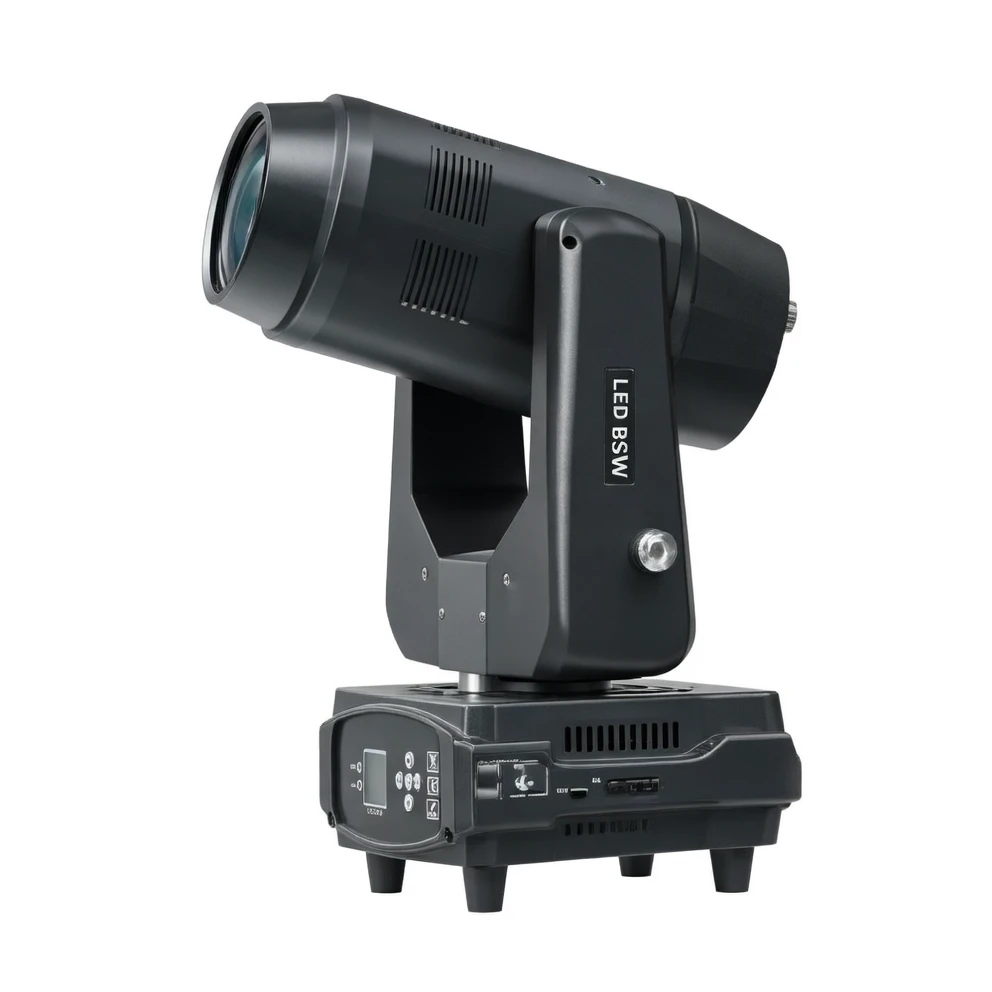

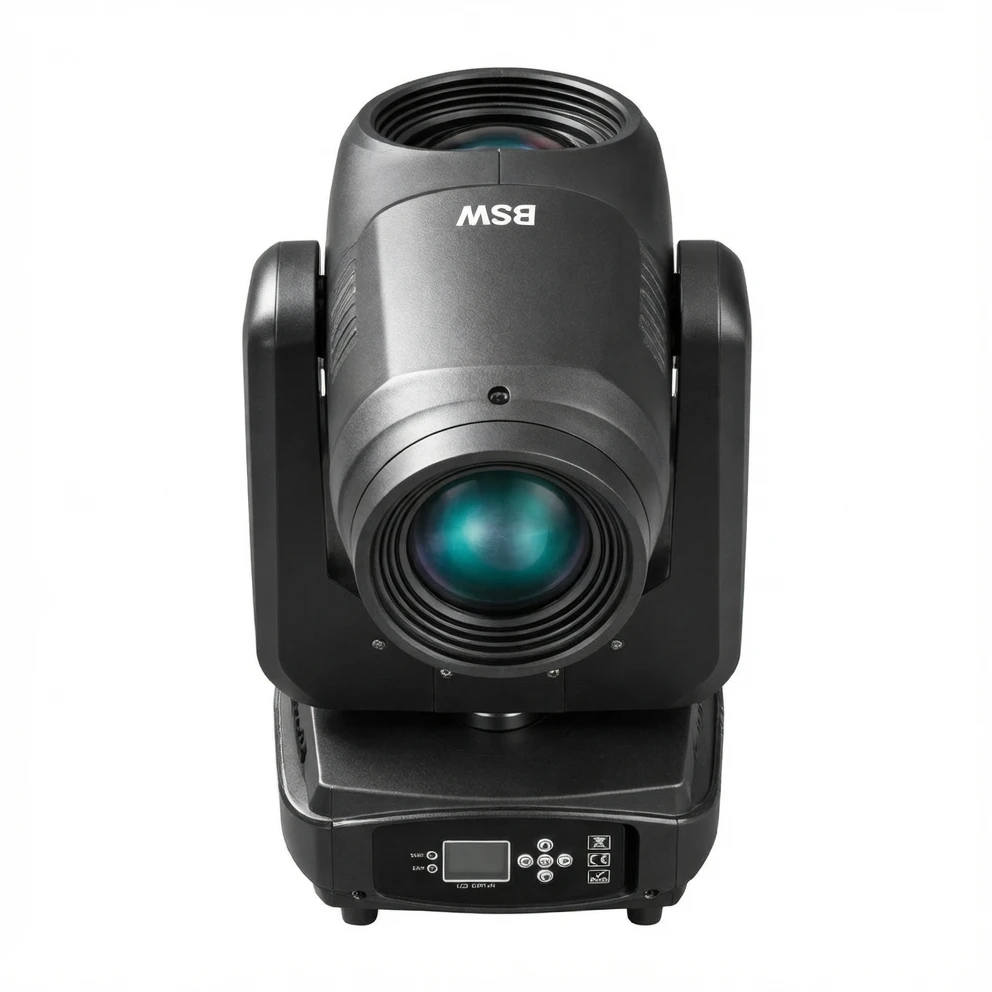

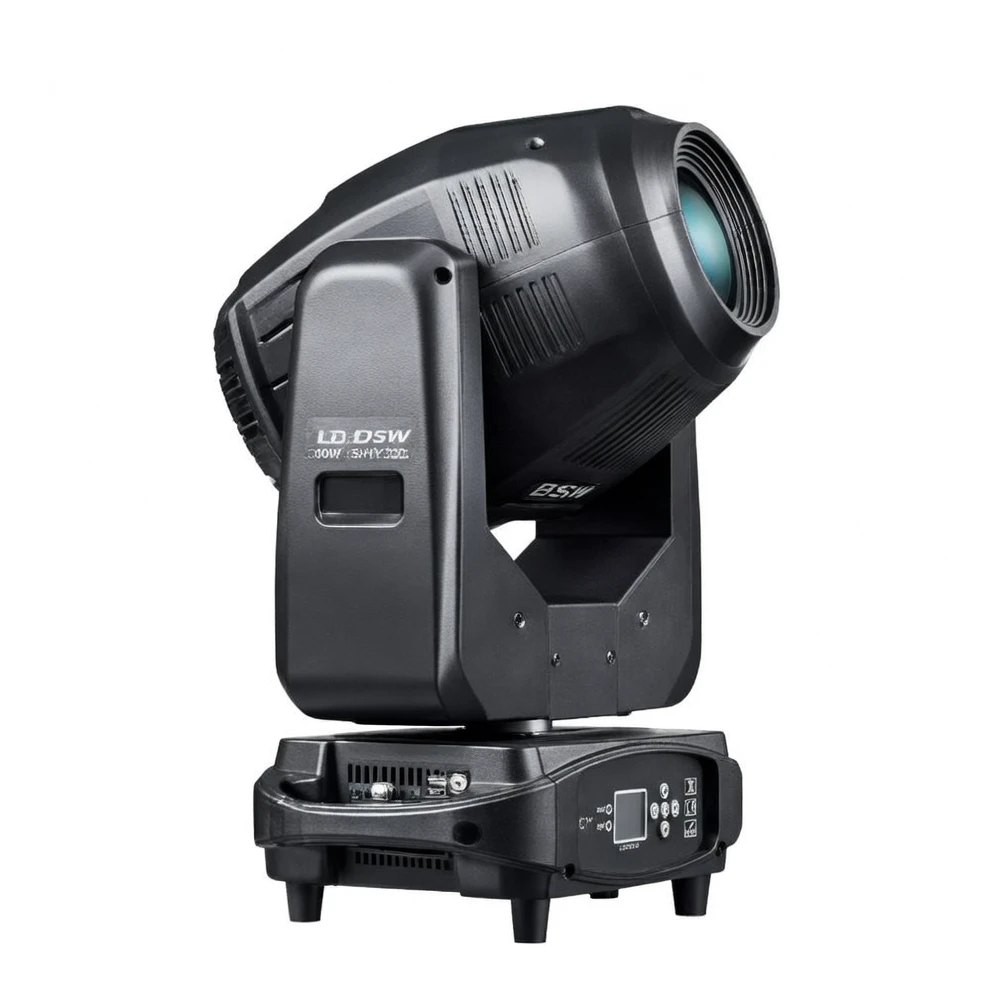

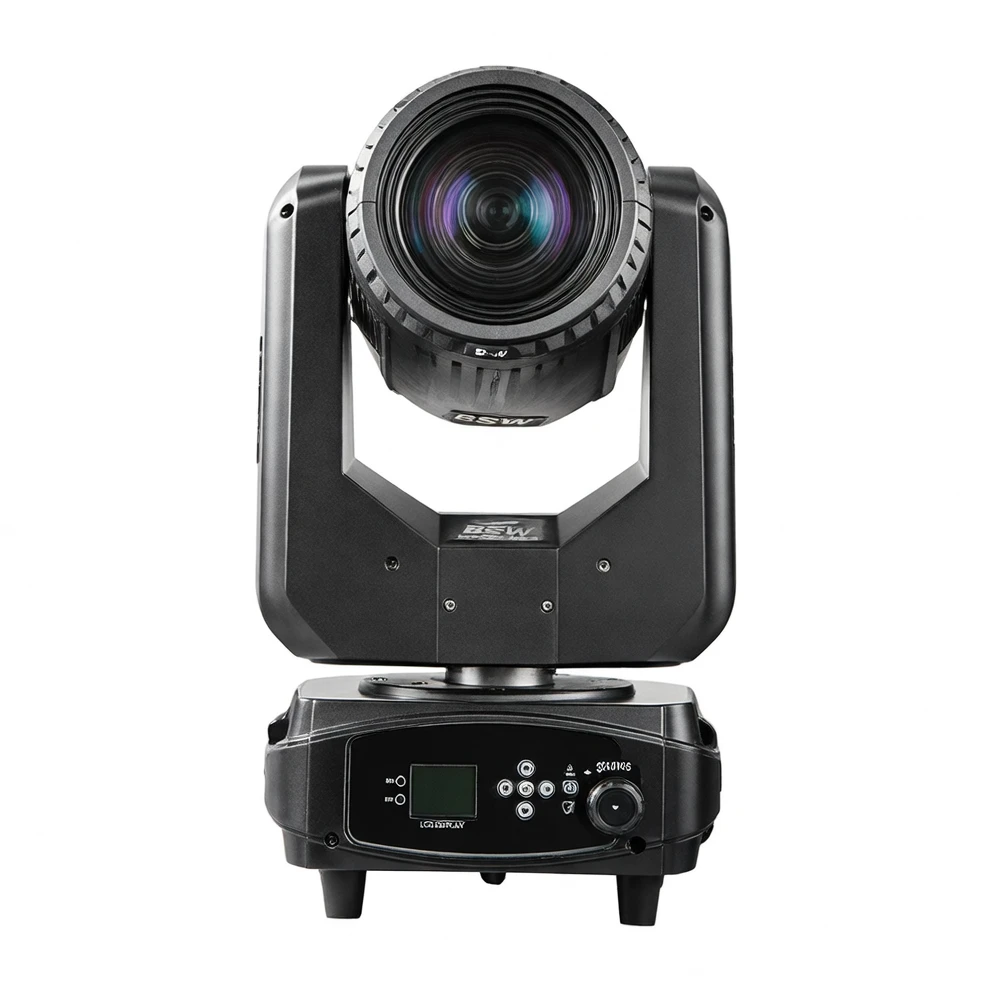

The Harmonai QY-SHY300 is a professional-grade 300W LED tri-function moving head light, integrating three core functions: moving beam, wash color, and gobo projection. Powered by a 250W white LED module with a rated lifespan of 50,000 hours, it delivers rich, dynamic lighting effects for stage performances, theaters, bars, live-streaming studios, and more. Equipped with 7 independently reversible glass rotating gobos, 6 fixed gobos, 3 independently rotating prisms, and an 8-color + white wheel, it offers exceptional visual versatility. Fully compliant with the DMX512 international standard protocol and RDM remote management, it enables precise 18-channel control — making it a high-value solution for professional lighting installations.
Rated Power
350W
Light Source
250W white LED module
Light Source Lifespan
50,000 hours
Horizontal Scan
40° (16-bit precision scanning with electronic error correction)
Vertical Scan
270° (16-bit precision scanning with electronic error correction)
Dimming System
0–100% linear dimming
High-Speed Strobe
0–30 Hz adjustable strobe effect with strobe macro function
Rotating Gobos
7 glass gobos, each independently reversible
Fixed Gobos
6 fixed gobos
Prisms
3 prisms, each independently reversible
Color Wheel
8 colors + white, with split-color functionality
Frost Effect
1 independent frost effect for soft, natural beam edges
Cooling Method
High-performance axial fan cooling
Safety Features
Electronic thermal overload protection with automatic power cutoff on fault
Zoom Angle
4°–35°
Focusing System
Linear focus: 4m–5m
Luminous Flux
70,000 lm at 4m
Control Signal
Standard DMX512 with RDM support; firmware upgradable via software; manual address setting via DIP switches
Channels
18CH
Display & Operation
LCD display + button-based interface
Enclosure Material
Heat-resistant plastic
Operating Environment
−20°C to 40°C
Ingress Protection
IP20
Recommended Applications
The QY-SHY300 tri-function moving head light is ideal for professional stage productions, theaters, bars and nightclubs, live-streaming studio lighting, wedding ceremonies, concerts, and general lighting installations. With its diverse gobo library, precise beam control, and intelligent DMX/RDM integration, it effortlessly creates immersive, high-impact lighting experiences.
For detailed product information or customized bulk procurement solutions, contact the Harmonai Professional Lighting Advisory Team to design your optimal lighting setup.
