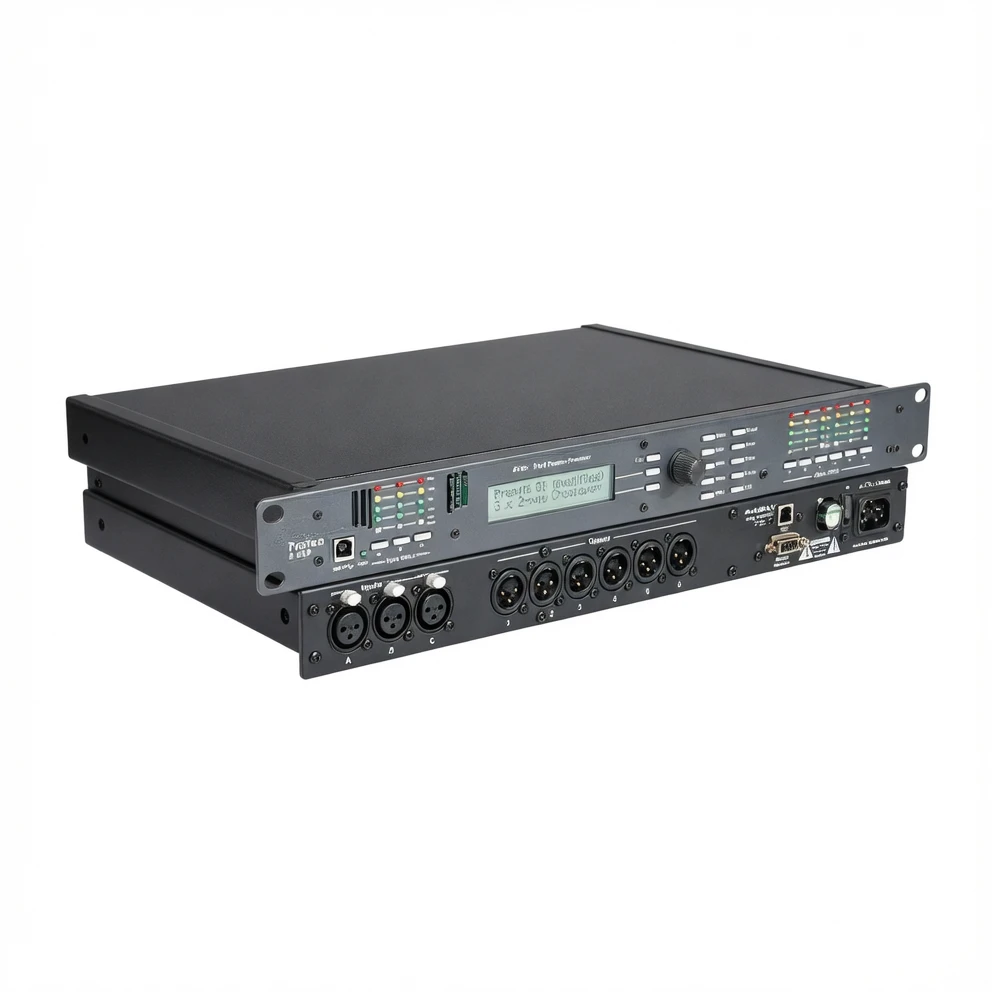

Harmonai 3.6SP 3-in/6-out Digital Audio Processor with USB image 1

Harmonai 3.6SP 3-in/6-out Digital Audio Processor with USB — Professional DSP Preamp

The Harmonai 3.6SP is a professional 3-in/6-out digital audio processor featuring 6-band parametric EQ on inputs and 4-band on outputs, plus USB connectivity for configuration and...

$274.82

Model: 3.6SP
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai 3.6SP 3-in/6-out Digital Audio Processor with USB — Professional DSP Preamp

Overview

The Harmonai 3.6SP is a professional 3-in/6-out digital audio processor featuring 6-band parametric EQ on inputs and 4-band on outputs, plus USB connectivity for configuration and...

Price: $274.82
Model: 3.6SP
Category: Stage Accessories

Specifications

Parameter	Value
Input Type	Active balanced
Input Impedance	18K ohms
Maximum Input Level	+20dBu
Input Gain Range	-40dB to +12dB
Output Type	Active balanced
Output Impedance	100 ohms
Maximum Output Level	+20dBu
Total Harmonic Distortion	<0.01% @ 1kHz/+20dBu
Dynamic Range	>110dB (20Hz–20kHz, unweighted)
Output Noise Floor	<-90dBu (unweighted)
Input EQ Bands	6-band parametric equalizer
Output EQ Bands	4-band parametric equalizer
EQ Bandwidth Range	1/64 octave to 4 octaves
EQ Gain Range	+15dB / -30dB (0.1dB step)
Frequency Response Resolution	1/24-octave
Weight	13 lbs
Dimensions	19"W × 3.5"H × 8.2"D

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

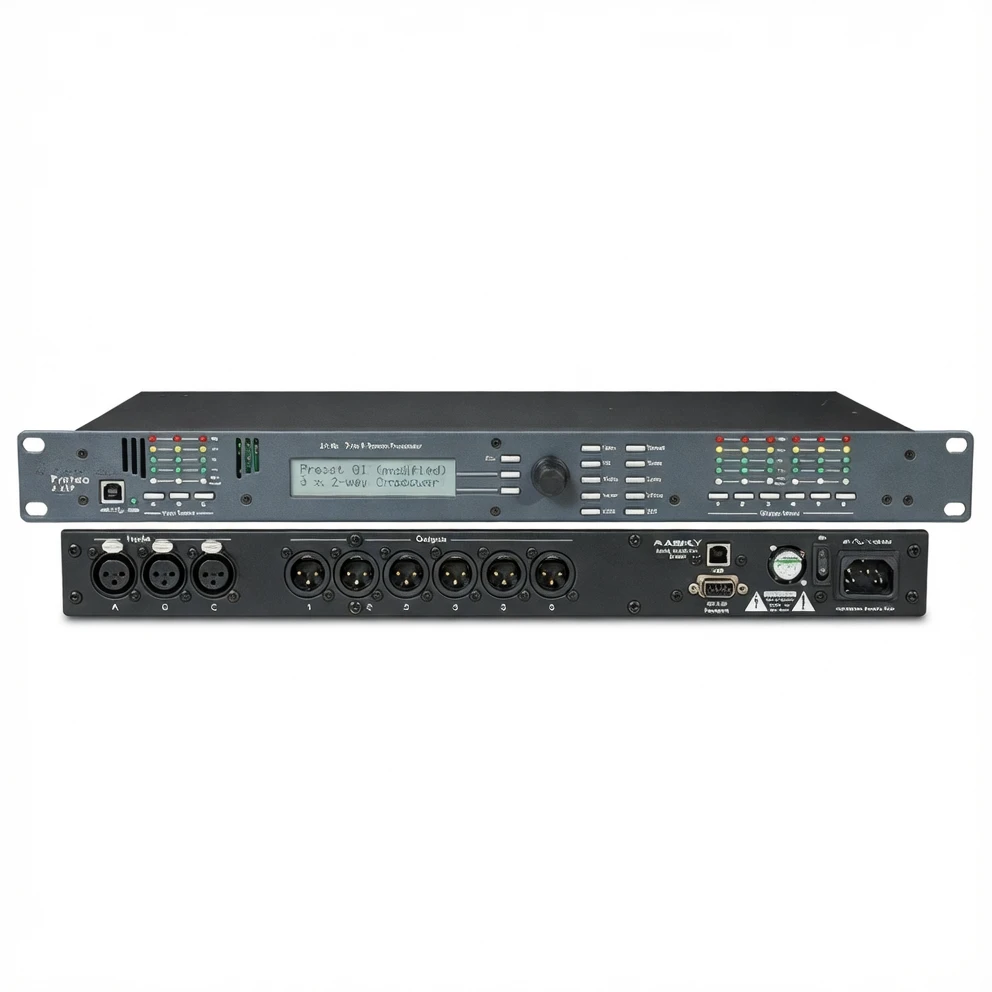

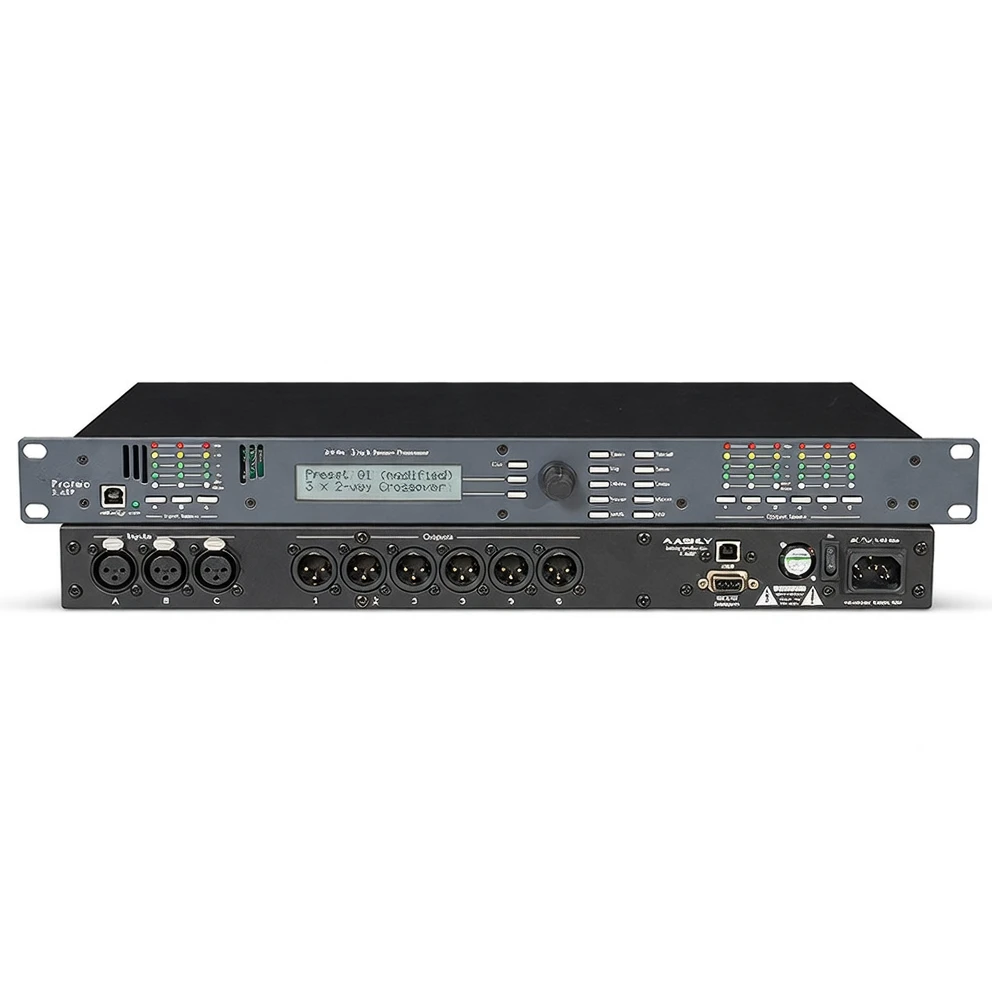

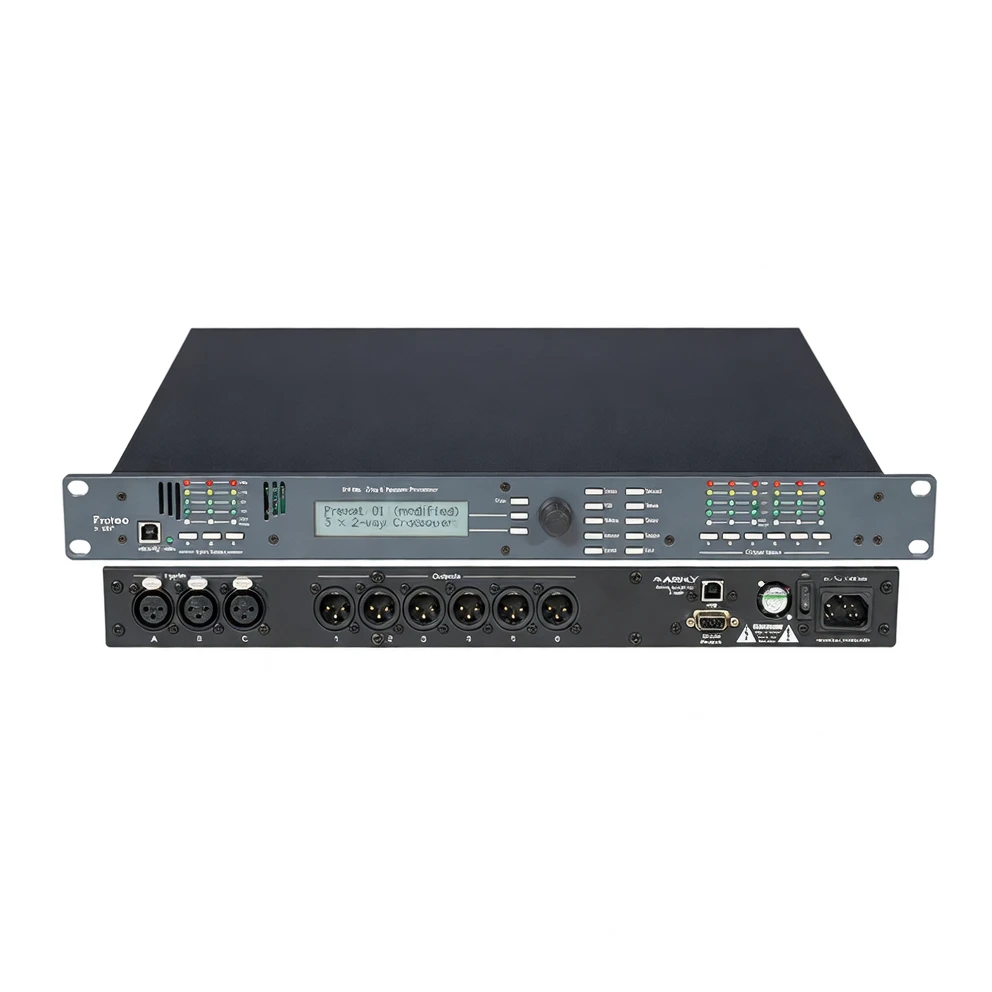

Harmonai 3.6SP 3-in/6-out digital audio processor with USB — product showcase image

Product Overview

The Harmonai 3.6SP is a professional-grade 3-in/6-out digital audio processor, powered by a high-performance DSP chip and equipped with precision parametric equalizers and gain control. It supports USB connectivity for convenient parameter configuration and firmware updates. Its standard 19-inch rack-mount design is compact (19"W × 3.5"H × 8.2"D) and lightweight at just 13 lbs—ideal for seamless integration into any professional audio system.

Input Interfaces

Active balanced inputs; impedance: 18K ohms; maximum input level: +20dBu; gain range: -40dB to +12dB

Output Interfaces

Active balanced outputs; impedance: 100 ohms; maximum output level: +20dBu

THD (Total Harmonic Distortion)

<0.01% @ 1kHz, +20dBu

Dynamic Range

>110dB (20Hz–20kHz, unweighted)

Output Noise Floor

<-90dBu (unweighted)

Equalization (EQ)

6-band parametric EQ on inputs + 4-band parametric EQ on outputs; bandwidth range: 1/64 octave to 4 octaves; gain range: +15dB / -30dB (0.1dB step)

Frequency Response Resolution

1/24-octave resolution

Physical Specifications

Dimensions: 19"W × 3.5"H × 8.2"D; weight: 13 lbs

Typical Applications

The Harmonai 3.6SP digital audio processor is suitable for professional sound systems, karaoke venues, conference rooms, live performance venues, and recording studios. Its flexible 3-in/6-out signal routing combined with high-precision parametric EQ enables precise optimization of speaker and amplifier frequency response—ensuring optimal acoustic performance in any space.

For more product details, pricing, or technical support, contact our professional team.
