Harmonai QY-SM460 4-Sided Moving Beam & Wash Light

The Harmonai QY-SM460 is a professional stage lighting fixture combining XY-axis pan/tilt movement, intense beam effects, and full-color wash capabilities. Featuring 4 imported 60W...

$307.79

Model: To be confirmed
Category: Lighting Systems
Images: 4 images
Status: ready

Product Brief

Harmonai QY-SM460 4-Sided Moving Beam & Wash Light

Overview

The Harmonai QY-SM460 is a professional stage lighting fixture combining XY-axis pan/tilt movement, intense beam effects, and full-color wash capabilities. Featuring 4 imported 60W...

Price: $307.79
Model: -
Category: Lighting Systems

Specifications

Parameter	Value
Rated Voltage	AC100–240V, 50/60Hz
Rated Power	400W
Main LEDs	4 imported 60W LEDs
Strobe LEDs	9 white 3535 LEDs + 108 RGB 5050 LEDs
Operating Mode	XY-axis infinite pan/tilt
Control Methods	DMX512, standalone, master/slave, sound-activated, with RDM functionality
Channel Modes	CH20, CH34, CH93
Dimming	32-bit linear dimming, 0–100%
Key Features	XY pan/tilt + beam + strobe + infinite XY + auxiliary lighting
Operating Temperature	−30°C to 50°C
Strobe Frequency	1–30 Hz
Enclosure Material	Metal housing, black finish
Connections	DMX512 input/output + power input/output
Ingress Protection Rating	IP20

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

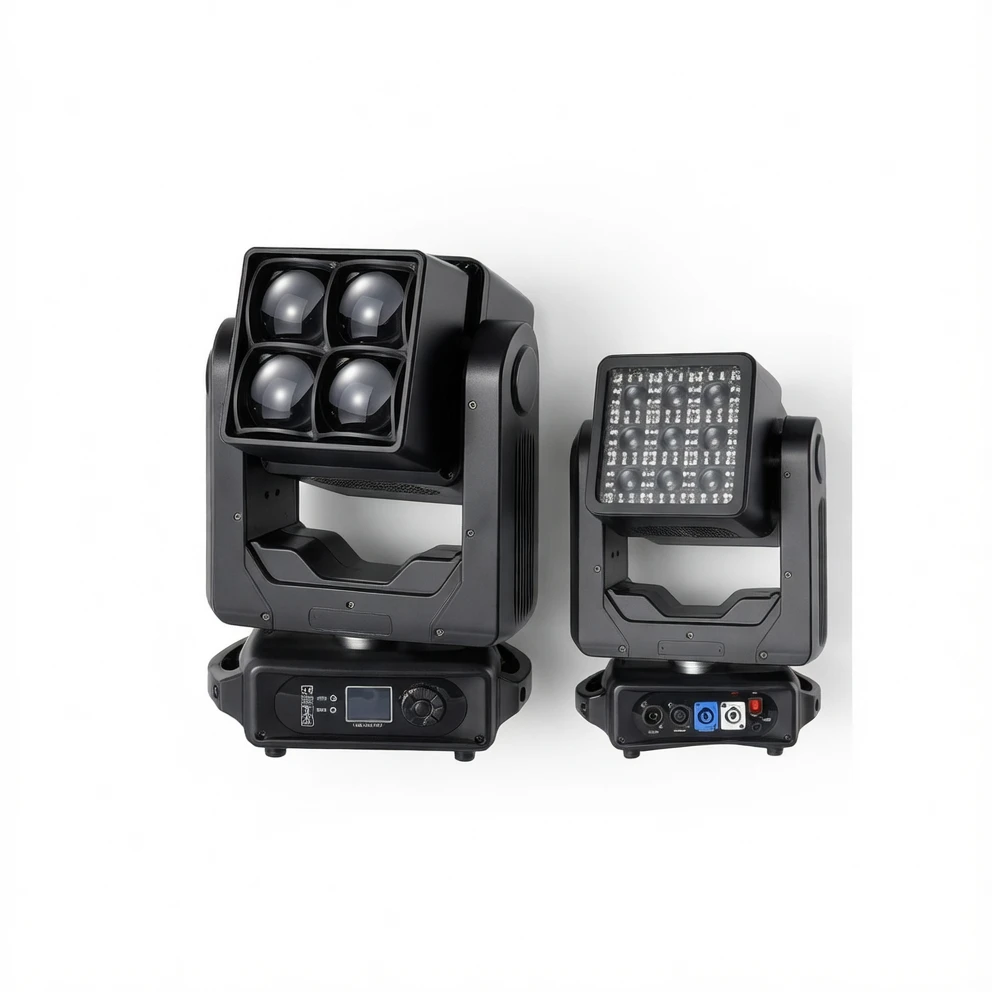

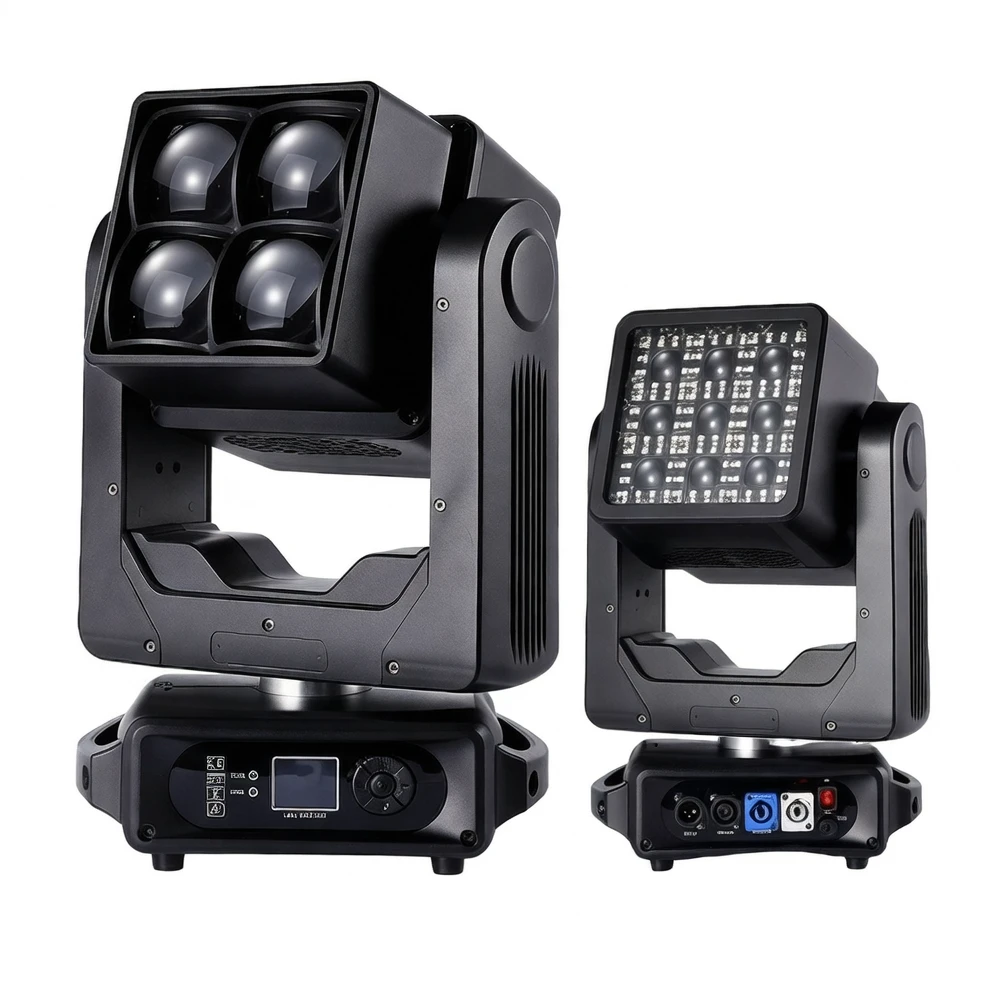

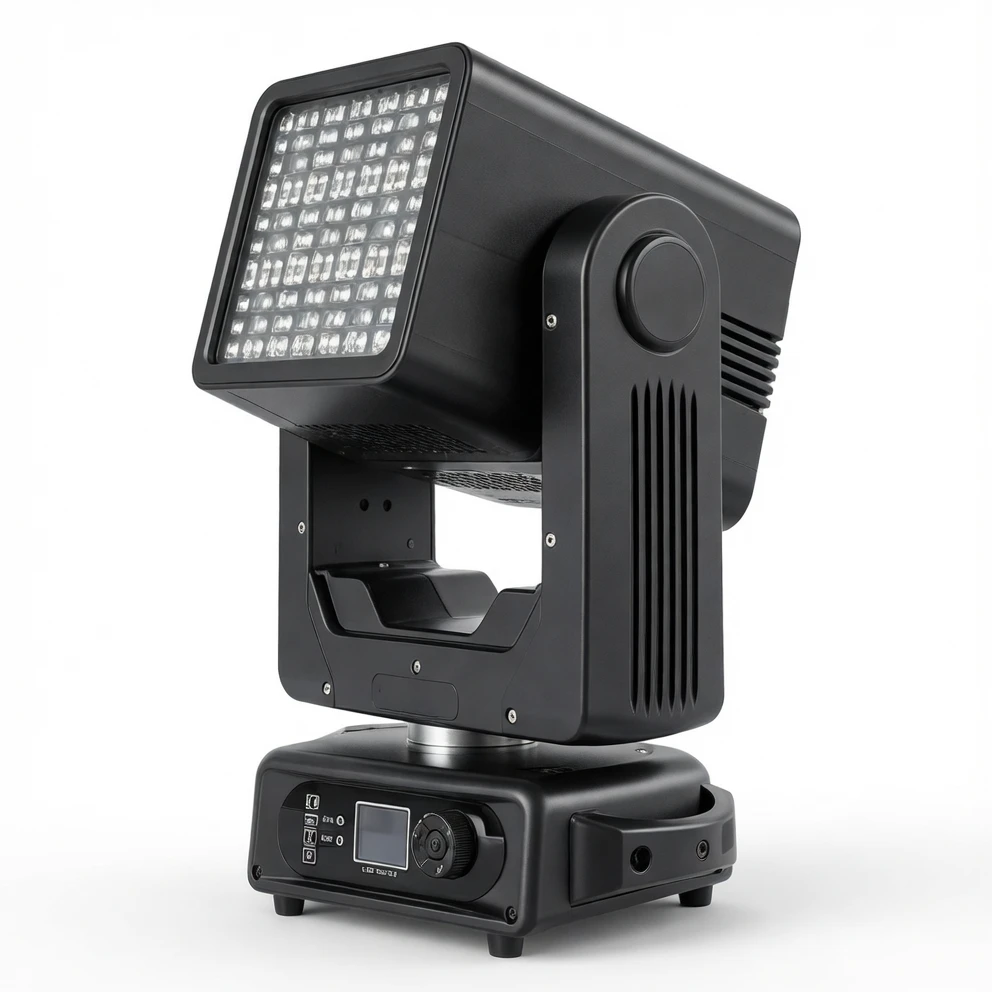

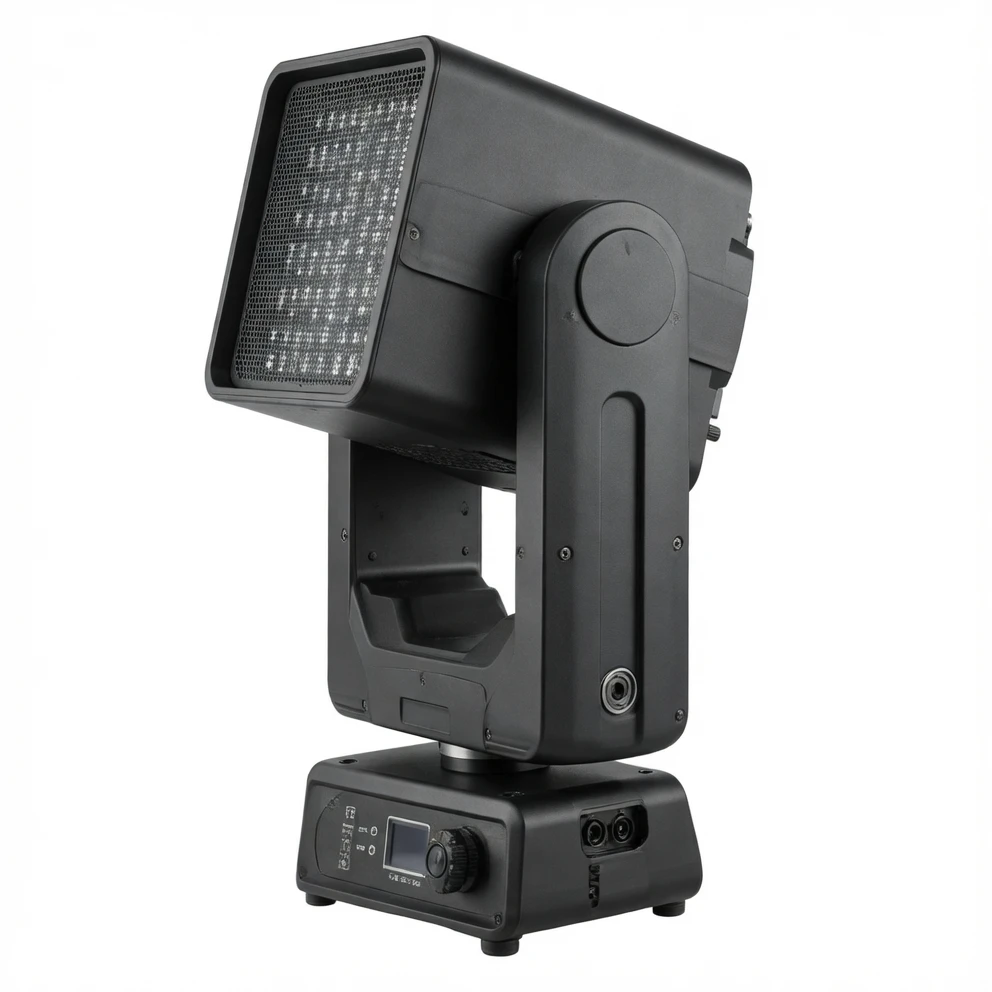

Harmonai QY-SM460 4-Sided Moving Beam & Wash Light product image

Product Overview

The Harmonai QY-SM460 4-Sided Moving Beam & Wash Light is a professional stage lighting fixture integrating XY-axis pan/tilt movement, beam effects, and color wash functionality. Its dual-sided emission design projects light from both front and rear faces, significantly increasing stage space utilization. Equipped with 4 imported 60W main LEDs plus 108 RGB 5050 LEDs and 9 white 3535 LEDs, it delivers rich color reproduction and exceptional beam penetration. It supports multiple operating modes — DMX512, standalone, master/slave, and sound-activated — with RDM remote management capability. Channel modes (CH20 / CH34 / CH93) can be flexibly switched to meet diverse requirements, from small-scale performances to large-stage productions.

Rated Voltage

AC100–240V, 50/60Hz

Rated Power

400W

Main LEDs

4 imported 60W LEDs

Strobe LEDs

9 white 3535 LEDs + 108 RGB 5050 LEDs

Operating Mode

XY-axis infinite pan/tilt

Control Methods

DMX512, standalone, master/slave, sound-activated, with RDM functionality

Channel Modes

CH20, CH34, CH93

Dimming

32-bit linear dimming, 0–100%

Key Features

XY pan/tilt + beam + strobe + infinite XY + auxiliary lighting

Operating Temperature

−30°C to 50°C

Strobe Frequency

1–30 Hz

Enclosure Material

Metal housing, black finish

Connections

DMX512 input/output + power input/output

Ingress Protection Rating

IP20

Recommended Applications

Thanks to its dual-sided emission design and XY-axis pan/tilt capability, the QY-SM460 4-Sided Moving Beam & Wash Light is widely used in bars, live-stream studios, performance stages, KTV venues, wedding events, and small-to-midsize concerts. Its wide operating temperature range (−30°C to 50°C) ensures stable performance in diverse indoor and outdoor environments. The standard DMX512 interface enables seamless integration with mainstream lighting consoles, while the master/slave mode allows rapid setup of control-free simplified systems.

Learn more about the technical specifications and procurement options for the Harmonai QY-SM460 4-Sided Moving Beam & Wash Light — contact us today for customized professional lighting solutions.
