Harmonai QY-F1203 120-LED Dual-Layer Waterproof Spotlight image 1

Harmonai QY-F1203 120-LED Dual-Layer Waterproof Spotlight | IP65 Outdoor RGBW Full-Color Lighting

The Harmonai QY-F1203 is a high-performance outdoor spotlight featuring 120 RGBW quad-color LEDs, 16M+ precise color mixing, IP65 weather resistance, die-cast aluminum housing, and...

$318.79

Model: QY-F1203
Category: Lighting Systems
Images: 4 images
Status: ready

Product Brief

Harmonai QY-F1203 120-LED Dual-Layer Waterproof Spotlight | IP65 Outdoor RGBW Full-Color Lighting

Overview

The Harmonai QY-F1203 is a high-performance outdoor spotlight featuring 120 RGBW quad-color LEDs, 16M+ precise color mixing, IP65 weather resistance, die-cast aluminum housing, and...

Price: $318.79
Model: QY-F1203
Category: Lighting Systems

Specifications

Parameter	Value
Rated Voltage	100V–240V, 50/60Hz
Rated Power Consumption	800W
Light Source Configuration	120 RGBW quad-color high-brightness LED chips
LED Lifespan	50,000 hours
Color Range	RGBW infinite color mixing, supporting over 16 million colors
Dimming Range	Linear 0–100% dimming, with 65,536-step resolution
Strobe Function	Electronic strobe: 0–25 FPS
Beam Angle	25° / 35° / 45° (selectable)
Control Interface	DMX512, 3-pin XLR, RDM control protocol
Channel Modes	4/8/12-channel master/slave sync modes in standard mode
Control Modes	DMX512 / Master-Slave / Auto / Sound-activated
Housing Material	Die-cast aluminum
Ingress Protection Rating	IP65
Operating Temperature	-10°C to 40°C
Net Weight	35.0 kg
Packaging Dimensions	63 × 42 × 65 cm

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

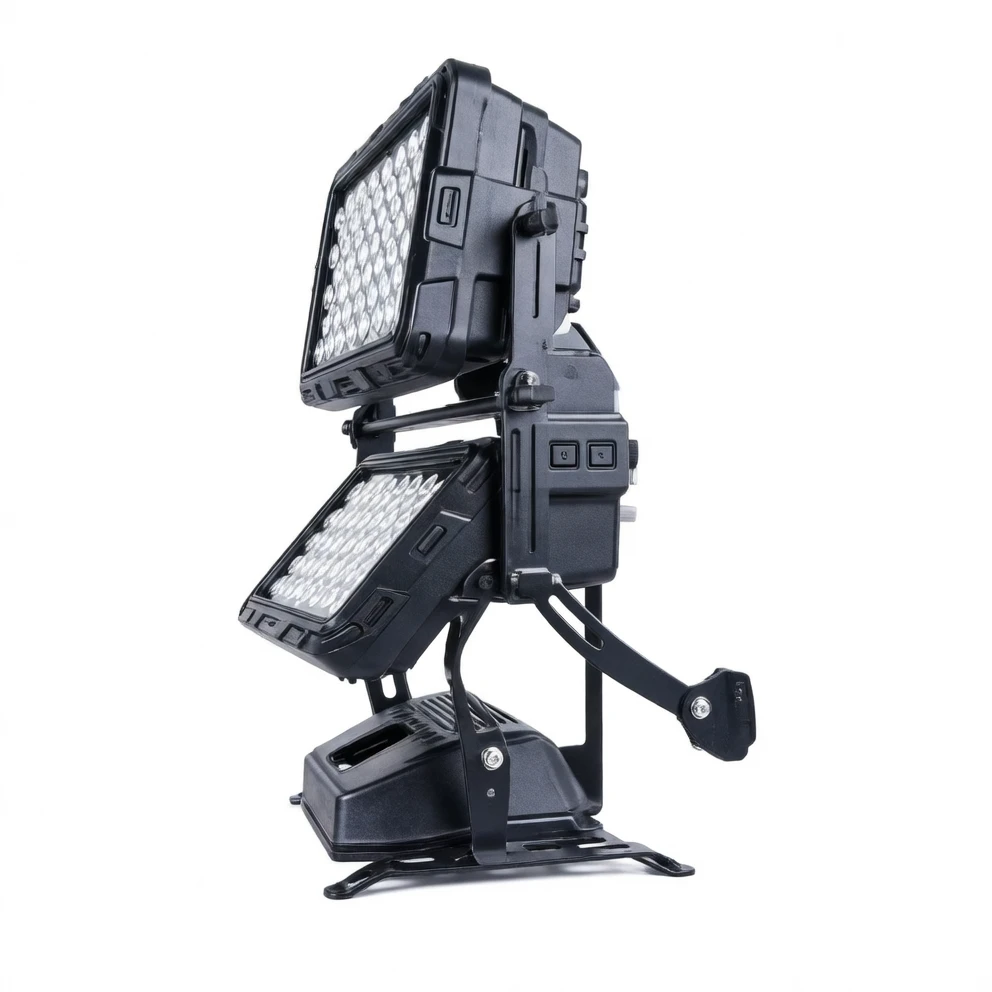

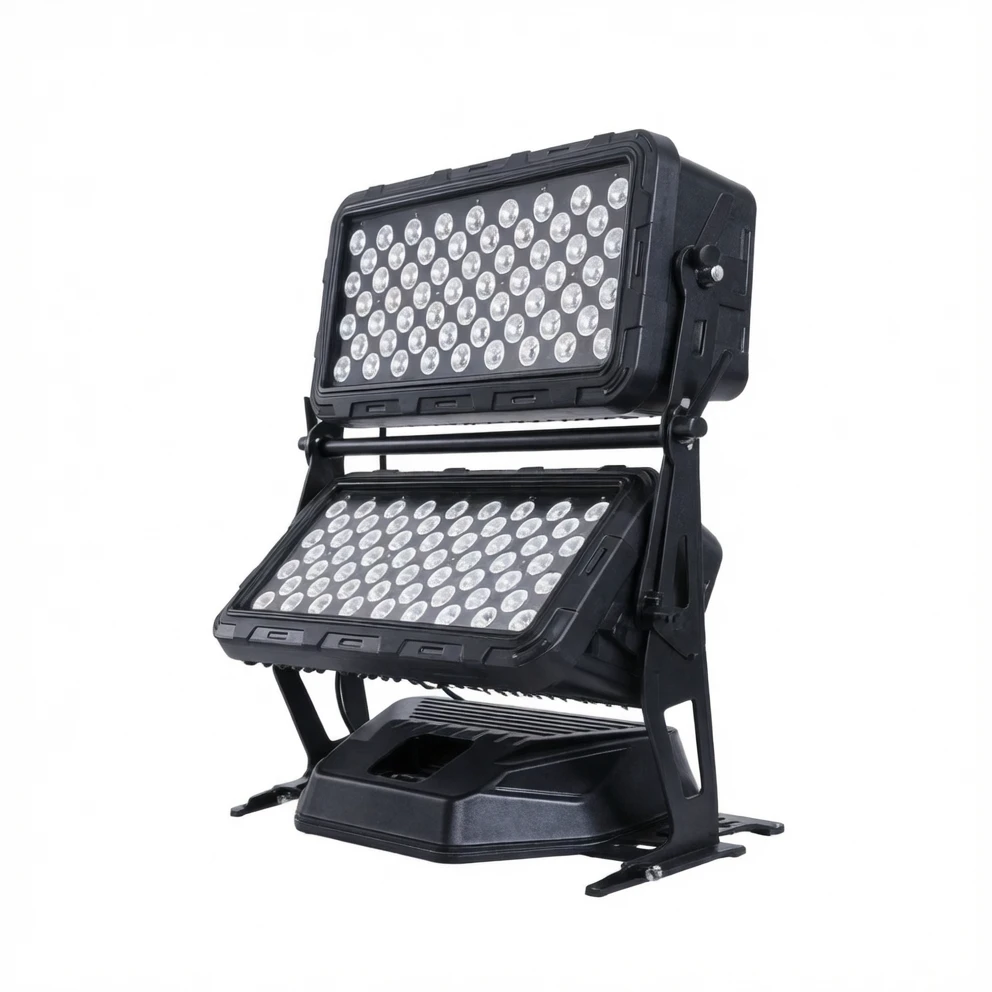

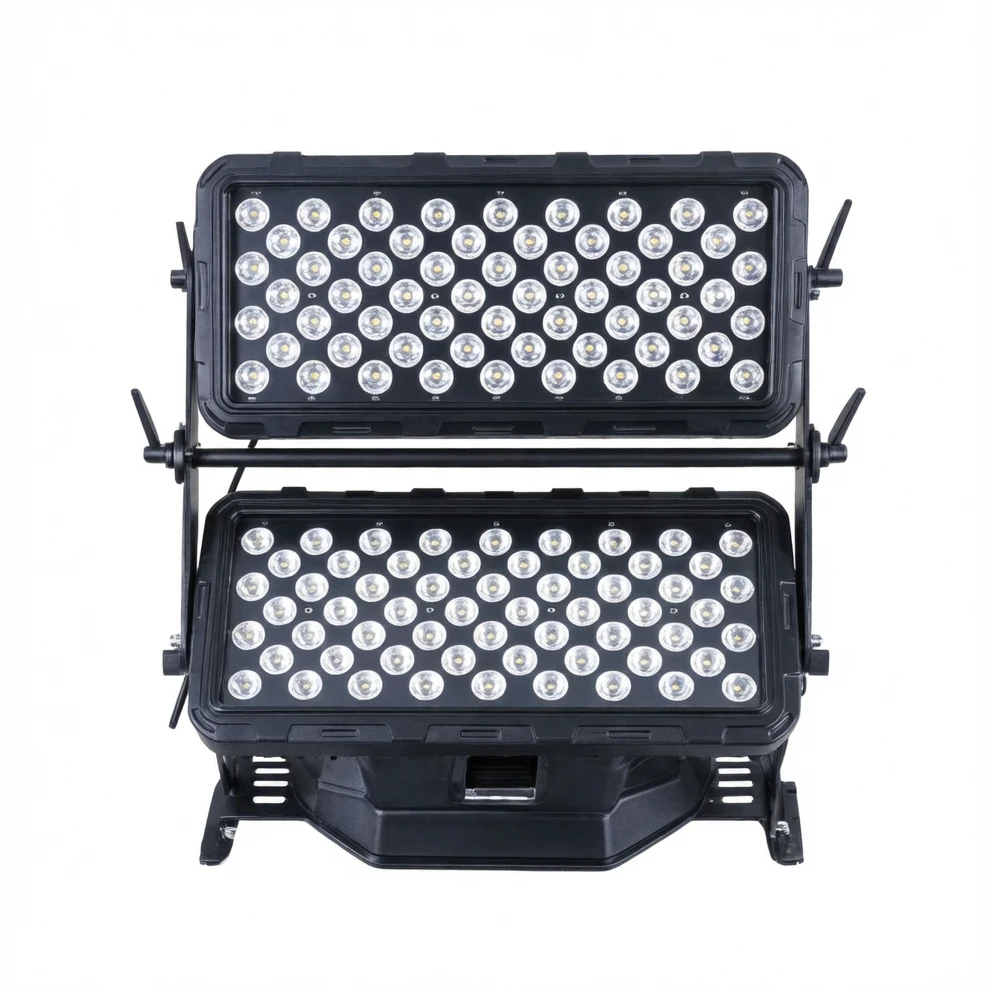

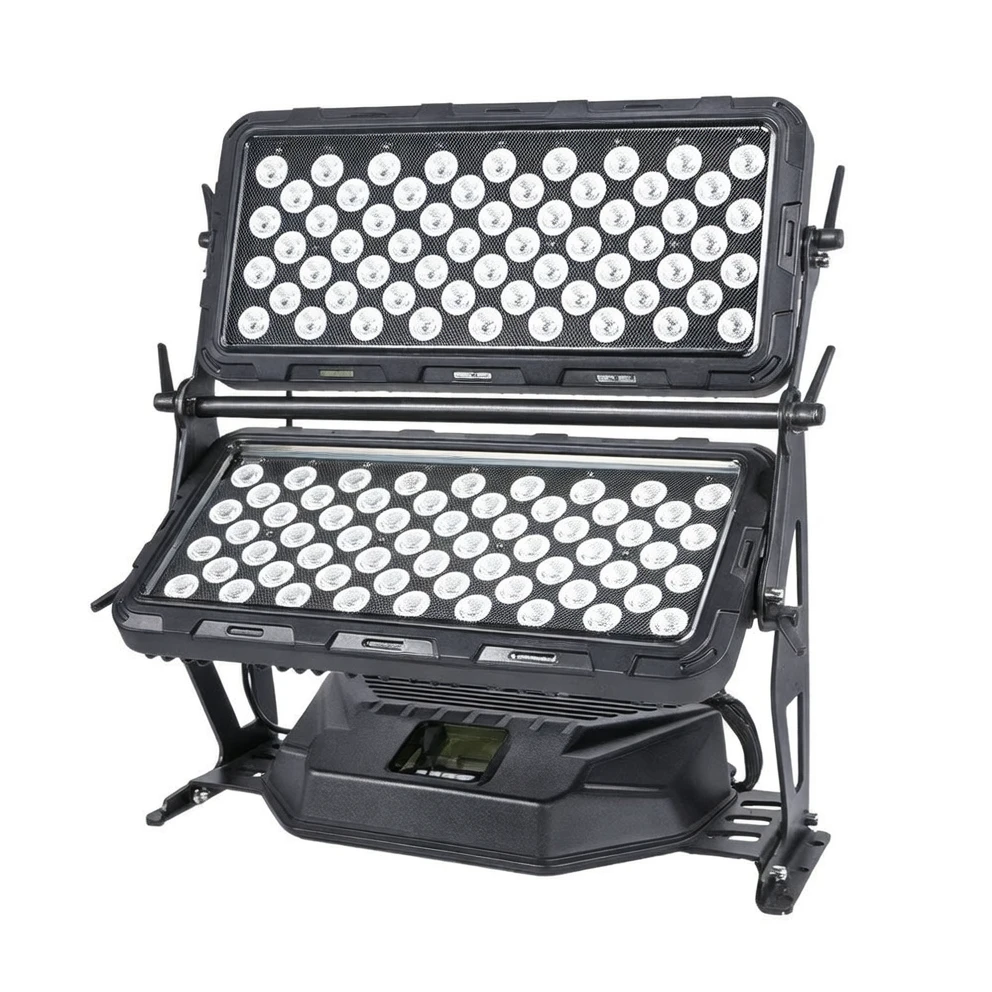

Harmonai QY-F1203 120-LED Dual-Layer Waterproof Spotlight product image

Product Overview

Harmonai QY-F1203 120-LED Dual-Layer Waterproof Spotlight is a high-performance LED spotlight engineered for outdoor illumination and professional stage applications. It features 120 RGBW quad-color high-brightness LED chips, delivering 800W total power output, precise 16M+ color mixing, and linear 0–100% dimming with up to 65,536-step resolution for smooth, uniform color blending. Its die-cast aluminum housing and IP65 rating ensure reliable operation in harsh environments — from -10°C to 40°C — resisting rain, dust, and corrosion. Dual-protocol support for DMX512 and RDM enables seamless integration into professional lighting systems. Three selectable beam angles — 25°, 35°, or 45° — provide flexibility for façade lighting, stage washes, and landscape projection.

Rated Voltage

100V–240V, 50/60Hz

Rated Power Consumption

800W

Light Source Configuration

120 RGBW quad-color high-brightness LED chips

LED Lifespan

50,000 hours

Color Range

RGBW infinite color mixing, supporting over 16 million colors

Dimming Range

Linear 0–100% dimming, with 65,536-step resolution

Strobe Function

Electronic strobe: 0–25 FPS

Beam Angle

25° / 35° / 45° (selectable)

Control Interface

DMX512, 3-pin XLR, RDM control protocol

Channel Modes

4/8/12-channel master/slave sync modes in standard mode

Control Modes

DMX512 / Master-Slave / Auto / Sound-activated

Housing Material

Die-cast aluminum

Ingress Protection Rating

IP65

Operating Temperature

-10°C to 40°C

Net Weight

35.0 kg

Packaging Dimensions

63 × 42 × 65 cm

Recommended Applications

With its IP65-rated weather resistance and rugged die-cast aluminum construction, the QY-F1203 is widely deployed in architectural façade lighting, bridge contour lighting, plaza landscape projection, outdoor stage lighting, theme park performance lighting, and large-scale event lighting installations. Its 16M+ color mixing capability and professional DMX512 control empower lighting designers to execute dynamic color transitions and precise scene programming with ease.

For technical specifications, bulk pricing, or custom solutions for the QY-F1203 Dual-Layer Waterproof Spotlight, contact the Harmonai professional team for personalized consultation.
