Harmonai ACT-804 Handheld Professional UHF Wireless Microphone

The Harmonai ACT-804 handheld professional UHF wireless microphone features PLL frequency synthesis, 200 selectable channels, and supports up to 15 units simultaneously without int...

$152.94

Model: ACT-804手持
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai ACT-804 Handheld Professional UHF Wireless Microphone

Overview

The Harmonai ACT-804 handheld professional UHF wireless microphone features PLL frequency synthesis, 200 selectable channels, and supports up to 15 units simultaneously without int...

Price: $152.94
Model: ACT-804手持
Category: Microphones

Specifications

Parameter	Value
Receiver Operating Voltage	DC 12 V
Receiver Operating Current	1000 mA
Receiver Power Consumption	12 W
Display	LCD
RF Carrier Frequency Range	615–695 MHz
Effective Operating Distance	150 meters (line-of-sight, unobstructed)
Modulation Method	FM
Pilot Tone Method	Digital pilot tone
Maximum Number of Channels	200
System Compatibility	Up to 15 units operating simultaneously
Frequency Response	80 Hz–15 kHz (±3 dB)
Dynamic Range	>110 dB
Total Harmonic Distortion (THD)	<0.5%
Signal-to-Noise Ratio	S/N >100 dB (A-weighted)
RF Sensitivity	-98 dBm (30 dB S/N ratio)
Receiver Sensitivity	-105 dBm
Image Rejection	>75 dB
Output Interfaces	XLR × 4 / 6.35 mm interface × 1
XLR Audio Output Level	+10 dBV
6.35 mm Interface Audio Output Level	+8 dBV
Output Impedance	3 kΩ
Power Requirement	12 V / 1 A
Operating Temperature Range	0–50 °C
Distortion	<0.01%

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

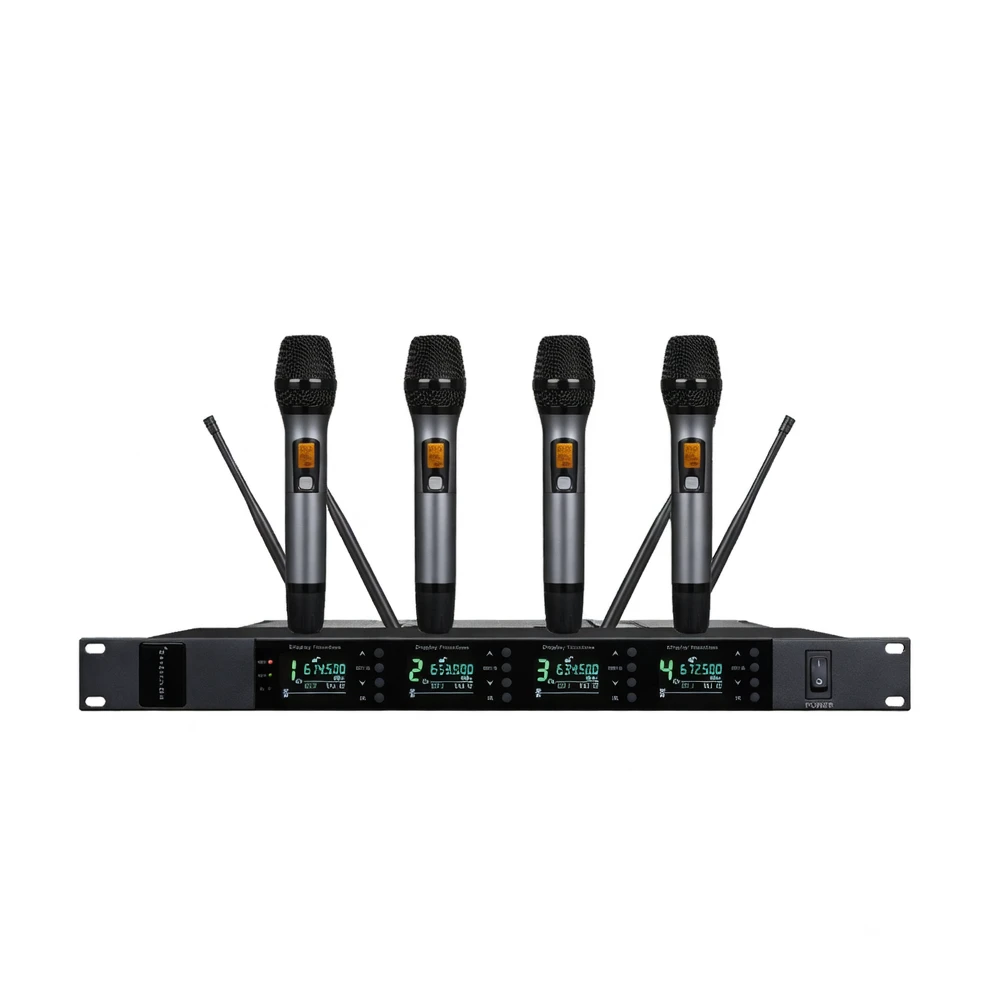

Harmonai ACT-804 Handheld Wireless Microphone product image

Product Overview

The Harmonai ACT-804 Handheld is a professional-grade UHF wireless microphone, featuring advanced PLL phase-locked loop frequency synthesis technology. It offers 200 selectable channels and supports up to 15 units operating simultaneously without interference. Its RF carrier frequency range covers the professional band of 615–695 MHz, with an effective transmission distance of up to 150 meters (line-of-sight, unobstructed).

The handheld unit uses a cardioid dynamic capsule, with a frequency response of 80 Hz–18 kHz, delivering accurate vocal reproduction. It features an LCD display and intelligent low-battery warning for clear status monitoring. Dual-output design includes balanced XLR output (+10 dBV) and unbalanced 6.35 mm output (+8 dBV), offering flexible compatibility with mixers, power amplifiers, speakers, and other professional audio equipment.

Receiver Operating Voltage

DC 12 V

RF Carrier Frequency Range

615–695 MHz

Effective Operating Distance

150 meters (line-of-sight, unobstructed)

Maximum Number of Channels

200

System Compatibility

Up to 15 units operating simultaneously

Frequency Response

80 Hz–15 kHz (±3 dB)

Signal-to-Noise Ratio

>100 dB (A-weighted)

Output Interfaces

XLR × 4 / 6.35 mm × 1

Microphone Type

Dynamic (cardioid polar pattern)

Handheld Unit Audio Response

80 Hz–18 kHz

Battery Specification

AA × 2 (1.5 V), runtime >5 hours

Receiver Dimensions

44.4 mm (H) × 483 mm (W) × 185 mm (D)

Recommended Applications

The ACT-804 handheld wireless microphone is widely suitable for professional audio applications: corporate meetings and presentations, stage performances, KTV entertainment, education and training, wedding hosting, and outdoor events. Its cardioid pickup pattern effectively suppresses ambient noise; the 150-meter transmission range meets requirements for medium-to-large venues; and support for up to 15 simultaneous units enables multi-microphone, multi-host setups.

For detailed technical specifications or bulk procurement options for the Harmonai ACT-804 handheld wireless microphone, please contact us for professional consultation and quotation.
