Chassis Specifications
Standard 1U rack-mount design
Product Overview

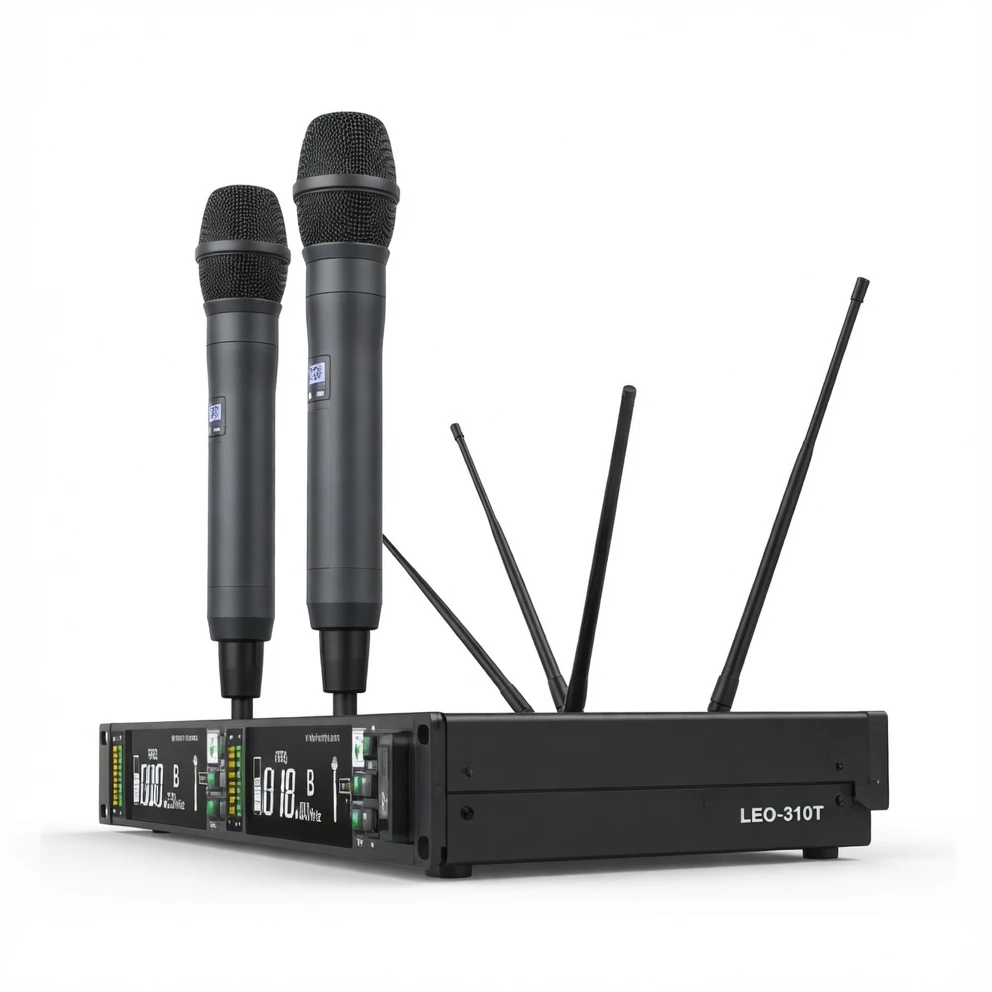

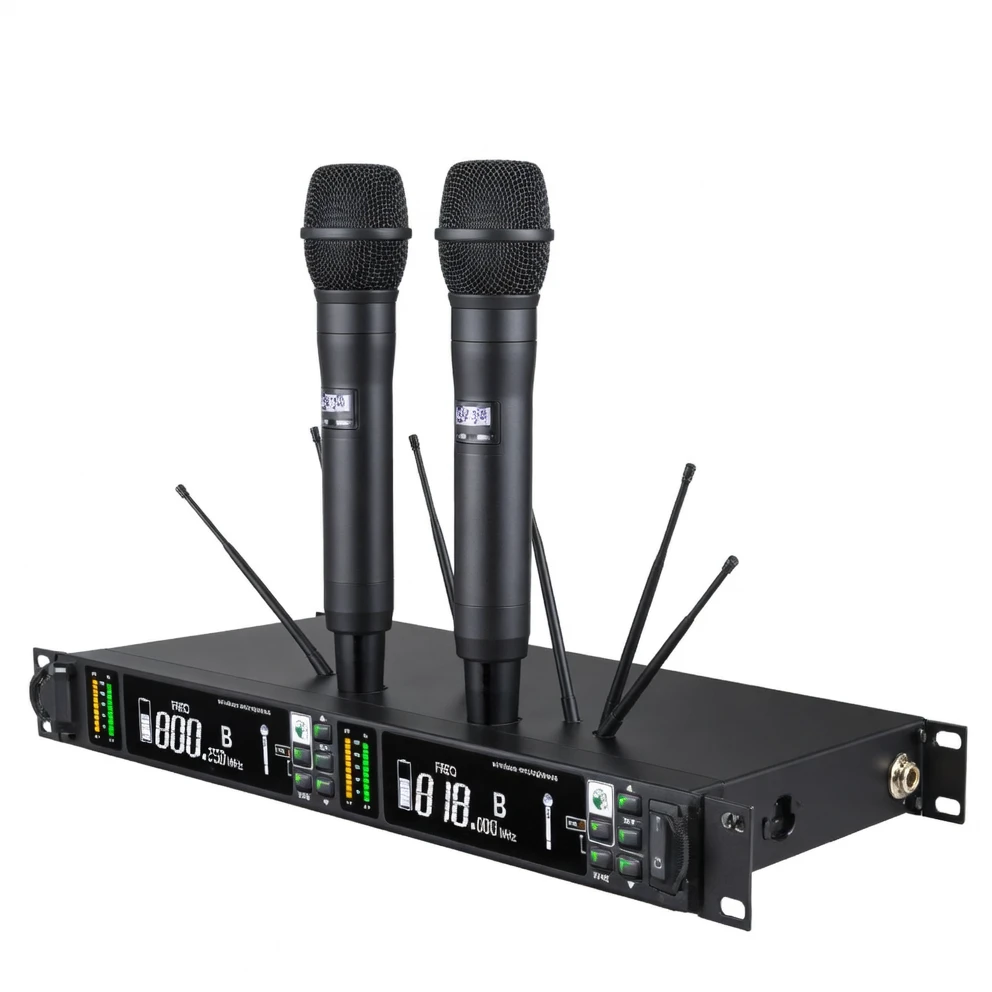

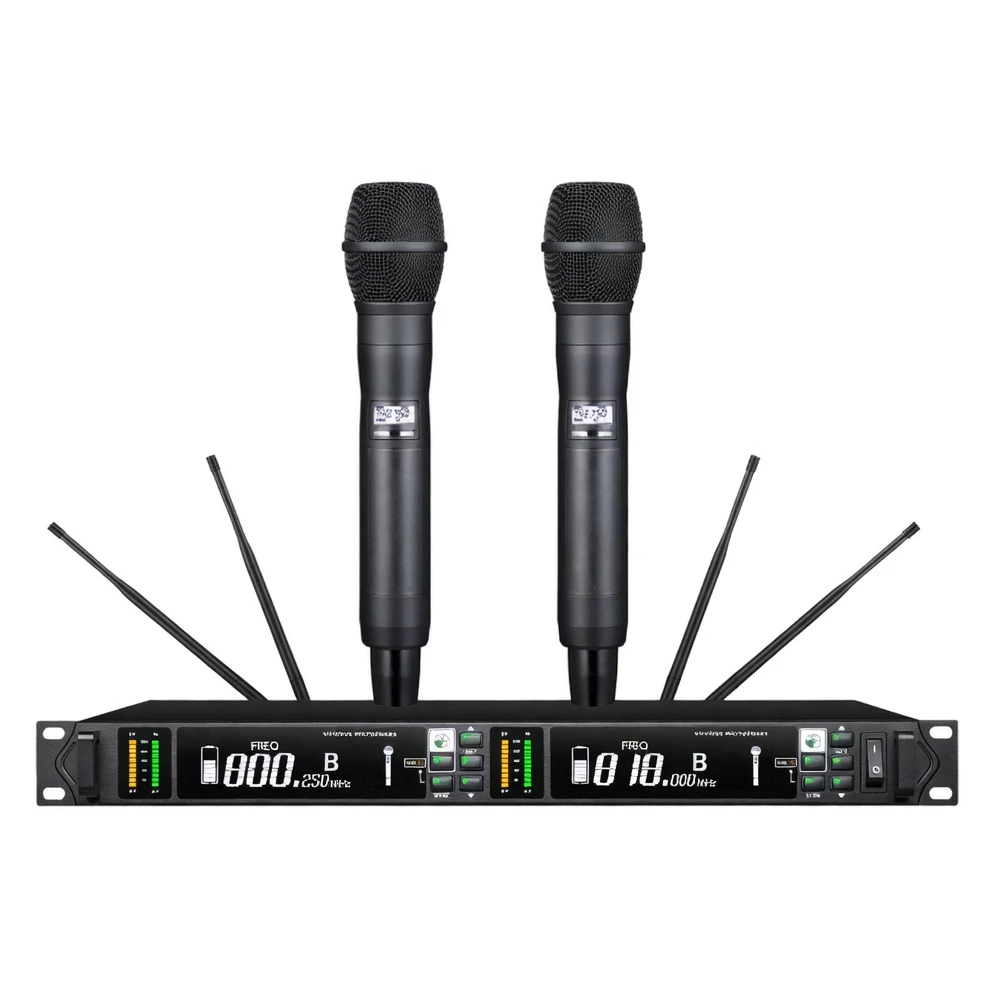

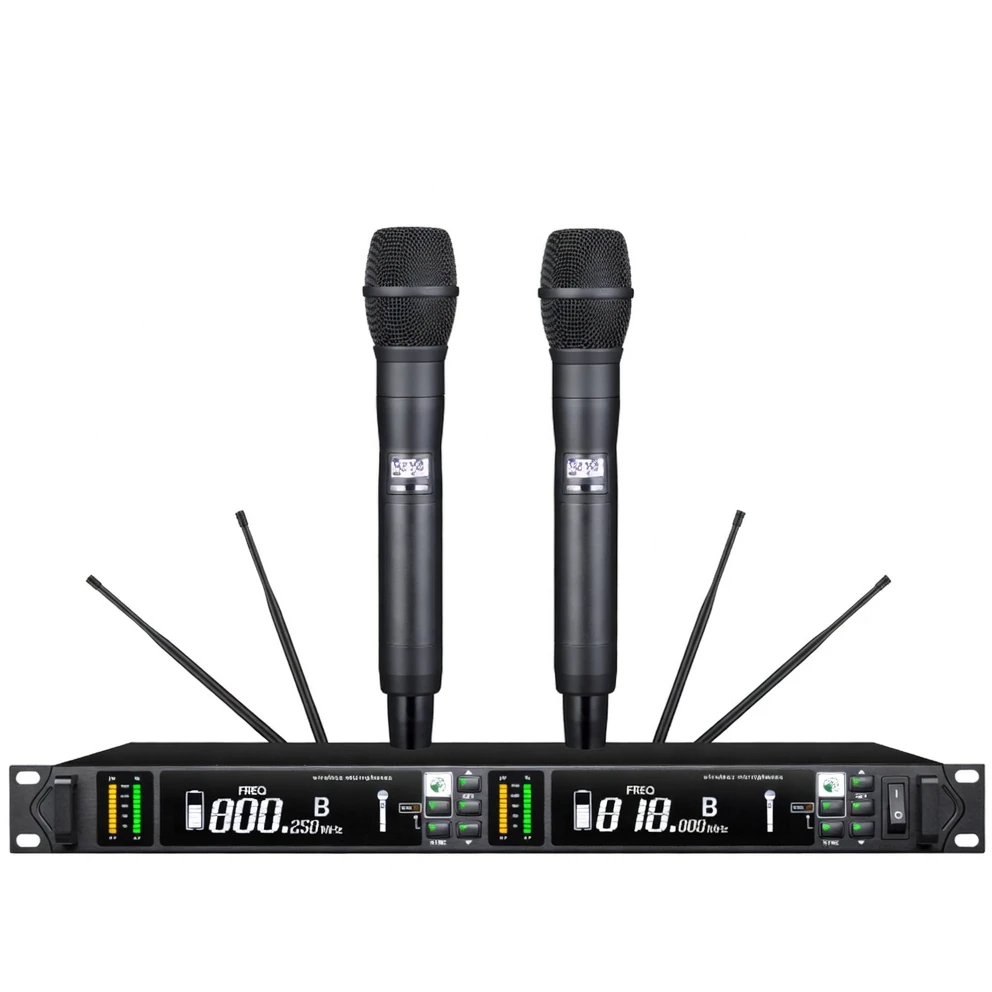

The Harmonai LEO-310T is a professional-grade UHF wireless microphone system featuring a standard 1U rack-mount chassis, with flexible switching between dual-channel (one transmitter, two receivers) and single-channel (one transmitter, one receiver) modes. Equipped with a phase-locked frequency synthesizer, it ensures clean, stable signal transmission across the 500–900 MHz wideband modulation range, with an effective transmission distance of up to 100 meters. Its professional dynamic microphone capsule delivers a frequency response of 50 Hz–18 kHz and a total signal-to-noise ratio exceeding 100 dB — ideal for reliable audio capture in conferences, live performances, KTV, and other professional environments.
Channel Configuration
Dual-channel (one-to-two) / Single-channel (one-to-one)
Carrier Frequency Band
500–900 MHz (other bands available upon customization)
Modulation Method
Wideband modulation
Oscillation Method
Phase-locked frequency synthesizer
Bandwidth
24 MHz
Frequency Deviation
±45 kHz
Sensitivity
At 25 kHz deviation and 6 dBμV input: S/N > 60 dB
Overall Signal-to-Noise Ratio (SNR)
>100 dB
Total Harmonic Distortion (T.H.D.)
<0.5% @ 1 kHz
Frequency Response
50 Hz–18 kHz ±3 dB
Output Voltage
Balanced: –20 dBV / 100 Ω; Unbalanced: –4 dBV / 5 kΩ
Output Connectors
XLR balanced + 6.3 mm unbalanced
Effective Operating Distance
100 meters
Handheld Transmitter Output Power
10 mW
Handheld Microphone Capsule Type
Dynamic
Handheld Microphone Frequency Response
50 Hz–18 kHz
Maximum Input Sound Pressure Level (SPL)
130 dB SPL
Battery Type
AA × 2
Continuous Operating Time
>8 hours (with alkaline batteries)
Handheld Transmitter Dimensions
Approx. 270 mm (L) × 50 mm (diameter)
Handheld Transmitter Weight
Approx. 400 g
Receiver Dimensions (Standard Dual-Channel Version)
Approx. 420 mm (W) × 45 mm (H) × 179 mm (D)
Receiver Weight (Standard Dual-Channel Version)
Approx. 1800 g
Operating Temperature Range
–10°C to +55°C
Power Supply
DC 12–15 V, 0.5–1 A
Recommended Applications
The LEO-310T is ideal for conference systems, stage performances, KTV venues, education & training, and wedding ceremonies. Its dual-channel configuration supports two speakers or performers simultaneously; its 100-meter operating range covers small-to-medium venues; and its XLR balanced output connects directly to professional mixers — making it a top choice for professional audio engineering.
Explore more Harmonai professional audio solutions, or consult our team about custom frequency band requirements.
