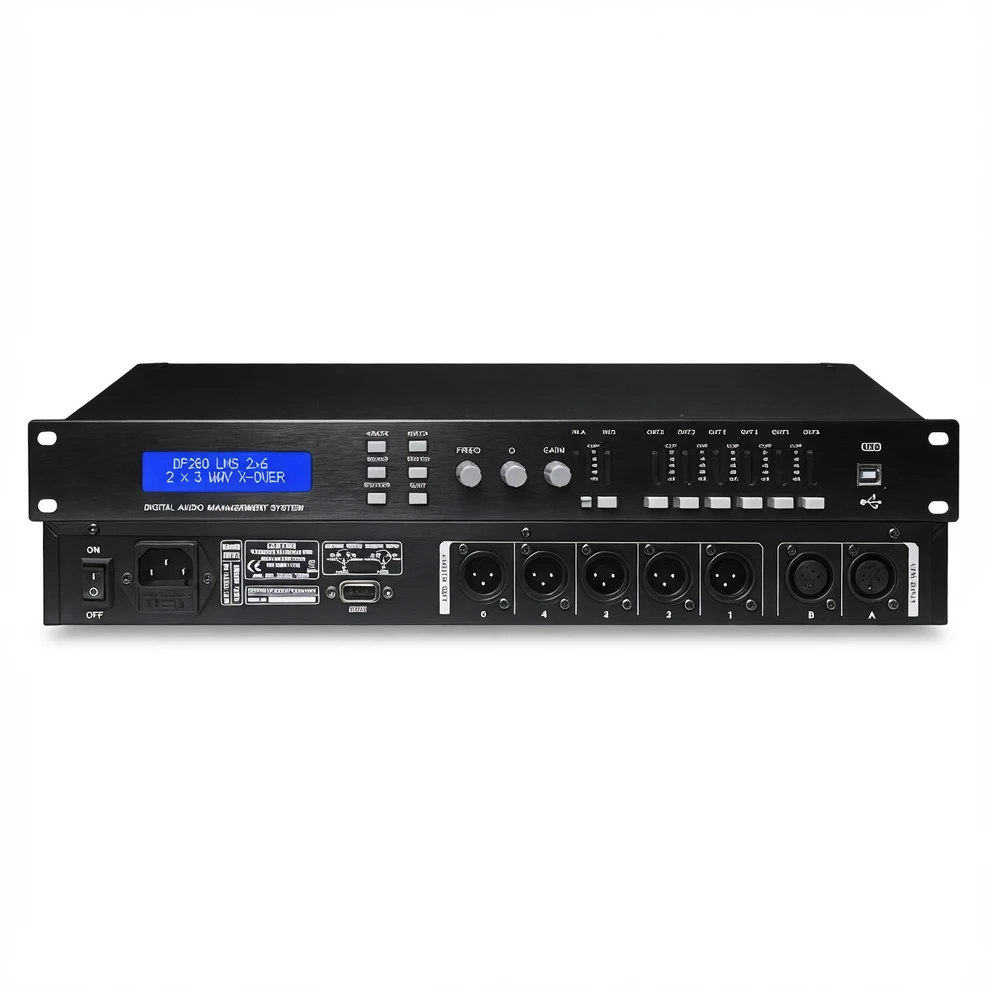

Harmonai DA-206 2-in/6-out Digital Audio Processor image 1

Harmonai DA-206 2-in/6-out Professional Digital Audio Processor — High-Precision Audio Management Solution

The Harmonai DA-206 is a professional 2-in/6-out digital audio processor featuring 105dB dynamic range, 15-band graphic EQ per input, 8-band parametric EQ per output, and high-prec...

$197.87

Model: DA-206
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai DA-206 2-in/6-out Professional Digital Audio Processor — High-Precision Audio Management Solution

Overview

The Harmonai DA-206 is a professional 2-in/6-out digital audio processor featuring 105dB dynamic range, 15-band graphic EQ per input, 8-band parametric EQ per output, and high-prec...

Price: $197.87
Model: DA-206
Category: Stage Accessories

Specifications

Parameter	Value
Input Impedance	>10 kΩ, electronically balanced
Common-Mode Rejection Ratio (CMRR)	>65 dB (50 Hz–10 kHz)
Output Impedance	<60 Ω, electronically balanced
Maximum Output Level	Vpp = 4 V (balanced), Vpp = 7.6 V (unbalanced)
Frequency Response	20 Hz–20.0 kHz, ±0.5 dB
Dynamic Range	>105 dB (20 Hz–20 kHz, unweighted)
Total Harmonic Distortion (THD)	0.01% (THD)
Maximum Delay	6.979 ms, minimum adjustment step: 0.021 ms
Output Gain Range	−40 dB to +6 dB, 0.1 dB step
Input Gain Range	−40 dB to +6 dB, 0.1 dB step
Graphic Equalizer Filters	15 bands per input channel
Parametric Equalizer Filters (Output)	8 bands per output channel
Parametric Equalizer Filters (Input)	9 bands per input channel
Filter Gain Range	+15 dB to −30 dB, 0.1 dB step
Filter Center Frequency	20 Hz–20 kHz, 1/36-octave resolution (368 ISO frequencies)
Filter Q Value / Bandwidth (BW)	Q: 0.5–128 / BW: 2.0–0.008
High-Pass / Low-Pass Filters	One per output channel, 20 Hz–20 kHz, 1/36-octave resolution
Response Curve Types	Butterworth (6/12/18/24/48 dB), Bessel (12/18/24/48 dB), Linkwitz-Riley (12/18/24/48 dB)
Limiter Threshold	−10 dBu to +15 dBu
Limiter Attack Time	0.3–90 ms; release time = 2×, 4×, 8×, 16×, or 32× attack time
Display	20×2 LCD with blue backlight and white characters
Level Indication	−24 dB, −18 dB, −12 dB, −6 dB, 0 dB, Clip
Connectors	Inputs: XLR-3F, Outputs: XLR-3M, RS232: 9-pin female D-sub, USB: square USB-B port
Power Supply	180–240 VAC, 50–60 Hz; fuse: T315 mA / 250 VAC

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

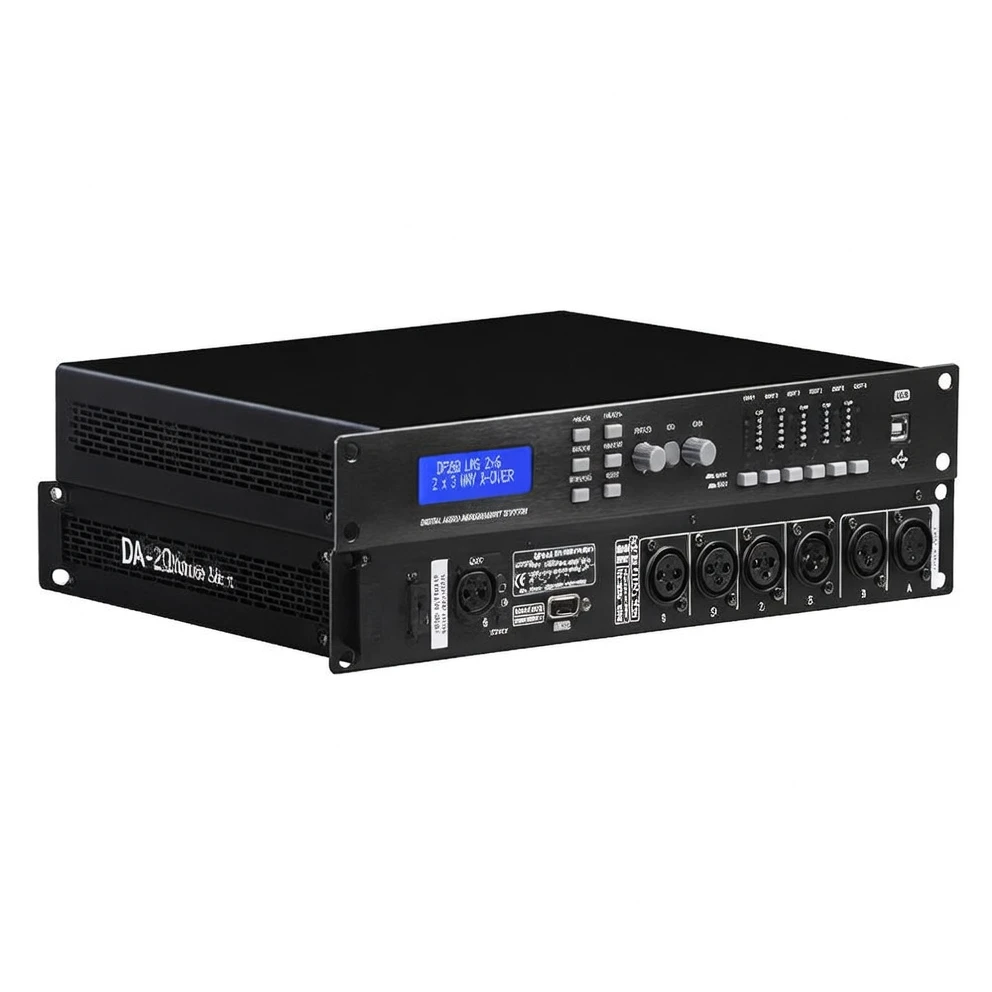

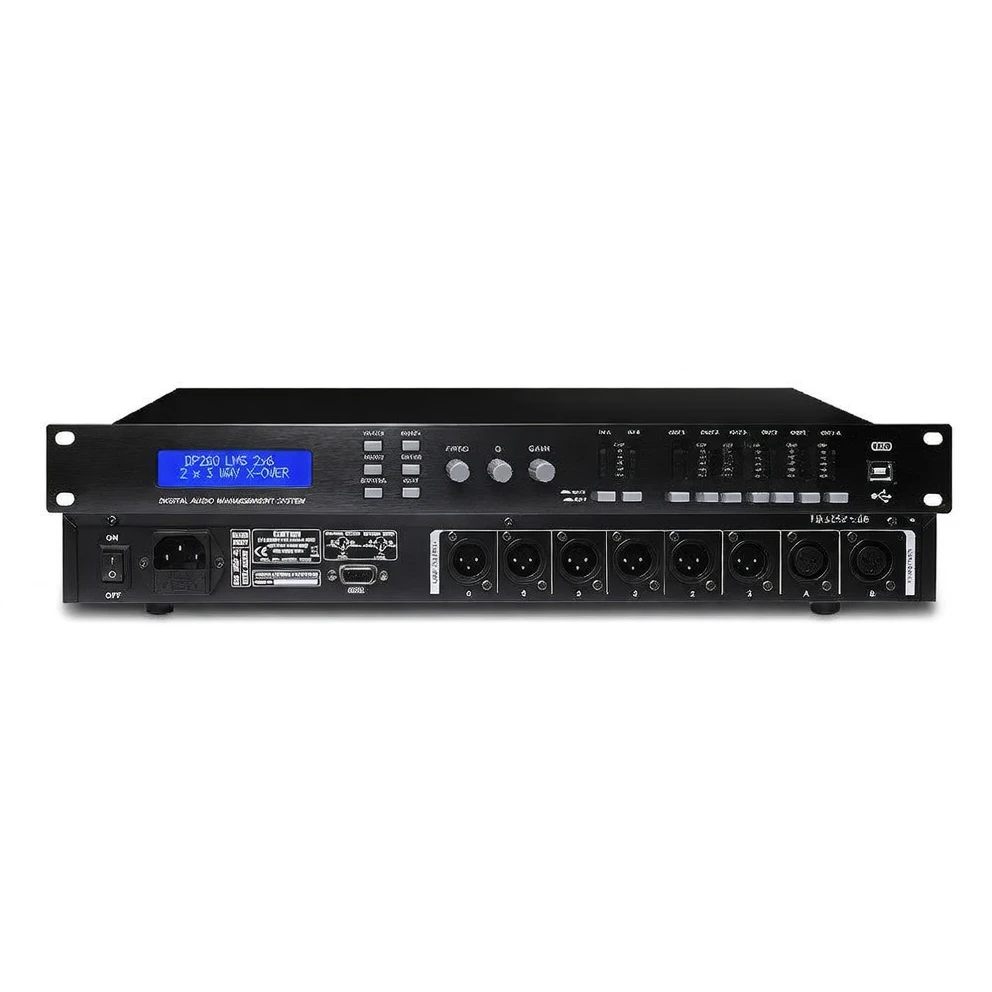

Harmonai DA-206 2-in/6-out digital audio processor product image

Product Overview

The Harmonai DA-206 is a professional 2-in/6-out digital audio processor, engineered for precise management and optimization of multi-channel audio systems. It delivers a 105dB dynamic range and ultra-low 0.01% THD distortion. Each input channel features 15-band graphic EQ and 9-band parametric EQ filtering, while each output channel offers 8-band parametric EQ—enabling full-spectrum, surgical tonal control. Every output includes an independent high-pass/low-pass filter with selectable Butterworth, Bessel, or Linkwitz-Riley response curves (6/12/18/24/48 dB slopes), plus a fully adjustable limiter with user-defined threshold, attack time, and release time (2×, 4×, 8×, 16×, or 32× attack)—meeting the most demanding requirements of professional sound reinforcement.

Input Impedance

>10 kΩ, electronically balanced

Common-Mode Rejection Ratio (CMRR)

>65 dB (50 Hz–10 kHz)

Output Impedance

<60 Ω, electronically balanced

Maximum Output Level

Vpp = 4 V (balanced), Vpp = 7.6 V (unbalanced)

Frequency Response

20 Hz–20.0 kHz, ±0.5 dB

Dynamic Range

>105 dB (20 Hz–20 kHz, unweighted)

Total Harmonic Distortion (THD)

0.01% (THD)

Maximum Delay

6.979 ms, minimum adjustment step: 0.021 ms

Output Gain Range

−40 dB to +6 dB, 0.1 dB step

Input Gain Range

−40 dB to +6 dB, 0.1 dB step

Graphic Equalizer Filters

15 bands per input channel

Parametric Equalizer Filters (Output)

8 bands per output channel

Parametric Equalizer Filters (Input)

9 bands per input channel

Filter Gain Range

+15 dB to −30 dB, 0.1 dB step

Filter Center Frequency

20 Hz–20 kHz, 1/36-octave resolution (368 ISO frequencies)

Filter Q Value / Bandwidth (BW)

Q: 0.5–128 / BW: 2.0–0.008

High-Pass / Low-Pass Filters

One per output channel, 20 Hz–20 kHz, 1/36-octave resolution

Response Curve Types

Butterworth (6/12/18/24/48 dB), Bessel (12/18/24/48 dB), Linkwitz-Riley (12/18/24/48 dB)

Limiter Threshold

−10 dBu to +15 dBu

Limiter Attack Time

0.3–90 ms; release time = 2×, 4×, 8×, 16×, or 32× attack time

Display

20×2 LCD with blue backlight and white characters

Input/Output Level Indication

−24 dB, −18 dB, −12 dB, −6 dB, 0 dB, Clip

Connectors

Inputs: XLR-3F, Outputs: XLR-3M, RS232: 9-pin female D-sub, USB: square USB-B port

Power Supply

180–240 VAC, 50–60 Hz; fuse: T315 mA / 250 VAC

Typical Applications

The Harmonai DA-206 is ideal for live performance sound systems, multi-function halls and conference room PA, bar/KTV audio processing, and fixed-installation broadcast systems. Its 2-in/6-out architecture enables flexible routing of audio signals to multiple power amplifiers or active loudspeakers. Combined with full-parameter digital EQ, filtering, and limiting, it provides comprehensive digital tools for system tuning and acoustic optimization.
