Harmonai GP-900 Professional UHF Wireless Microphone System with PLL Synthesis, 200 Channels, 120m Range

The Harmonai GP-900 is a professional UHF wireless microphone system featuring PLL synthesis technology, 640–699.7 MHz frequency range, 200 selectable channels (2×100), and up to 1...

$107.73

Model: GP-900
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai GP-900 Professional UHF Wireless Microphone System with PLL Synthesis, 200 Channels, 120m Range

Overview

The Harmonai GP-900 is a professional UHF wireless microphone system featuring PLL synthesis technology, 640–699.7 MHz frequency range, 200 selectable channels (2×100), and up to 1...

Price: $107.73
Model: GP-900
Category: Microphones

Specifications

Parameter	Value
Modulation Mode	PLL synthesis
Frequency Range	640 MHz–699.7 MHz
Tuning Mode	FM
Total Number of Channels	2×100 CH (200 channels)
Channel Spacing	0.3 MHz
Frequency Stability	±0.005%
Dynamic Range	100 dB
Maximum Deviation	±75 kHz
Frequency Response	20 Hz–18 kHz
Auto-Focus Response	80 Hz–15 kHz (±3 dB)
Total Signal-to-Noise Ratio	98 dB
Signal-to-Noise Ratio S/N	>90 dB (A-weighted)
Total Distortion	≤0.8%
Total Harmonic Distortion	<0.3% (at 1 kHz)
Receiver Sensitivity	12 dBμV (80 dB S/N)
Harmonic Interference Rejection	>50 dB
Mirror Image Interference Rejection	≥60 dB
Transmit Power	High power 10 dB / Low power 8 dB
Maximum Frequency Deviation	±5 kHz
Operating Distance	120 meters
Operating Temperature	−10 °C to 55 °C

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

Product Overview

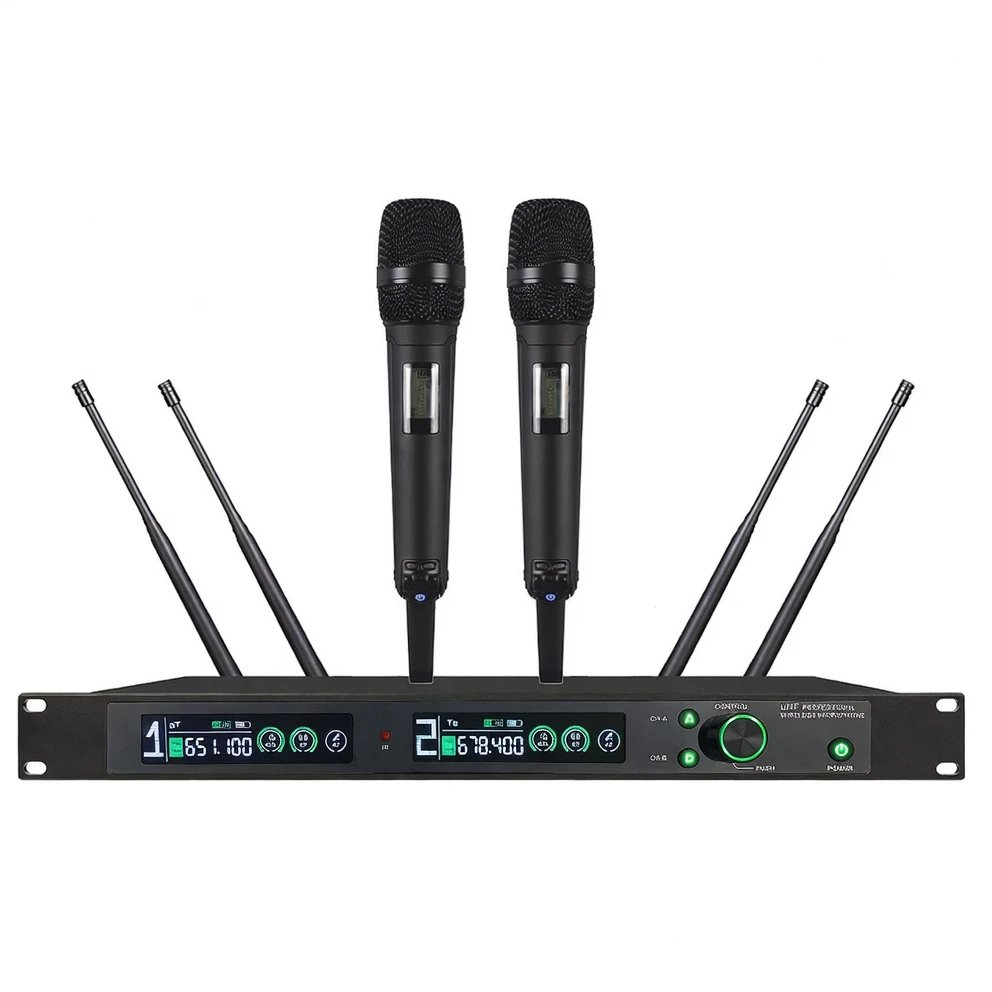

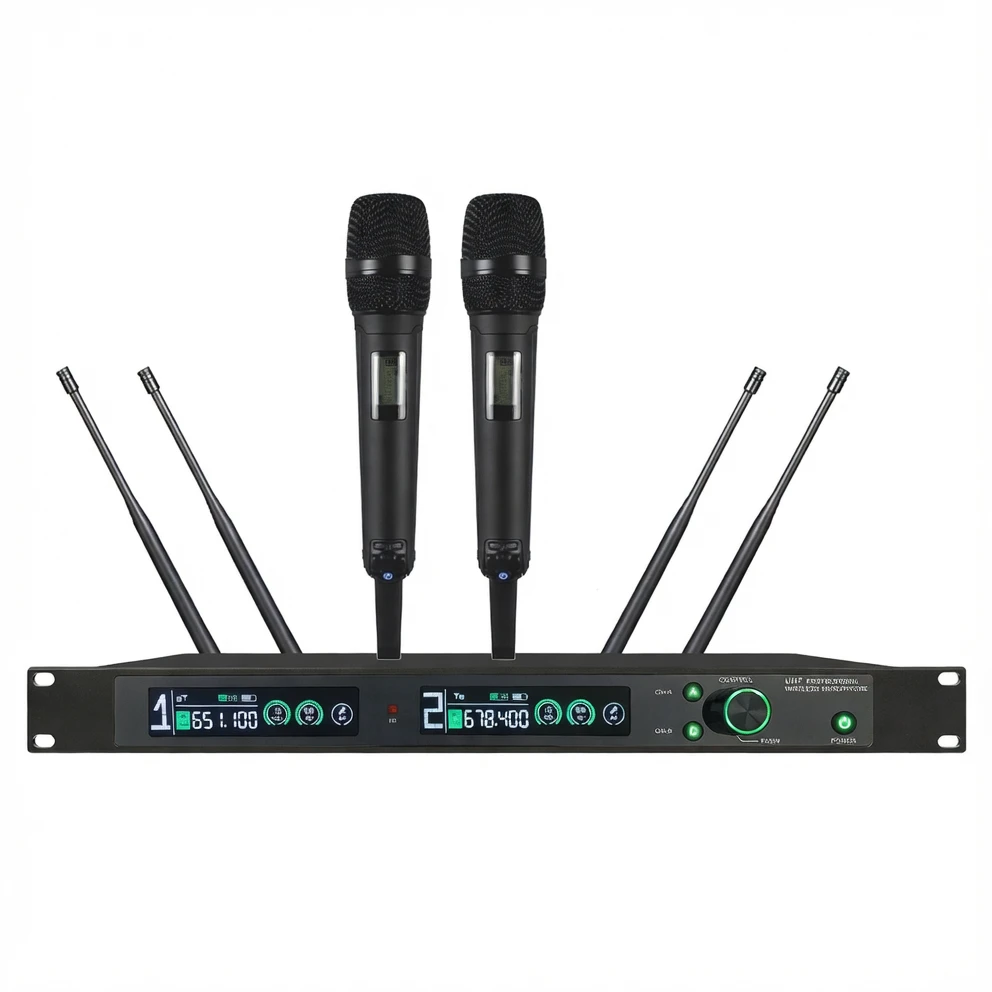

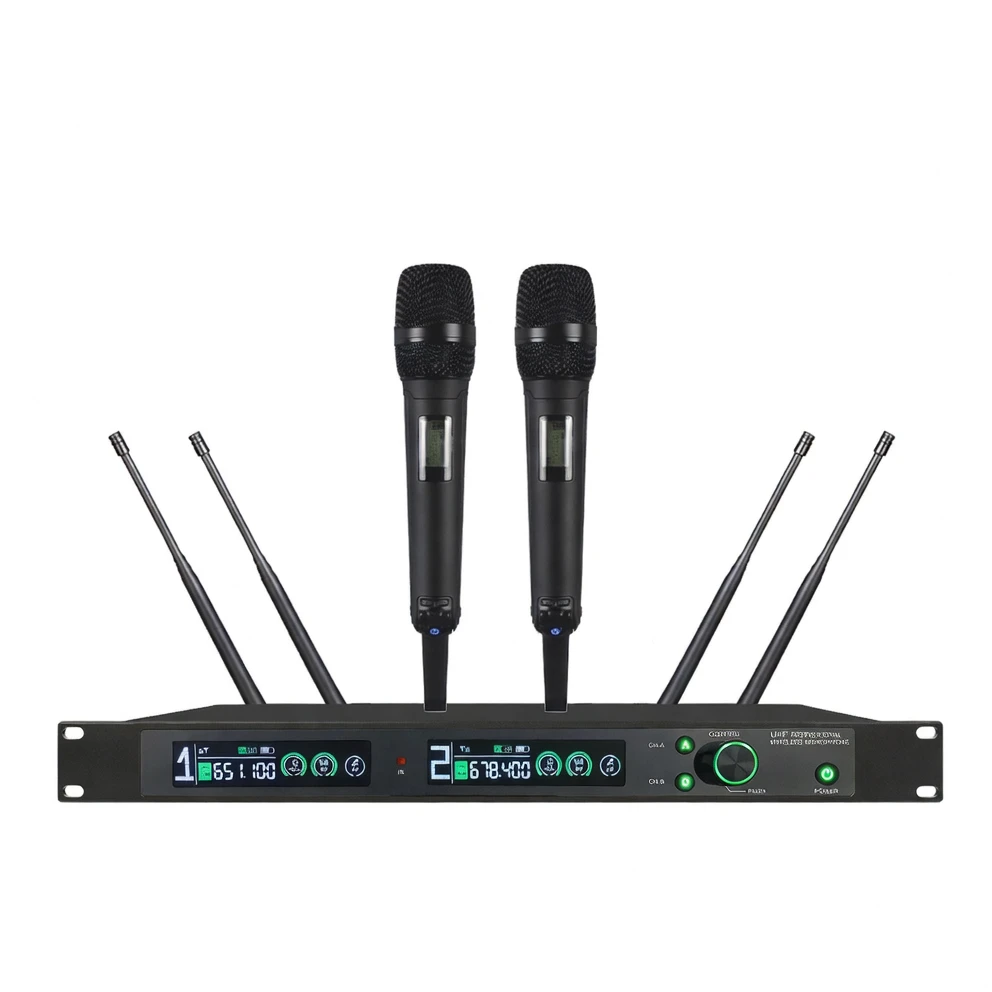

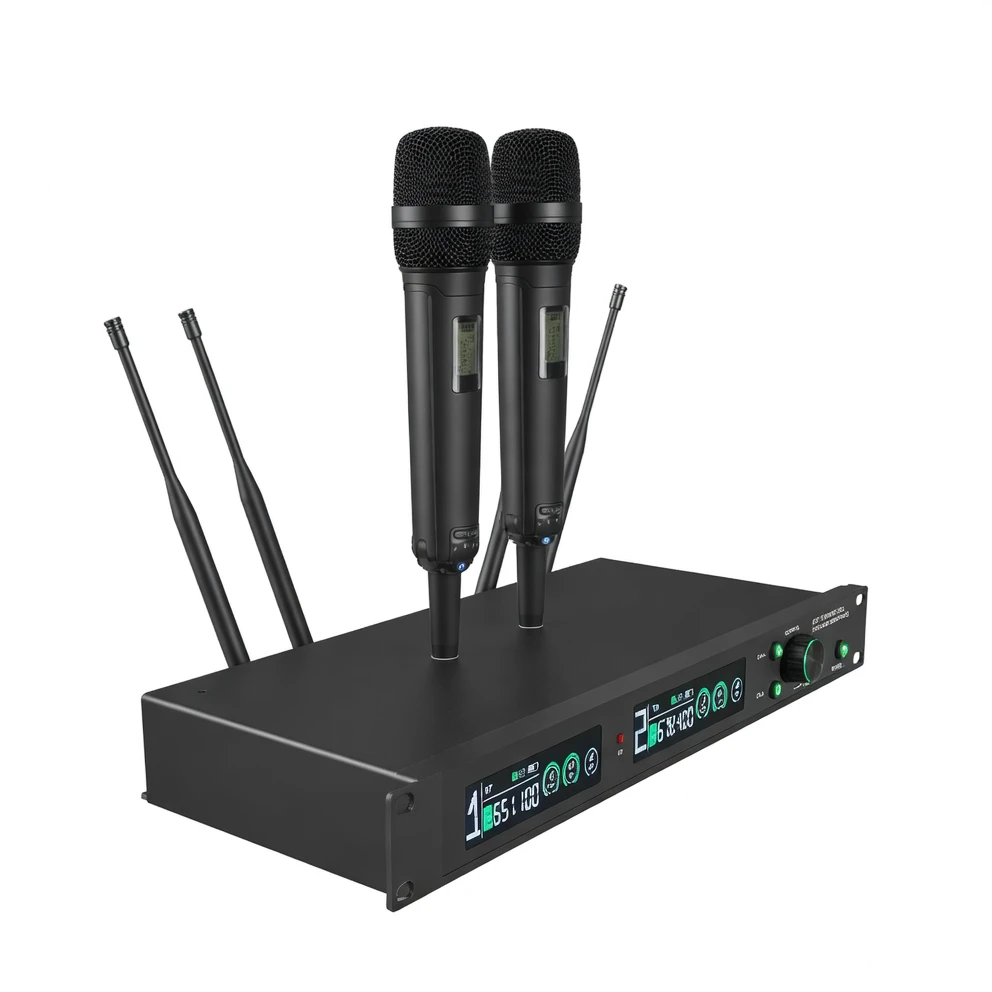

Harmonai GP-900 is a professional-grade UHF wireless microphone system utilizing PLL (Phase-Locked Loop) synthesis technology. It operates across the 640–699.7 MHz frequency band and offers 2×100 = 200 selectable channels. FM modulation mode combined with fine 0.3 MHz channel spacing ensures precise frequency selection. With an effective transmission distance of up to 120 meters and switchable high/low power transmission modes, it delivers exceptional flexibility. Featuring a dynamic range of 100 dB, a total signal-to-noise ratio of 98 dB, and total harmonic distortion ≤0.8%, it delivers exceptionally clean and clear audio. Ideal for conference rooms, live stages, classrooms, and other professional sound reinforcement applications.

Modulation Mode

PLL synthesis

Frequency Range

640 MHz – 699.7 MHz

Total Number of Channels

2×100 CH (200 channels)

Channel Spacing

0.3 MHz

Frequency Stability

±0.005%

Dynamic Range

100 dB

Frequency Response

20 Hz – 18 kHz

Total Signal-to-Noise Ratio

98 dB

Total Harmonic Distortion

≤0.8%

Transmit Power

High power: 10 dB / Low power: 8 dB

Operating Distance

120 meters

Mirror Image Interference Rejection

≥60 dB

Operating Temperature

−10 °C to 55 °C

Recommended Applications

Suitable for conference speaking, stage performances, teacher training, wedding hosting, on-site interviews, KTV entertainment, and other professional sound reinforcement scenarios. The 200-channel selection and 120-meter transmission range support flexible multi-channel use in large venues. High/low dual-power modes adapt seamlessly to varying room sizes — balancing energy efficiency and performance.

For more technical details or pricing information about the Harmonai GP-900 wireless microphone system, feel free to contact us for expert consultation.
