Harmonai QY-TA380 380W Moving Head Pattern Light (Lamp Version) image 1

Harmonai QY-TA380 380W Tri-Function Moving Head Light — Beam, Wash & Pattern

The Harmonai QY-TA380 is a professional 380W tri-function moving head light combining beam, wash, and pattern effects. Featuring a Ruilamp 380W lamp, 13-color + white color wheel,...

$395.74

Model: QY-TA380
Category: Lighting Systems
Images: 4 images
Status: ready

Product Brief

Harmonai QY-TA380 380W Tri-Function Moving Head Light — Beam, Wash & Pattern

Overview

The Harmonai QY-TA380 is a professional 380W tri-function moving head light combining beam, wash, and pattern effects. Featuring a Ruilamp 380W lamp, 13-color + white color wheel,...

Price: $395.74
Model: QY-TA380
Category: Lighting Systems

Specifications

Parameter	Value
Voltage	AC100–240V, 50/60Hz
Lamp	Ruilamp 380W lamp
Color Temperature	7500K
Lamp Life	2000 hours
Colors	One color wheel, 13 colors + white; supports half-color mixing and bi-directional rotation
Gobos	One rotating gobo wheel, 9 replaceable gobos + white; unidirectional rotation; gobo wheel features jitter effect
Fixed Gobos	One fixed gobo wheel, 17 patterns; gobo wheel features jitter effect and bi-directional rotation
Prisms	One rotating 16-facet prism, another rotating linear prism or 8-facet prism; unidirectional rotation
Lens	High-precision multi-element compound optical lens
Soft-Focus Effect	Adjustable soft-focus angle
Beam Effect	Multi-stage beam angle variation
Focusing	Linear focus
Dimming	0–100% linear dimming
Beam Angle	2°–56°
Projection Range	Pan 540°, Tilt 270°, with automatic positioning calibration
Scan Speed	Pan 2.6 sec / 540°, Tilt 1.24 sec / 270°
Strobe	Dual-strobe structure, strobe rate 0.5–14 Hz
Motor Count	16 ultra-quiet motors, including two 3-phase motors, 16-bit driving
Control Method	Standard DMX512 protocol, standalone auto-run mode, etc.
DMX Channels	Two channel-mode selections: 20-channel or 24-channel mode
Runtime Tracking	Menu-based tracking of total and elapsed runtime for fixture and lamp
Enclosure	Heat-resistant plastic housing with high-strength alloy cold-pressed internal frame
Intelligent Thermal Management	Airflow guidance and intelligent temperature monitoring technology; automatically activates cooling fans at different locations inside the fixture for effective component cooling
Ingress Protection	IP20 rating; optional rain cover available

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

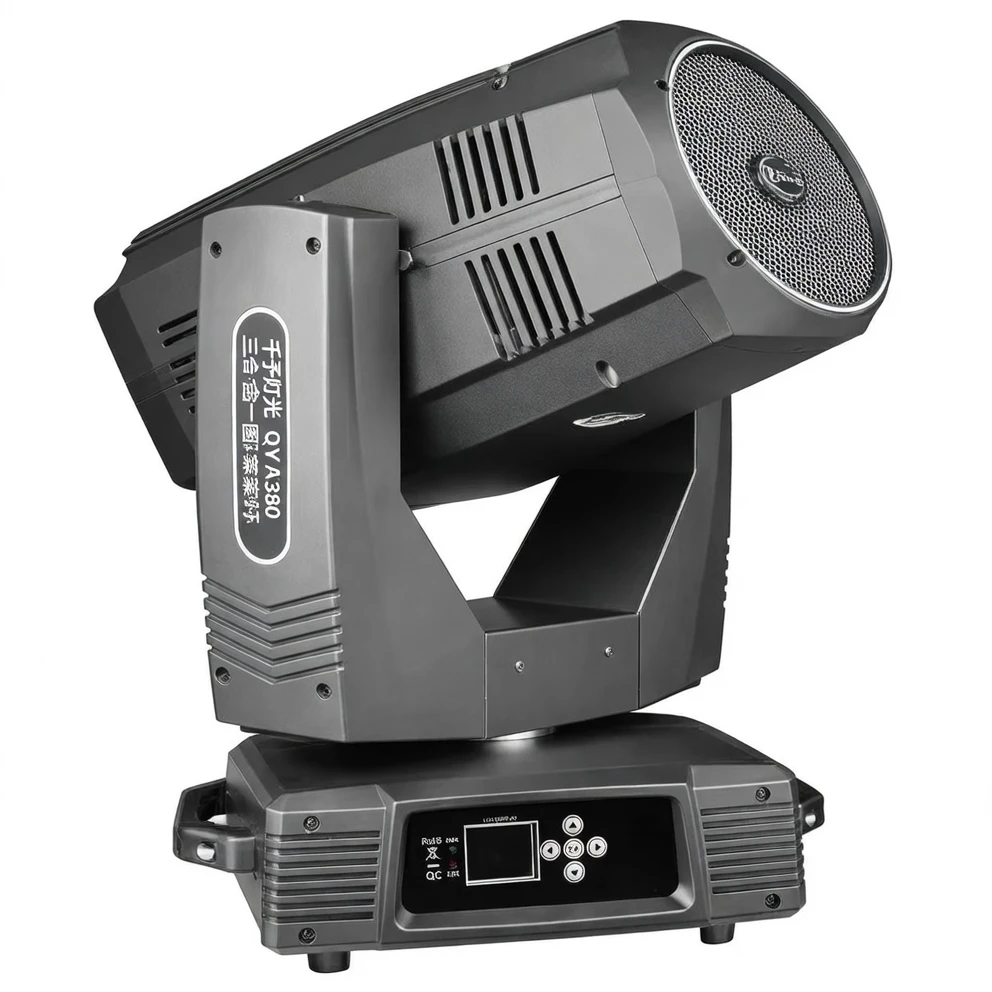

Harmonai QY-TA380 380W moving head pattern light product image

Product Overview

The Harmonai QY-TA380 is a professional-grade 380W tri-function moving head pattern light, integrating three core functions: beam, wash, and pattern. It uses a Ruilamp 380W lamp with a color temperature of 7500K and a lifespan of up to 2000 hours. Equipped with a 13-color + white color wheel, nine replaceable gobos, 17 fixed gobos, and a dual prism system (16-facet rotating prism + linear or 8-facet rotating prism), it delivers richly layered and dynamic light effects. Sixteen ultra-quiet motors paired with 16-bit driving enable wide-range scanning—540° pan and 270° tilt—to meet diverse stage lighting requirements.

Voltage

AC100–240V, 50/60Hz

Lamp

Ruilamp 380W lamp

Color Temperature

7500K

Lamp Life

2000 hours

Colors

One color wheel: 13 colors + white; supports half-color mixing and bi-directional rotation

Gobos

One rotating gobo wheel: 9 replaceable gobos + white; unidirectional rotation; gobo wheel features jitter effect

Fixed Gobos

One fixed gobo wheel: 17 patterns; gobo wheel features jitter effect and bi-directional rotation

Prisms

One rotating 16-facet prism; one rotating linear prism or 8-facet prism; unidirectional rotation

Lens

High-precision multi-element compound optical lens

Soft-Focus Effect

Adjustable soft-focus angle

Beam Effect

Multi-stage beam angle variation

Focusing

Linear focus

Dimming

0–100% linear dimming

Beam Angle

2°–56°

Projection Range

Pan: 540°, Tilt: 270°, with automatic positioning calibration

Scan Speed

Pan: 2.6 sec / 540°, Tilt: 1.24 sec / 270°

Strobe

Dual-strobe design, strobe rate: 0.5–14 Hz

Motor Count

16 ultra-quiet motors, including two 3-phase motors; 16-bit driving

Control Method

Standard DMX512 protocol, standalone auto-run mode, etc.

DMX Channels

Two channel-mode selections: 20-channel or 24-channel mode

Runtime Tracking

Menu-based total and elapsed runtime tracking for fixture and lamp

Enclosure

Heat-resistant plastic housing with high-strength alloy cold-pressed internal frame

Intelligent Thermal Management

Airflow guidance and intelligent temperature monitoring; automatically activates cooling fans at different locations based on real-time thermal conditions

Ingress Protection

IP20 rating; optional rain cover available

Applications

The Harmonai QY-TA380 tri-function pattern light is ideal for professional stage performances, bars and Livehouses, theater lighting, concerts, DJ sets, wedding ceremonies, and live-streaming studio lighting. Its tri-function design enables seamless switching between beam, wash, and pattern modes. Combined with the dual prism system and high-precision optical lens, it creates stunning visual impact.

Explore more Harmonai professional stage lighting solutions—contact us for detailed pricing and technical support.
