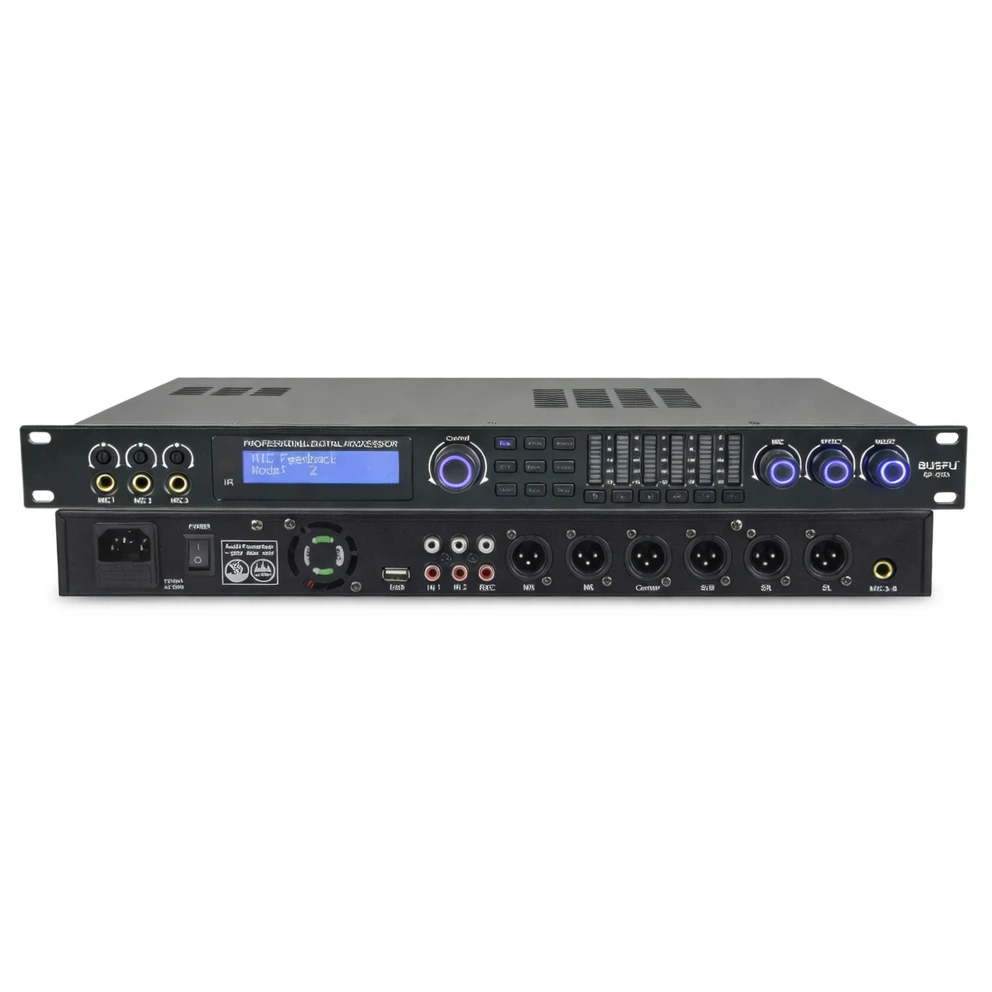

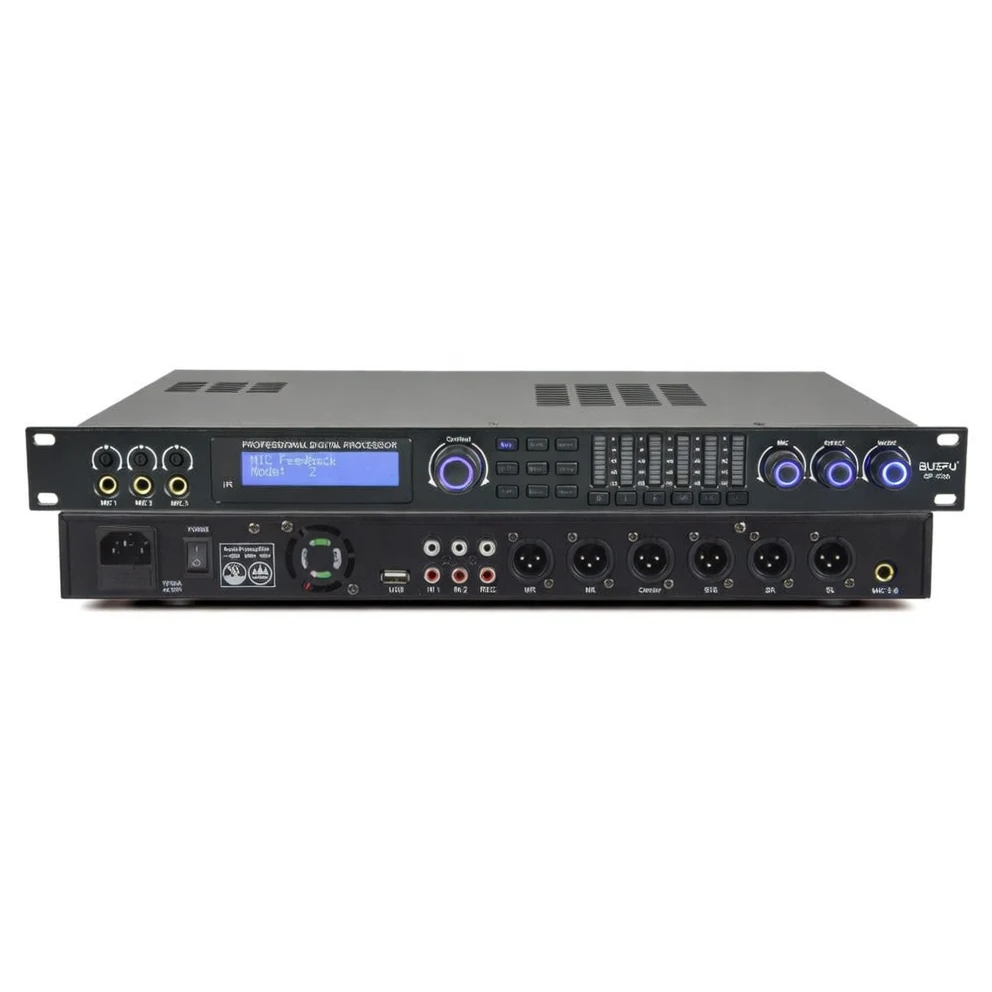

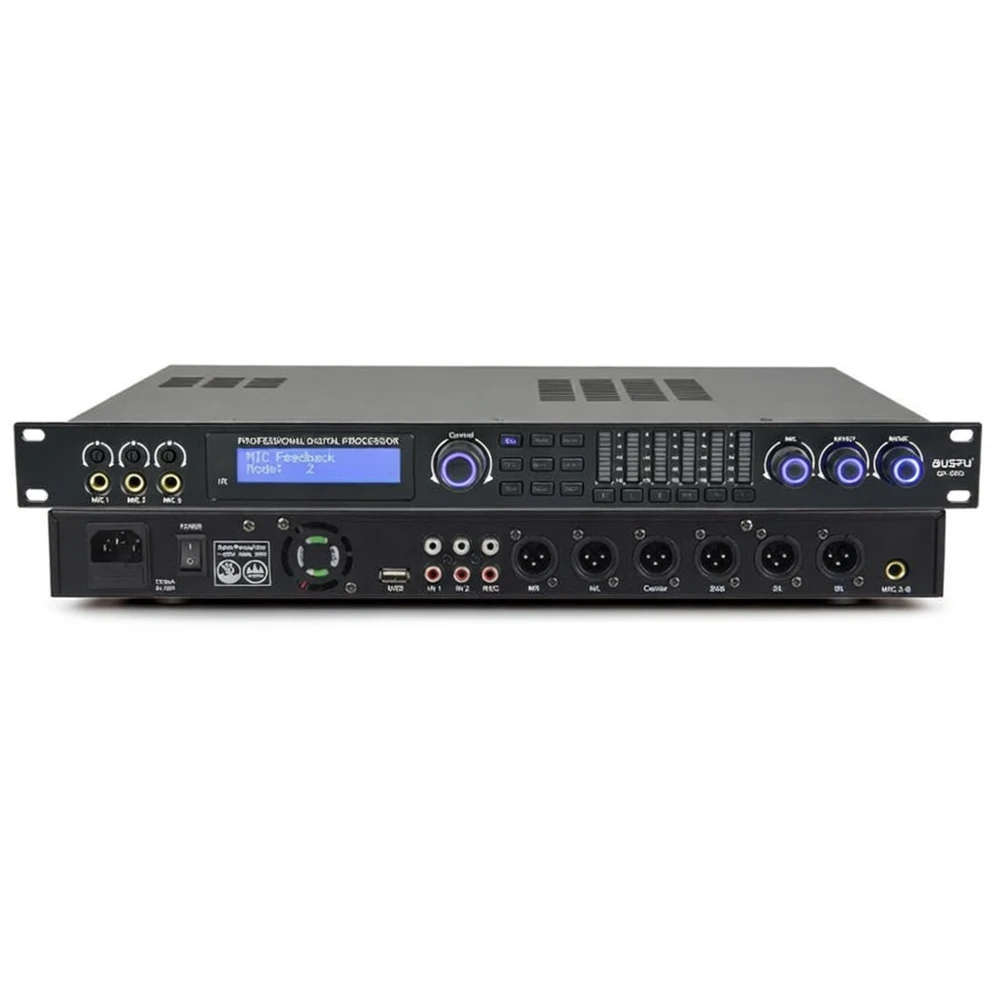

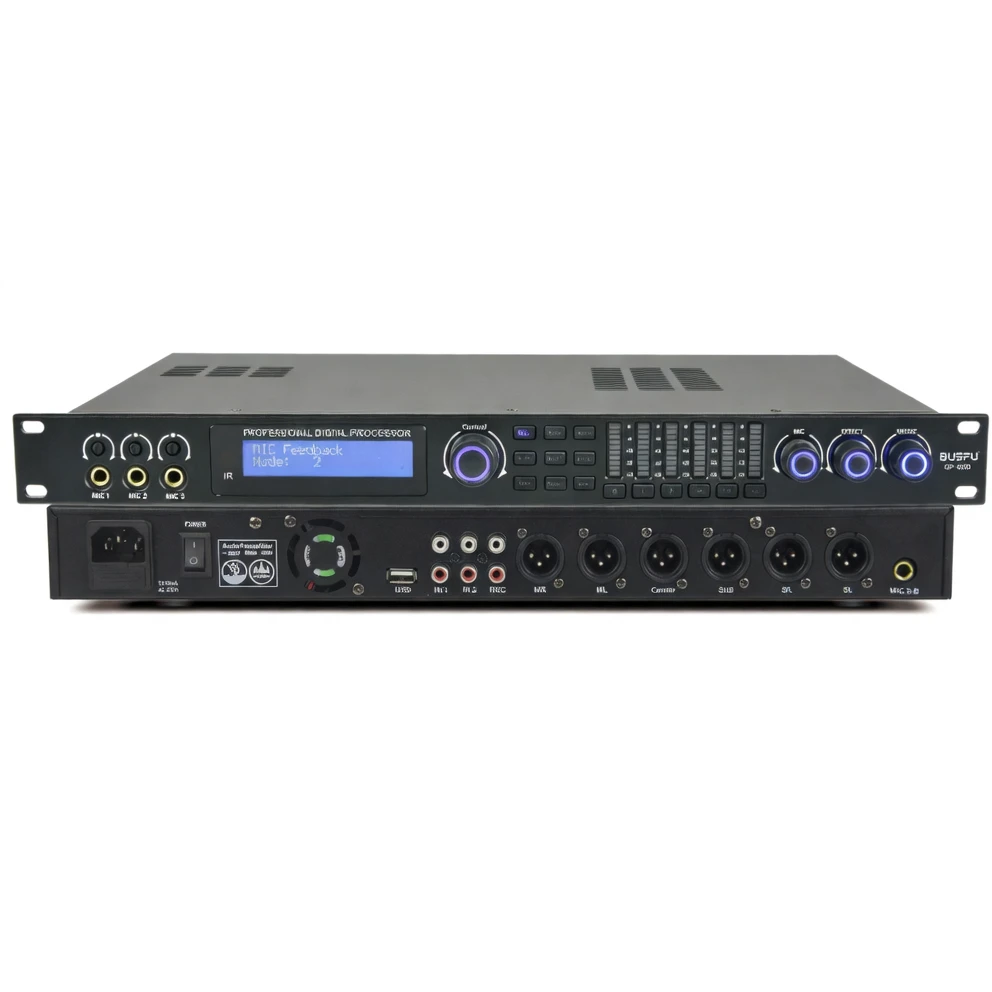

Harmonai GP-5000 Professional Karaoke Preamp Processor image 1

Harmonai GP-5000 Professional Karaoke Preamp Processor | 24-bit DSP, 6-Channel Output, 16 Preset Modes

The Harmonai GP-5000 is a professional karaoke preamp processor featuring a 24-bit data bus and 32-bit DSP chip, six independent channel outputs, four microphone feedback suppressi...

$138.51

Model: GP-5000
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai GP-5000 Professional Karaoke Preamp Processor | 24-bit DSP, 6-Channel Output, 16 Preset Modes

Overview

The Harmonai GP-5000 is a professional karaoke preamp processor featuring a 24-bit data bus and 32-bit DSP chip, six independent channel outputs, four microphone feedback suppressi...

Price: $138.51
Model: GP-5000
Category: Stage Accessories

Specifications

Parameter	Value
Data Processing	24-bit data bus / 32-bit DSP
Music Parametric Equalization	7-band
Microphone Parametric Equalization	15-band
Main Output Parametric Equalization	5-band
Center Output Parametric Equalization	3-band
Subwoofer Output Parametric Equalization	3-band
Rear Output Parametric Equalization	3-band
Microphone Feedback Suppression Modes	4 modes (OFF / 1 / 2 / 3)
Preset Storage	16 modes
Operating Modes	Administrator Mode / User Mode
PC Configuration	Full-function menu via PC interface
Echo Parametric Equalization	3-band
Echo Low-Pass Filter	5.99 Hz – 20.6 kHz
Echo High-Pass Filter	0 Hz – 1000 Hz
Echo Level	0–99.9%
Echo Pre-Delay	0–500 ms
Reverb Low-Pass Filter	5.99 Hz – 20.6 kHz
Reverb High-Pass Filter	0 Hz – 1000 Hz
Reverb Level	0–99.9%
Reverb Time	0–3000 ms
Main Output Channel Delay	0–50 ms
Center Output Delay	0–50 ms
Subwoofer Output Delay	0–50 ms
Maximum Input Level	4 V(RMS)

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

Harmonai GP-5000 Professional Karaoke Preamp Processor product image

Product Overview

The Harmonai GP-5000 is a professional-grade karaoke preamp processor equipped with a 24-bit data bus and 32-bit DSP processing chip. It functions as a speaker processor, enabling precise, independent parameter adjustment per channel. The unit supports six-channel output (Main, Center, Subwoofer, Rear), includes four microphone feedback suppression modes and 16 preset storage modes, and features full-function PC-based configuration — making it the ideal front-end processor for KTV rooms, live stage performances, and professional sound systems.

Data Processing

24-bit data bus / 32-bit DSP

Music Parametric Equalization

7-band parametric EQ

Microphone Parametric Equalization

15-band parametric EQ

Main Output Parametric Equalization

5-band parametric EQ

Center / Subwoofer / Rear Output Parametric Equalization

3-band parametric EQ each

Microphone Feedback Suppression Modes

4 modes (OFF / 1 / 2 / 3)

Preset Storage

16 modes

Operating Modes

Administrator Mode / User Mode

PC Configuration

Full-function menu via PC interface

Echo Parametric Equalization

3-band

Echo Pre-Delay

0–500 ms

Reverb Time

0–3000 ms

Channel Delay

0–50 ms

Maximum Input Level

4 V(RMS)

Maximum Output Level

4 V(RMS)

Music Channel Gain

MAX: 12 dB

Microphone Sensitivity

64 mV (output: 4 V)

Signal-to-Noise Ratio

> 80 dB

Input Voltage

220 V, 50 Hz

Music Input Ports

2 × (1/4″)

Music Input Gain

0 dB / 3 dB / 6 dB

Signal Indication

Frequency indicator lights for all six output channels

Recommended Applications

The GP-5000 is widely used in KTV rooms, professional live stage performances, bars and entertainment venues, and conference audio systems. Its six-channel independent output design accommodates diverse speaker layouts; the 16 preset storage function enables rapid scene switching; dual Administrator/User modes safeguard parameter integrity; and PC-based visual configuration ensures accurate, efficient sound tuning.

For more product details or technical support, please contact Harmonai’s official channels.
