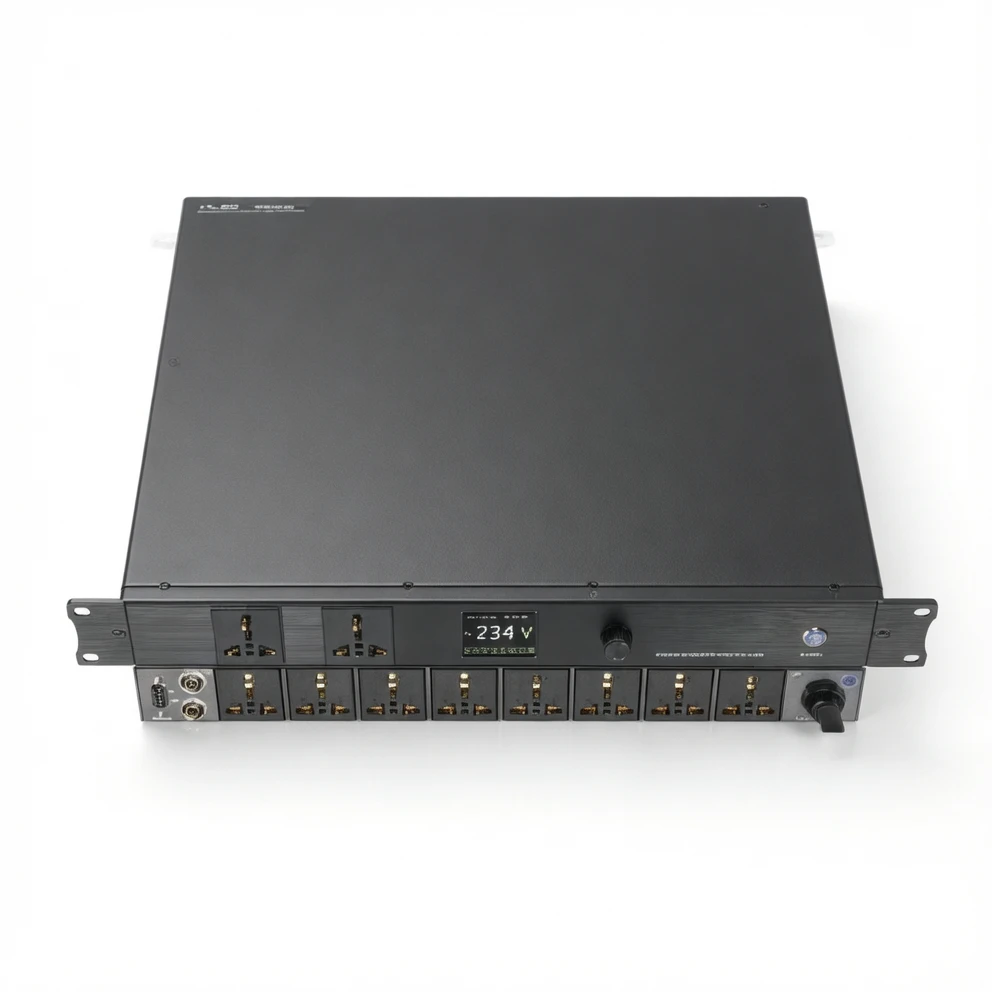

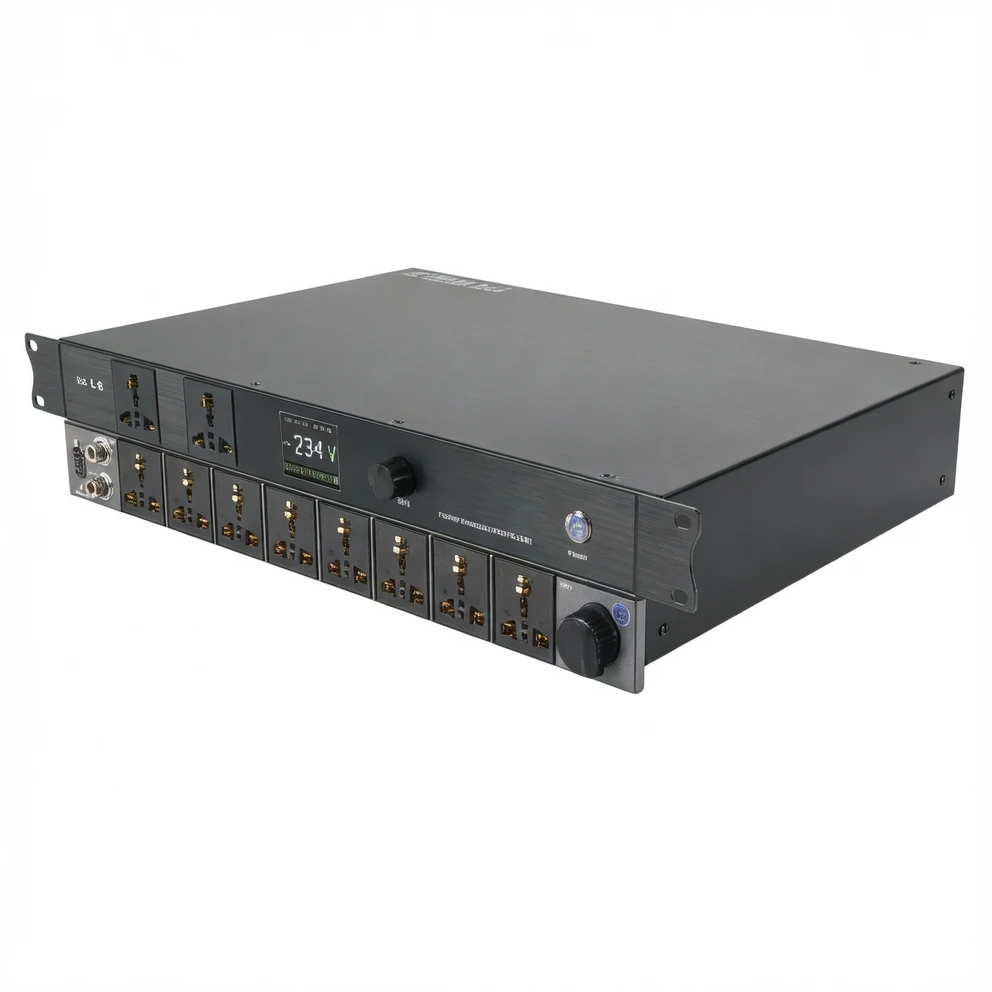

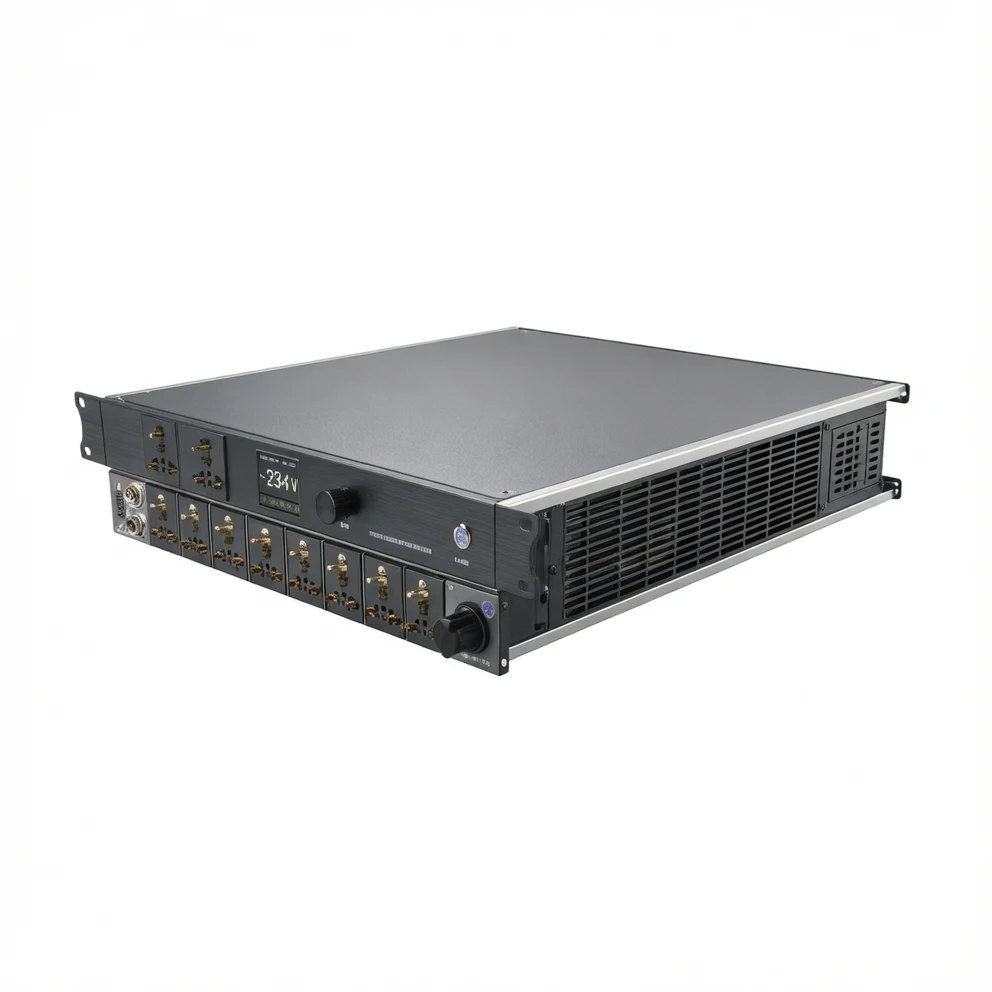

Harmonai L-8 Professional 8-Channel Power Sequencer — Intelligent Timing Control & Electrical Safety Protection

The Harmonai L-8 is a professional 8-channel power sequencer with a 1.2-inch color LCD display, supporting scheduled on/off, 10 scene presets, multi-unit cascading, and RS232 remot...

$51.01

Model: L-8
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai L-8 Professional 8-Channel Power Sequencer — Intelligent Timing Control & Electrical Safety Protection

Overview

The Harmonai L-8 is a professional 8-channel power sequencer with a 1.2-inch color LCD display, supporting scheduled on/off, 10 scene presets, multi-unit cascading, and RS232 remot...

Price: $51.01
Model: L-8
Category: Stage Accessories

Specifications

Parameter	Value
Input Power	220V 50/60Hz
Output Channels	8 channels
Power Input Connector	Line (L), Neutral (N), Earth (E) — 3-core copper cable, 3×6mm²
Power Output Connectors	8 universal Chinese-standard sockets
Maximum Load per Channel	16A
Maximum Total Load	40A
Switching Device	Relay, 30A/250VAC
Control Input	RS232 serial port
Display	1.2-inch color LCD smart display
Display Content	Real-time voltage, date/time, channel on/off status
Total Power Rating	7200W
Maximum Power per Channel	2860W
Channel Delay On/Off	Adjustable from 0 to 99 minutes 59 seconds
Scene Management	Save and recall up to 10 device on/off scene configurations
Cascading Control	Supports multi-unit cascading with automatic status detection
Remote Centralized Control	Each unit features built-in device ID detection and configuration
Protection Features	Under-voltage detection alarm, over-voltage detection alarm, circuit breaker protection against short circuits and overload
Scheduled On/Off	Built-in clock chip supports scheduled on/off and countdown shutdown
Panel Lock	Supports Lock function to prevent accidental operation
Optional Accessory	Power filtering and conditioning unit
Operating Temperature	-5°C to 40°C
Operating Humidity	0 to 90% RH
Dimensions	42mm(H) × 483mm(W) × 300mm(D)
Weight	5 kg

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

Product Overview

The Harmonai L-8 is a professional-grade 8-channel power sequencer equipped with a 1.2-inch color LCD smart display that shows real-time voltage, date/time, and channel on/off status. Its built-in clock chip enables scheduled power-on/off and countdown shutdown; each channel supports independent delay settings from 0 to 99 minutes 59 seconds for both startup and shutdown. It stores and recalls up to 10 scene configurations, automatically detects cascaded units for multi-device control, and integrates via RS232 serial port into central control systems for remote centralized management. Dedicated under-voltage and over-voltage detection alarms, plus circuit breaker protection against short circuits and overload, ensure robust safety. With a total rated power of 7200W and maximum per-channel output of 2860W, the L-8 delivers reliable power sequencing for audio, lighting, projection, and other equipment in large-scale venues such as conference halls, multi-function rooms, and training centers.

Input Power

220V 50/60Hz

Output Channels

8 universal Chinese-standard sockets

Maximum Load per Channel

16A

Maximum Total Load

40A

Total Power Rating

7200W (max 2860W per channel)

Display

1.2-inch color LCD smart display

Control Methods

RS232 serial port / front-panel manual / remote centralized control

Scene Management

Save and recall up to 10 scene configurations

Cascading Control

Supports multi-unit cascading with automatic status detection

Protection Features

Under-voltage/over-voltage detection alarms, circuit breaker protection against short circuits and overload, panel lock

Timing Functions

Scheduled on/off, countdown shutdown, and per-channel delay setting from 0 to 99 minutes 59 seconds

Dimensions

42mm(H) × 483mm(W) × 300mm(D)

Weight

5 kg

Recommended Applications

The L-8 power sequencer is widely used in large multimedia conference halls, multi-function rooms, training centers, multimedia classrooms, high-end villas, and smart home installations. Its 8 independent delay channels ensure safe, sequential power-up and power-down of audio, lighting, and projection equipment—effectively preventing damaging inrush current surges. Ten pre-programmed scene presets simplify complex device management with one-touch switching. RS232 integration and cascading capability meet the demands of large-scale deployments requiring centralized control.
