Rated Voltage
AC200V–240V, 50/60Hz
Product Overview

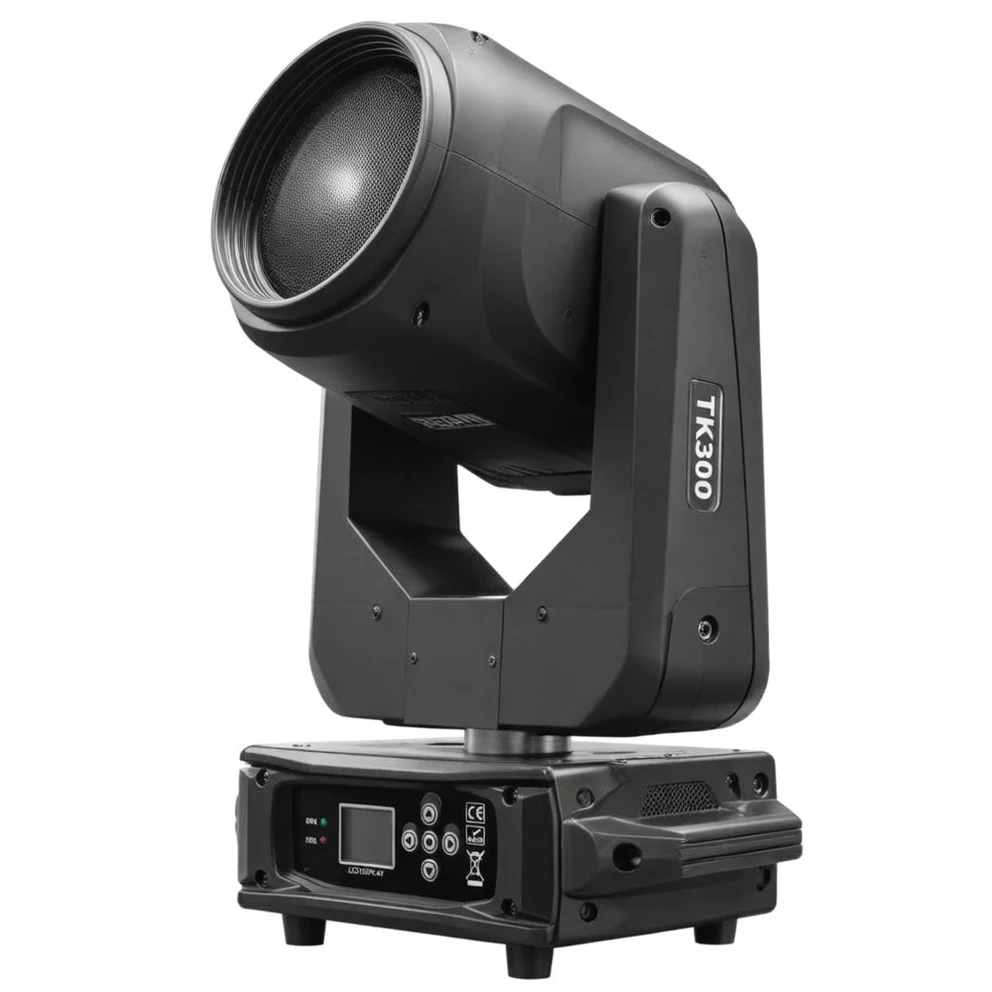

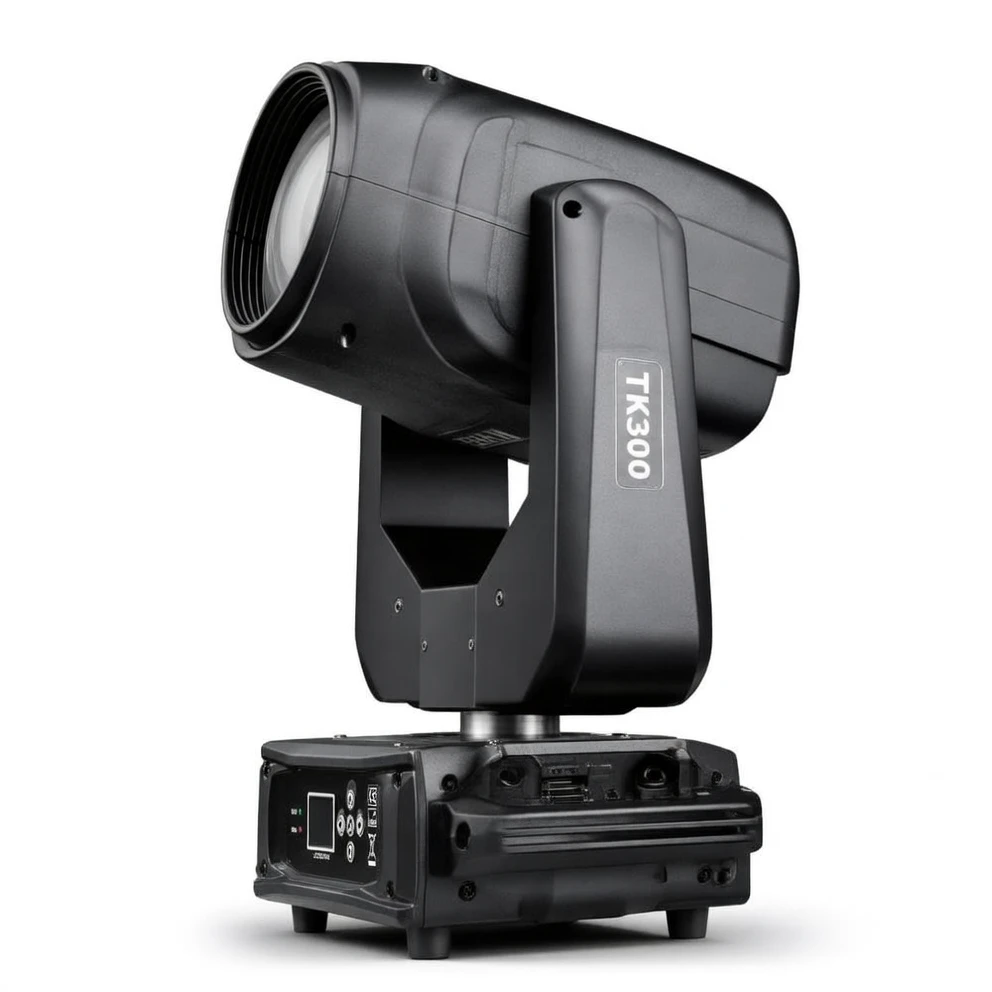

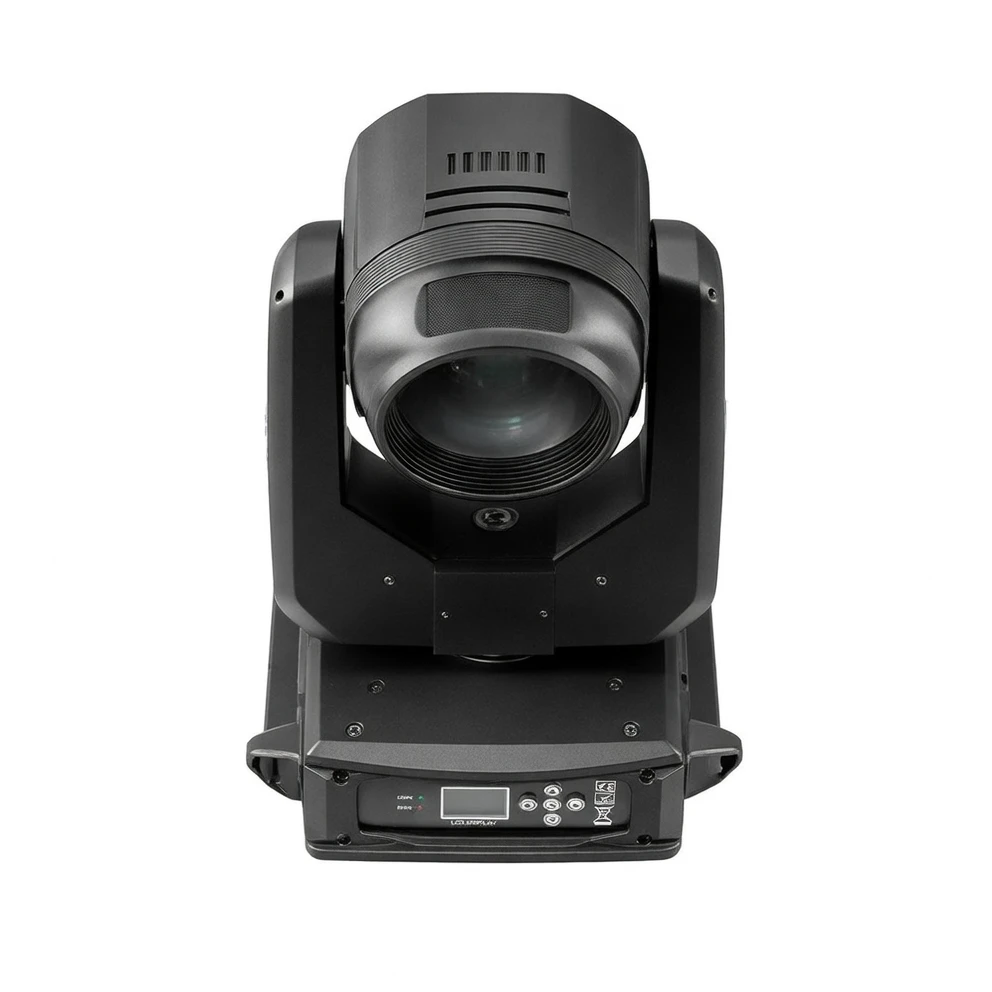

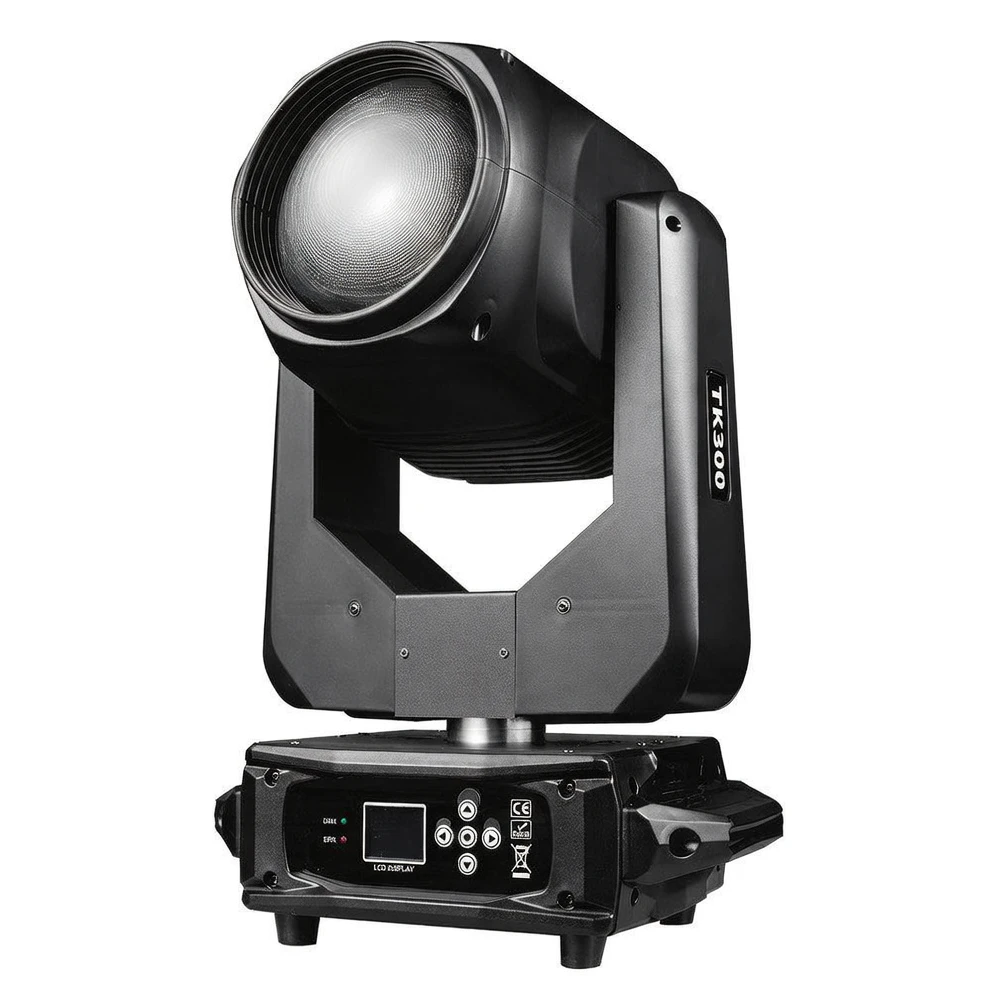

The Harmonai TK300 Beam Moving Head (Model QY-TK300) is a professional moving head pattern light in the beam wash category. It features an OSSAM TK300W lamp with a high color temperature of 8500K and a total power consumption of 450W, delivering strong beam penetration. Equipped with a 14-color + white fixed color wheel and a 14-pattern fixed pattern wheel, it supports half-color, full-color blending, pattern jitter, and precise pattern positioning. Its dual independent prism system (8-facet + honeycomb combination) rotates bidirectionally, paired with three sets of high-precision glass optical lenses for electronic linear high-definition focusing and an independent frost effect—enabling seamless transitions from razor-sharp beams to soft, dreamy washes. With 540° horizontal / 270° vertical 16-bit high-precision pan/tilt scanning, a 65,000-color touch TFT interface, intelligent thermal management, and remote standby functionality, the TK300 is ideal for concerts, bars, theaters, and other entertainment venues.
Light Source
OSSAM TK300W lamp
Lamp Life
2000 hours
Color Temperature
8500K
Total Power Consumption
450W
Beam Angle
Collimated beam: adjustable from 0° to 3.8°
Dimming Method
Mechanical linear dimming (0–100%), 16-bit precision fine-tuning
Strobe Function
Pulse strobe (sync/async), 0.5–9 Hz
Color Wheel
14 color gels + white, supports half-color and full-color blending effects
Pattern Wheel
14 fixed patterns, supports pattern jitter and arbitrary positioning
Prism System
Dual independent prisms: 8-facet prism + 8/16/24-honeycomb prism, bidirectional rotation
Focusing System
Three sets of high-precision glass optical lenses, electronic linear high-definition focusing
Frost Effect
Independent frost, producing soft and natural beam edges
Pan Angle
540° (16-bit precision), auto-return
Tilt Angle
270° (16-bit precision), auto-return
Motor Type
Three-phase motor for fast, smooth scanning and noise-free operation
Display Interface
65,000-color touch TFT display with 180° flip capability
Standby Function
Remote standby; automatically enters standby mode when signal is lost
Cooling System
Intelligent thermal control with directional airflow and automatic fan activation
Lamp Control
Smart lamp on/off control to extend lamp life
Control Protocol
DMX512 international standard
Control Channels
16CH
Weight
17 kg (including electronic ballast)
Ingress Protection Rating
IP20
Recommended Applications
The Harmonai TK300 Beam Moving Head is suitable for concerts, music festivals, live bar performances, nightclubs, weddings, corporate galas, theater productions, TV shows, and large-scale live events. Its sharp beam penetration, rich color and pattern combinations, flexible pan/tilt movement, and dynamic prism effects create powerful stage visuals—meeting the creative demands of professional lighting designers across diverse applications.
Want more details about the Harmonai TK300 Beam Moving Head’s specifications and pricing? Contact us today for comprehensive product documentation and expert lighting consultation.
