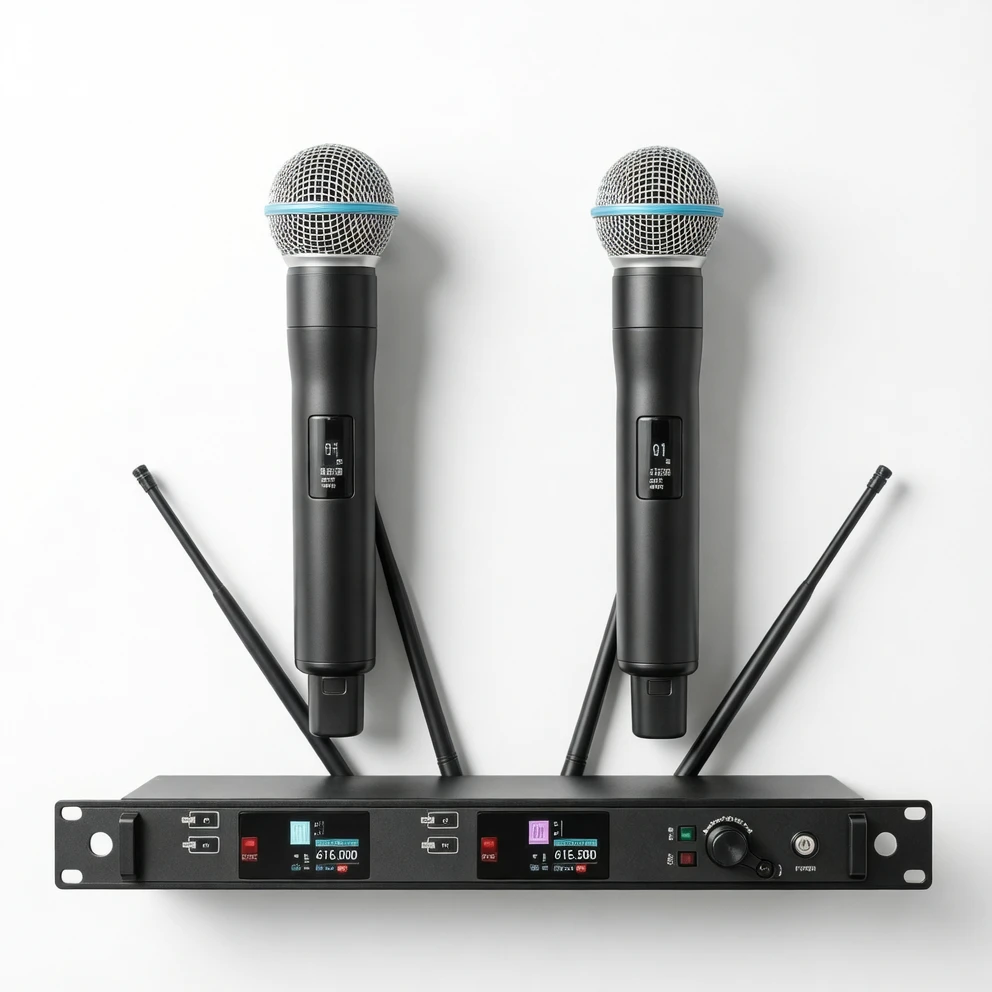

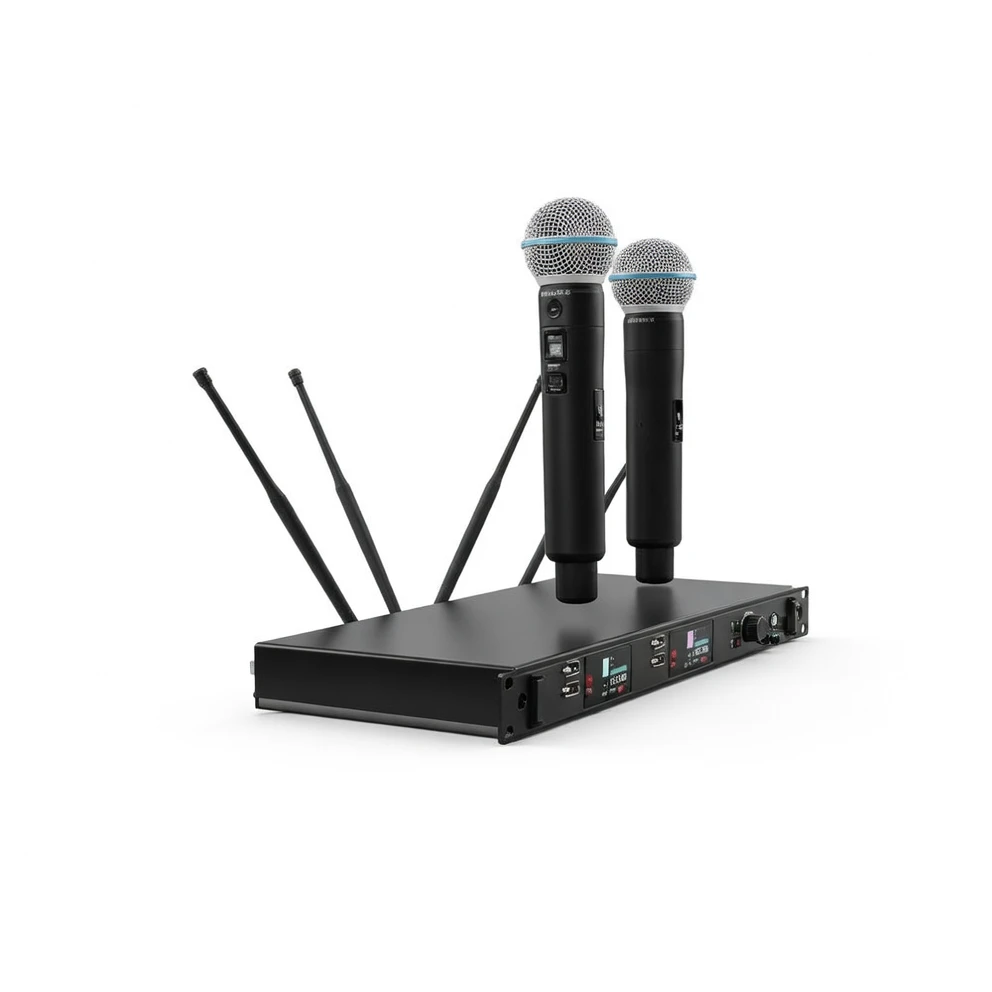

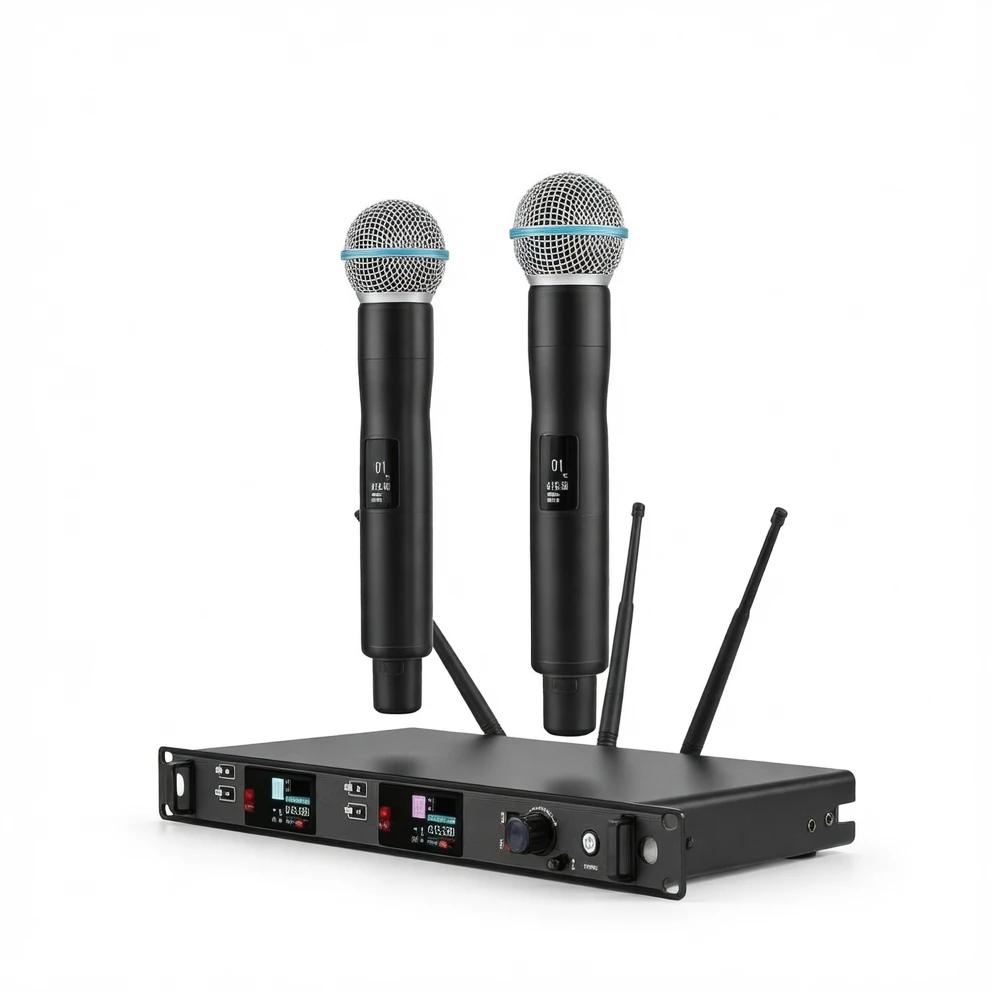

Harmonai GT-X62 Dual-Channel True Diversity Wireless Microphone System

The GT-X62 is a professional-grade dual-channel UHF wireless handheld microphone system designed for demanding live sound applications. Featuring true diversity reception with four antennas, 160 selectable frequency points, and an intelligent auto-scan function, the GT-X62 delivers rock-solid wireless audio in any environment.

Key Features

• True Diversity Reception: Four-antenna dual-receiver design ensures maximum signal stability and eliminates dropouts
• UHF Dual-Band: 513-558 MHz / 615-665 MHz coverage with 160 selectable channels per band
• Auto Frequency Scan: One-touch scanning quickly identifies clean, interference-free frequencies
• HD TFT Display: Color display with real-time frequency, battery level, and signal strength indicators
• Multi-Mode Transmitter: Switch between handheld, bodypack, and grenade transmitter configurations
• ID Detection: Unique ID matching prevents cross-frequency interference in multi-system setups
• RGB Status Display: 64-color LED visual feedback on both receiver and handheld units

Specifications

Receiver (GT-X62)

ChassisStandard 1U Rack Mount ChannelsDual Channel Frequency RangeUHF 513-558 MHz / 615-665 MHz ModulationFM OscillatorPLL Phase-Locked Frequency Synthesizer Frequency Stability±0.0005% Sensitivity>60 dB S/N at 25 kHz deviation, 6 dBμV input Max Deviation±45 kHz Bandwidth40 MHz Overall S/N Ratio>108 dB Overall THD<0.4% @ 1 kHz Frequency Response60 Hz - 18 kHz (±3 dB) Max OutputBalanced: -20 dBV / 100Ω; Unbalanced: -4 dBV / 5kΩ OutputsXLR Balanced + 6.35 mm Unbalanced (per channel) Operating RangeUp to 100 meters (line of sight) Power Supply12V / 1A Dimensions421 (L) × 43 (H) × 206 (W) mm Weight4.3 kg

Handheld Transmitter

Frequency RangeUHF 513-558 MHz / 615-665 MHz OscillatorPLL Phase-Locked Frequency Synthesizer Harmonic Radiation<-63 dBm Bandwidth80 MHz Max Deviation±45 kHz Frequency Response50 Hz - 18 kHz Max Input SPL130 dB SPL Microphone ElementDynamic RF Output Power5 mW BatteryAA 1.5 V × 2 Current Consumption<110 mA Battery LifeApproximately 6 hours Dimensions265 mm (L) × 56 mm (Diameter)

Applications

Professional stage performances, outdoor events, conference halls, multi-purpose venues, houses of worship, corporate events, and live music.
