Front Panel Material
Premium aluminum
Product Overview

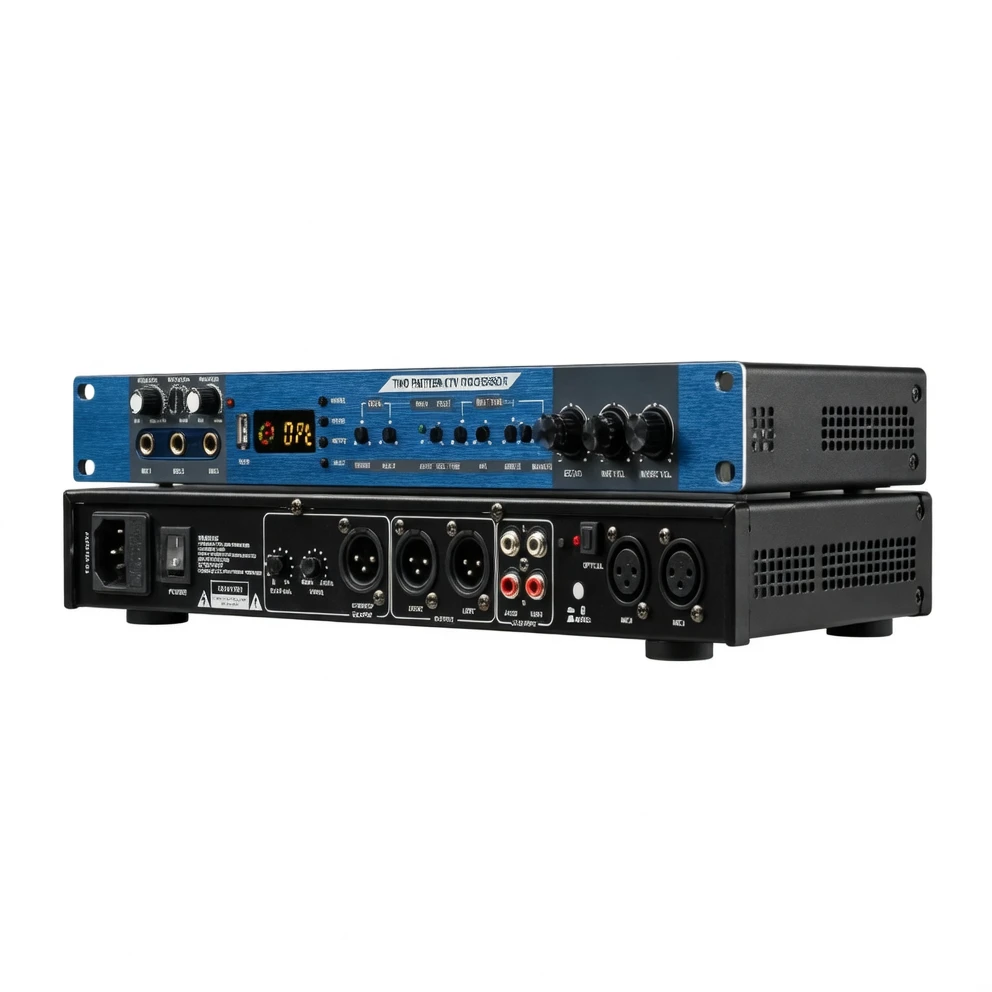

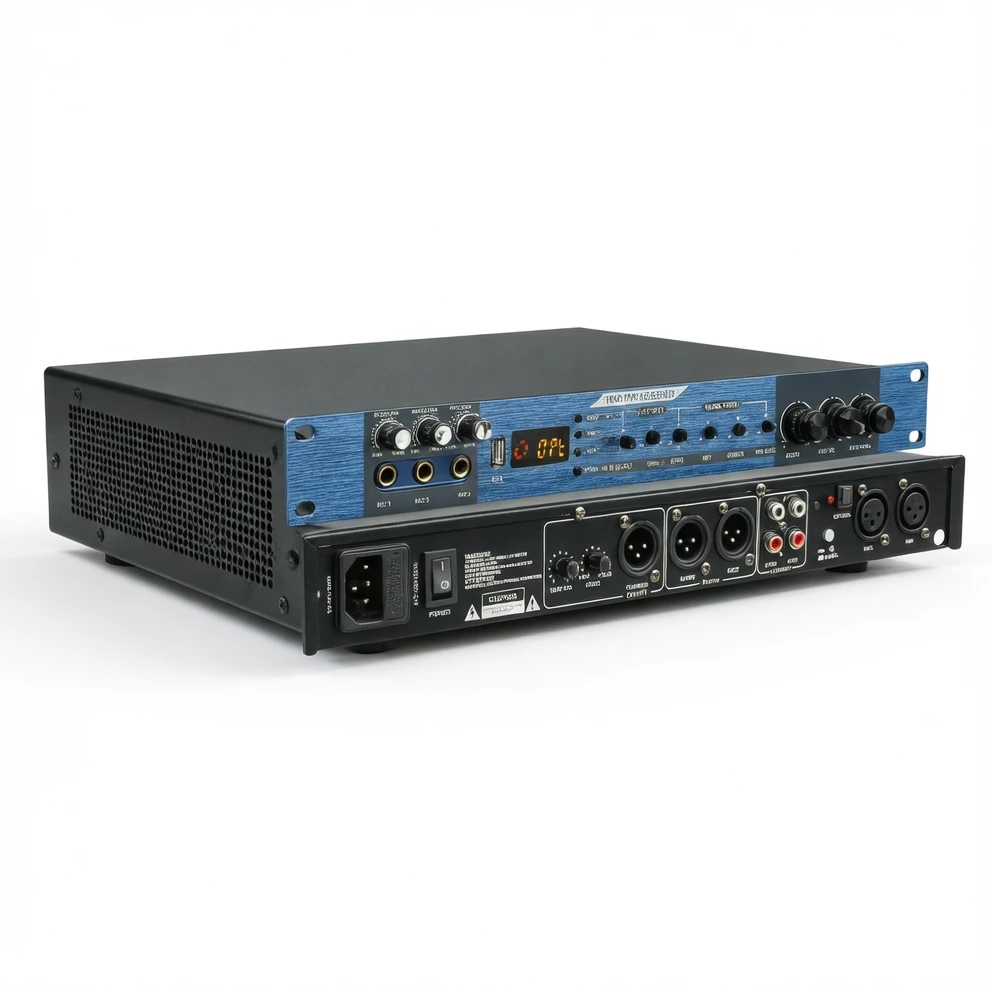

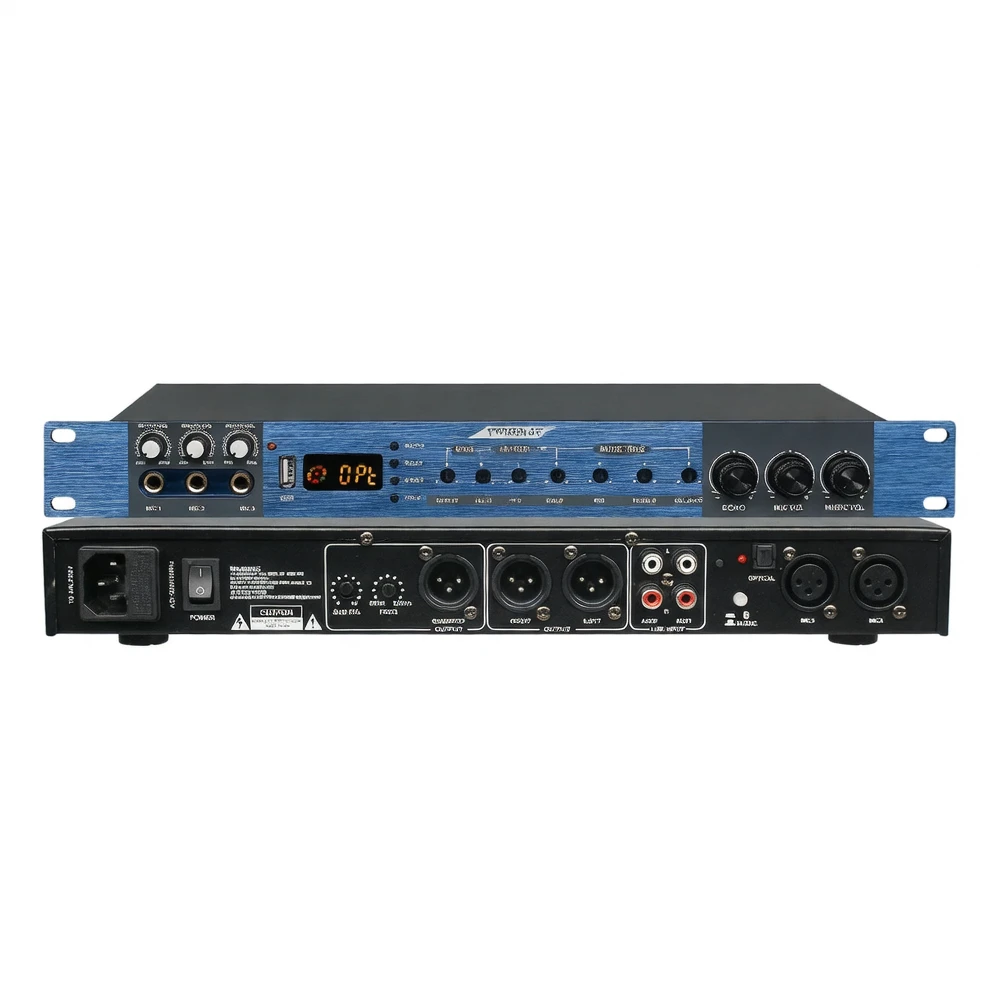

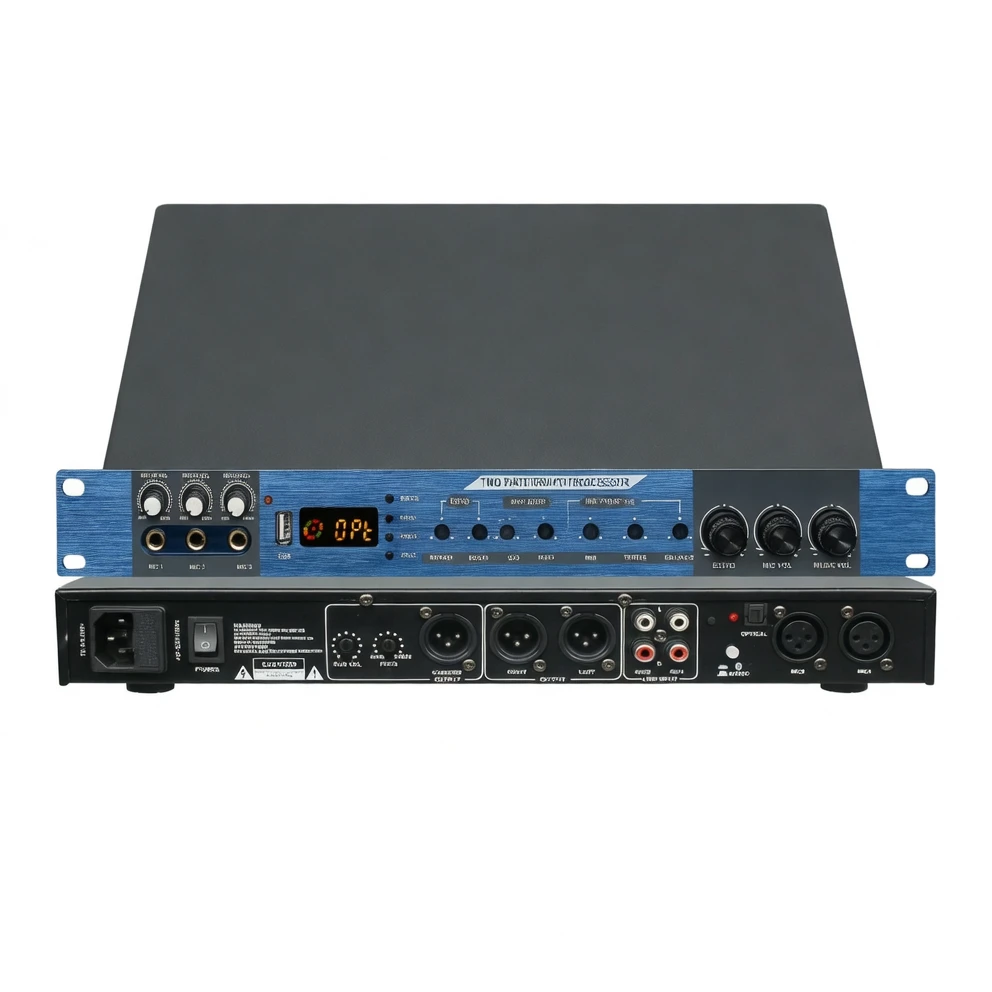

The Harmonai KTV8 is a professional-grade karaoke preamp processor, featuring a premium aluminum front panel and an ultra-slim 1U chassis—elegant in appearance and space-efficient for rack mounting. Its standout feature is 6-band parametric equalization for microphones, offering wide adjustment range to refine vocal clarity and smoothness without compromising original tonal character. This enables precise suppression of feedback frequencies. The subwoofer output includes adjustable crossover point and output gain, plus comprehensive low-frequency anti-howling circuitry: when a signal enters the MIC input, the subwoofer output automatically attenuates by 50% to prevent low-frequency feedback damage. Combined with intuitive card-style controls, setup and fine-tuning become fast, simple, and efficient.
Chassis Format
1U ultra-thin design
Microphone EQ
6-band parametric equalization
Subwoofer Output
Adjustable crossover point and output gain
Low-Frequency Anti-Howling Protection
Automatic 50% attenuation of low-frequency signals upon MIC input
Microphone Signal Exclusion from Subwoofer Channel
Supported
Signal-to-Noise Ratio (L/R Channels, 1kHz, 0dB)
90dB
Signal-to-Noise Ratio (Center Channel)
87dB
Signal-to-Noise Ratio (Subwoofer Channel)
87dB
Channel Separation
75dB
Frequency Response (Music)
10Hz ~ 30kHz
Frequency Response (Microphone)
20Hz ~ 15kHz
Music Bass Control
±10dB (100Hz)
Music Treble Control
±10dB (10kHz)
Microphone Bass Control
±10dB (100Hz)
Microphone Treble Control
±5dB (10kHz)
Microphone Mute Threshold
Trigger voltage: 3mV; activation time: 3 seconds
Total Harmonic Distortion
0.03% (1kHz, 30mV)
Physical Dimensions
483 × 44 × 208mm (W×H×D)
Power Supply
AC 220–240V / 50–60Hz
Recommended Applications
The KTV8 is ideal for professional KTV rooms, home HI-Fi setups, bars, lounges, and other venues demanding high-fidelity karaoke audio performance. Its 6-band parametric EQ empowers sound engineers to precisely identify and suppress feedback frequencies—ensuring clear, articulate vocals. The adjustable subwoofer output delivers deep, powerful low-end response tailored to any KTV system. Integrated low-frequency anti-howling protection and mute functionality safeguard equipment and speakers, extending service life. The 1U ultra-thin aluminum chassis ensures seamless rack integration—making it the preferred choice for professional audio installations and discerning users.
For detailed technical specifications or custom audio system recommendations for the Harmonai KTV8 Professional Karaoke Preamp, contact us today.
