Receiving Frequency Range
640–690 MHz
Product Overview

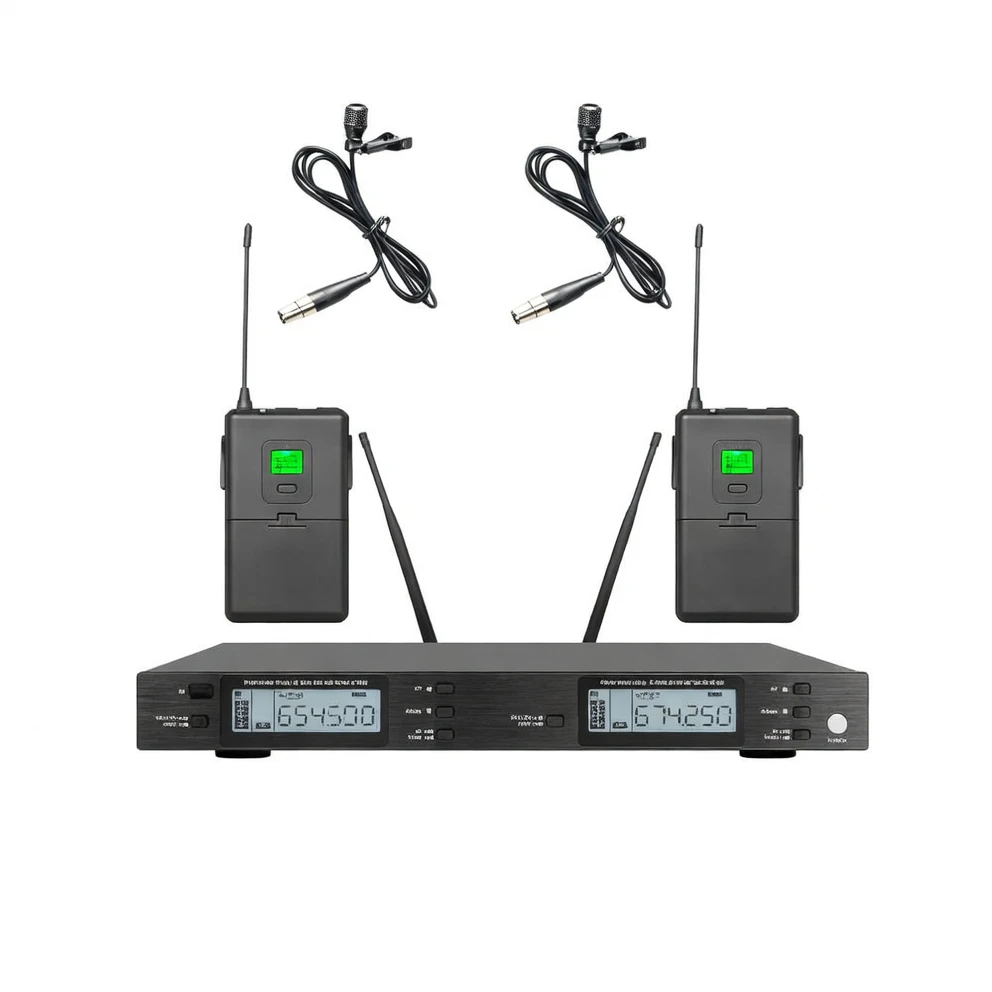

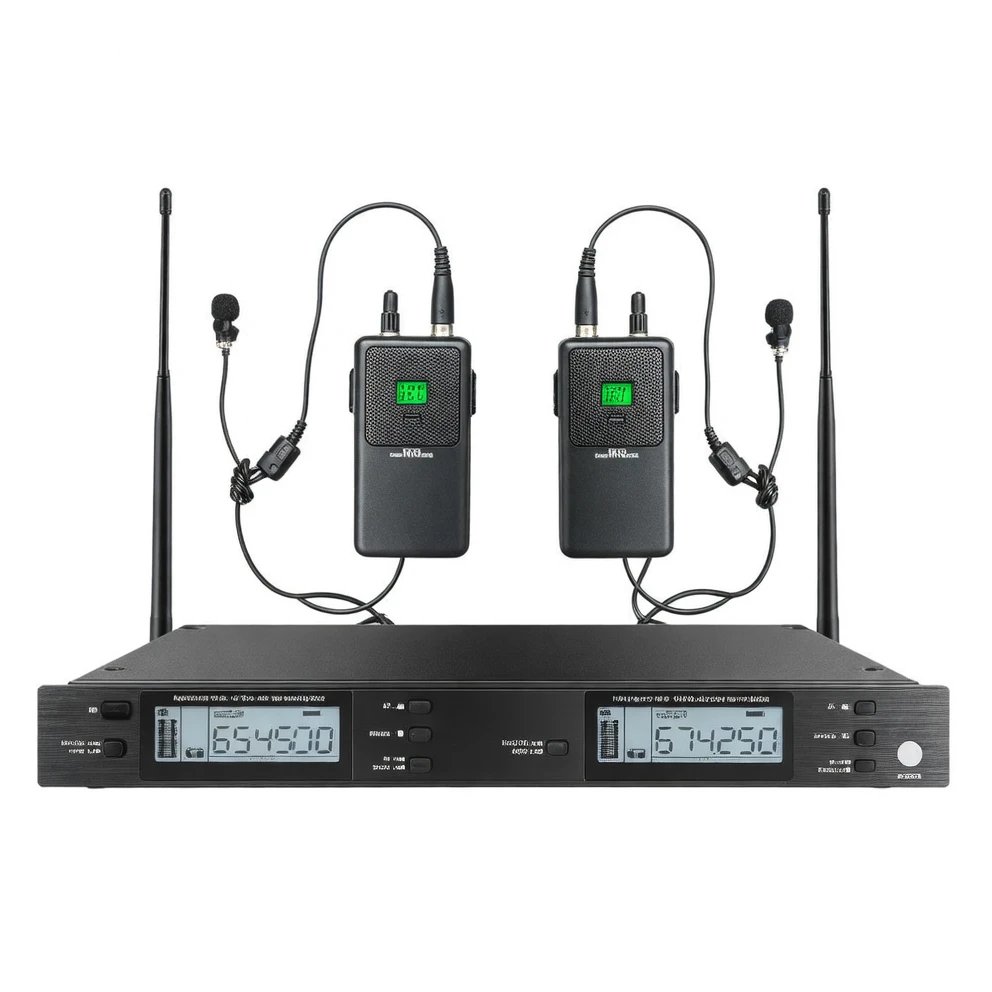

The Harmonai MR20 UHF dual-channel lavalier microphone system is a professional-grade wireless conference microphone solution operating in the UHF 640–690 MHz band with FM modulation. It features dual-channel transmitters and a high-sensitivity receiver. With an SNR exceeding 105 dB, dynamic range over 100 dB, and total harmonic distortion under 0.5%, it delivers clear, pristine audio transmission—perfect for conferences, speeches, and classroom instruction.
Receiver Sensitivity
−94 dBm (30 dB)
Image Rejection
>60 dB
Frequency Stability
±0.005%
Modulation Method
FM
Maximum Frequency Deviation
±45 kHz
Audio Response
50 Hz–18 kHz (+3 dB)
Signal-to-Noise Ratio (SNR)
>105 dB
Dynamic Range
>100 dB
Total Harmonic Distortion (THD)
<0.5%
Transmitter Output Power
30 mW
Maximum Input Sound Pressure Level (SPL)
130 dB SPL
Receiver Power Supply
12 V / 1 A
Transmitter Power Supply
2 × 1.5 V AA batteries
Operating Temperature
−10°C to 55°C
Applications
The Harmonai MR20 UHF wireless lavalier microphone system is widely used in business meetings, academic lectures, training sessions, wedding hosting, and live performances. Its dual-channel ‘one-receiver–two-transmitters’ design supports two speakers simultaneously without interference. The UHF band offers strong anti-interference performance, while the compact, discreet lavalier transmitter ensures comfortable, unobtrusive wear—making it an ideal choice for professional audio recording and broadcasting.
Contact us for detailed Harmonai MR20 specifications or bulk procurement pricing—we’re ready to support you with expert audio solutions.
