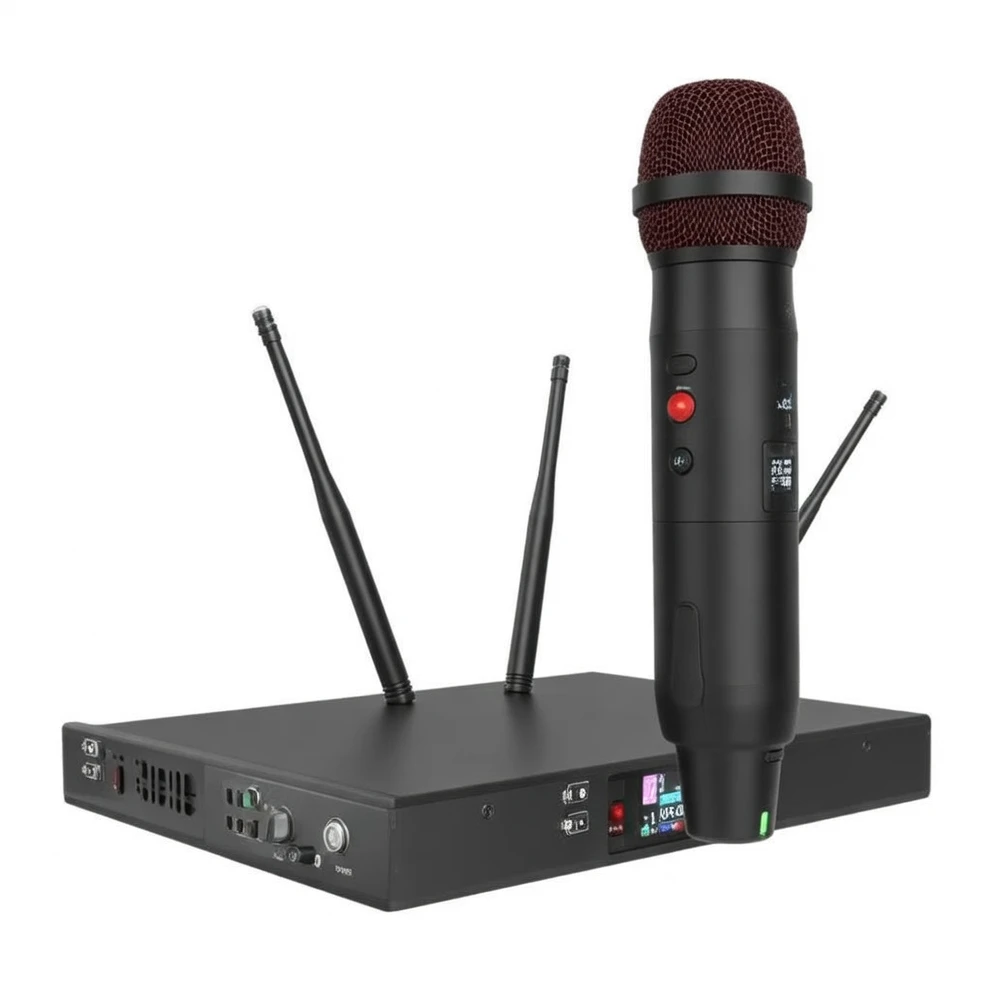

Harmonai GT-X62 Dual-Channel True Diversity Wireless Handheld Microphone image 1

Harmonai GT-X62 Dual-Channel True Diversity Wireless Handheld Microphone — UHF Professional System

The Harmonai GT-X62 is a professional dual-channel true diversity UHF wireless handheld microphone system with dual-band operation (513–558 MHz / 615–665 MHz), four-antenna dual-re...

$229.41

Model: GT-X62
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai GT-X62 Dual-Channel True Diversity Wireless Handheld Microphone — UHF Professional System

Overview

The Harmonai GT-X62 is a professional dual-channel true diversity UHF wireless handheld microphone system with dual-band operation (513–558 MHz / 615–665 MHz), four-antenna dual-re...

Price: $229.41
Model: GT-X62
Category: Microphones

Specifications

Parameter	Value
Chassis Specifications	Standard 1U rack-mount chassis
Channel Groups	Dual-channel
Carrier Frequency Bands	UHF 513–558 MHz / 615–665 MHz
Modulation Method	FM
Oscillation Method	PLL phase-locked frequency synthesizer
Frequency Stability	±0.0005%
Combined Signal-to-Noise Ratio	>108 dB
Combined Total Harmonic Distortion	<0.4% @ 1 kHz
Combined Frequency Response	60 Hz – 18 kHz (±3 dB)
Output Interfaces	XLR balanced + 6.3 mm unbalanced
Effective Operating Distance	Approx. 100 meters (open space)
Selectable Frequencies	160 channels
Transmitter RF Output Power	5 mW
Battery Life	Approx. 6 hours
Power Supply	12 V / 1 A
Dimensions (Receiver)	421(L) × 43(H) × 206(W) mm
Weight	4.3 kg

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

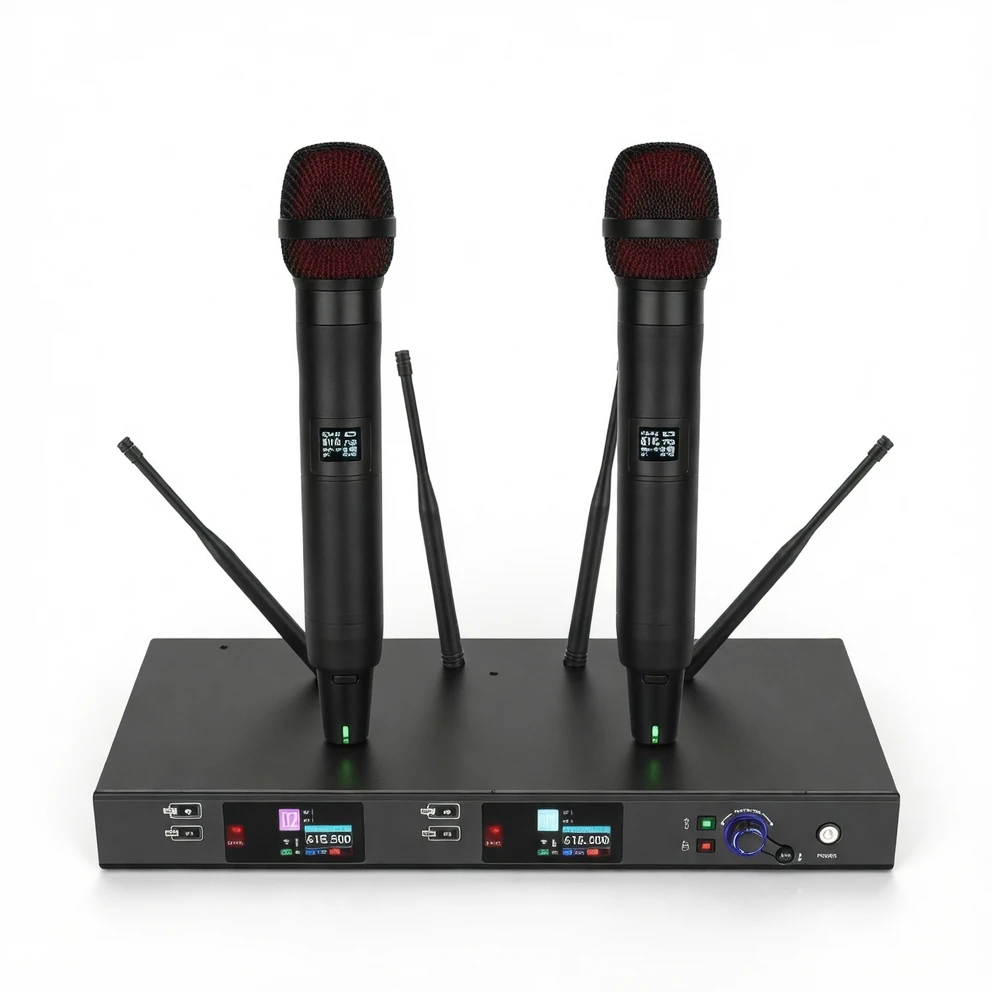

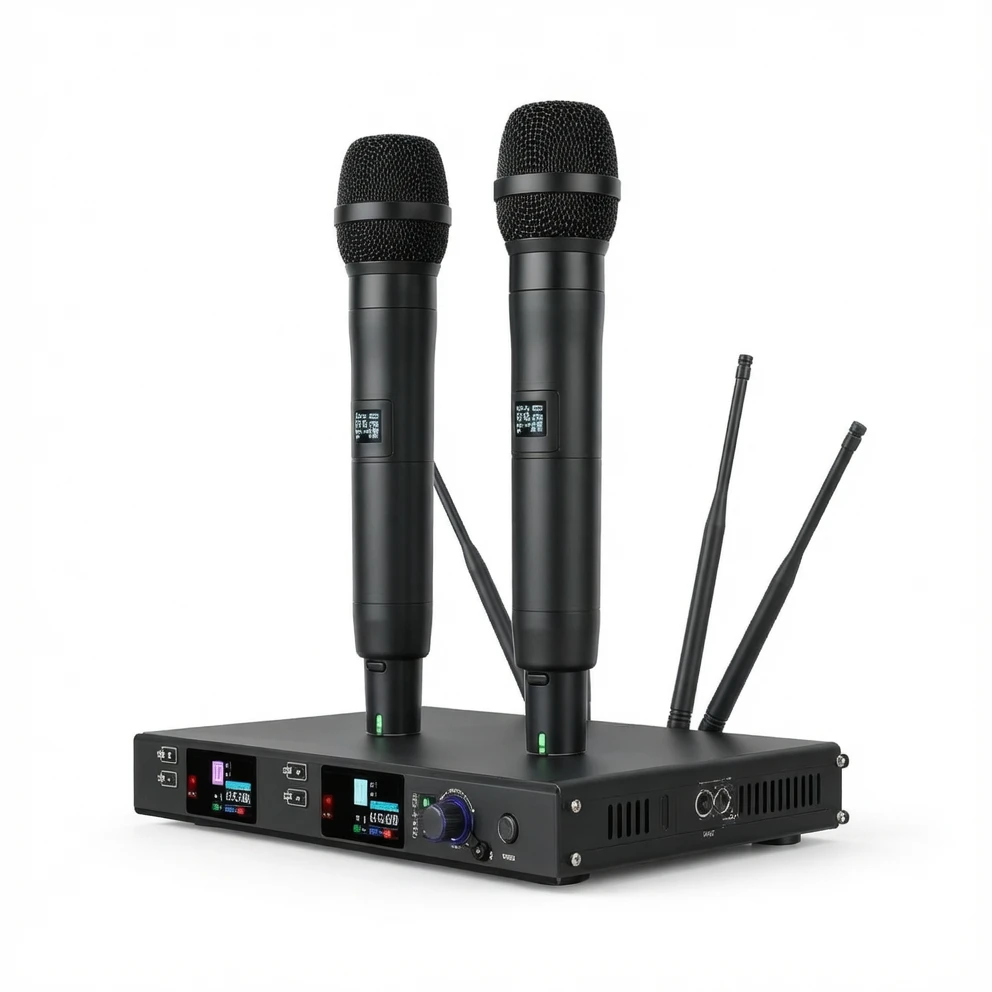

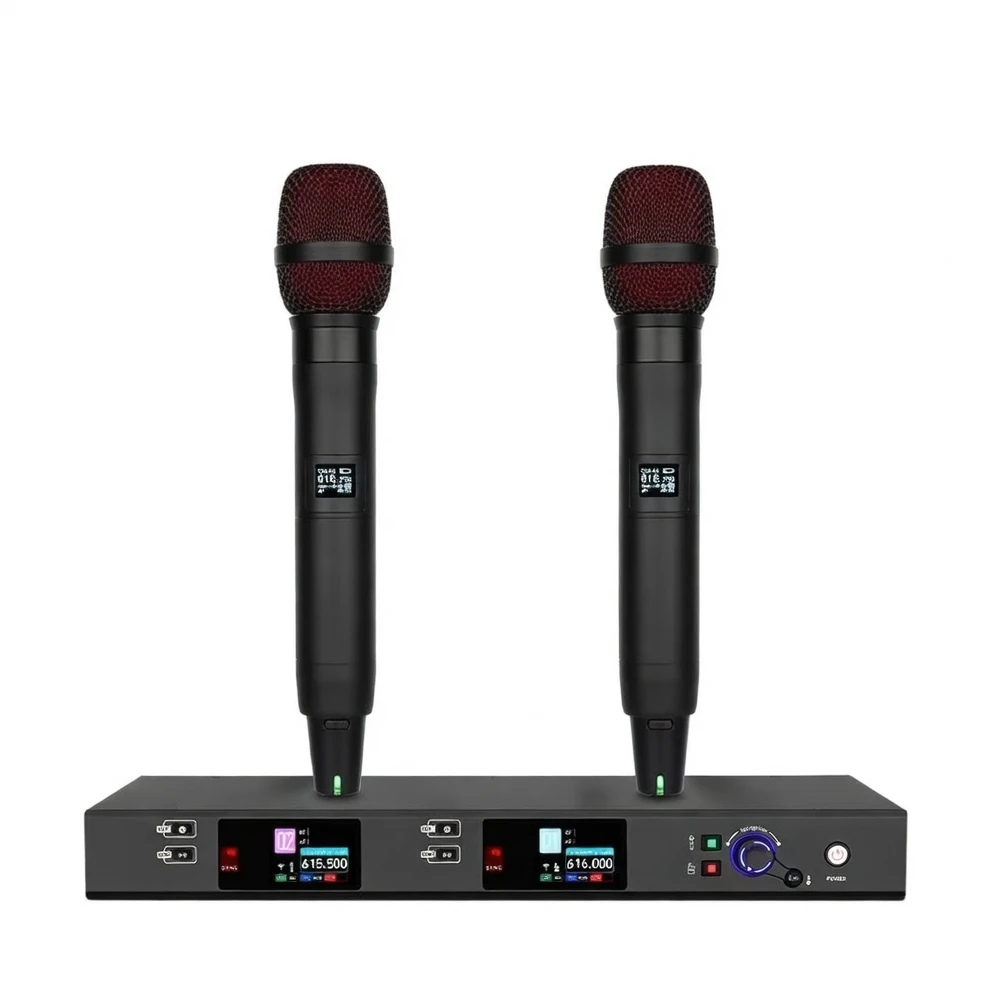

Dual-channel true diversity wireless handheld microphone product image

Product Overview

The Harmonai GT-X62 dual-channel true diversity wireless handheld microphone system is engineered for professional stage performances, outdoor events, and high-end conferences. It operates on dual UHF bands (513–558 MHz / 615–665 MHz) and features dual-reception circuitry with four antennas—doubling signal stability. With a combined signal-to-noise ratio exceeding 108 dB and total harmonic distortion below 0.4%, it delivers exceptional audio fidelity for professional applications. The system includes 160 adjustable frequencies and radar-assisted scanning to quickly identify clean, interference-free channels. A high-resolution TFT display, 64-color LED indicators, and RGB lighting on the handheld transmitters provide immediate visual feedback on operational status.

Chassis Specifications

Standard 1U rack-mount chassis

Channel Groups

Dual-channel

Carrier Frequency Bands

UHF 513–558 MHz / 615–665 MHz

Modulation Method

Oscillation Method

PLL phase-locked frequency synthesizer

Frequency Stability

±0.0005%

Combined Signal-to-Noise Ratio

>108 dB

Combined Total Harmonic Distortion

<0.4% @ 1 kHz

Combined Frequency Response

60 Hz – 18 kHz (±3 dB)

Output Interfaces

XLR balanced + 6.3 mm unbalanced

Effective Operating Distance

Approx. 100 meters (open space)

Selectable Frequencies

160 channels

Transmitter RF Output Power

5 mW

Battery Life

Approx. 6 hours

Power Supply

12 V / 1 A

Dimensions (Receiver)

421(L) × 43(H) × 206(W) mm

Weight

4.3 kg

Recommended Applications

The GT-X62 handheld microphone system is suitable for large-scale stage productions, conference forums, TV studio broadcasts, and educational training environments. Its four-antenna dual-reception architecture ensures stable long-range signal transmission, while 160 selectable frequencies enable reliable operation in complex electromagnetic environments. Its outstanding audio fidelity meets broadcast-grade standards.

For more product details or customized wireless microphone system solutions, contact the Harmonai professional team.
