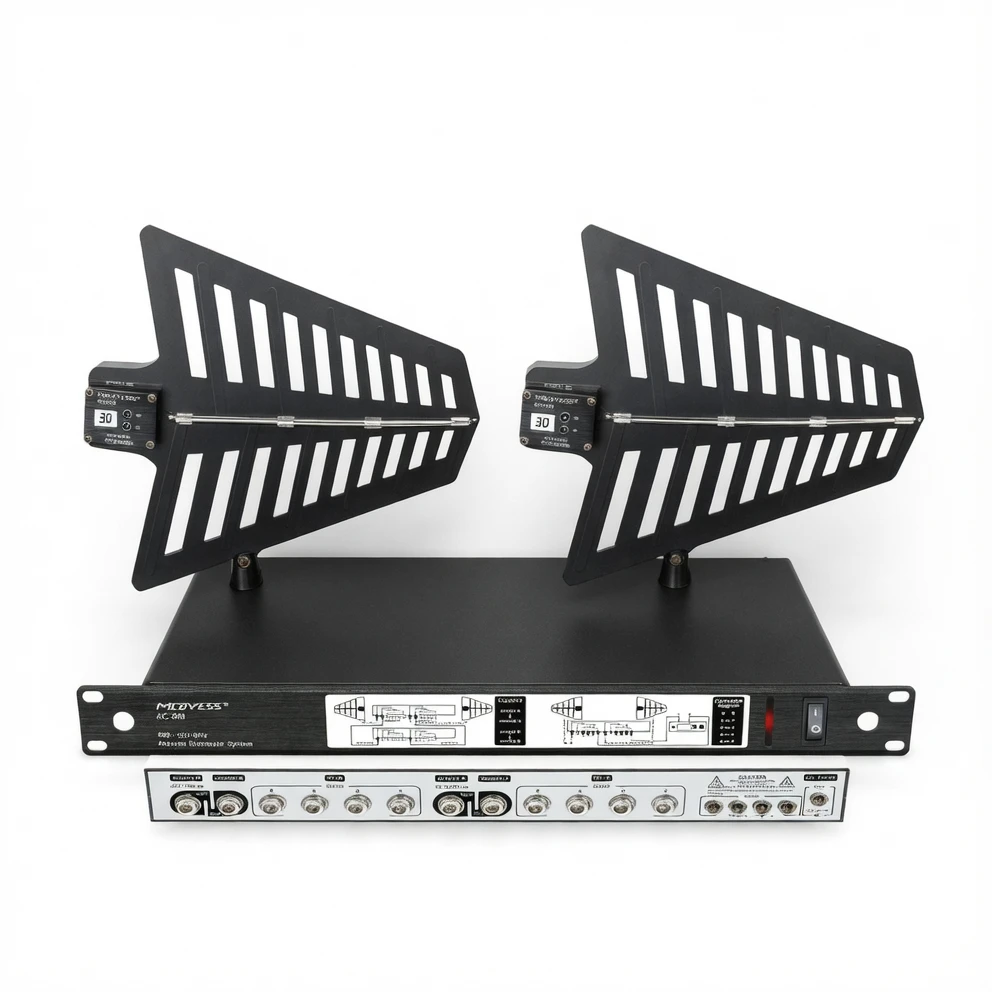

8-Channel Wireless Antenna Distributor image 1

Harmonai AC990 8-Channel Wireless Antenna Distributor — Cascadable RF Signal Enhancement System

The Harmonai AC990 is an 8-channel wireless antenna distributor designed for multi-channel wireless microphone systems. It covers 500–950 MHz, delivers +6–9 dB gain, supports casca...

$191.18

Model: AC990
Category: Microphones
Images: 4 images
Status: ready

Product Brief

Harmonai AC990 8-Channel Wireless Antenna Distributor — Cascadable RF Signal Enhancement System

Overview

The Harmonai AC990 is an 8-channel wireless antenna distributor designed for multi-channel wireless microphone systems. It covers 500–950 MHz, delivers +6–9 dB gain, supports casca...

Price: $191.18
Model: AC990
Category: Microphones

Specifications

Parameter	Value
Frequency Range	500–950 MHz
Input Intercept Point	+22 dBm
Noise Figure	4.0 dB (Center Band)
Gain	+6–9 dB (Center Band)
Output Return Loss	≥15 dB min
Impedance	50 Ω
Bandwidth	450 MHz
Connector Type	BNC female
Power Supply	100–240 V / 50/60 Hz
Power Consumption	170 mA
Cascading Function	Supports multiple units in series, sharing one antenna pair

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

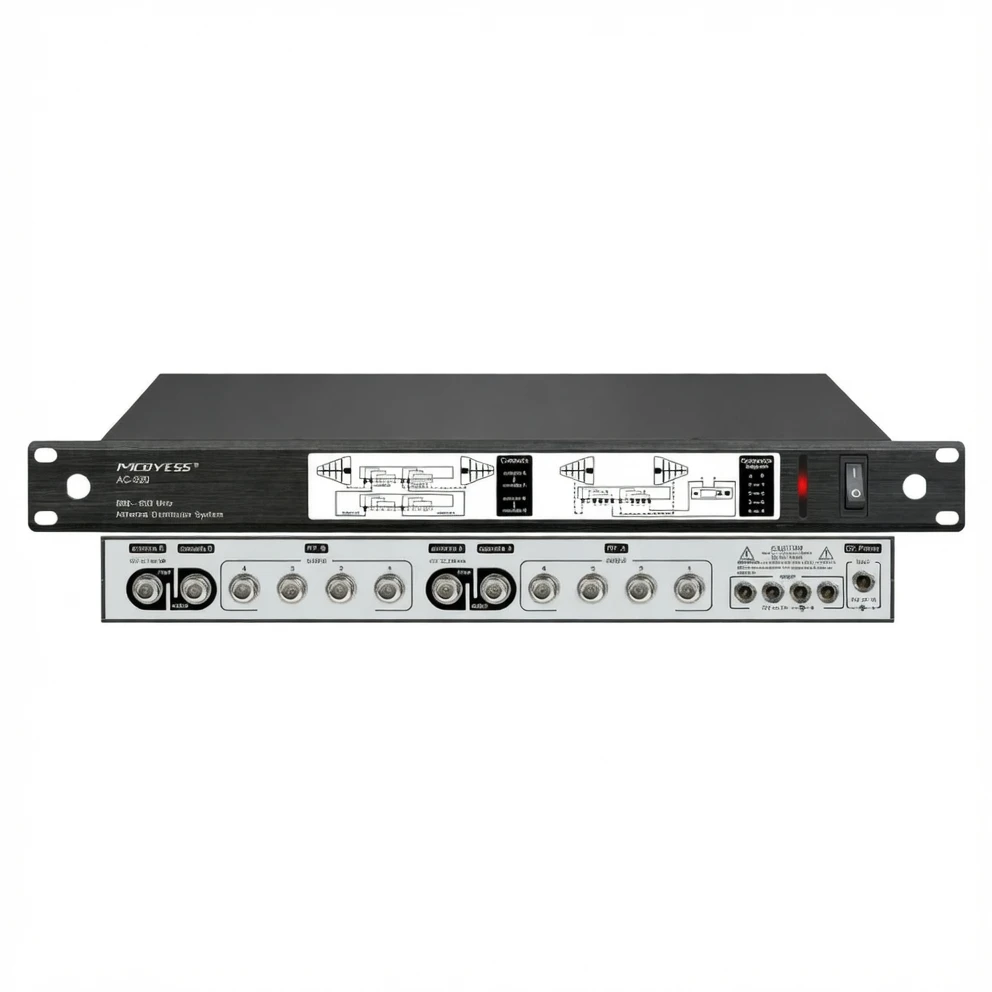

8-Channel Wireless Antenna Distributor product image

Product Overview

The Harmonai AC990 is an 8-channel wireless antenna distributor engineered specifically for multi-channel wireless microphone systems. It covers an ultra-wide frequency band of 500–950 MHz and provides +6–9 dB signal gain to effectively boost signal strength. Its unique cascading capability allows multiple distributors to be connected in series, sharing a single antenna pair—greatly simplifying system deployment and cabling. The standard 50Ω impedance matching ensures optimal signal transmission quality, while the BNC female connectors offer convenient and reliable connections. With universal 100–240 V AC input (50/60 Hz), it meets global power standards; its low power consumption of 170 mA makes it energy-efficient.

Frequency Range

500–950 MHz

Input Intercept Point

+22 dBm

Noise Figure

4.0 dB (Center Band)

Gain

+6–9 dB (Center Band)

Output Return Loss

≥15 dB min

Impedance

50 Ω

Bandwidth

450 MHz

Connector Type

BNC female

Power Supply

100–240 V / 50/60 Hz

Power Consumption

170 mA

Cascading Function

Supports multiple units in series, sharing one antenna pair

Typical Applications

The AC990 antenna distributor is ideal for diverse professional wireless system environments: managing signals centrally via cascading during large-scale live events with multiple simultaneous wireless microphones; ensuring stable transmission and signal enhancement for multi-channel wireless mics in broadcast studios; deploying multiple parallel wireless systems in large venues such as conference centers and hotel ballrooms; and maintaining signal integrity in complex electromagnetic environments—including outdoor events and trade shows.

For more product details or customized wireless system solutions, contact the Harmonai professional team.
