Harmonai KX2 Professional Karaoke Preamp — 6-Band Parametric EQ, 1U Ultra-Thin Aluminum Front Panel

The Harmonai KX2 is a professional karaoke preamp with premium aluminum front panel and ultra-slim 1U rack-mount design. Features 6-band parametric mic EQ, adjustable subwoofer out...

$65.96

Model: KX2
Category: Stage Accessories
Images: 4 images
Status: ready

Product Brief

Harmonai KX2 Professional Karaoke Preamp — 6-Band Parametric EQ, 1U Ultra-Thin Aluminum Front Panel

Overview

The Harmonai KX2 is a professional karaoke preamp with premium aluminum front panel and ultra-slim 1U rack-mount design. Features 6-band parametric mic EQ, adjustable subwoofer out...

Price: $65.96
Model: KX2
Category: Stage Accessories

Specifications

Parameter	Value
Front Panel Material	Premium aluminum
Chassis Format	1U ultra-thin design
Microphone EQ	6-band parametric equalization
Subwoofer Output	Adjustable crossover point and output gain
Low-Frequency Anti-Howling Protection	Automatic 50% attenuation of low-frequency signal upon MIC activation
Mic Signal Exclusion from Subwoofer Channel	Supported
S/N Ratio (Left/Right Channels, 1kHz, 0dB)	90dB
S/N Ratio (Center Channel)	87dB
S/N Ratio (Subwoofer Channel)	87dB
Channel Separation	75dB
Frequency Response (Music)	10Hz ~ 30kHz
Frequency Response (Microphone)	20Hz ~ 15kHz
Music Bass Control	±10dB (100Hz)
Music Treble Control	±10dB (10kHz)
Microphone Bass Control	±10dB (100Hz)
Microphone Treble Control	±5dB (10kHz)
Microphone Noise Gate Threshold	Trigger voltage 3mV, activation time 3 seconds
THD+N	0.03% (1kHz, 30mV)
Physical Dimensions	483 × 44 × 208mm (W×H×D)
Power Supply	AC 220–240V / 50–60Hz

Service Support

We support project consultation, model recommendation, bulk purchasing and catalog delivery for retail, multipurpose halls, conference rooms and live events.

Business hours: Monday to Friday 09:00 - 18:30
Inquiry channels: phone / email / website form
Tip: share budget, quantity and use scenario in advance

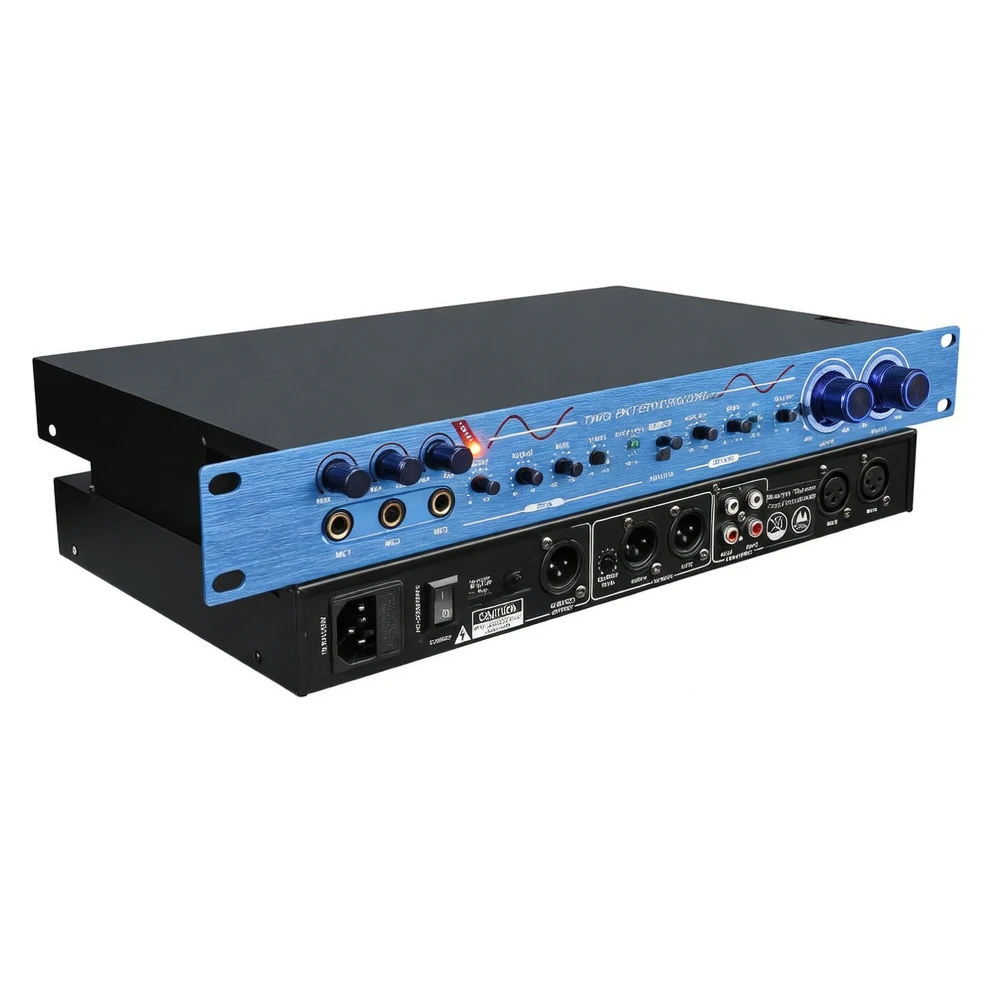

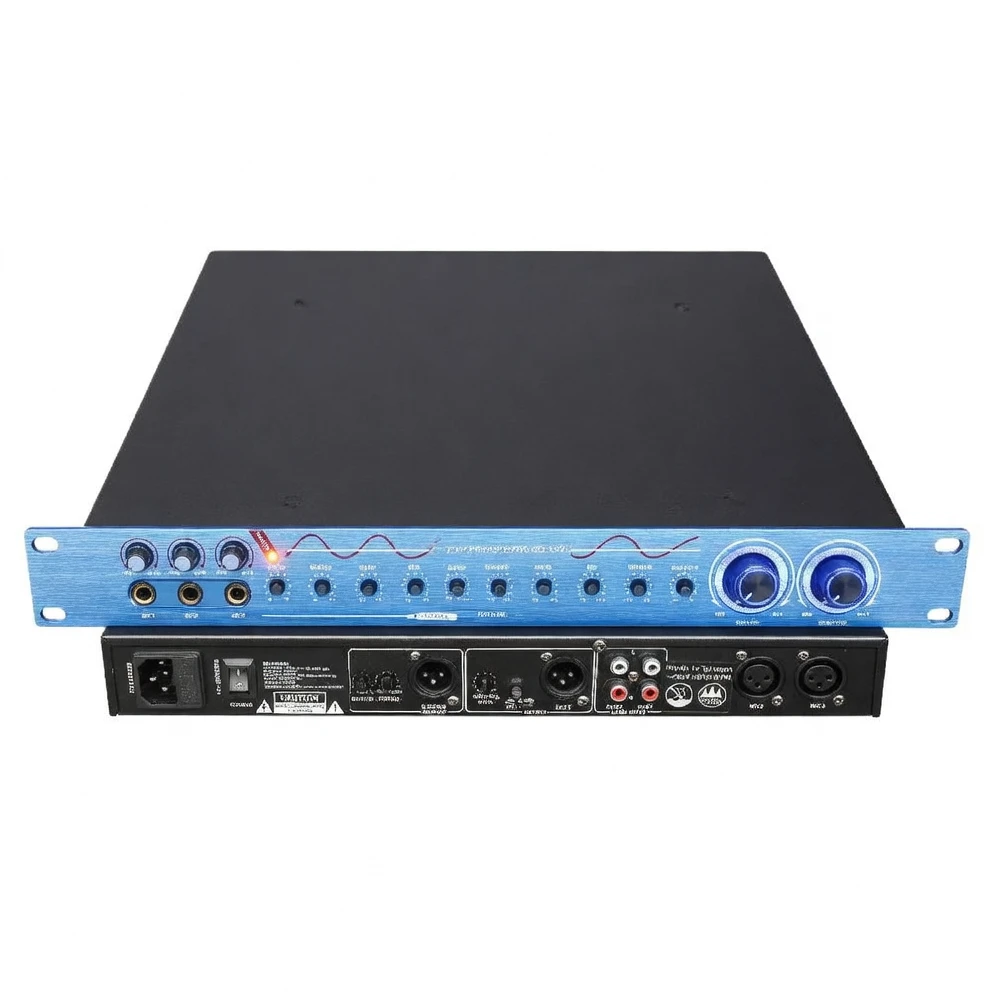

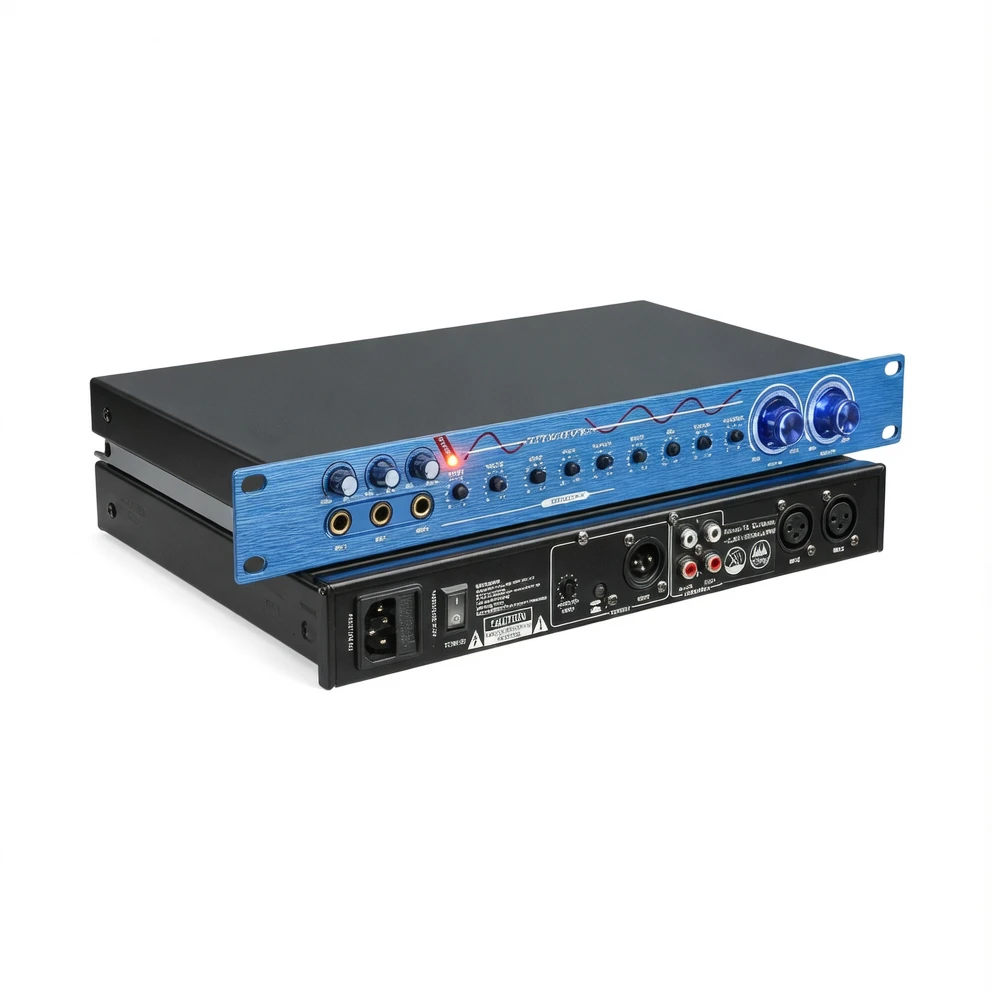

Harmonai KX2 Professional Karaoke Preamp product image

Product Overview

The Harmonai KX2 is a professional-grade karaoke preamp processor featuring a premium aluminum front panel and an ultra-slim 1U chassis—elegant in appearance and space-efficient for rack mounting. Its standout feature is 6-band parametric equalization for microphones, offering wide adjustment range to refine vocal clarity and smoothness without compromising original tonal character. It enables precise suppression of feedback frequencies. The subwoofer channel output includes adjustable crossover point and output gain, plus comprehensive low-frequency anti-self-oscillation circuitry: when microphone signal is active, the subwoofer output automatically attenuates by 50% to prevent low-frequency howling and protect equipment. A dedicated ‘mic signal exclusion from subwoofer channel’ function, combined with intuitive card-slot-style controls, simplifies setup and fine-tuning.

Front Panel Material

Premium aluminum

Chassis Format

1U ultra-thin design

Microphone EQ

6-band parametric equalization

Subwoofer Output

Adjustable crossover point and output gain

Low-Frequency Anti-Howling Protection

Automatic 50% attenuation of low-frequency signal upon MIC activation

Mic Signal Exclusion from Subwoofer Channel

Supported

S/N Ratio (Left/Right Channels, 1kHz, 0dB)

90dB

S/N Ratio (Center Channel)

87dB

S/N Ratio (Subwoofer Channel)

87dB

Channel Separation

75dB

Frequency Response (Music)

10Hz ~ 30kHz

Frequency Response (Microphone)

20Hz ~ 15kHz

Music Bass Control

±10dB (100Hz)

Music Treble Control

±10dB (10kHz)

Microphone Bass Control

±10dB (100Hz)

Microphone Treble Control

±5dB (10kHz)

Microphone Noise Gate Threshold

Trigger voltage: 3mV; activation time: 3 seconds

THD+N

0.03% (1kHz, 30mV)

Physical Dimensions

483 × 44 × 208mm (W×H×D)

Power Supply

AC 220–240V / 50–60Hz

Recommended Applications

The KX2 is ideal for professional KTV rooms, home HI-fi rooms, bars, and private clubs requiring high-fidelity karaoke audio performance. Its 6-band parametric EQ empowers sound engineers to precisely identify and suppress feedback frequencies, ensuring clear, articulate vocals. The adjustable subwoofer output delivers deep, powerful low-end response tailored to any KTV system. Integrated low-frequency anti-howling protection and noise gate functionality safeguard equipment and speakers, extending service life. The 1U ultra-thin aluminum chassis ensures seamless rack integration—making it the preferred choice for professional audio installations and discerning users.

For detailed technical specifications and customized audio system integration advice for the Harmonai KX2 Professional Karaoke Preamp, contact us today.
