Input Voltage
AC100–240V, 50/60Hz
Product Overview

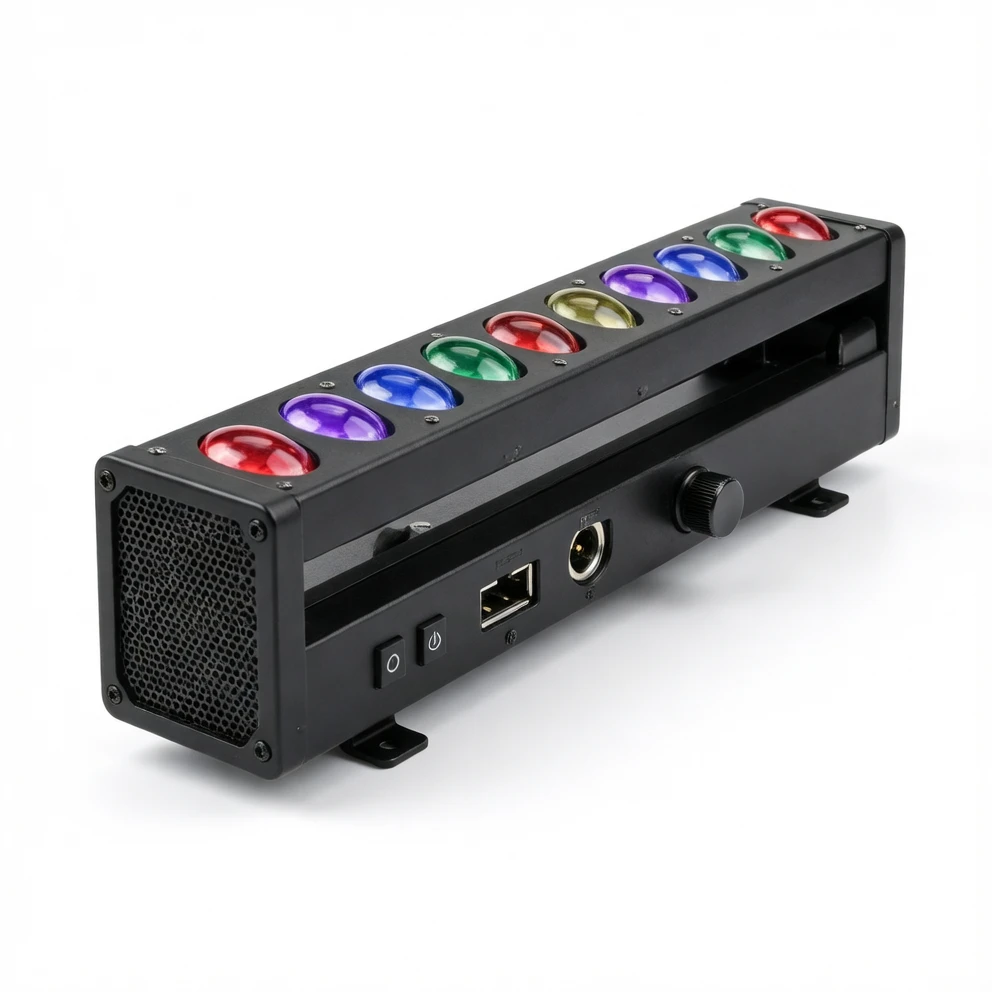

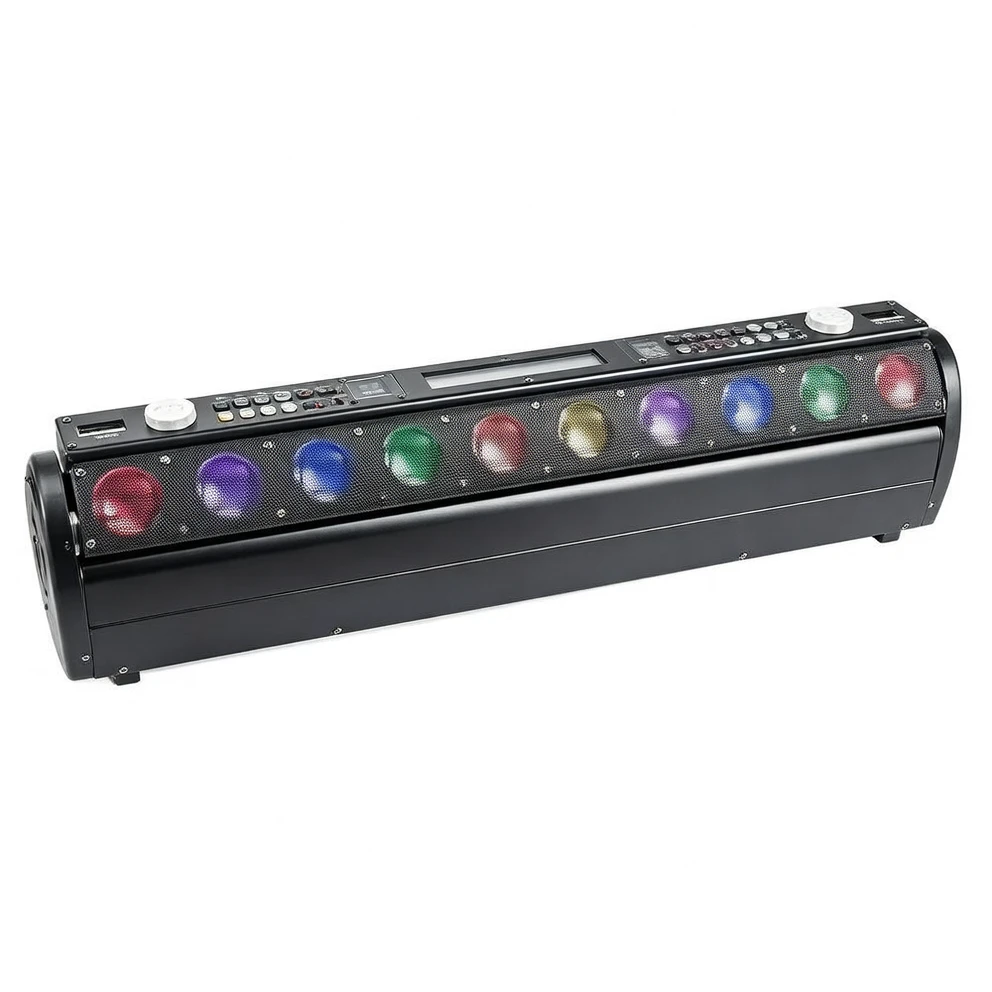

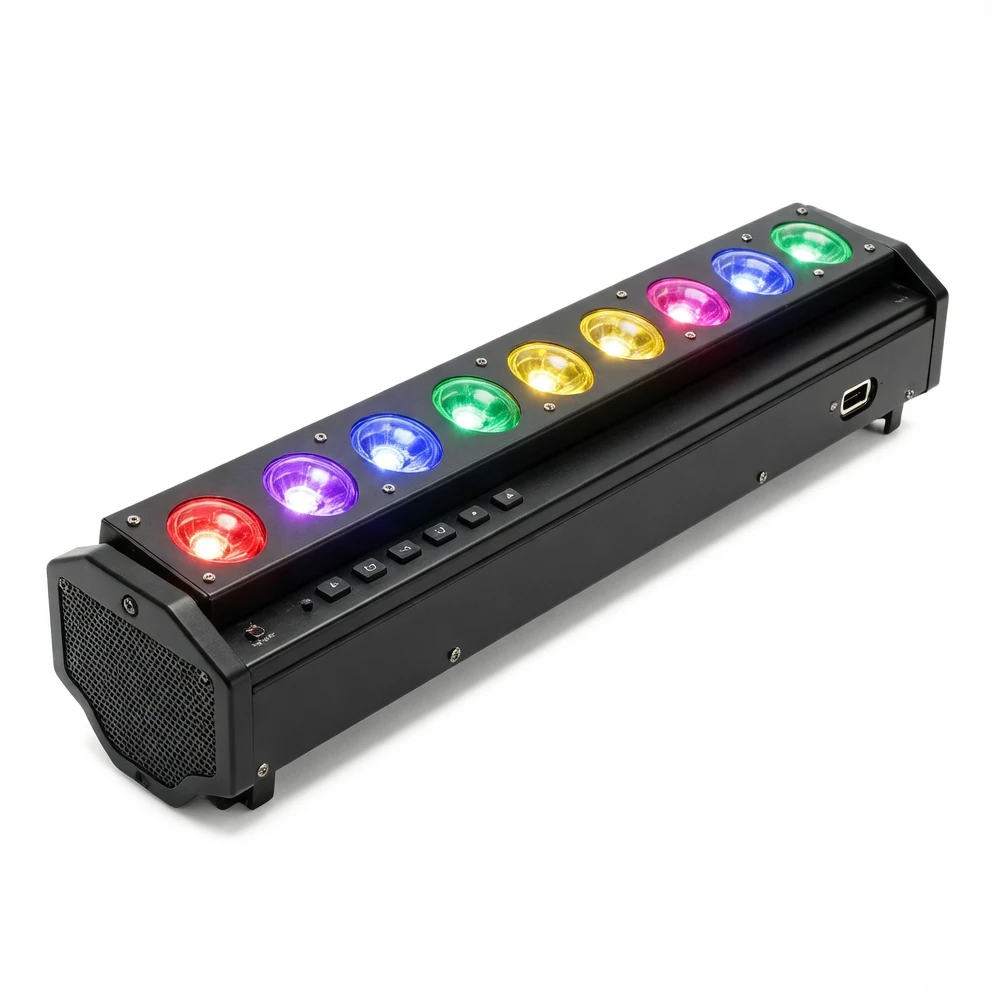

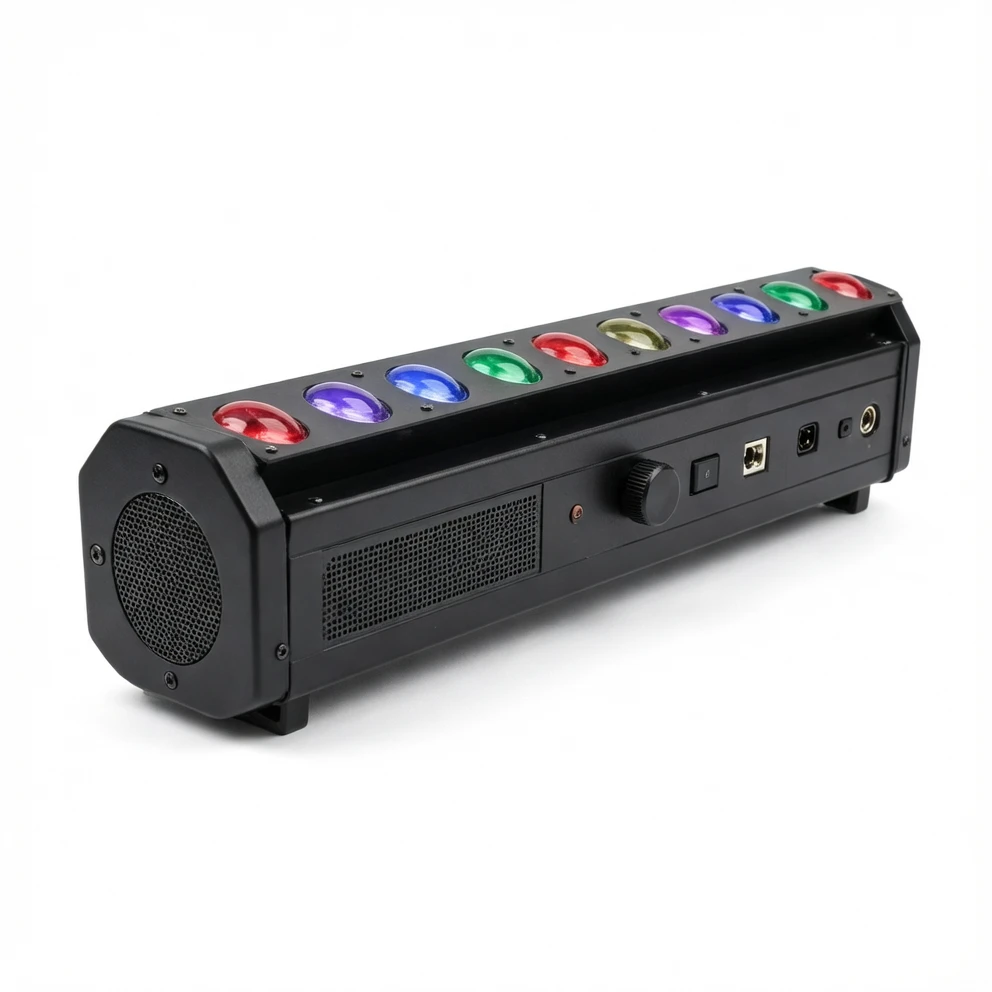

The Harmonai 10×40W wash light is a professional-grade stage effect fixture featuring 10 quad-color LED chips, delivering a powerful and vivid 320W total output. It supports multiple control protocols including DMX512, standalone, master-slave, and sound-activated modes, and integrates RDM remote diagnostics for streamlined operation and maintenance. Offers dual channel modes — 14-channel and 50-channel — paired with 32-bit 0–100% linear dimming for precise, nuanced light control.
Core Features
Y-axis pan enables dynamic beam sweeping, combined with strobe function (adjustable frequency: 1–30Hz) to create dramatic visual impact on stage. Ideal for live performances, events, and diverse venue lighting applications.
Rated Power
10×30W (320W)
LED Configuration
10 quad-color LED chips
Control Modes
DMX512, standalone, master-slave, sound-activated, with RDM support
Channel Modes
CH14 / CH50
Dimming Precision
32-bit 0–100% linear dimming
Key Functions
Y-axis pan + beam + strobe
Strobe Frequency
Adjustable 1–30Hz
Operating Temperature
−30°C to 50°C
Chassis Material
Metal / black
Connection Types
DMX512 input/output, power input/output
Ingress Protection Rating
IP20
Unit Dimensions
110×10×23 cm
Net Weight
8.24 kg
Carton Dimensions
117×32×34 cm
Gross Weight
11.5 kg
Recommended Applications
Ideal for professional lighting environments including stage performances, theaters, bars, KTVs, concerts, weddings, architectural façade lighting, and trade shows, delivering high-fidelity, customizable illumination solutions for diverse venues.
Learn more about Harmonai’s professional stage lighting solutions — contact us today for pricing and technical support.
