Rated Voltage
AC100–240V, 50/60Hz
Product Overview
The Harmonai 1000W LED tri-function beam light integrates continuous CMY color mixing and CTO color temperature adjustment, powered by a high-output 460W white LED source with a color temperature of up to 9000K. Its optical beam angle adjusts linearly from 4° to 35°. Equipped with a 12-color wheel, a 7-piece rotating gobo wheel, a 12-position fixed gobo wheel, and a dual prism system, it supports two DMX channel modes (21/26 channels), features a 2.8-inch LCD touchscreen interface, and uses XY-axis three-phase motors for precise scanning — making it an ideal choice for professional stage lighting installations.
Total Power Consumption
1000W
Light Source
High-power 460W white LED
Optical Angle
4°–35°
Color Temperature
9000K
LED Lifetime
≥20,000 hours
Color Wheel
12 color segments + white; supports color chase and rainbow effects
Color Mixing System
Continuous CMY color mixing
Rotating Gobo Wheel
7 gobo patterns + white; supports rotation, bidirectional chase, and tremolo effects
Gobo Positioning
Gobo wheel is indexable
Fixed Gobo Wheel
12 fixed patterns + white
Iris Control
Smooth 5%–100% adjustment
Dimming Method
Electronic 0–100% linear dimming
Frost Effect
Electronic 0–100% linear frost diffusion
Zoom Function
Linear 4°–35° zoom
Strobe Modes
High-speed strobe with sync, split, pulse, and random modes
Prism System
Dual prism (one 4-facet + one 8-facet prism), independently rotatable in both directions
Pan Movement
540°, resolution 2.11°/step, fine-tuning precision 0.008°
Tilt Movement
240°, resolution 1.05°/step, fine-tuning precision 0.004°
DMX Channels
21-channel / 26-channel modes, selectable
Control Panel
2.8-inch LCD touchscreen + buttons; bilingual (Chinese/English); automatic 180° font inversion
Drive Mechanism
XY-axis three-phase motor drive
Data Communication
RDM bidirectional communication
Unit Dimensions
38 × 27 × 65 cm
Net Weight
23.8 kg
Shipping Carton Dimensions
63 × 52 × 50 cm
Gross Weight
25 kg
Recommended Applications
Ideal for large-scale concerts, theaters, music festivals, nightclubs, bars, exhibition halls, TV studios, and outdoor performances. The continuous CMY color mixing combined with rich gobo and prism effects creates dynamic lighting atmospheres; the 4°–35° zoom range meets both long-distance projection and close-range coverage needs; RDM bidirectional communication enables remote monitoring and management by lighting technicians.
For more information about Harmonai lighting products or to request a quote, please contact us. Our professional team will provide customized lighting solutions.
Harmonai TB5 Tornado A Professional Stage Beam Light QY-TB5A
The Harmonai TB5 Tornado A (QY-TB5A) is a professional stage beam light featuring 5×120W RGBL LEDs and 120×0.5W RGB perimeter LEDs, delivering up to 13,000 lumens. Fully supports DMX512, RDM, and Art-Net protocols with precise 3°–30° beam angle adjustment and X/Y dual-axis 16-bit scanning — ideal for bars, live-streaming studios, and large-scale performances.$492.47
Harmonai 36-LED Full-Color Matrix Light
The Harmonai QY-JZ3603 features 36 Cree 3535 full-color tri-color LED chips, supports DMX512, master-slave, auto-run, and sound-activated control modes, and delivers flicker-free 1200Hz operation ideal for stage, bar, and live-streaming applications.$61.18
Harmonai QY-F5403 Waterproof 54-LED 3W PAR Light | Outdoor Professional LED Stage Lighting
The Harmonai QY-F5403 waterproof PAR light features 54 high-brightness 3W LEDs (R12+G14+B14+W6) and delivers 60,000–100,000 hours of lifespan. Supports 0–100% color-accurate dimming, 1–13Hz high-speed strobe, and precise 8-channel DMX512 control for outdoor performances, stages, bars, and KTVs.$61.18
Harmonai 100W Mini Cannon | Professional White Light Effect Lamp for Karaoke Rooms — 150W DMX512 Stage Lighting
The Harmonai 100W Mini Cannon is a high-brightness white light effect lamp designed for karaoke rooms, bars, and entertainment venues. Featuring a 100W white LED, DMX512 control, sound-activated mode, 0–100% ultra-smooth dimming, and 25 Hz strobe for immersive lighting experiences.$61.18
Harmonai 200W 4-Eye Fresnel COB LED Stage Light
A professional stage lighting fixture featuring four 50W COB LEDs (250W total), delivering bright, uniform fresnel wash light. Supports DMX512, auto-run, and sound-activated control modes, plus dual-color-mixing and strobe effects.$28.68
Harmonai QY-1260QS 1260 Thousand-Armed Guanyin LED Moving Head Wash/Beam Light
The Harmonai QY-1260QS is a professional-grade LED moving head wash/beam light featuring 12 high-power 4-in-1 60W LEDs, independent lamp-head movement per LED, and support for DMX512, auto-run, master-slave, sound activation, and RDM control.$593.60
Harmonai TB5 Tornado B QY-TB5B 800W Five-Eye RGB Full-Color Moving Head Beam Effect Light
The Harmonai TB5 Tornado B is a professional effect light for bars and live streaming studios, featuring five 120W RGB lemon-yellow LEDs and 120 RGB auxiliary LEDs. It supports DMX512/RDM control and 32-bit linear dimming, with each LED independently delivering beam, wash, and movement effects for stunning visual impact.$571.62
Harmonai QY-1260FG Qianshou Guanyin (Auxiliary Light Edition) — Professional Moving Head Wash/Beam Effect Light
The Harmonai QY-1260FG Qianshou Guanyin (Auxiliary Light Edition) is a professional-grade effect light engineered for bars, live streaming studios, and performance stages. Featuring 12×60W RGBW LEDs and 24 auxiliary LEDs, it delivers independent per-LED movement, color wash, and beam effects with DMX512/RDM intelligent control.$538.64
Harmonai QY-QG500 500W Beam Cutter Light | Professional Moving Head Beam & Wash Stage Light
The Harmonai QY-QG500 is a professional 500W beam cutter light featuring a 400W LED engine, 8500K color temperature, precision beam-shaping system, and a 13-color wheel. Supports DMX512/RDM/multi-mode control for stage shows, concerts, bars, and other pro lighting applications.$527.65
Harmonai TB5 Tornado C (QY-TB5C) — 5-LED 120W RGB Lemon-Yellow Stage & Live Streaming Effect Light
The Harmonai TB5 Tornado C (QY-TB5C) is a professional effect light engineered for bars, live streaming studios, KTVs, and stage performances. Featuring five 120W RGB lemon-yellow LEDs and 120 RGB auxiliary LEDs, it delivers 800W output with 32-bit linear dimming and independent per-LED pan for seamless wash, beam, and dynamic effects.$527.65

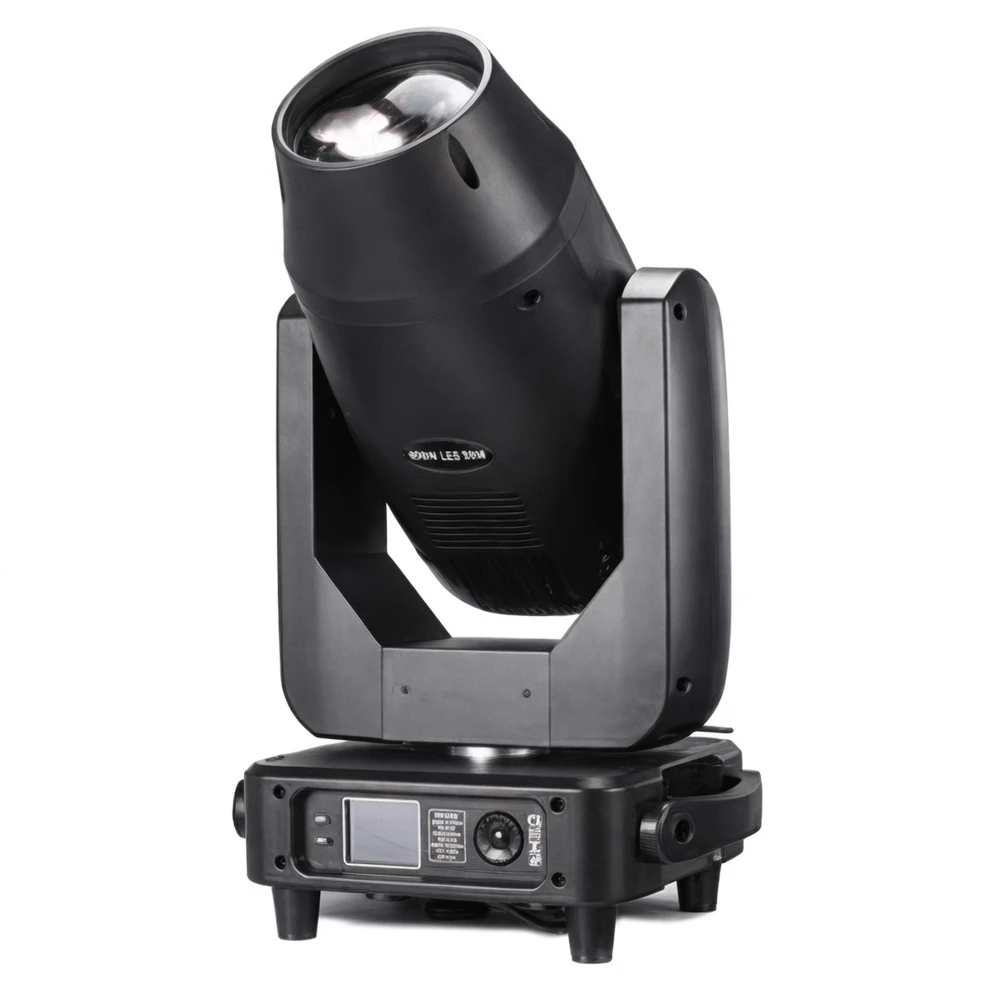

Harmonai 400W LED Beam Wash Hybrid Light | CMY Continuous Color Mixing + CTO Color Temperature Control
