Light Source Configuration
Beam source: 5 × 120W RGBL LED; Perimeter LEDs: 120 × 0.5W RGB LED
Product Overview

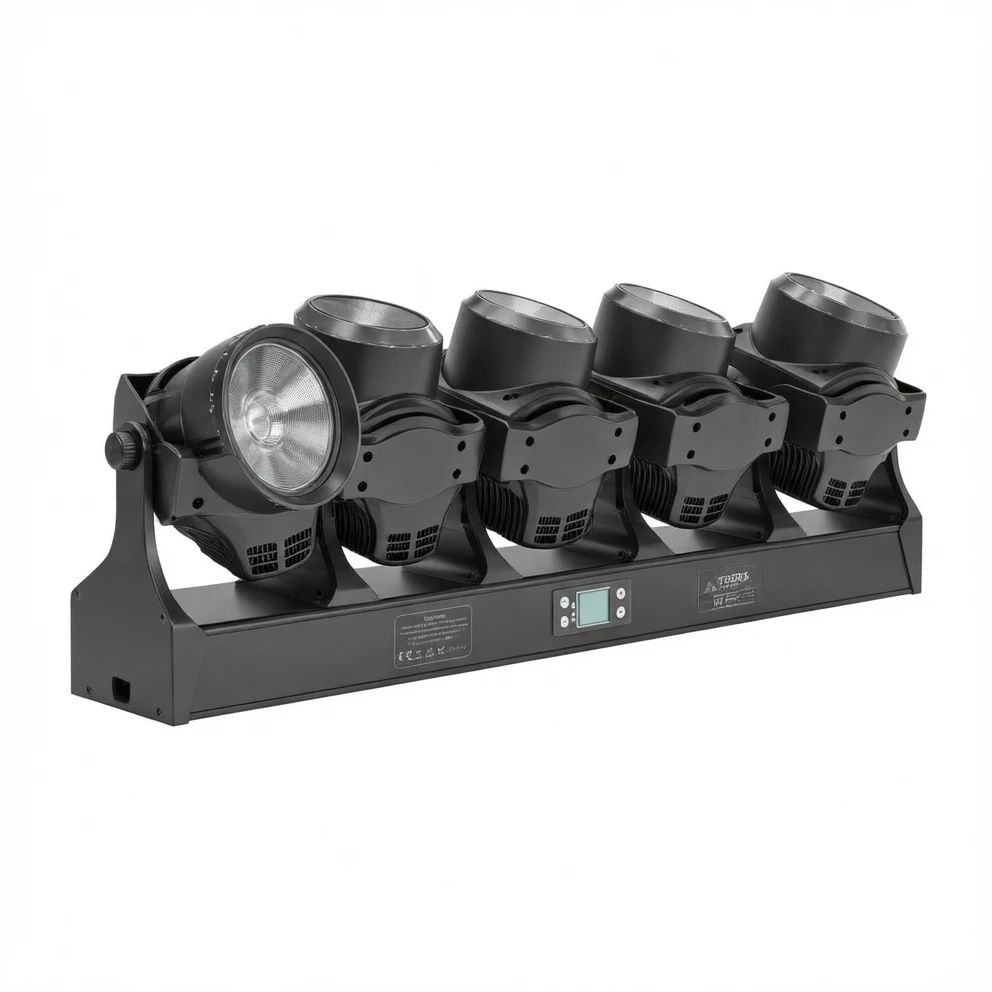

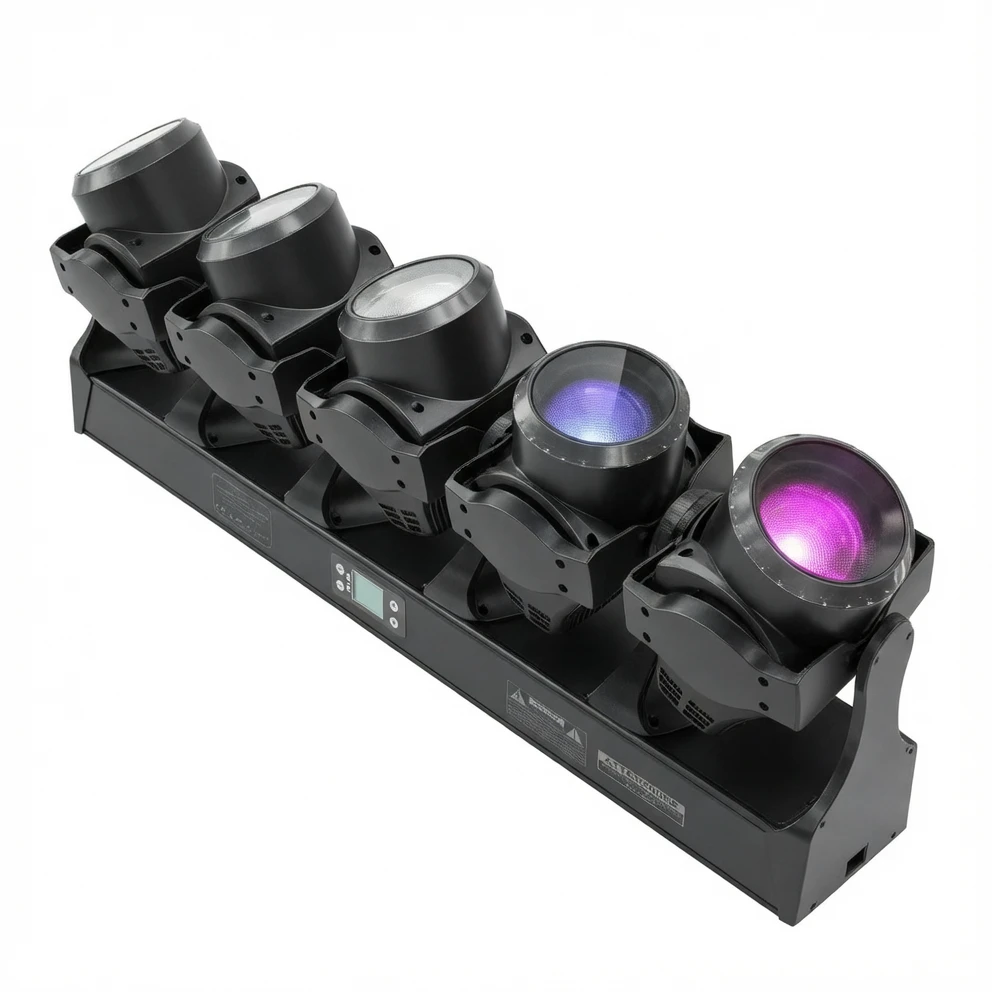

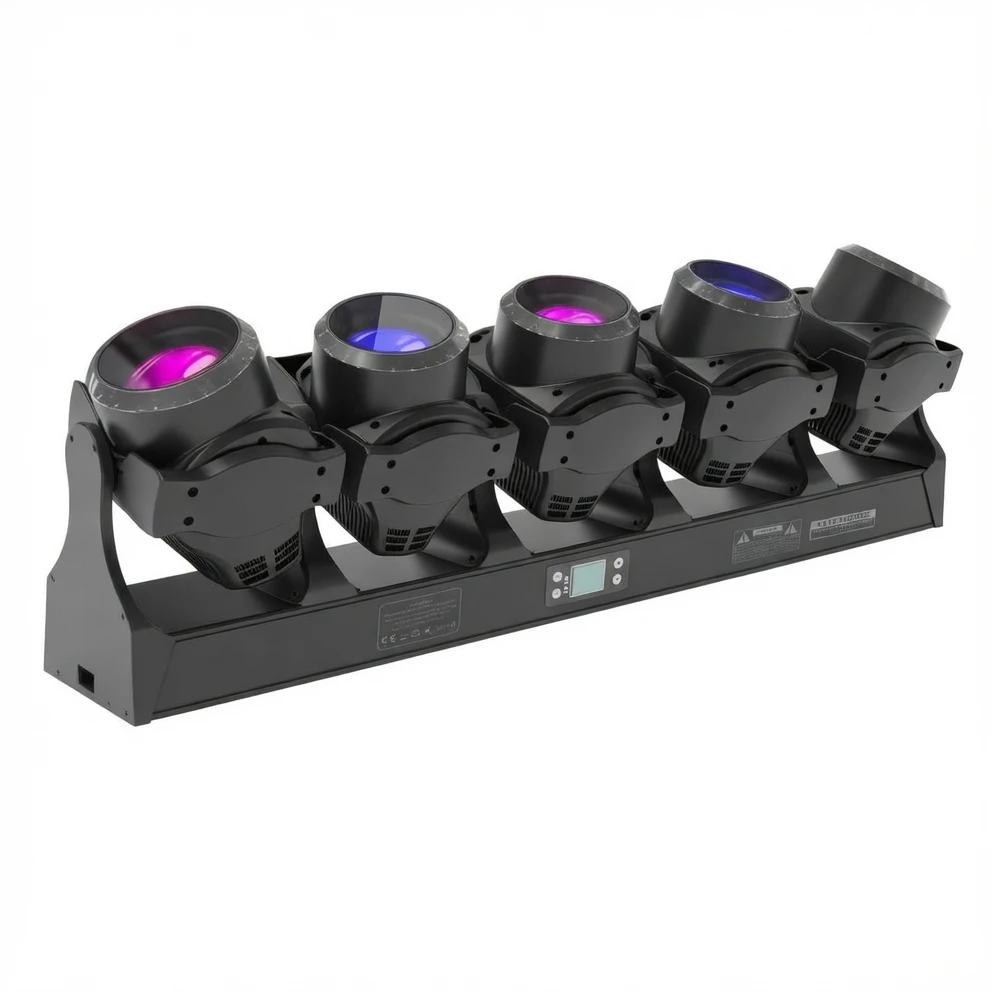

The Harmonai TB5 Tornado A (model QY-TB5A) is a professional-grade stage beam effect light engineered for bars, live-streaming studios, and diverse performance venues. It features 5×120W RGBL LEDs as the primary beam source, complemented by 120×0.5W RGB LEDs in the outer ring, producing a total luminous flux of 13,000 lumens for stunning visual impact. Fully compatible with DMX512, RDM, and Art-Net control protocols, it offers flexible channel modes (41/71 channels) and X/Y dual-axis 16-bit high-precision scanning — meeting the most demanding operational requirements of professional lighting designers.
Luminous Flux
13,000 lumens
LED Lifespan
20,000 hours
Beam Angle
Adjustable from 3° to 30°
Field Angle
Adjustable from 4° to 35°
Control Protocols
DMX512 / RDM / Art-Net
DMX Channel Modes
2 modes (41-channel / 71-channel)
Control Panel
LCD display
Firmware Upgrade
Upgrade via DMX connection
X-Axis Rotation Range
59°
Y-Axis Rotation Range
221°
Scanning Precision
X-axis/Y-axis 16-bit resolution with automatic position error correction
Effects Features
Multi-speed strobe effects, smooth 0–100% dimming, advanced color mixing, color macro effects, and fast linear focus
Input Voltage
100–240V~ 50/60Hz
Power Consumption
800W
Signal Interface
3-pin XLR socket (input/output)
Power Interface
Power connector
Recommended Applications
The Harmonai TB5 Tornado A is suitable for a wide range of entertainment and performance environments including bars, nightclubs, KTVs, live-streaming studios, concerts, and music festivals. Its ultra-high 13,000-lumen output combined with an adjustable 3°–30° beam angle ensures exceptional versatility — whether creating intimate ambient lighting or projecting powerful long-distance beams. Full DMX512/RDM/Art-Net protocol support and 16-bit high-precision scanning enable seamless integration with professional lighting consoles for accurate programming and real-time control.
For detailed specifications, pricing, or customized lighting solutions, contact us today.
