Voltage
AC100~240V 50/60Hz
Product Overview

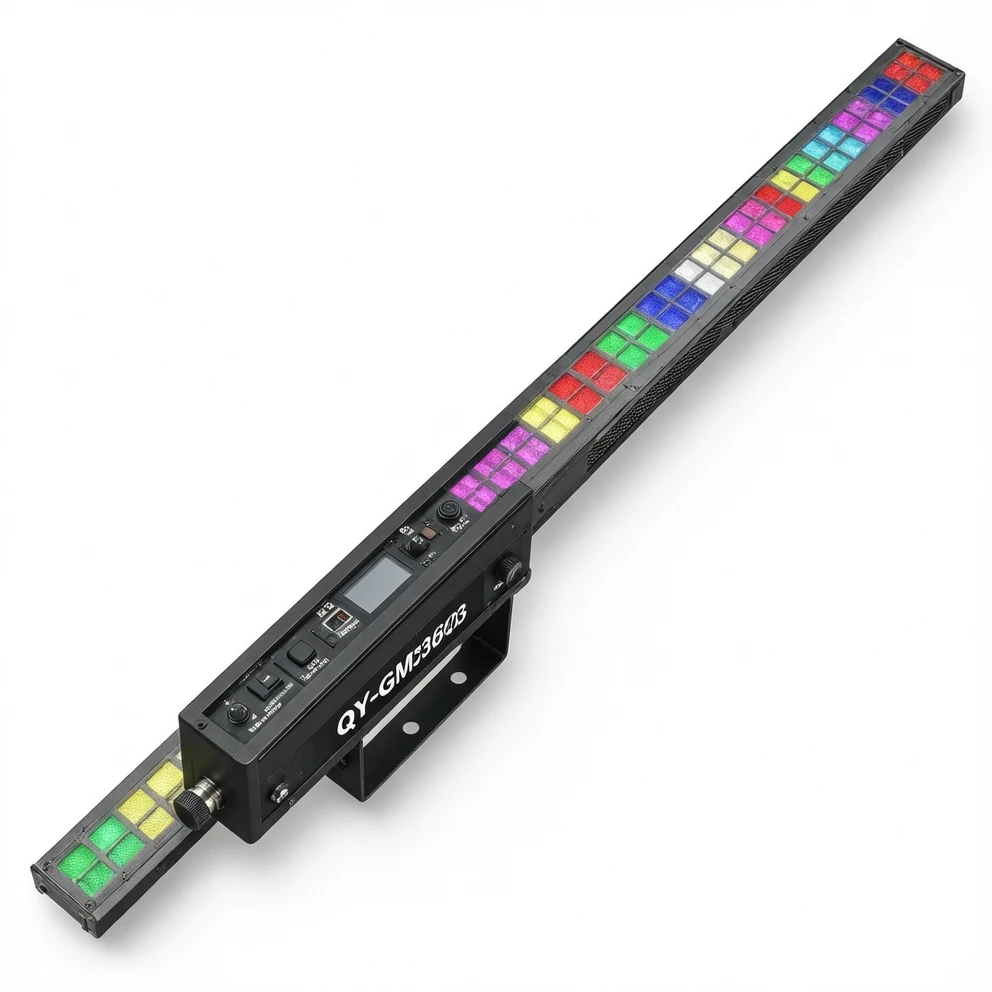

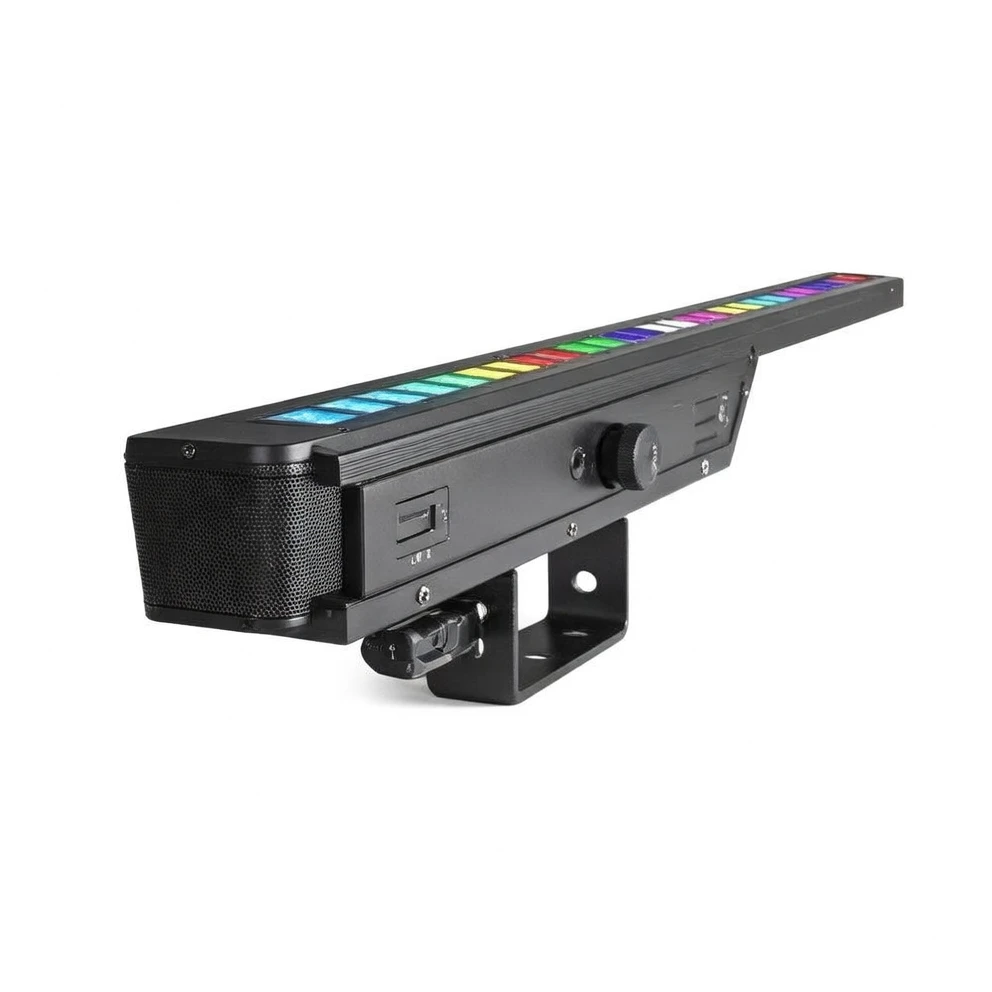

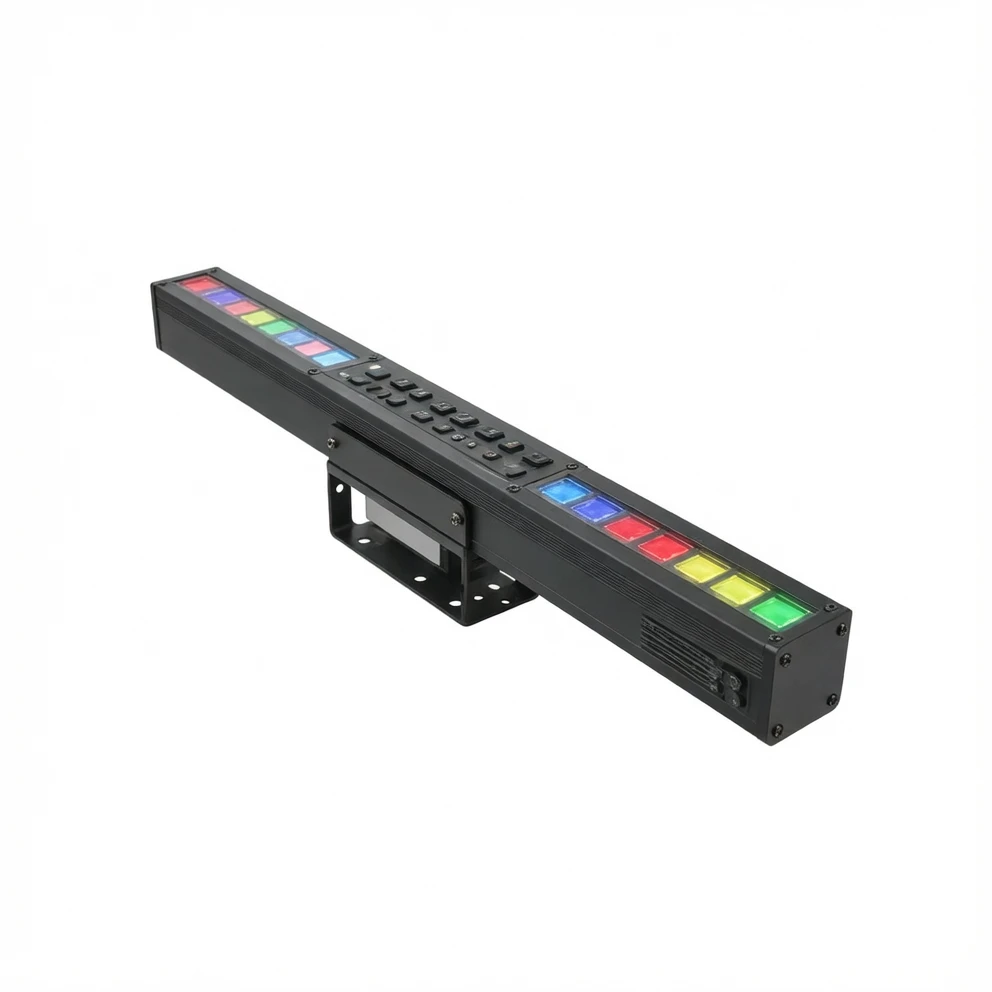

Harmonai QY-GM3603 36-Point RGB Pixel Light Curtain is an RGB LED effect light engineered specifically for bars, KTV private rooms, and live streaming studios. It integrates 36 pcs of 3535 RGB LED chips and supports 36-point individual addressing, enabling rich light curtain displays, pixel matrix patterns, and dynamic lighting effects. With only 100W power consumption, it supports multiple control protocols — DMX512, standalone, master-slave, and sound activation — and includes RDM bidirectional communication for remote configuration and monitoring. Operating across a wide temperature range of -30°C to 50°C, it withstands demanding conditions in live entertainment venues.
Power
100W
LED Chips
36 pcs of 3535 RGB LED chips
Control Modes
DMX512, standalone, master-slave, sound activation, with RDM functionality
Channel Options
CH8, CH40, CH108, CH116
Dimming
32-bit linear dimming, 0–100%
Key Feature
36-point individual addressing
Operating Temperature
-30°C to 50°C
Strobe Frequency
1–30Hz
Connection
DMX512 input/output + power input/output
Applications
Ideal for bars, KTV private rooms, nightclubs, live streaming studios, stage performances, and wedding events, this light curtain creates immersive visual atmospheres and dynamic light curtain effects. With 36-point individual addressing, each LED can be programmed separately to deliver pixel chases, wave scans, rainbow gradients, and other rich visual effects — making it a top choice for ambient lighting and professional effect rendering.
Explore more Harmonai bar and live streaming effect lights — contact us today for customized solutions and quotations.
