Input Power
AC 100–240 V, 50–60 Hz wide-voltage input
Product Overview

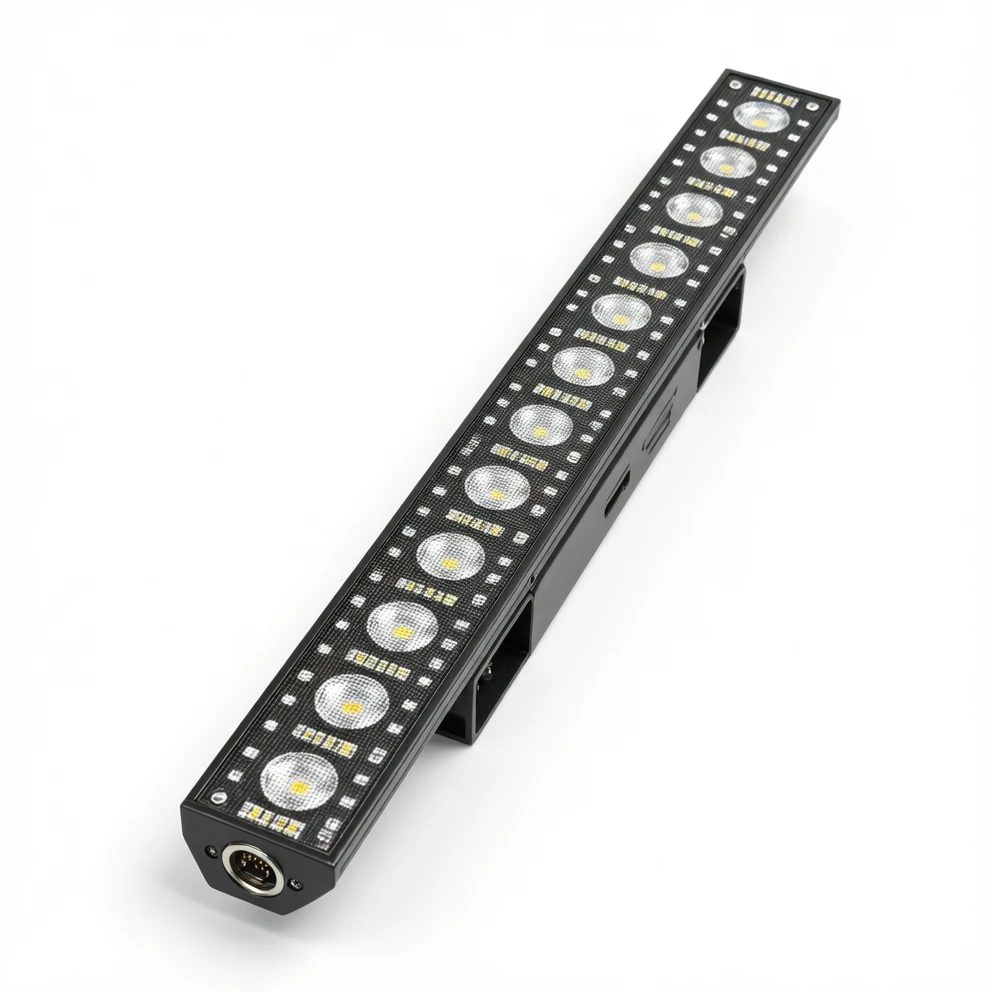

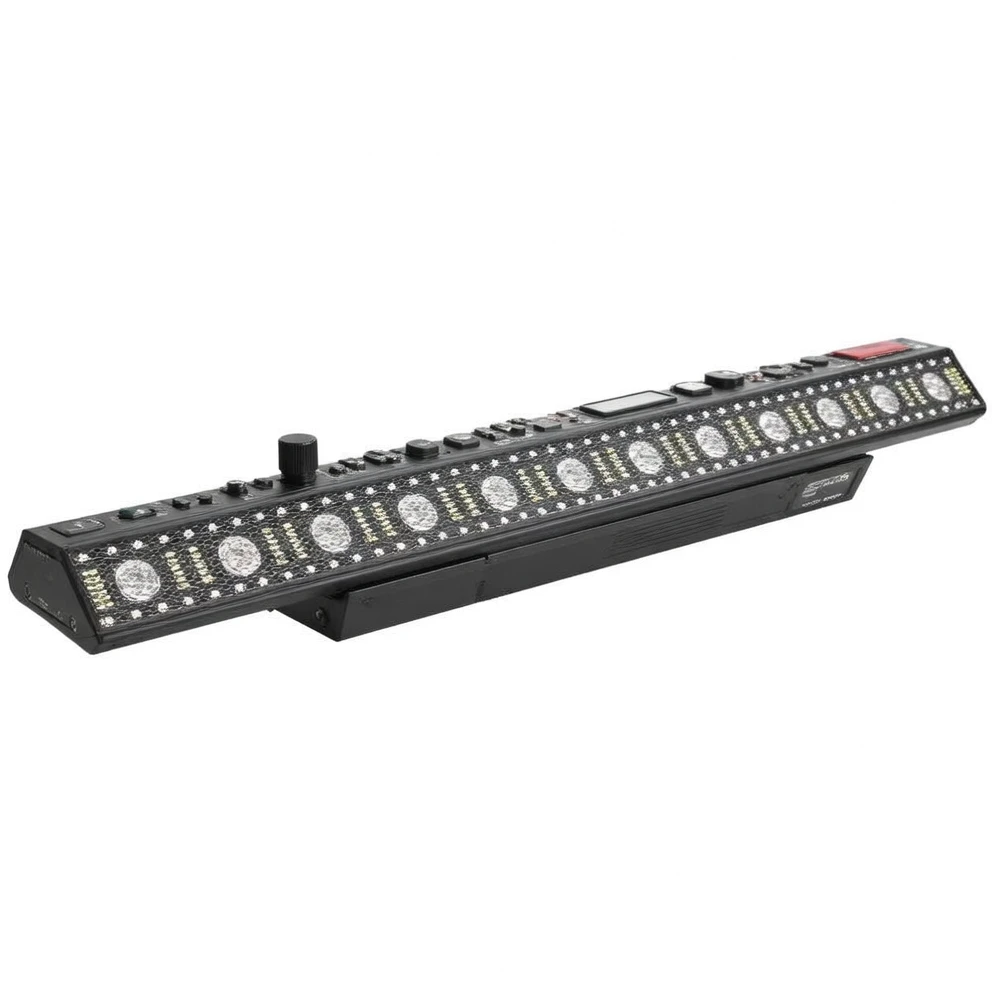

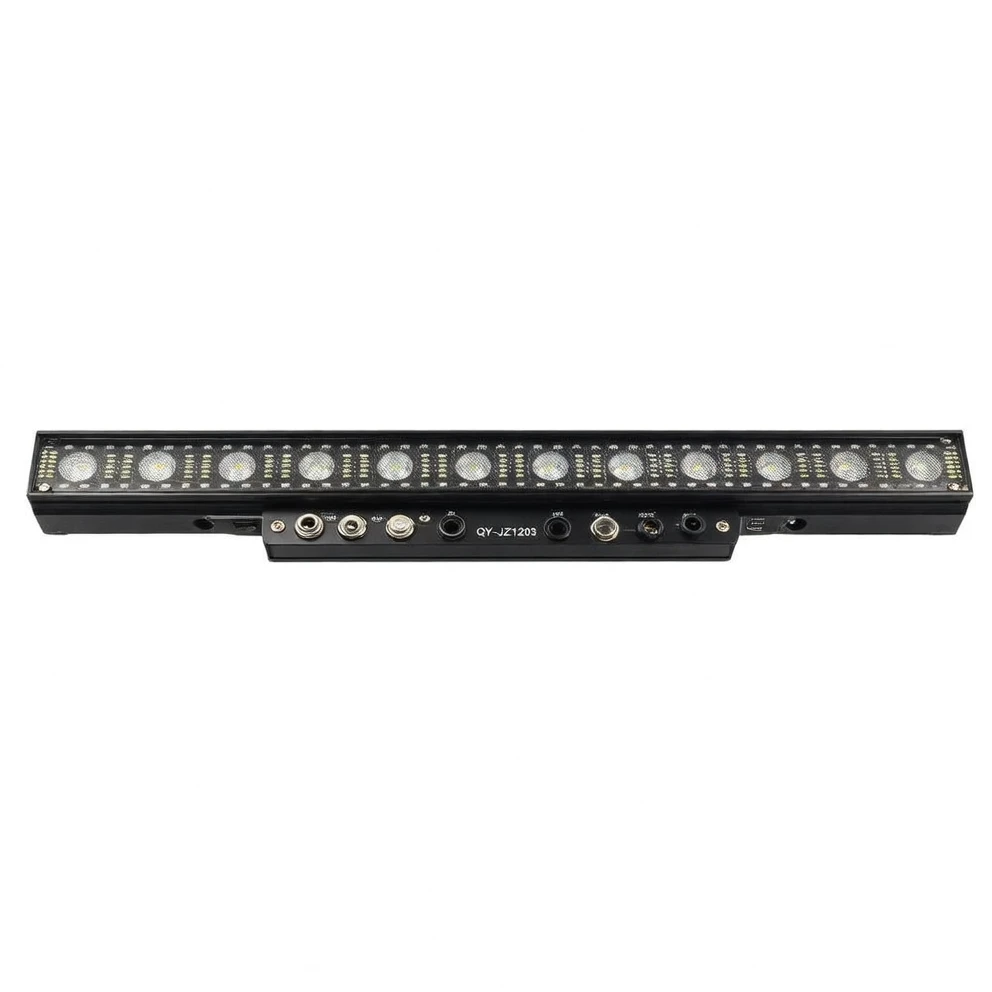

The Harmonai 12-Point Matrix 3-in-1 (model QY-JZ1203) is an LED matrix effect light engineered for bars, live streaming studios, and small-scale performance venues. It integrates 12 pcs of 3W warm-white point-control LEDs and 156 pcs of 5730 full-color RGB wash LEDs, delivering vivid, three-dimensional visual impact through its precise point-matrix light layout. Compatible with the standard DMX512 protocol and featuring 20 built-in effect programs plus sound-activated auto-run mode, it effortlessly creates dynamic lighting atmospheres.
Switching Power Supply
12 V / 100 W
LED Light Source
12 pcs of 3W warm-white point-control LEDs
RGB Wash Light Source
13 segments × 156 pcs of 5730 LEDs + 16 segments × 96 pcs of full-color RGB LEDs
Control Protocol
Standard DMX512 protocol
Built-in Programs
20 effect programs
Control Mode
Sound-activated auto-run mode
Beam Angle
6°
Illumination Coverage
8°
Dimming Frequency
Flicker-free operation with up to 10 kHz PWM dimming frequency — no strobing in camera recordings
RDM Function
Supports remote DMX address setting via RDM console
Smartphone Control
Supports smartphone-based DMX address setting and direct control via interface
Recommended Applications
Ideal for bar ambient lighting, live-streaming studio backdrops, small-stage lighting, KTV private room effects, and party atmosphere lighting. Its 10 kHz flicker-free performance is especially suited for live streaming and short-video production—ensuring clean, stripe-free footage. Smartphone smart control enables professional-grade lighting operation even for solo users.
Contact us anytime for detailed product information or customized bulk procurement solutions—including expert lighting configuration advice.
