Beam Engine Light Source
10 × 60W RGBW LED
Product Overview

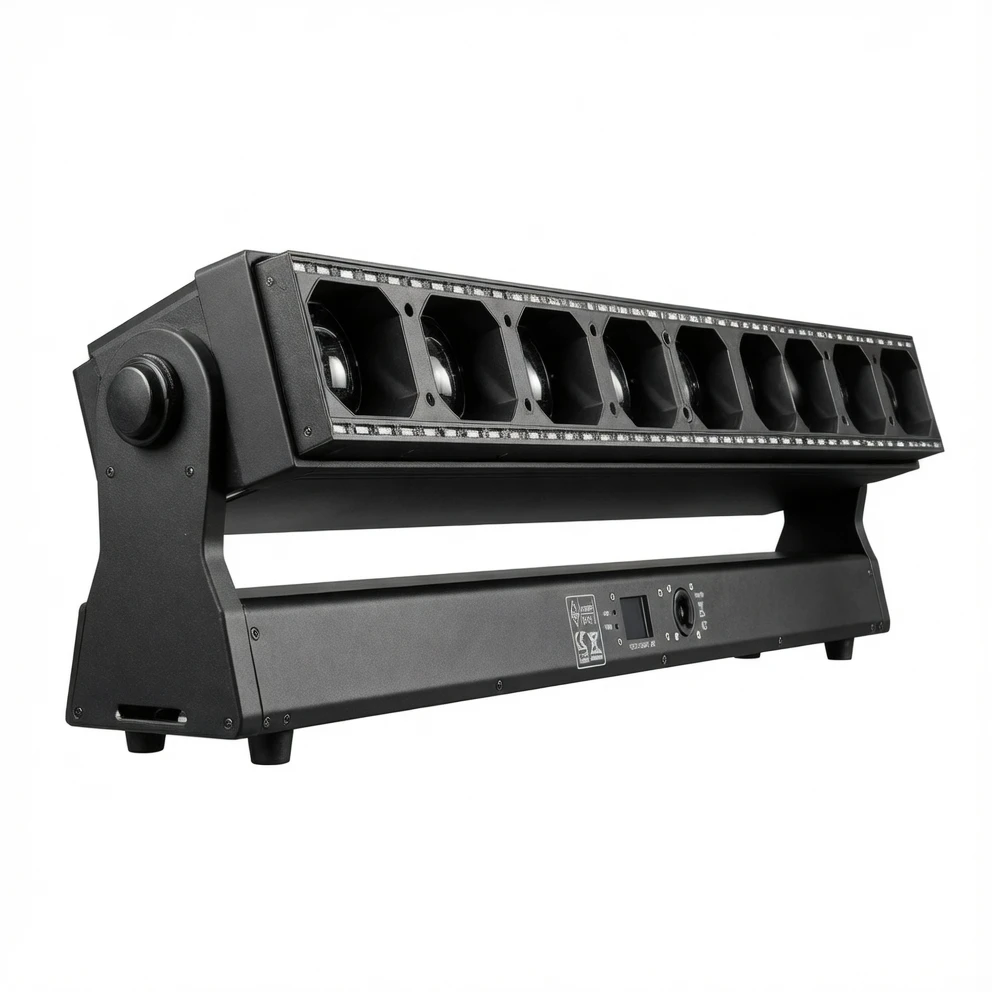

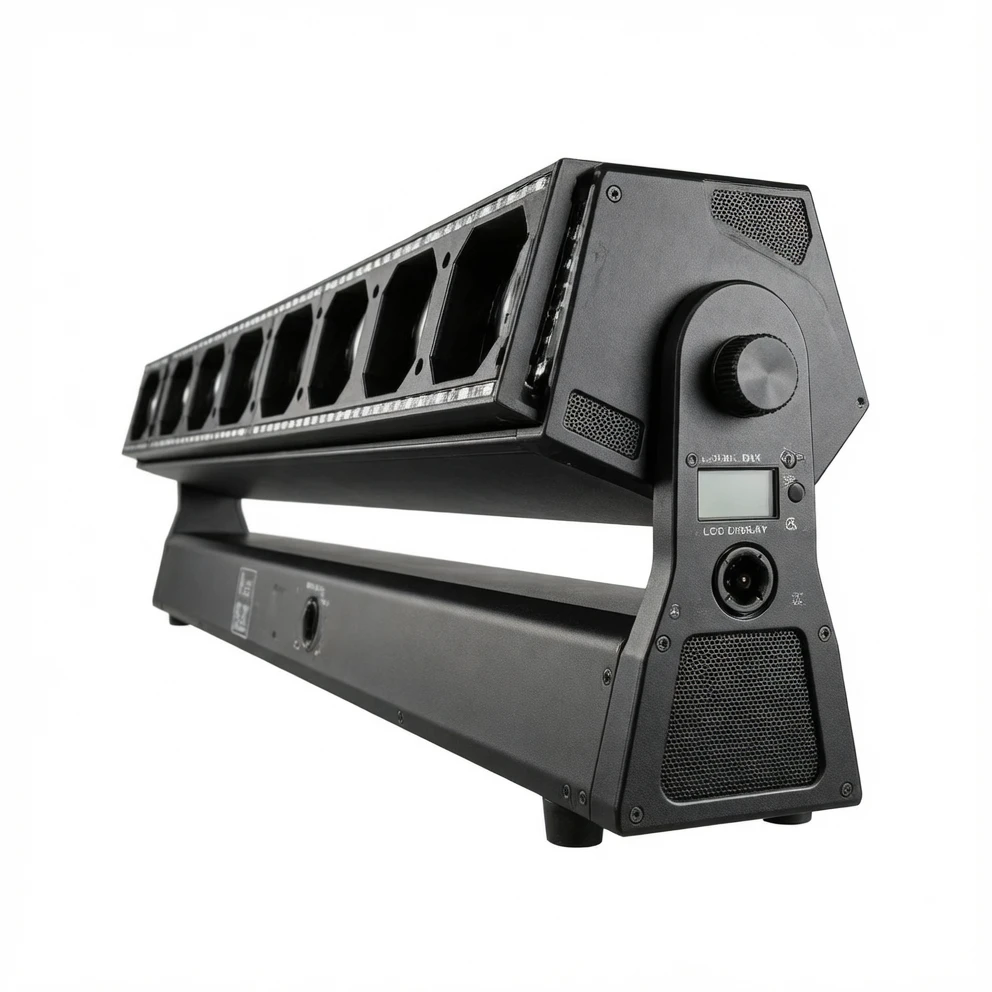

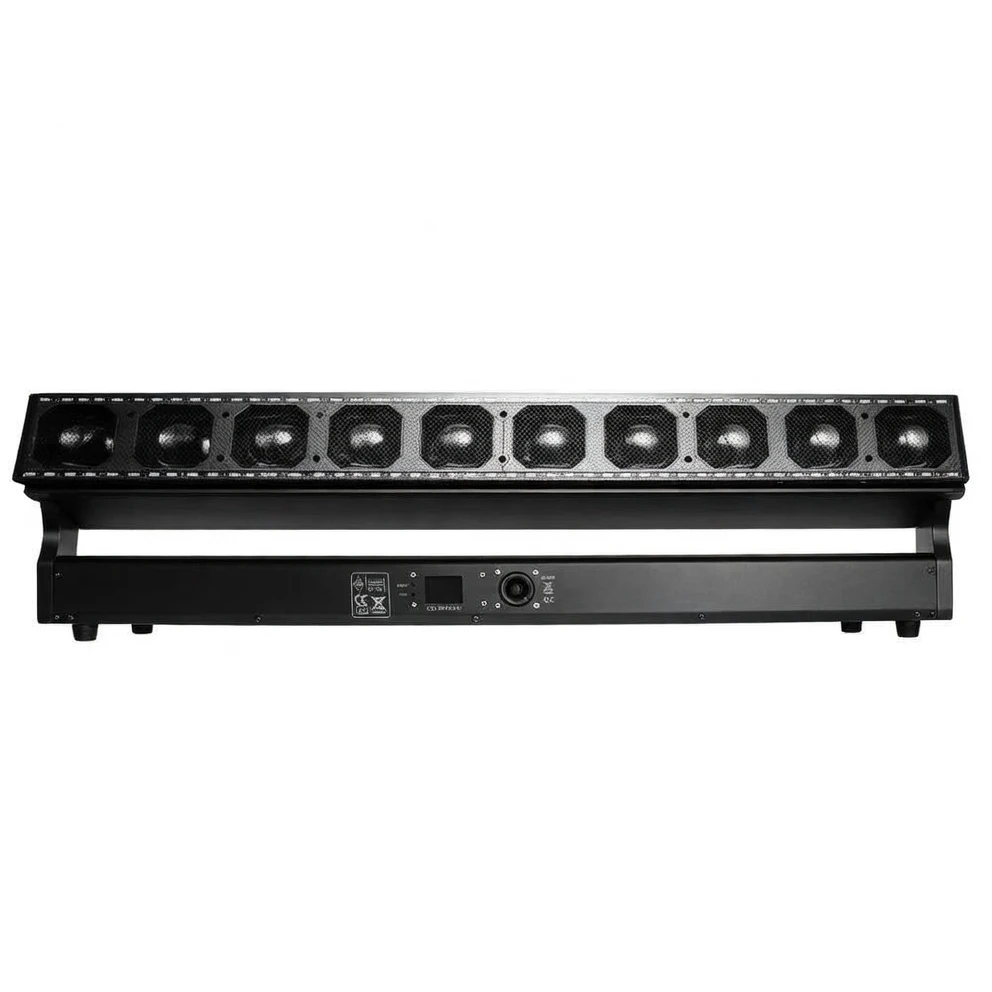

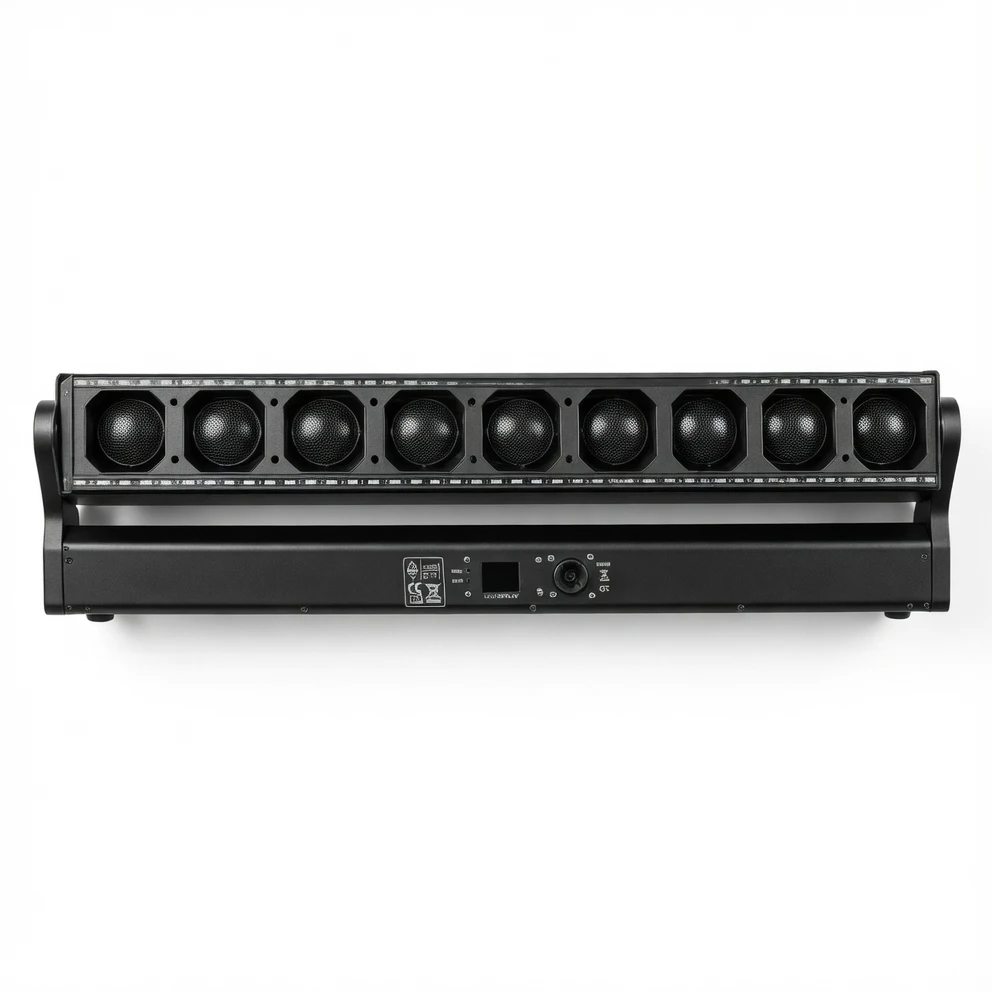

The Harmonai QY-XW1060 Rattler 1060 is a professional-grade stage lighting fixture combining high-intensity beam effects and pixel-level strobe control. Its beam engine uses 10×60W RGBW 4-in-1 LEDs; its strobe array comprises 288 individually addressable LEDs. Total luminous flux reaches 22,400 lumens. With full DMX512/RDM dual-protocol support and 7 selectable channel modes, it meets diverse programming needs—from simple setups to complex shows—making it ideal for bars, KTV rooms, live-streaming studios, and small-to-midsize stage events.
Strobe Array Light Source
96 × 3W Cool White LED + 96 × 3W Warm White LED + 96 × 0.5W RGB LED
White Light Color Temperature
6,300K
Luminous Flux
22,400 lm
LED Rated Lifetime
20,000 hours
Beam Angle
2.8° – 31° (adjustable)
Field Angle
5° – 46° (adjustable)
Control Panel
LCD display + 5 operation buttons
Control Protocols
DMX512, RDM
DMX Channel Modes
7 modes: 17 / 27 / 99 / 108 / 168 / 8+100 / 8+160 / 170 channels
Firmware Updates
Online updates via DMX connection
Y-Axis Rotation Range
202°
Input Power
AC 180–240V, 50/60Hz
Total Power Consumption
800W
Power Connectors
PowerCON in/out
Signal Connectors
3-pin & 5-pin XLR + RJ45
Recommended Applications
The QY-XW1060 Rattler 1060 excels in bar residencies, KTV room ambiance lighting, professional live-streaming key/fill lighting, stage shows and music festivals, and wedding ceremony light shows. Its DMX512/RDM compatibility ensures seamless integration with mainstream lighting consoles, while its 202° Y-axis rotation delivers full-coverage movement—making it a trusted choice for lighting designers and venue operators alike.
For detailed technical specifications, bulk pricing, or custom lighting solutions, contact the Harmonai professional team for one-on-one consultation.
