Rated Voltage
AC100–240V, 50/60Hz
Product Overview

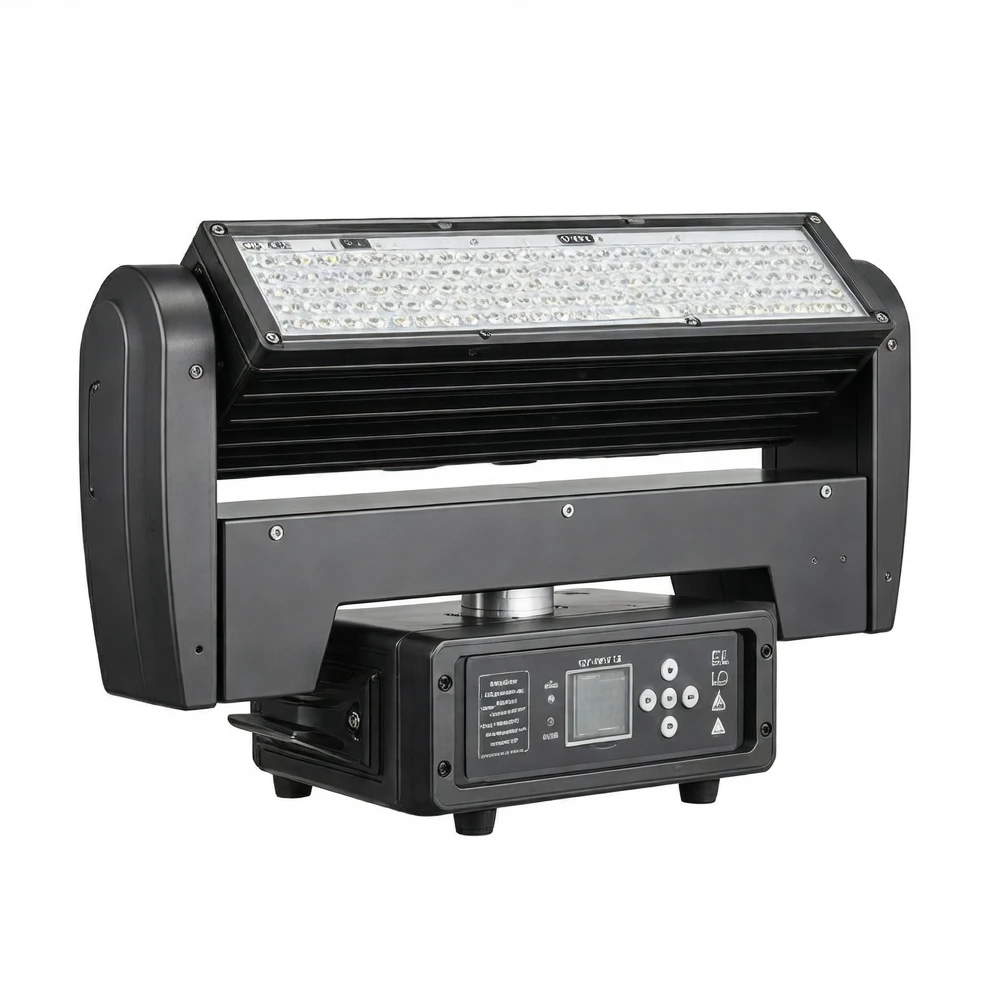

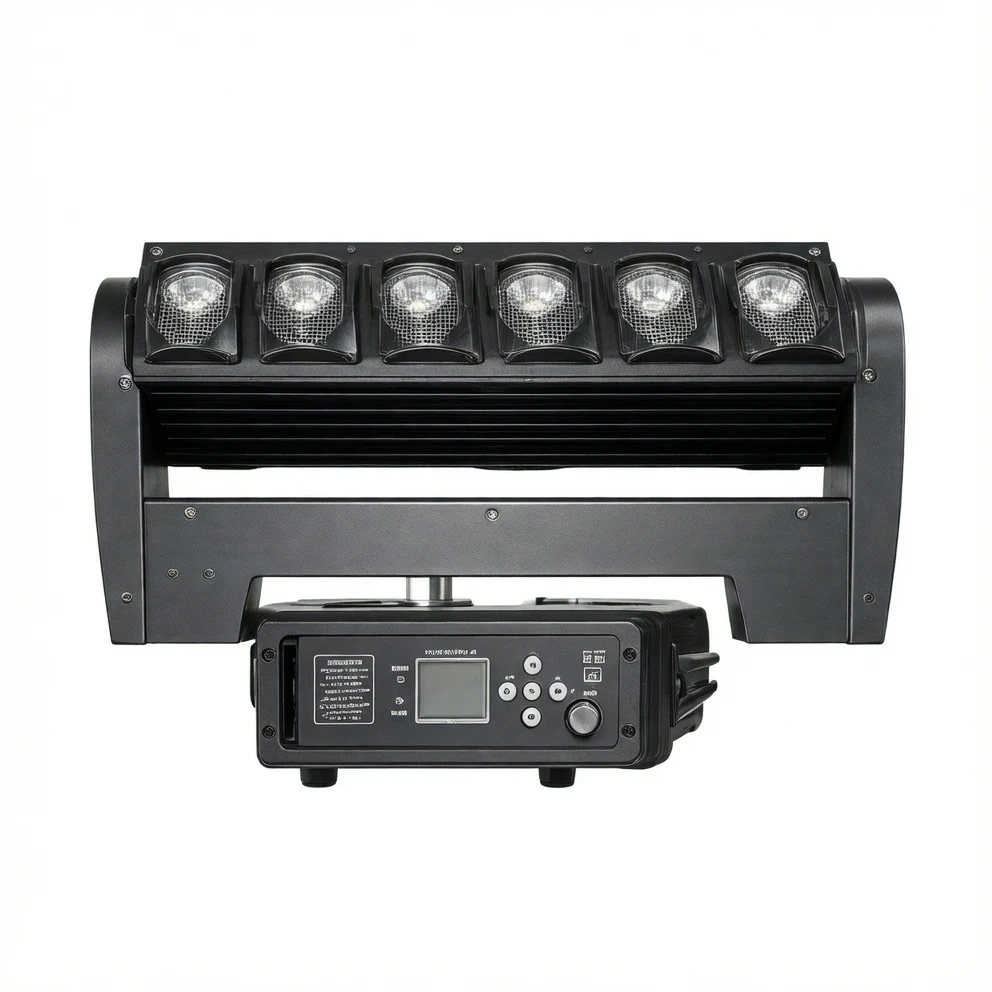

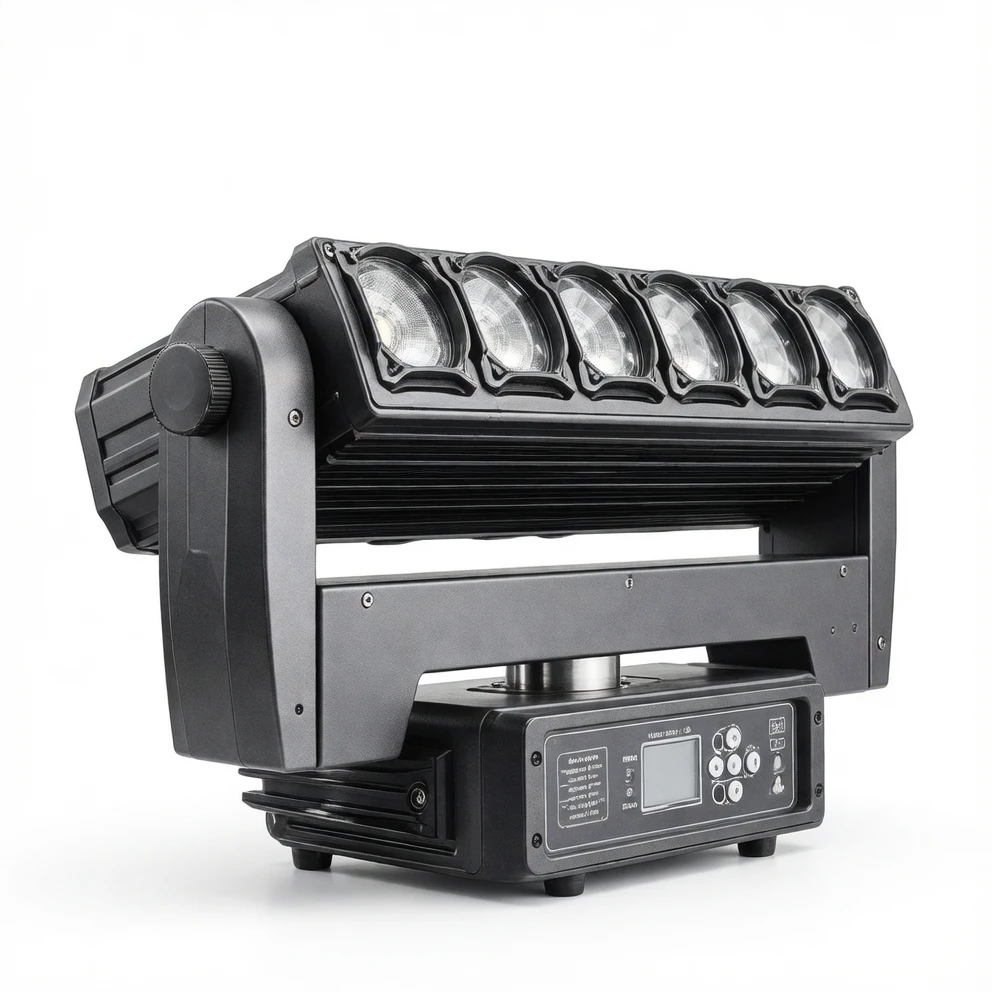

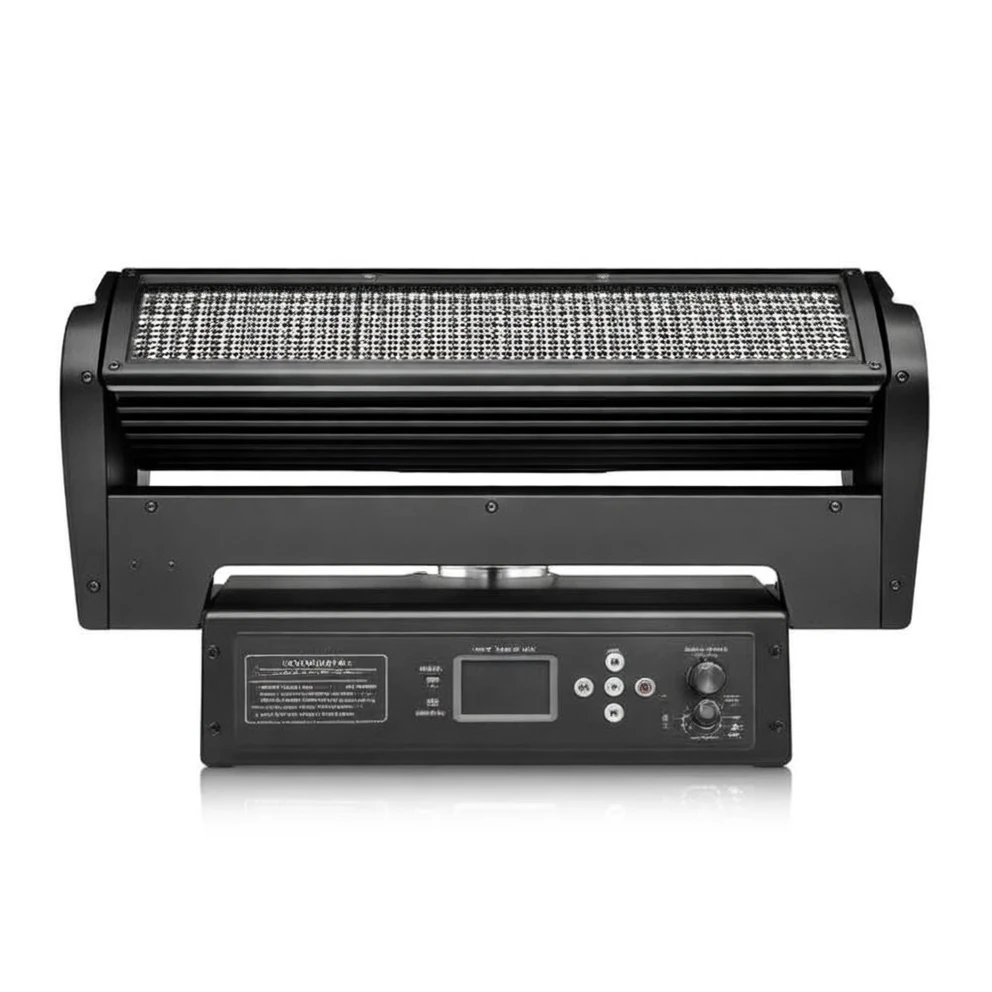

The Harmonai Dual-Side Infinite-Pan Effect Light QY-WJ612 is a professional-grade, full-color effect light engineered for bar entertainment, live streaming studios, and stage performances. It features XY infinite-pan technology, combined with beam scanning and 12-section strobe functionality, enabling multidimensional light transitions and immersive visual experiences.
The core light source consists of 6 × 60W high-brightness LEDs (6070 package), supplemented by 96 × 7070 segmented LEDs (12 independently controlled sections). Its 500W powerful output ensures ample brightness to cover large-stage or studio spaces. Paired with 32-bit 0–100% linear dimming, brightness transitions are smooth and natural—ideal for precise lighting design.
The control system supports five operating modes: DMX512, standalone, master–slave, sound-activated, and RDM-enabled. Dual-channel options (CH24 / CH132) ensure compatibility with diverse lighting consoles. The rugged black metal housing delivers excellent thermal dissipation and stable operation across a wide temperature range of −30°C to 50°C.
Rated Power
500W
LED Configuration
6070 LEDs, 60W × 6 pcs
Segmented LEDs
7070 LEDs, 96 pcs total, divided into 12 independently controllable sections
Control Modes
DMX512, standalone, master–slave, sound-activated, and RDM-enabled
Channel Modes
CH24 / CH132 selectable
Dimming Precision
32-bit 0–100% linear dimming
Core Features
XY pan/tilt + beam + strobe + XY infinite-pan linkage
Operating Temperature Range
−30°C to 50°C
Strobe Frequency
Adjustable from 1–30Hz
Enclosure Material
Metal, black
Connection Interfaces
DMX512 input/output + power input/output
Ingress Protection Rating
IP20
Recommended Applications
The Harmonai Dual-Side Infinite-Pan Effect Light QY-WJ612 is widely used in bar entertainment, KTV private rooms, live streaming lighting setups, stage productions, music festivals, concerts, Livehouse venues, and party events. Whether for compact streaming studio lighting or large-scale stage programming, its DMX512/RDM intelligent control and five versatile operation modes enable rapid setup and stunning visual impact.
For detailed specifications, pricing options, or bulk purchase discounts, contact the Harmonai professional team—we’ll deliver tailored lighting solutions for your needs.
