Rated Voltage
AC 100–240 V, 50/60 Hz
Product Overview

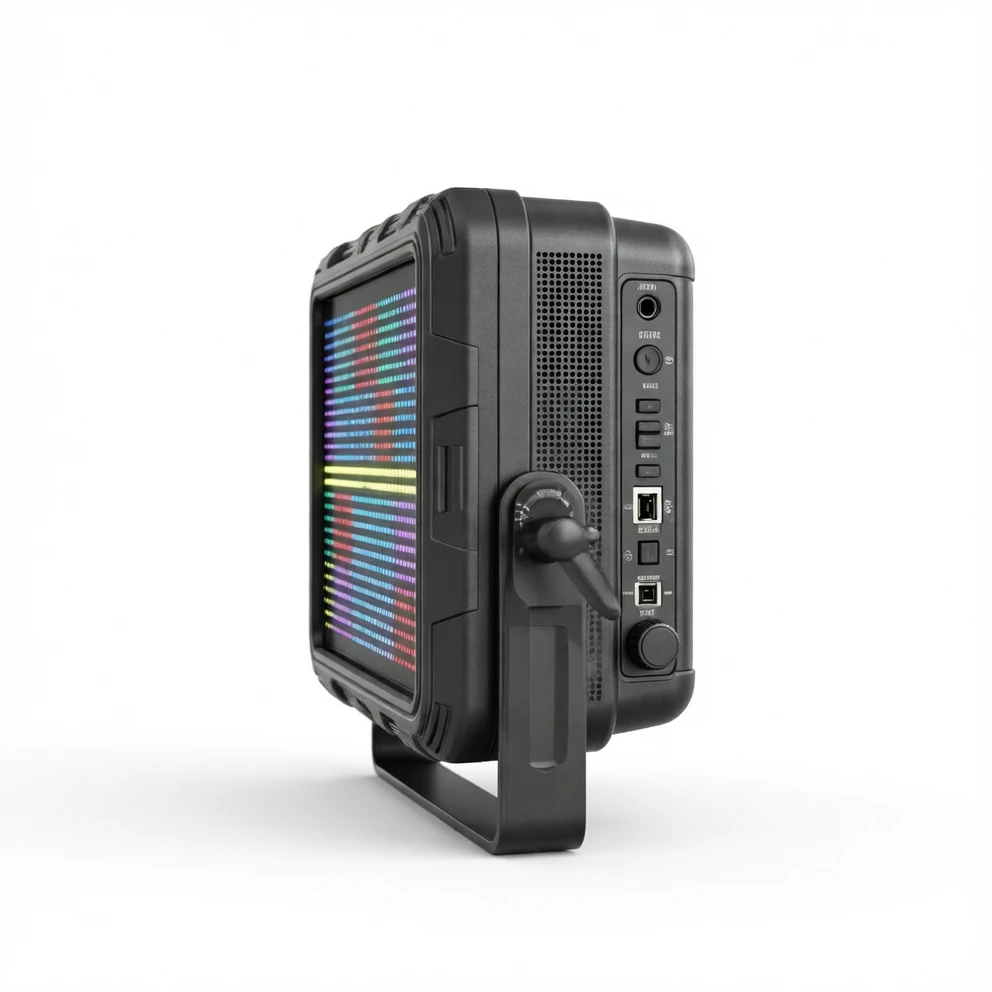

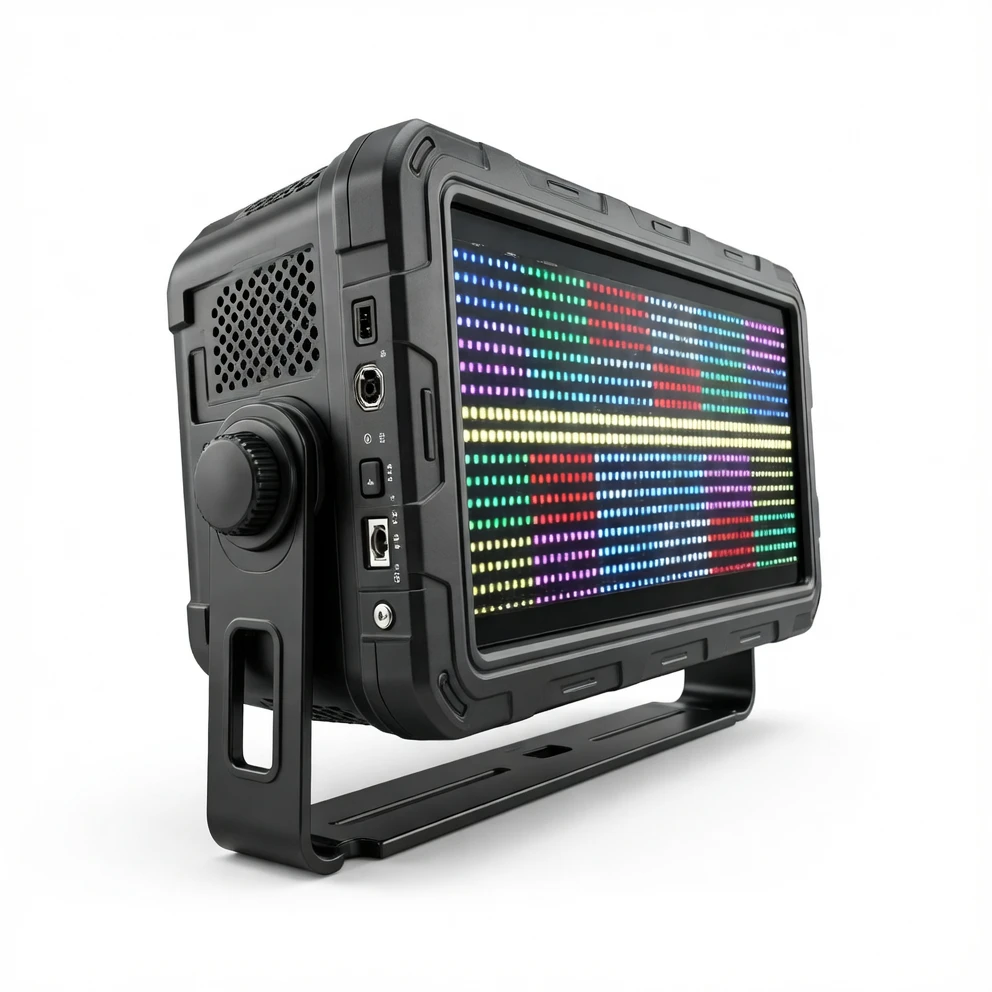

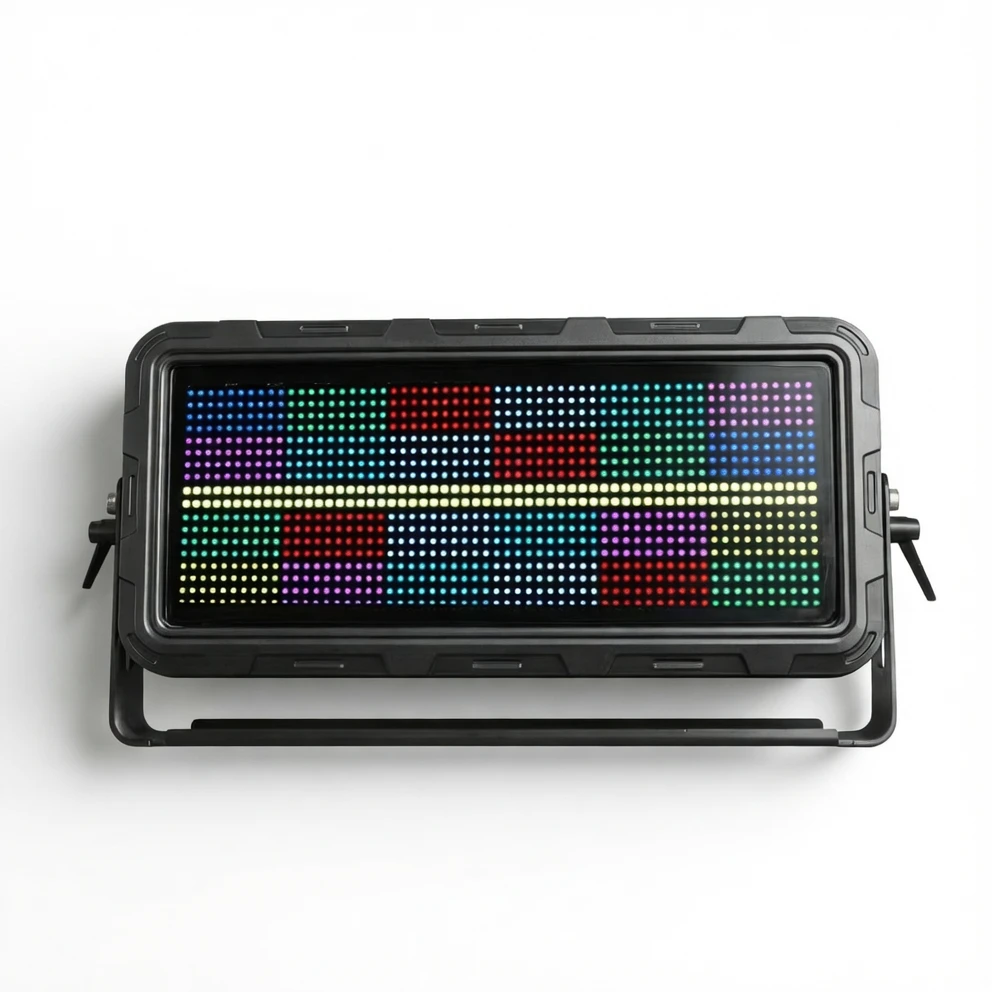

The Harmonai QY-F1224 is a professional-grade 24+12-section waterproof strobe light engineered for outdoor use. It features 960 pieces of 5050 RGB LEDs and 120 pieces of 7070 white LEDs, supporting independent single-point control over 24 RGB sections and 12 white sections—enabling rich, nuanced lighting effects. With an IP65 ingress protection rating, it operates reliably in extreme temperatures from -30°C to 50°C, making it ideal for outdoor performances, stage lighting, architectural façade illumination, music festivals, and large-scale events.
Rated Power
32 V / 350 W
RGB LEDs
960 × 5050 RGB LEDs
White LEDs
120 × 7070 white LEDs
Control Modes
DMX512, standalone, master–slave, sound-activated, RDM
DMX Channels
CH4 / CH11 / CH86
Dimming Method
Independent single-point control across 24 RGB sections + 12 white (W) sections
Operating Temperature
-30°C to 50°C
Strobe Frequency
1–30 Hz
Connection Interfaces
DMX512 input/output, power input/output
Ingress Protection Rating
IP65
Recommended Applications
Thanks to its IP65 waterproof rating and wide operating temperature range (-30°C to 50°C), the QY-F1224 is widely deployed in outdoor music festivals, stage productions, architectural lighting, public square light shows, scenic area night tours, and opening ceremonies for major sporting events—anywhere high brightness, multi-color capability, and precise control are required. DMX512 and RDM compatibility ensure seamless integration with mainstream lighting control systems.
Explore more Harmonai professional stage lighting products—contact us for detailed quotations and technical support.
