Voltage
AC100–240V, 50/60Hz
Product Overview

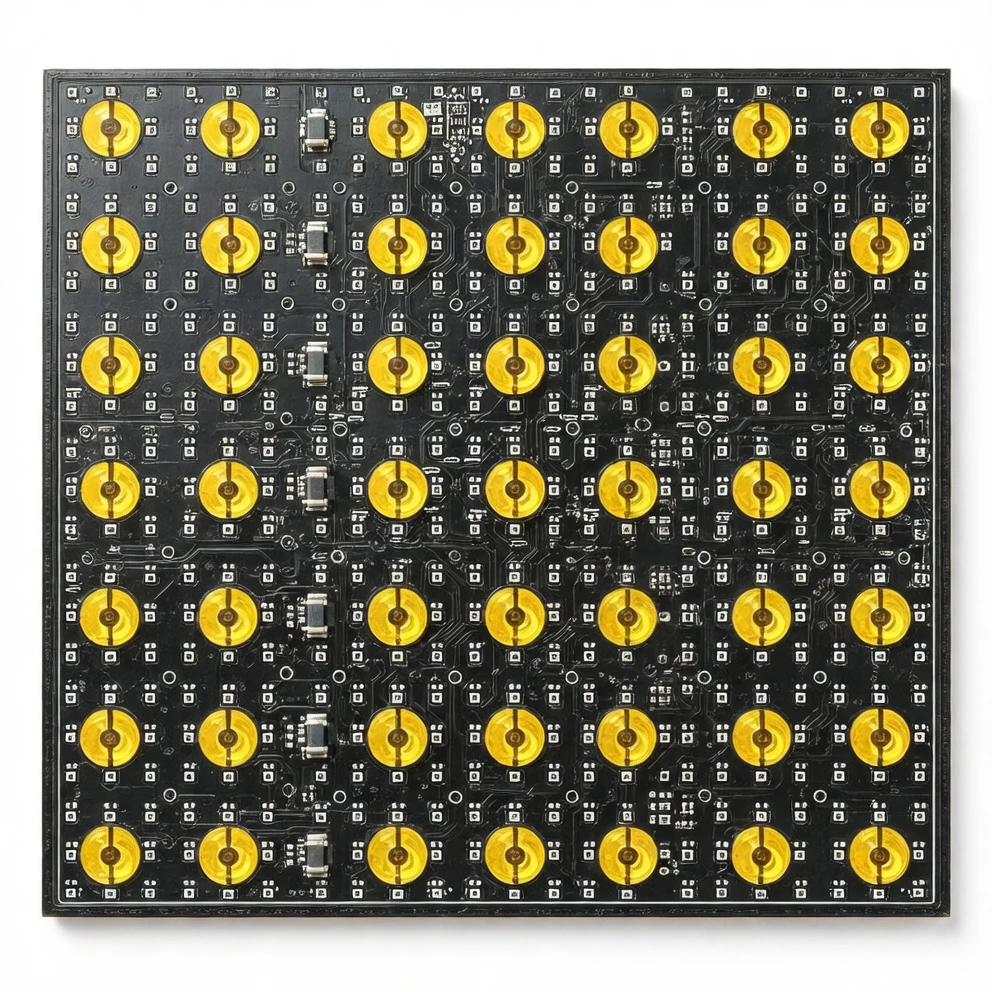

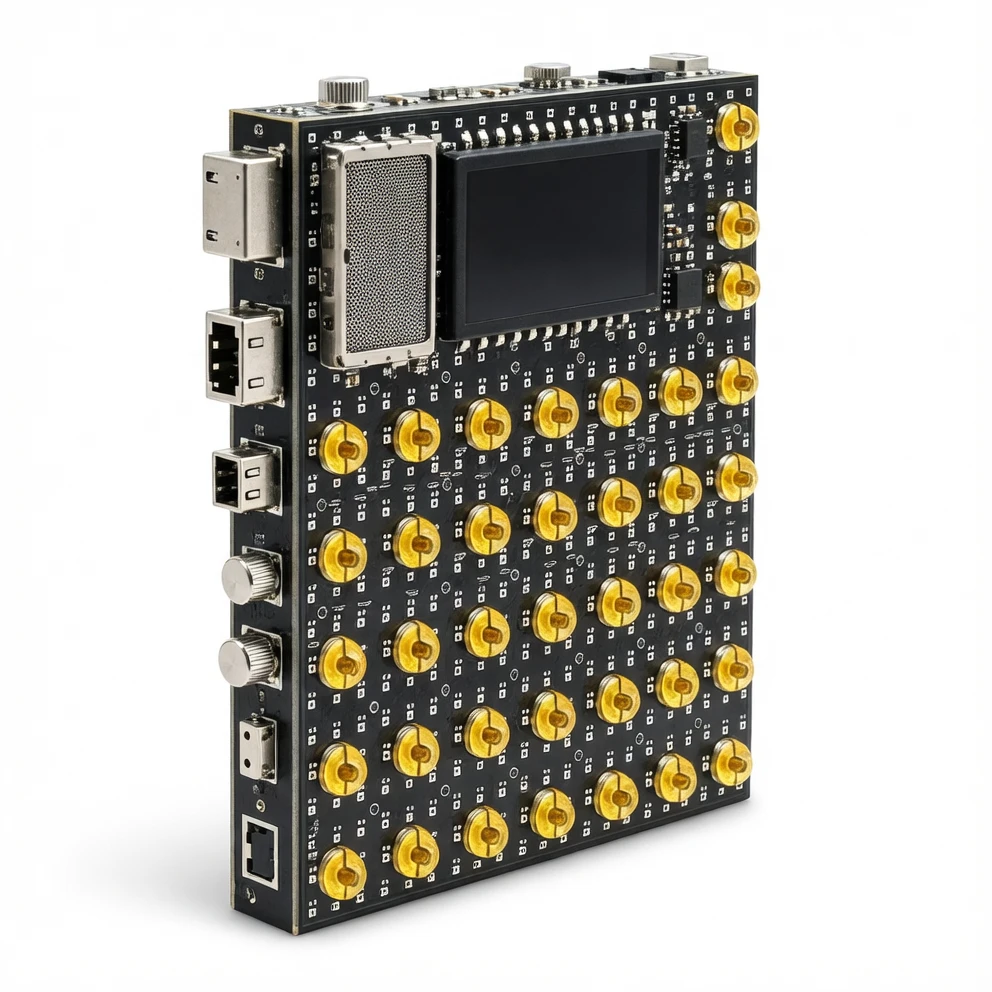

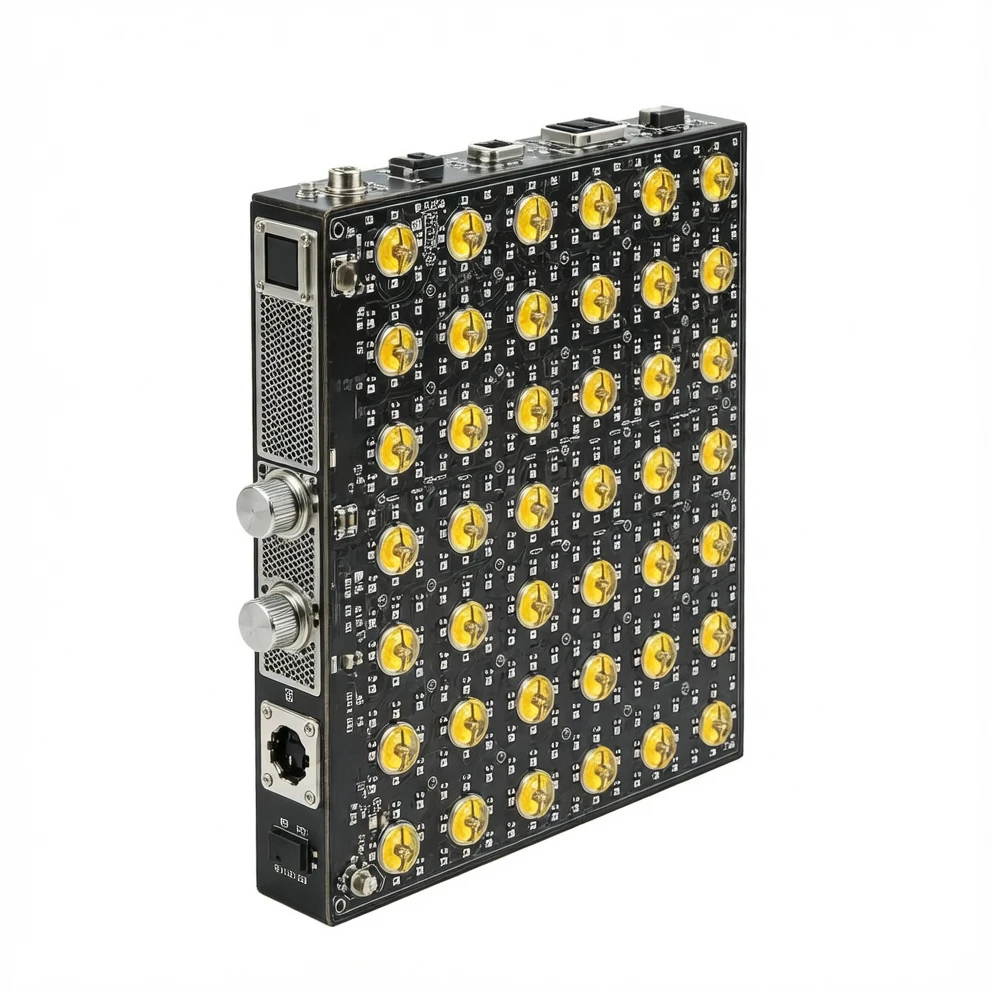

The Harmonai QY-7749A 7×7 pixel matrix light is an intelligent effect fixture designed specifically for bars, live-streaming studios, stages, and entertainment venues. It features a matrix layout of 441 tri-color LEDs plus 49 gold/warm-white LEDs, and supports multiple control methods including DMX512, standalone, master-slave, sound activation, and RDM. Built-in effect modes include chase, strobe, text, waterfall, wash, and pixel. With 16-bit linear dimming (0–100%), it delivers smooth, precise light transitions to meet demanding professional lighting design requirements.
Technical Specifications
Power
200W
Light Source
441 tri-color LEDs + 49 gold/warm-white LEDs
Control Methods
DMX512, standalone, master-slave, sound activation, with RDM functionality
Channel Modes
CH04 / CH19 / CH68 / 196C / 460C / 1372
Dimming
16-bit linear dimming, 0–100%
Effect Features
Chase + Strobe + Text + Waterfall + Wash + Pixel
Operating Temperature
−30°C to 50°C
Strobe Frequency
1–30Hz
Enclosure Material
Metal, black finish
Connections
DMX512 input/output + power input/output
Ingress Protection Rating
IP20
Packaging Dimensions
55.5 × 55 × 15.5 cm
Net Weight
9 kg
Recommended Applications
Ideal for bars, KTVs, live-streaming studios, small performances, parties, weddings, and stage shows. The 49×7 pixel matrix enables precise display of text and graphics; combined with dynamic effects like chase and waterfall, it creates immersive visual experiences. The DMX512 professional control protocol ensures seamless compatibility with all major lighting consoles, while RDM bidirectional communication simplifies remote management and troubleshooting.
For detailed product information, bulk procurement options, or technical support, contact the Harmonai professional team to receive a customized lighting solution.
