Rated Voltage
AC 100–240V, 50/60Hz
Product Overview

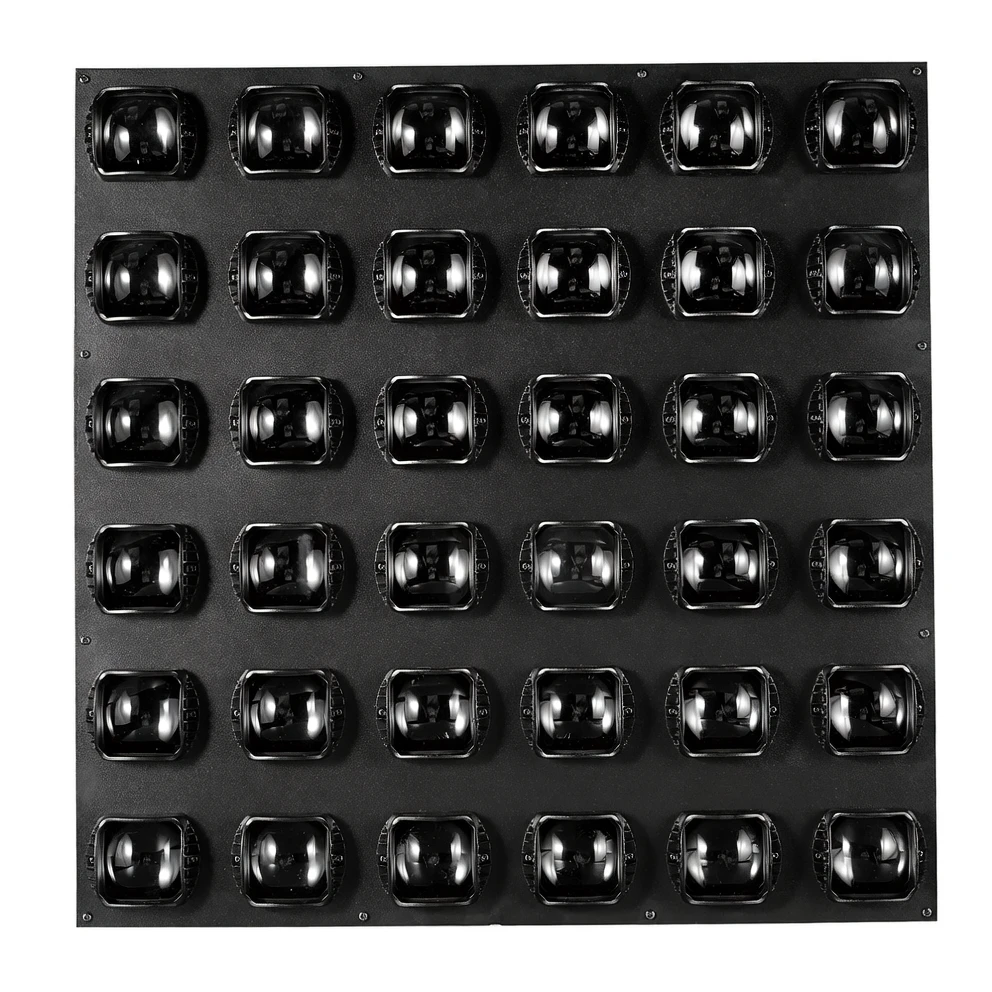

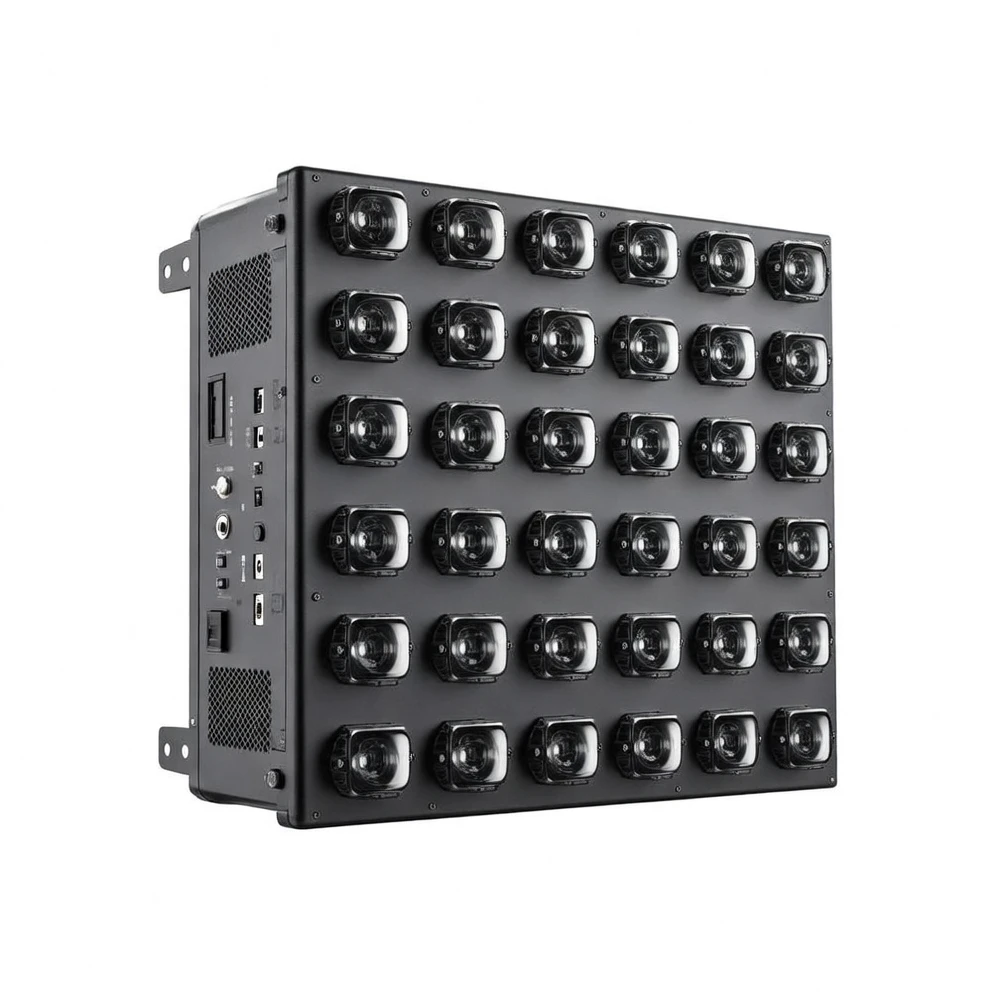

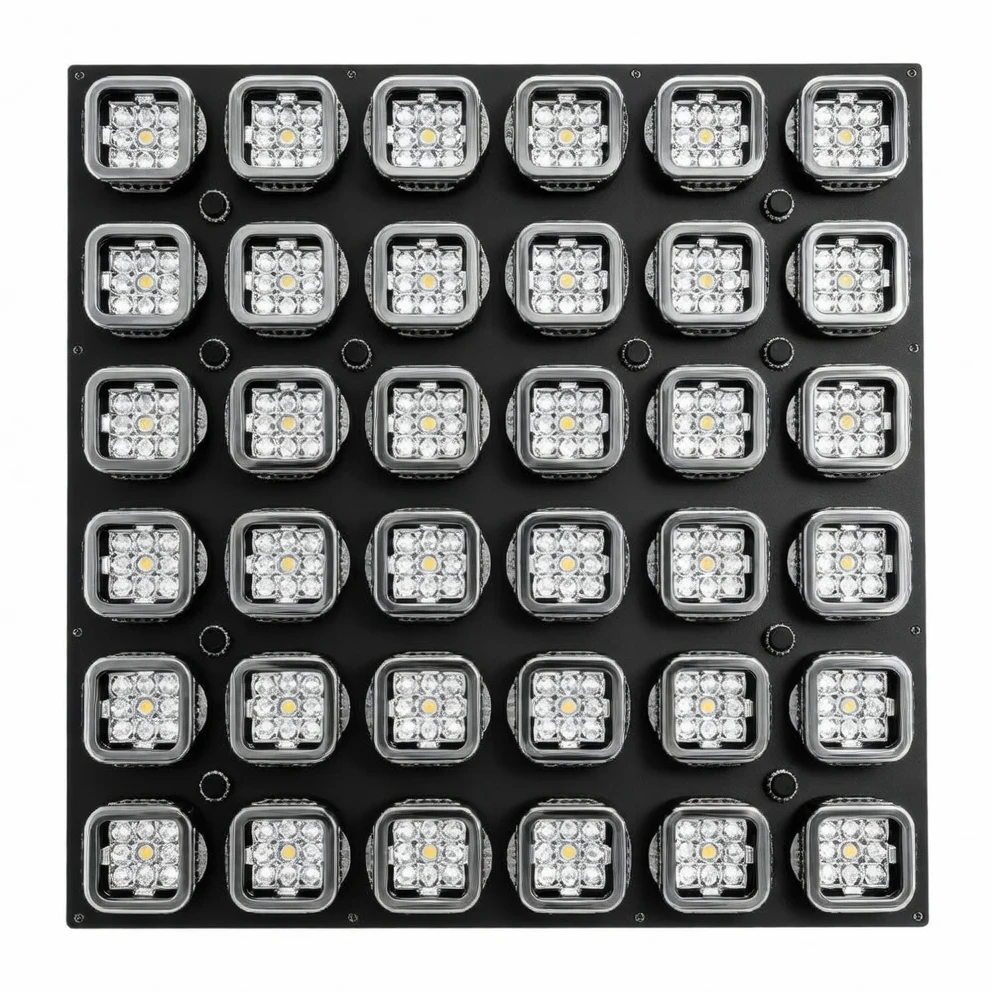

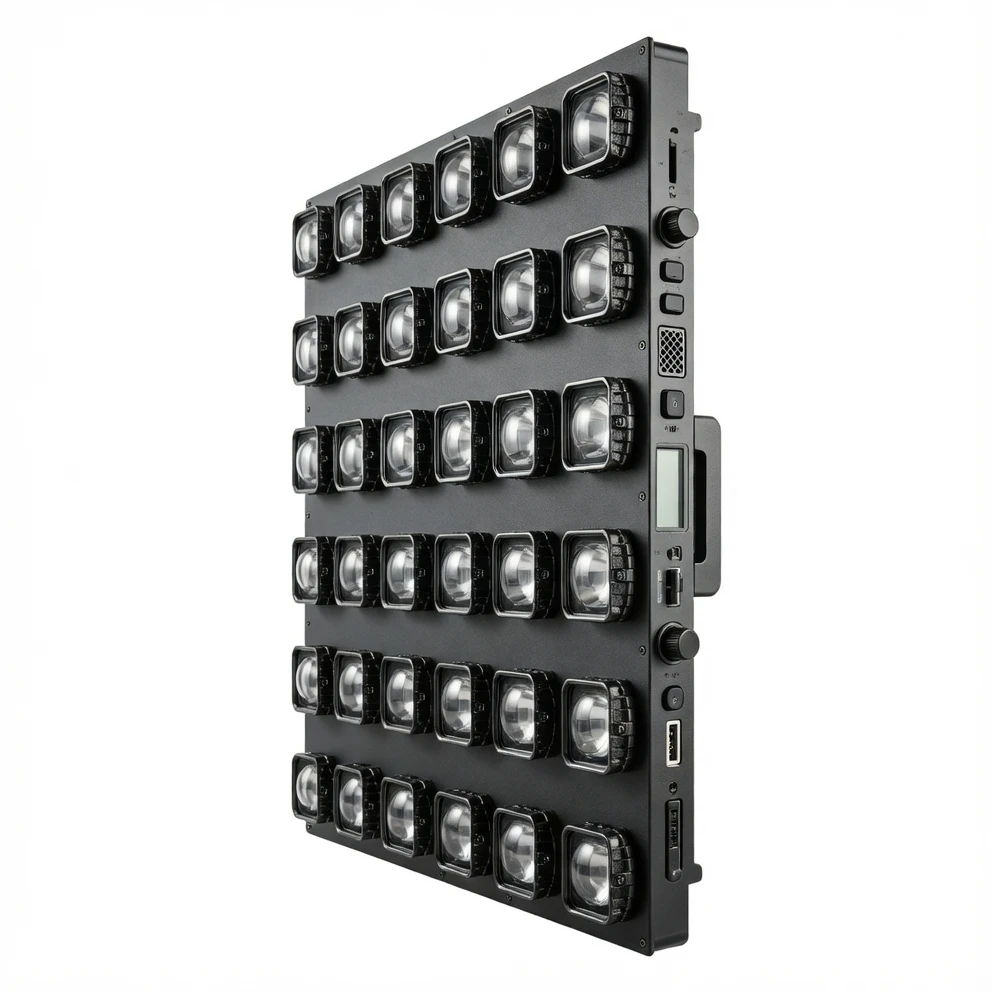

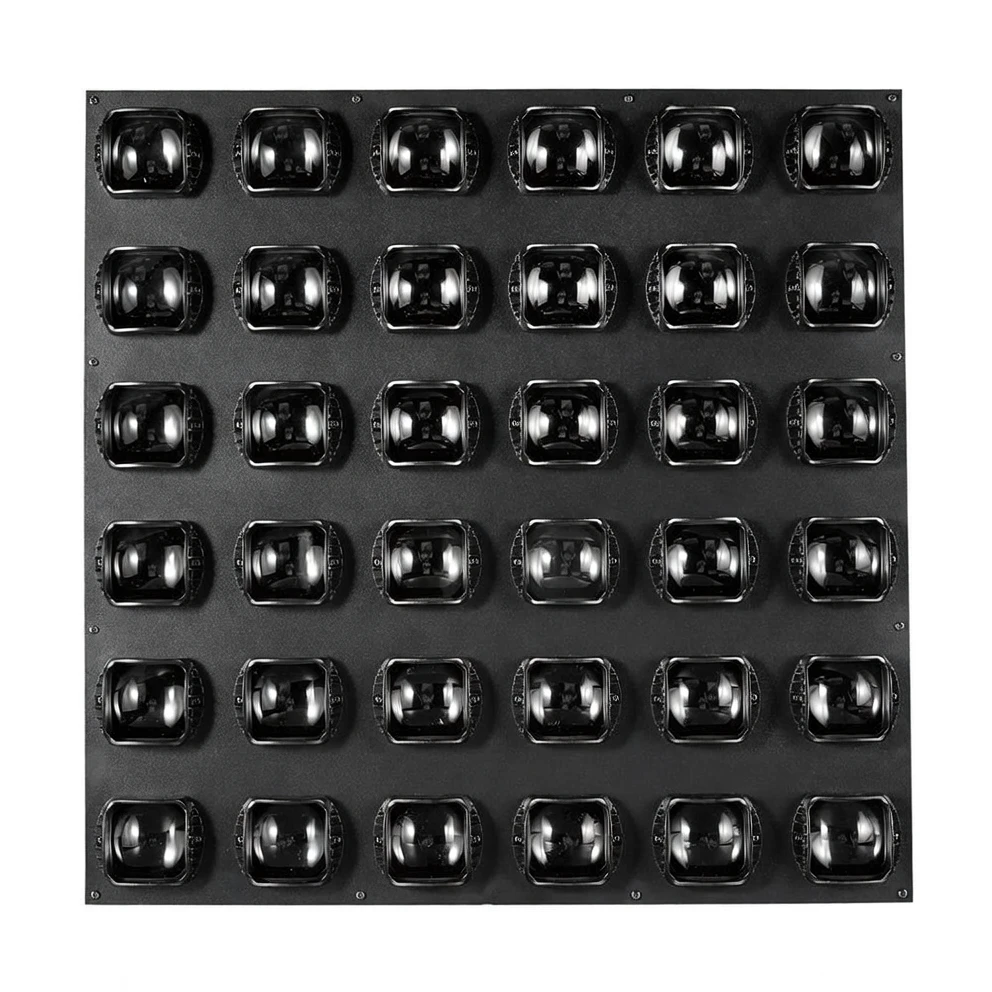

Harmonai QY-JZ3615 36×15W Diamond Matrix Light is a professional-grade effect light engineered for bars, live streaming studios, and stage performances. It integrates 36×15W 4-in-1 LED chips, delivering a total output of 400W to produce rich color washes and intense strobe effects simultaneously. Supports four control modes: DMX512, auto-run, master-slave, and sound activation, with flexible channel options (4Ch / 12Ch / 144Ch) for precise lighting control across diverse applications. Features 0–100% linear dimming paired with infinite strobe for smooth, natural light transitions. Its compact 50×50×18 cm chassis weighs only 7.35 kg and supports vertical stacking — enabling effortless assembly of large-scale visual matrices.
Rated Power
400W
Light Source
36 × 15W 4-in-1 LED chips
Control Modes
DMX512 / Auto-run / Master-Slave / Sound Activation
DMX Channels
4Ch / 12Ch / 144Ch
Dimming Range
0–100% linear dimming
Strobe Function
Infinite strobe
Operating Temperature
−10°C to 50°C
Ingress Protection
IP20
Dimensions
50 × 50 × 18 cm
Net Weight
7.35 kg
Key Features
Color wash + intense strobe; supports vertical stacking
Recommended Applications
Ideal for bar ambient lighting, live streaming studio backdrops, stage performance effects, KTV venues, parties, and celebratory events. Multiple units can be vertically stacked to build scalable light matrices — delivering powerful visual impact for entertainment venues and live productions.
For detailed product information or bulk procurement support, contact the Harmonai professional team for customized lighting configuration advice.
