Voltage
AC100–220V, 50/60Hz
Product Overview

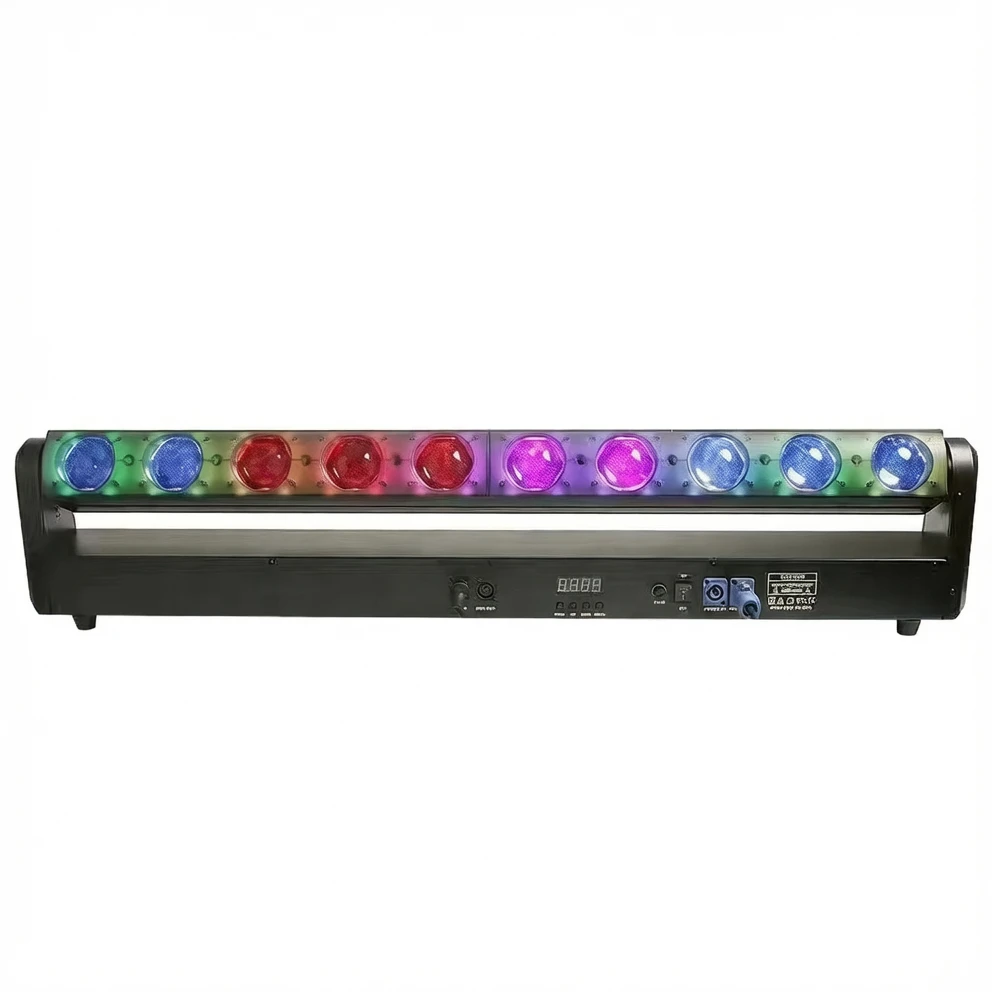

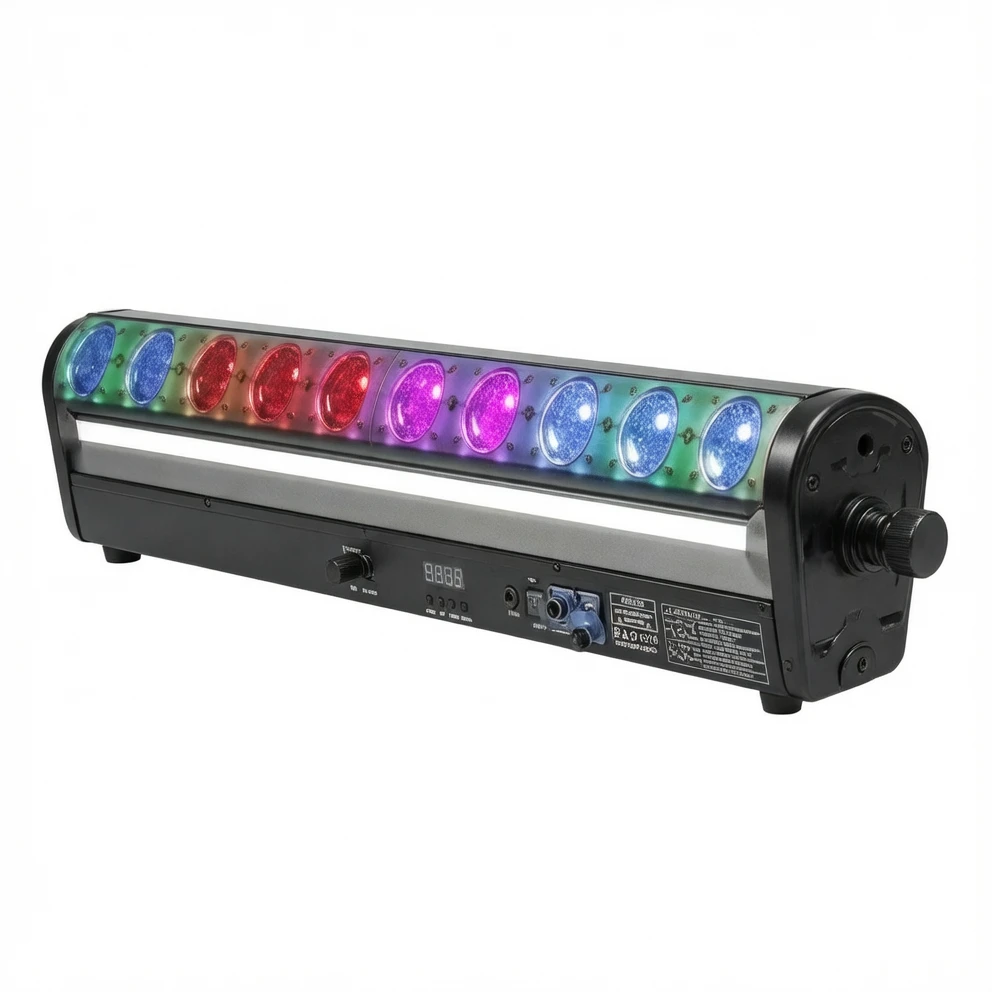

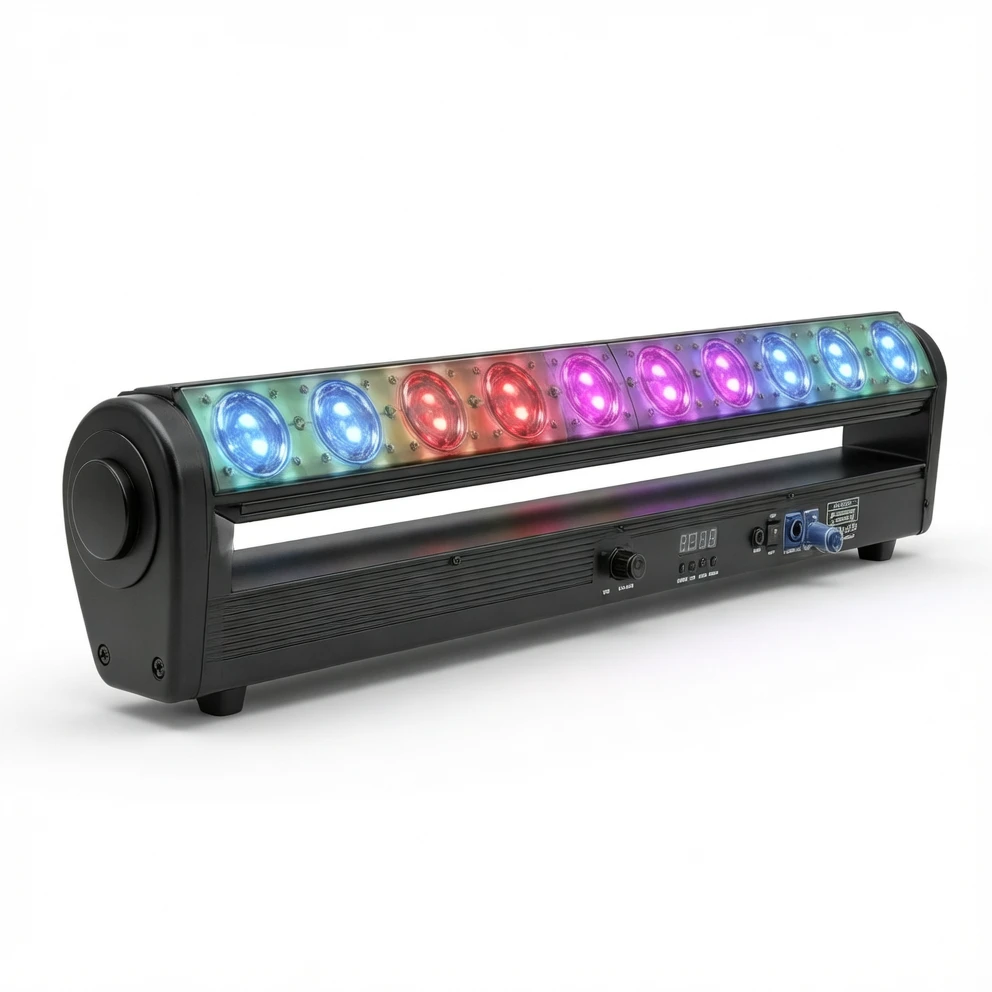

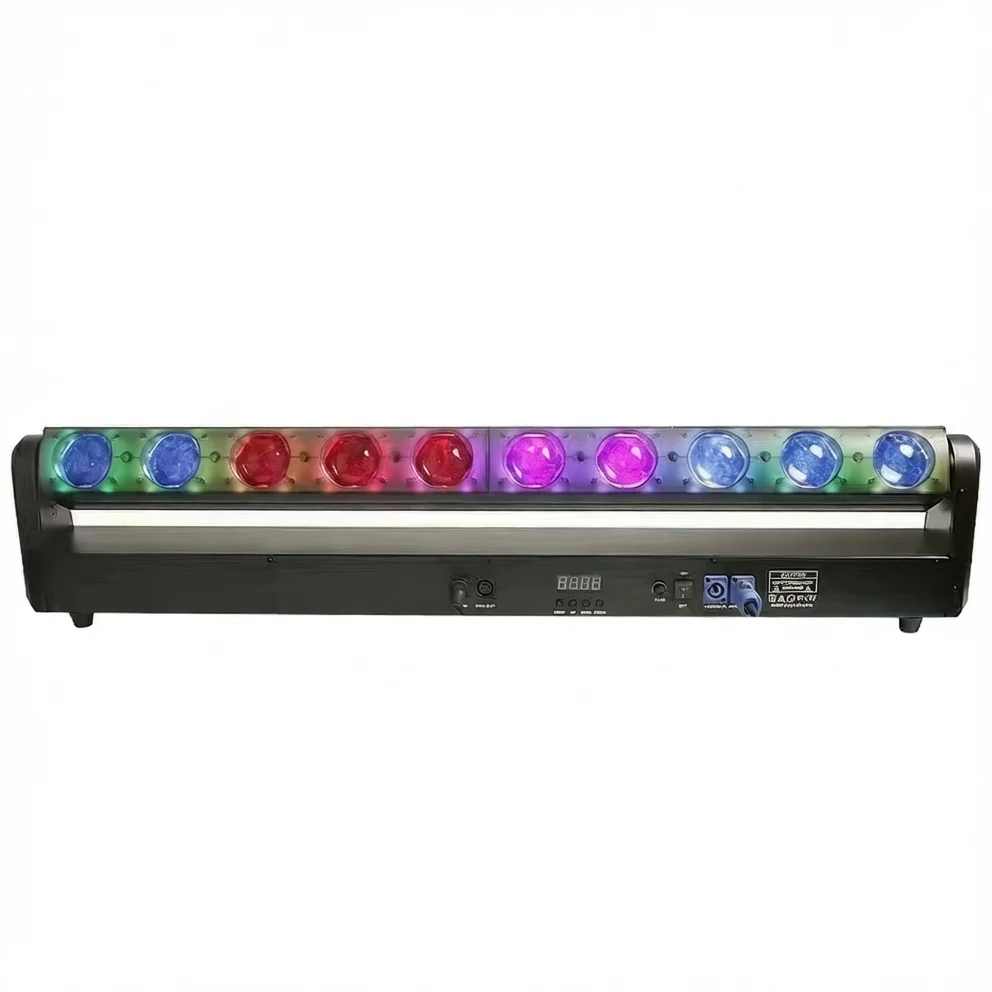

The Harmonai QY-JZ1040F is a professional 10-piece 40W moving head matrix effect light (auxiliary light version), engineered for entertainment venues such as bars and live streaming studios. It integrates 120 pcs of 5050 tri-color LED chips and 10 pcs of 4-in-1 LED chips, delivering robust light output with a total power of 350W. It supports DMX512, auto-run, master-slave, sound-activated, and RDM control, with channel modes covering CH07 / CH10 / CH22 / CH103 — meeting diverse lighting programming needs from simple to complex.
Combining color wash, beam, auxiliary light, and pan/tilt in one unit, its 32-bit high-precision linear dimming ensures smooth, refined light transitions. A strobe frequency range of 1–30Hz adds dynamic rhythm for stage performances and live streaming. Its rugged metal housing with matte black finish ensures professional reliability.
Power
350W
LED Configuration
120 pcs of 5050 tri-color LED chips + 10 pcs of 4-in-1 LED chips
Control Modes
DMX512, auto-run, master-slave, sound-activated, with RDM support
Channel Modes
CH07 / CH10 / CH22 / CH103 — multiple selectable channel configurations
Dimming Precision
32-bit linear dimming, 0–100%
Key Features
Color wash + beam + auxiliary light + pan/tilt — all-in-one
Operating Temperature
–30°C to 50°C
Strobe Frequency
1–30Hz
Construction
Metal housing with black finish
Connectors
DMX512 input/output + power input/output
Ingress Protection Rating
IP20
Recommended Applications
Ideal for ambient lighting in entertainment venues such as bars, KTVs, and nightclubs, as well as for visual effects in online live streaming studios and short-video production. The moving head matrix with auxiliary light design operates independently or integrates seamlessly into professional lighting consoles via DMX512 — supporting multi-tiered lighting design needs, from small-scale setups to large-scale productions. Its wide operating temperature range ensures stable performance across diverse environments.
For detailed product information, bulk pricing, or custom lighting solutions, contact the Harmonai professional team — we provide comprehensive technical support and after-sales service.
