DSP Processor
ADI ADSP-21571 dual-core SHARC+ / Arm Cortex-A5 / 64-bit floating-point
Product Overview

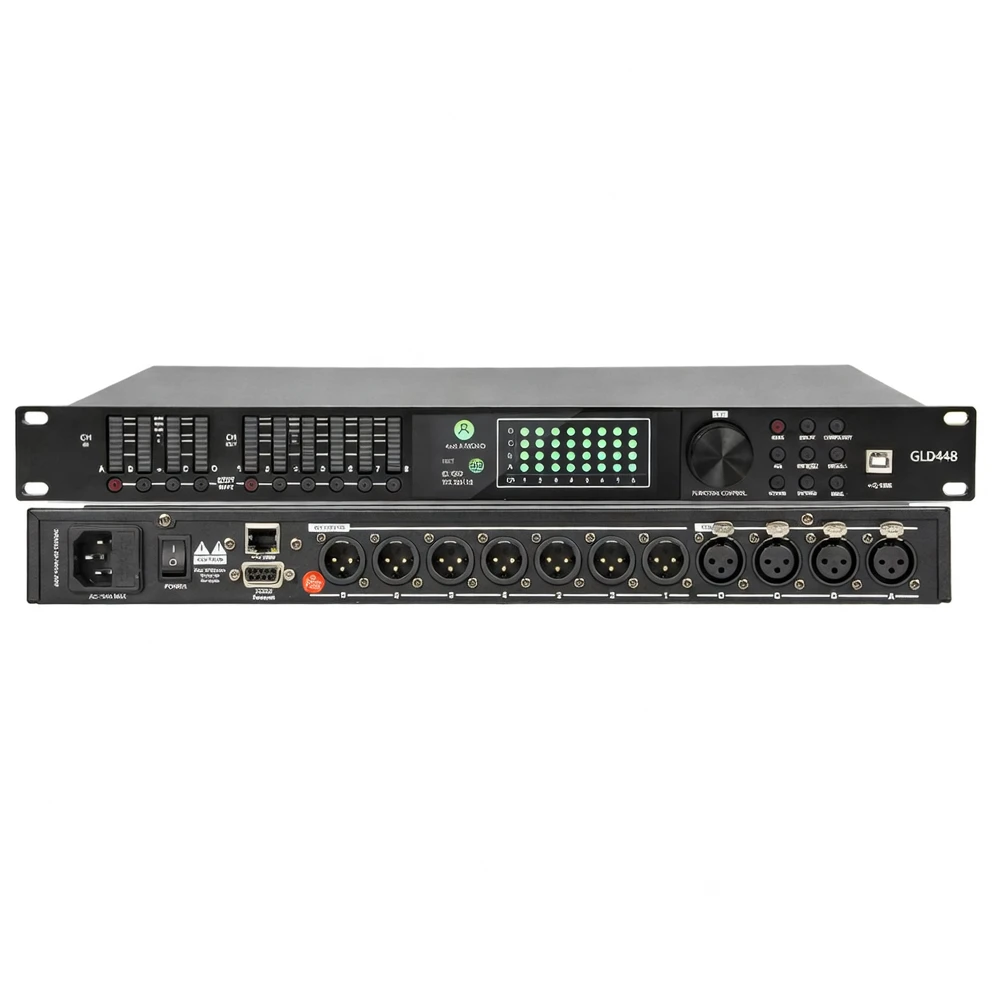

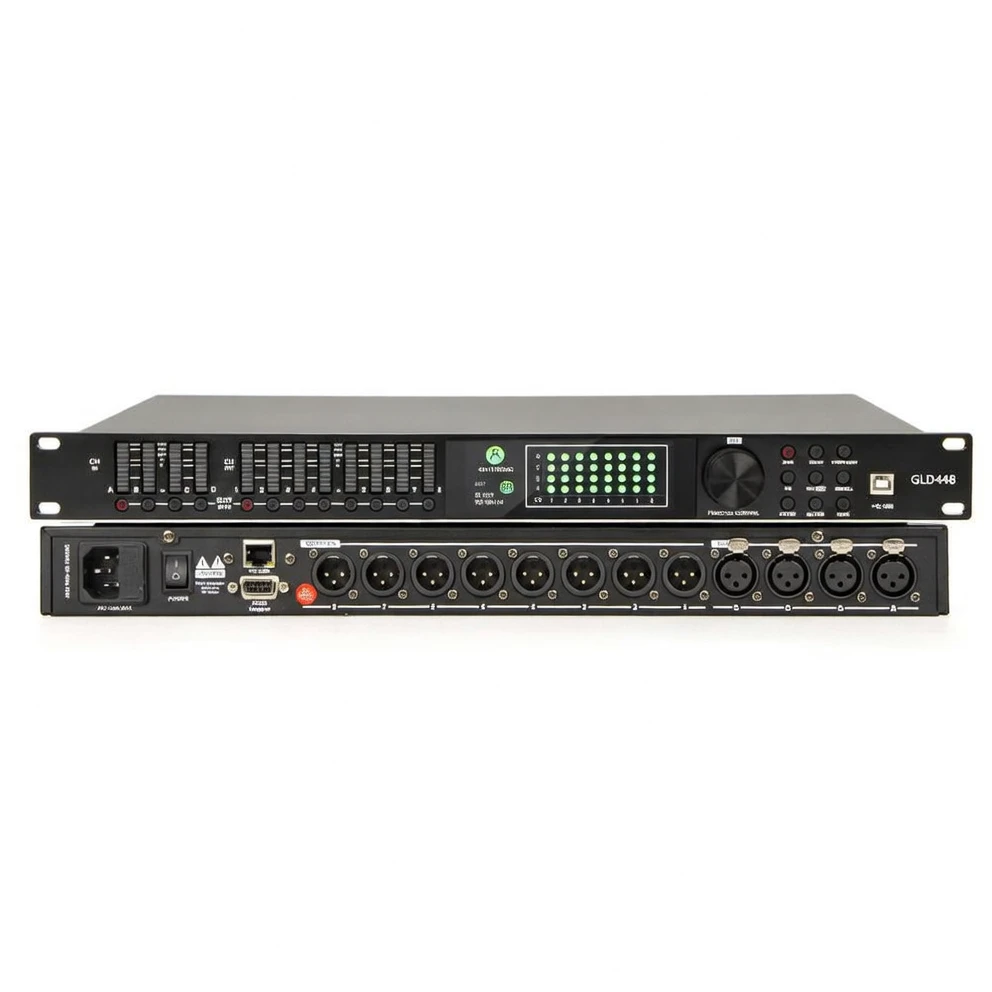

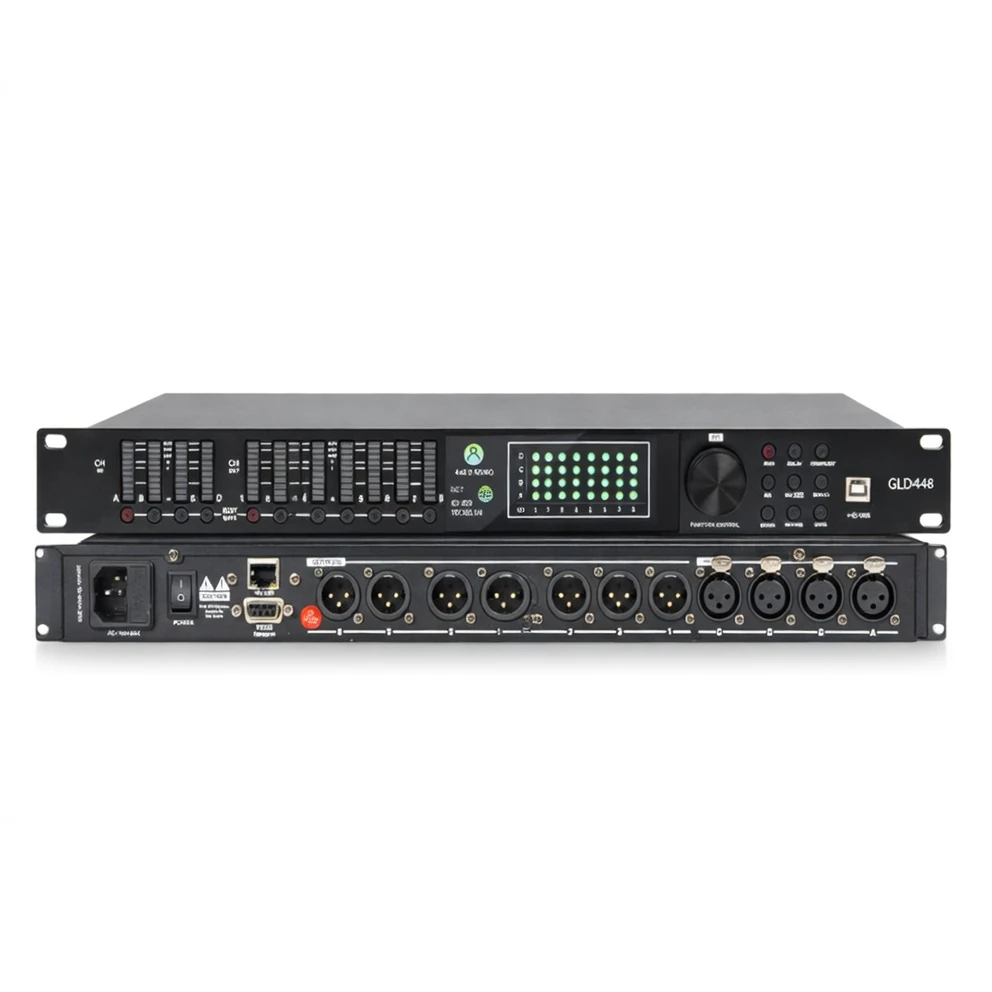

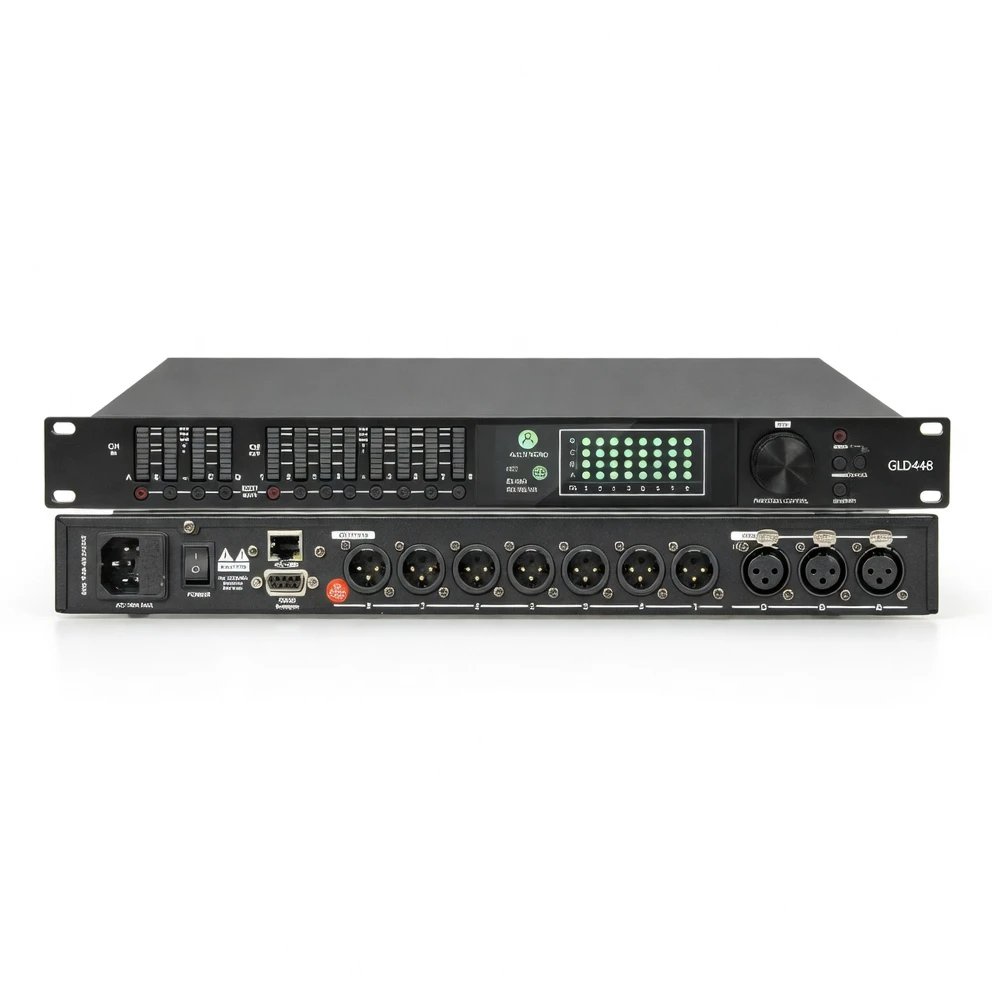

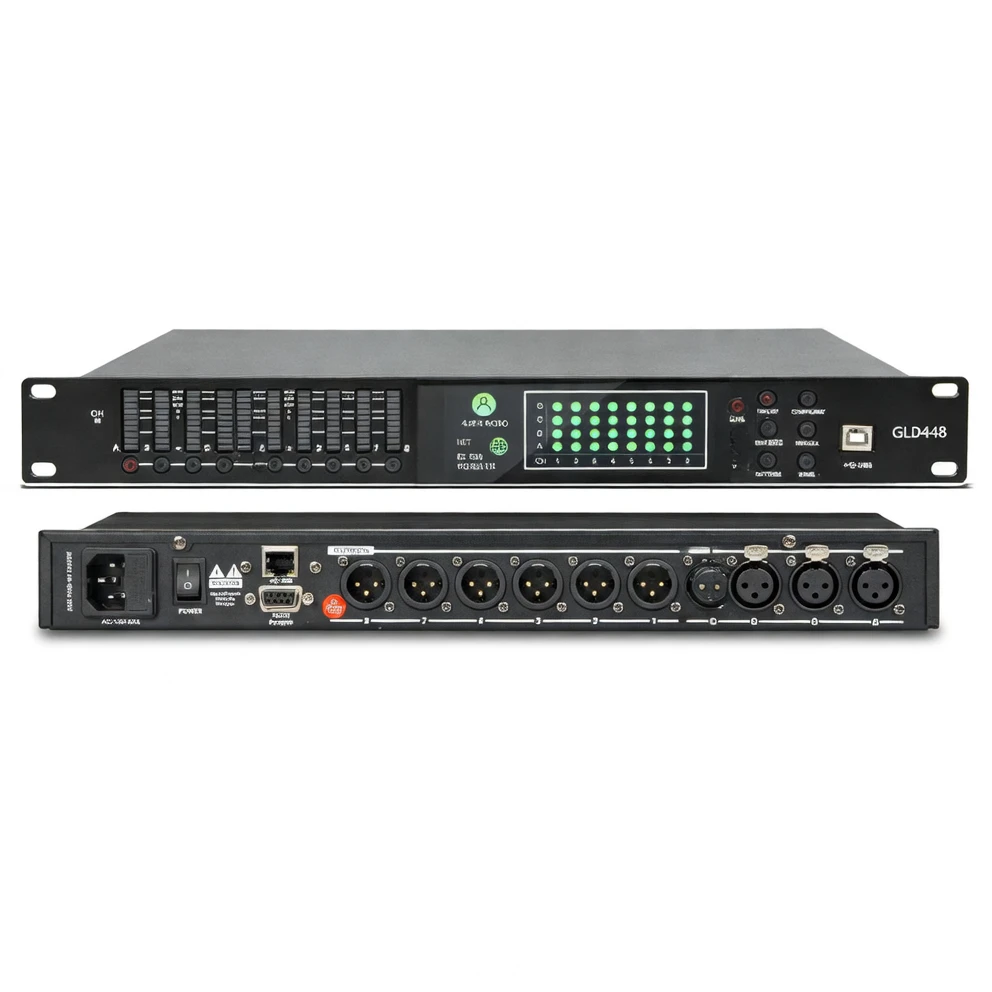

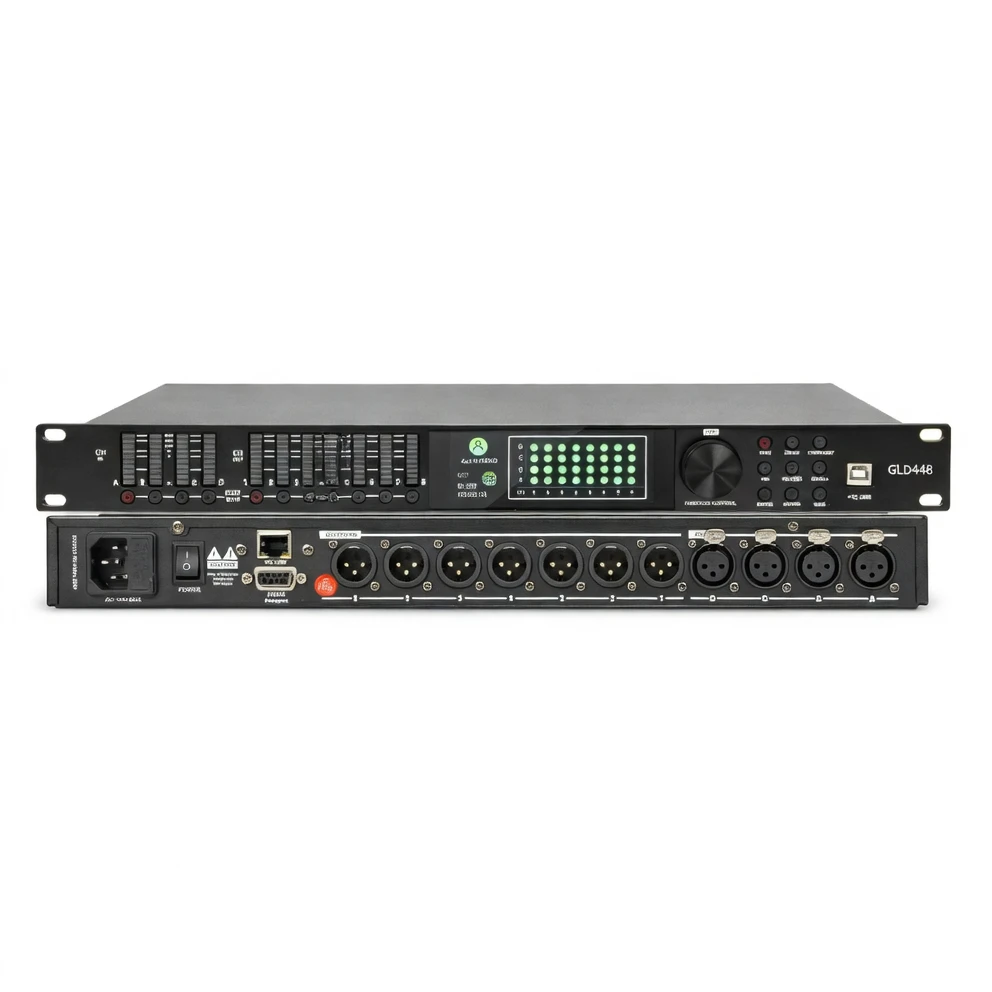

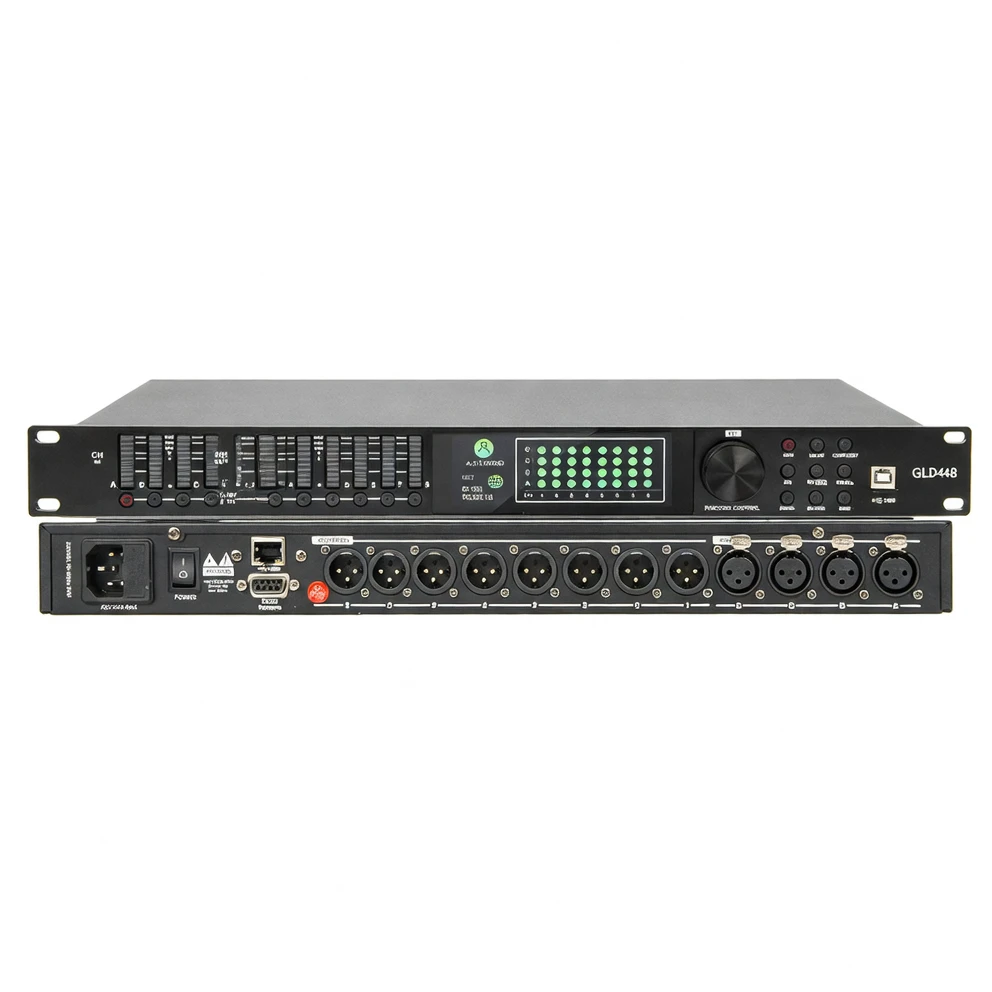

The Harmonai GLD-448 is a high-performance 4-in/8-out digital audio processor, part of the professional GL-series DSP audio processing lineup. It features the U.S.-based Analog Devices (ADI) ADSP-21571 dual-core SHARC+ DSP chip, built on the Arm Cortex-A5 high-performance floating-point core architecture and optimized for 64-bit floating-point FIR and IIR algorithms. A/D conversion uses the AK5552 chip (32-bit, 768kHz sampling rate); D/A conversion uses the Cirrus Logic CS4398 chip (24-bit, 192kHz sampling rate), delivering professional-grade 118dB input SNR and over 120dB output SNR. The unit offers a frequency response of +0/−0.3dB, total harmonic distortion below 0.003%, and a dynamic range exceeding 122dB.
The device provides 4 channels of analog XLR balanced inputs and 8 channels of analog XLR balanced outputs. Each input channel supports 5-band Dynamic EQ (DEQ), 31-band Graphic EQ (GEQ), and 15-band Parametric EQ (PEQ). Each output channel includes 15-band PEQ plus a 512-tap FIR filter. Real-time computer control is supported via USB or RJ45 Ethernet. The front panel features a 4.58-inch ultra-HD LCD display with bilingual Chinese/English support, enabling intuitive and efficient human-machine interaction.
Input Channels
4ch analog XLR balanced
Output Channels
8ch analog XLR balanced
A/D Converter Chip
AK5552 / 32-bit / 768kHz sampling rate
D/A Converter Chip
Cirrus Logic CS4398 / 24-bit / 192kHz sampling rate
Input SNR
118dB
Output SNR
120dB or higher
Overall SNR
113dB (A-weighted)
Residual Noise
<−90dBu
Dynamic Range
>122dB (20Hz–20kHz, 0dB)
Total Harmonic Distortion
<0.003% (20Hz–20kHz @ +4dBu)
Frequency Response
+0/−0.3dB (20Hz–20kHz @ +4dBu)
Maximum Gain
48dB (input to output)
Maximum Delay
1360ms
Channel Separation
>80dB (1kHz)
Common-Mode Rejection Ratio
>100dB (60Hz @ +20dBu)
Input Equalization
5-band DEQ + 31-band GEQ + 15-band PEQ (per channel)
Output Equalization
15-band PEQ (per channel)
FIR Filter
512-tap / supports LP/HP/BP/BS/bypass/external import
High/Low-Pass Filters
Butterworth/Bessel/Linke-Riley, 12–48dB/Oct
Connection Methods
USB / RJ45 Ethernet (UDP/DHCP)
Display
4.58-inch ultra-HD LCD screen
Preset Storage
30 factory presets + 32 user-defined presets
System Language
Chinese / English
Input Impedance
Balanced 20kΩ / Unbalanced 10kΩ
Output Impedance
Balanced 100Ω / Unbalanced 50Ω
Applications
The GLD-448 is ideal for multi-zone sound reinforcement and audio signal routing in professional sound systems; audio signal processing in conference sound systems (meeting rooms, multi-function halls, auditoriums); fine-grained audio management in live event engineering (concerts, bars, KTV); audio routing and processing in broadcast systems (radio stations, campus PA); and audio optimization in AV engineering (cinemas, home theater systems).
Need more technical details or pricing for the GLD-448? Contact Harmonai today for a professional audio solution.
