Voltage
AC200V–240V, 50/60Hz
Product Overview

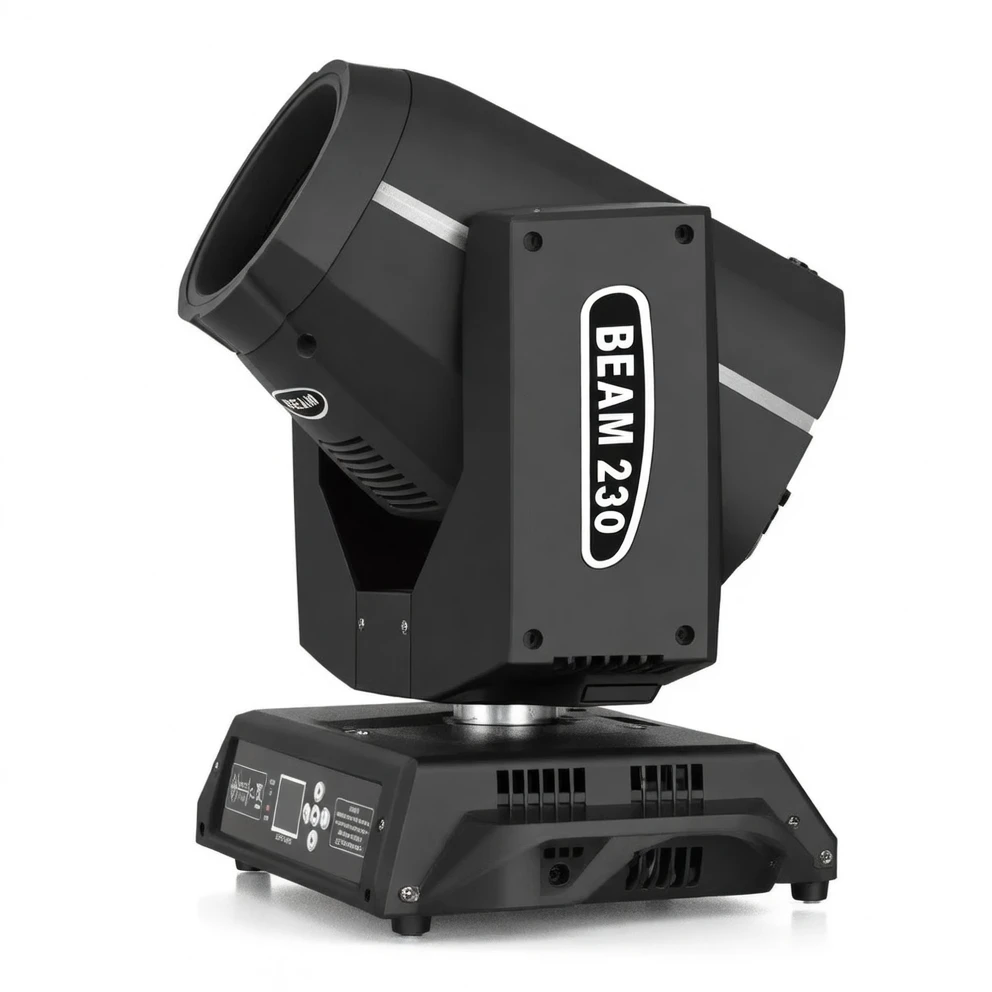

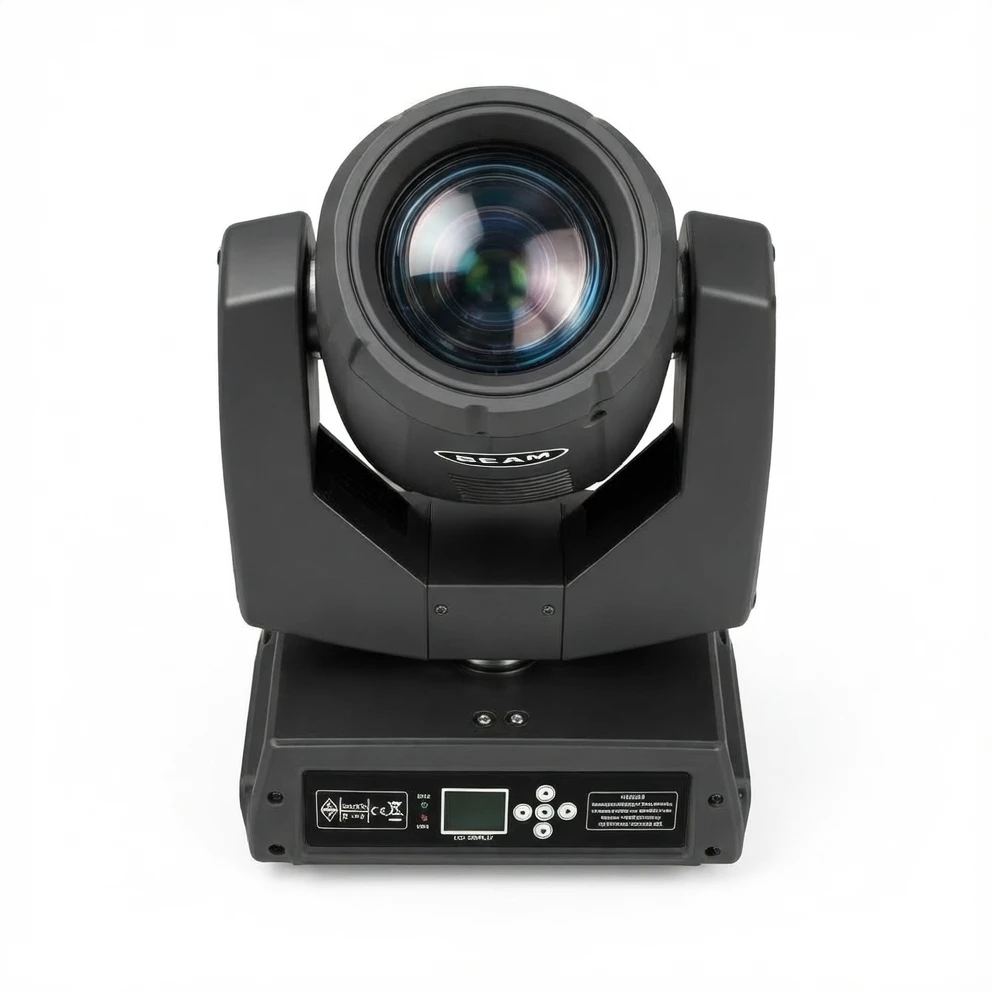

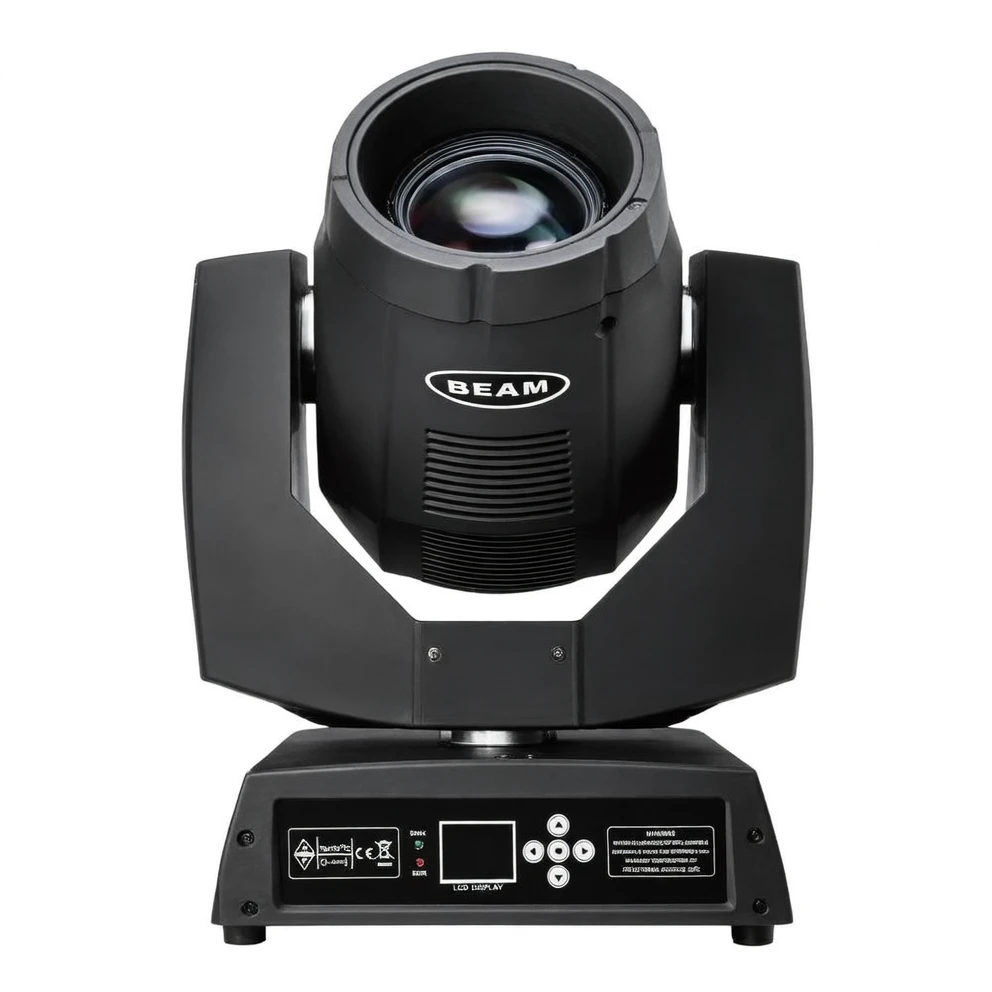

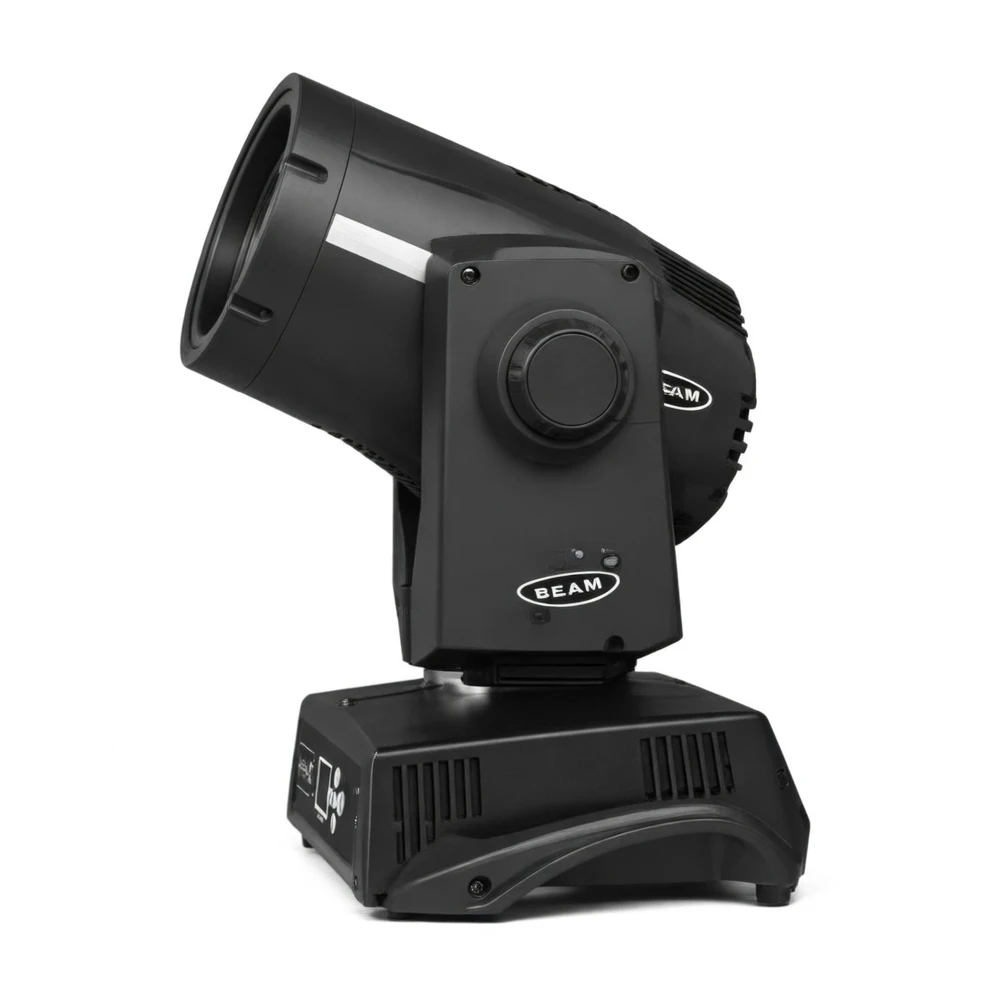

The Harmonai QY-Beam230 is a professional-grade moving beam light equipped with a 230W high-brightness light source and an 8500K color temperature. Its parallel beam angle is precisely adjustable from 0° to 3.8°. The fixture includes a fixed 13-color wheel, a fixed 17-pattern wheel, and an independently rotating honeycomb prism. Combined with mechanical linear dimming and high-speed strobe, it produces rich, dynamic beam effects. With 540° horizontal and 270° vertical scanning at 16-bit precision, driven by three-phase motors for fast, smooth, and silent movement. Its 65,000-color touch TFT LCD interface ensures intuitive operation, while intelligent thermal management and remote sleep mode ensure safe, stable performance—ideal for stage productions, bars, concerts, and other large-scale events.
Light Source
230W
Light Source Life
2000 hours
Color Temperature
8500K
Power Consumption
350W
Beam Angle
Adjustable parallel beam angle: 0°–3.8°
Linear Dimming
Mechanical linear dimming: 0–100%, with 16-bit fine adjustment
High-Speed Strobe
Pulse strobe with synchronous and asynchronous modes; strobe speed: 0.5–9 Hz
Fixed Colors
One fixed color wheel with 13 color filters + white; supports half-color effect
Static Patterns
One fixed pattern wheel with 17 patterns + open position; supports pattern jitter and arbitrary pattern positioning
Prism
One independent rotating honeycomb prism; bidirectional rotation with adjustable speed for enhanced pattern projection
Focusing
Three groups of high-precision optical glass lenses with electronic linear high-definition focusing for crisp pattern projection
Frost Effect
One independent frost effect for soft, natural beam edges and gentle, dreamy pattern rendering
Horizontal/Vertical Movement
Horizontal scan: 540° (16-bit precision); vertical scan: 270° (16-bit precision); includes auto-home function. Three-phase motor enables fast, smooth movement with zero transmission noise
Display Interface
65,000-color touch TFT LCD interface—intuitive operation, elegant UI, and 180° display rotation capability
Sleep Mode
Advanced remote sleep technology automatically activates sleep mode when signal is lost—enhancing stability and safety. Sleep duration is user-configurable
Intelligent Thermal Management
Airflow guidance and intelligent temperature monitoring dynamically activate cooling fans across different internal zones based on localized temperature readings. Includes smart lamp power control to extend bulb life
Standard Control Protocol
DMX512
Control Channels
17 channels
Fixture Weight
17 kg (including electronic ballast)
Ingress Protection Rating
IP20
Recommended Applications
The Harmonai QY-Beam230 suits diverse professional lighting environments: Stage Productions — its 230W high-output source, vibrant colors, and detailed patterns deliver dramatic lighting for concerts, theater, and dance performances; Bars & Nightclubs — high-speed strobe and honeycomb prism create energetic, attention-grabbing atmospheres; Large-Scale Events — DMX512 compatibility enables seamless multi-unit programming for music festivals, galas, and product launches; Theaters & Broadcast Studios — 16-bit dimming precision and electronic linear focusing support nuanced, cinematic lighting control for live broadcast and theatrical staging.
Explore more Harmonai professional lighting solutions—contact us today for pricing and technical support.
