Rated Voltage
AC100–240V, 50/60Hz
Product Overview

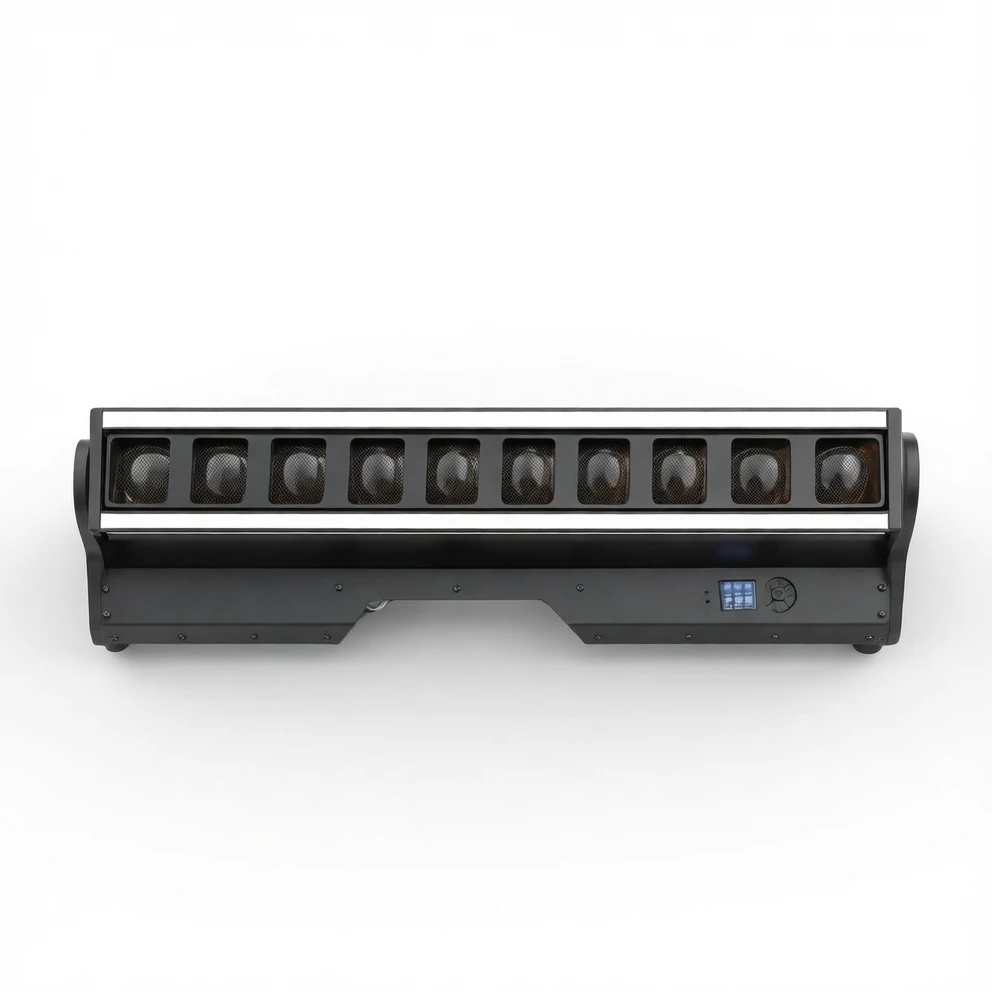

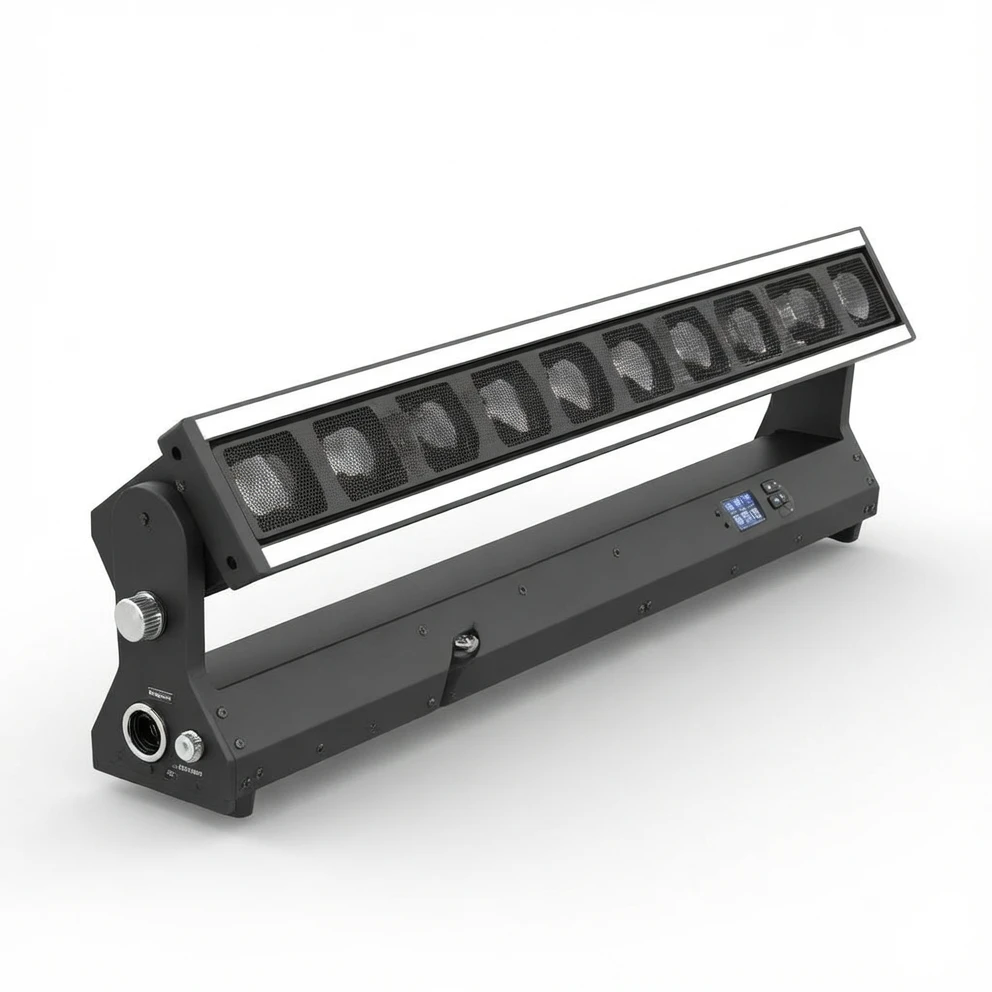

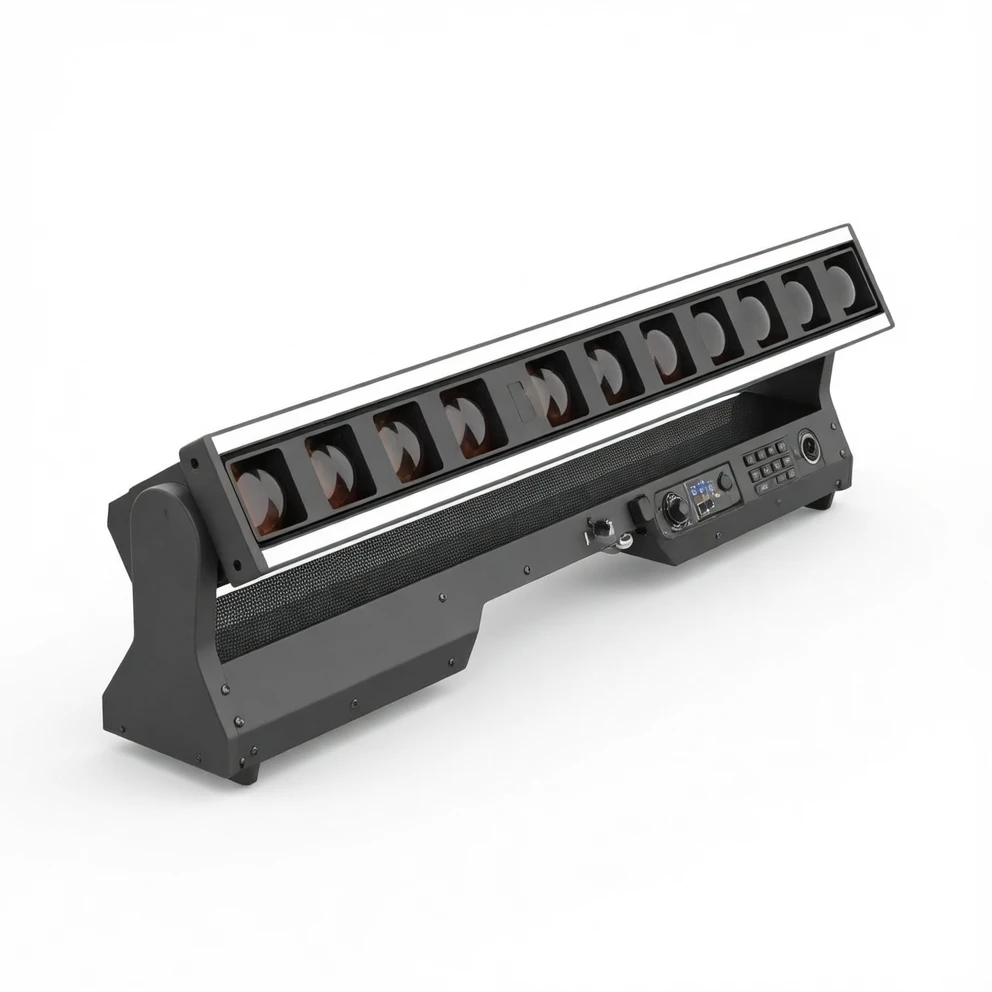

The Harmonai 12-Rattler is a 500W high-power moving matrix light engineered for large-scale stage productions, concerts, and entertainment venues. It features 12×40W quad-color Zutianxin LEDs, complemented by 288×5-in-1 auxiliary LEDs (96×RGB + 96×white + 96×amber), enabling vivid, dynamic stage lighting effects. The fixture integrates five key functions — Y-axis pan, beam, strobe, auxiliary lighting, and focus — and supports multiple control protocols including DMX512, standalone mode, master-slave, sound activation, and RDM, giving professional lighting designers maximum creative flexibility.
Technical Specifications
Rated Power
500W
Main LEDs
12×40W quad-color Zutianxin LEDs
Auxiliary LEDs
288×5-in-1 (96×RGB + 96×white + 96×amber)
Control Modes
DMX512, standalone, master-slave, sound-activated, RDM
Channel Modes
CH26 / CH38 / CH62 / CH74 / CH194
Dimming System
32-bit linear dimming, 0–100%
Key Features
Y-axis pan + beam + strobe + auxiliary lighting + focus
Strobe Frequency
1–30Hz
Operating Temperature
−30°C to 50°C
Enclosure Material
Metal / black
Connectors
DMX512 input/output, power input/output
Ingress Protection Rating
IP20
Unit Dimensions
100 × 17 × 25 cm
Net Weight
14.5 kg
Carton Dimensions
115 × 45 × 32 cm
Gross Weight (Packaged)
16.5 kg
Recommended Applications
With its powerful 500W output and five integrated lighting functions, the Harmonai 12-Rattler is widely deployed in concerts, large-scale stage shows, bars/clubs, theaters, exhibition openings, and music festivals — wherever professional-grade stage lighting is required. Its multi-channel modes and intelligent DMX512/RDM control ensure seamless integration into any professional lighting system, offering lighting designers precise, expressive control over every visual element.
For more product details or a customized quotation, contact us today for expert lighting system consultation.
Harmonai TB5 Tornado A Professional Stage Beam Light QY-TB5A
The Harmonai TB5 Tornado A (QY-TB5A) is a professional stage beam light featuring 5×120W RGBL LEDs and 120×0.5W RGB perimeter LEDs, delivering up to 13,000 lumens. Fully supports DMX512, RDM, and Art-Net protocols with precise 3°–30° beam angle adjustment and X/Y dual-axis 16-bit scanning — ideal for bars, live-streaming studios, and large-scale performances.$492.47

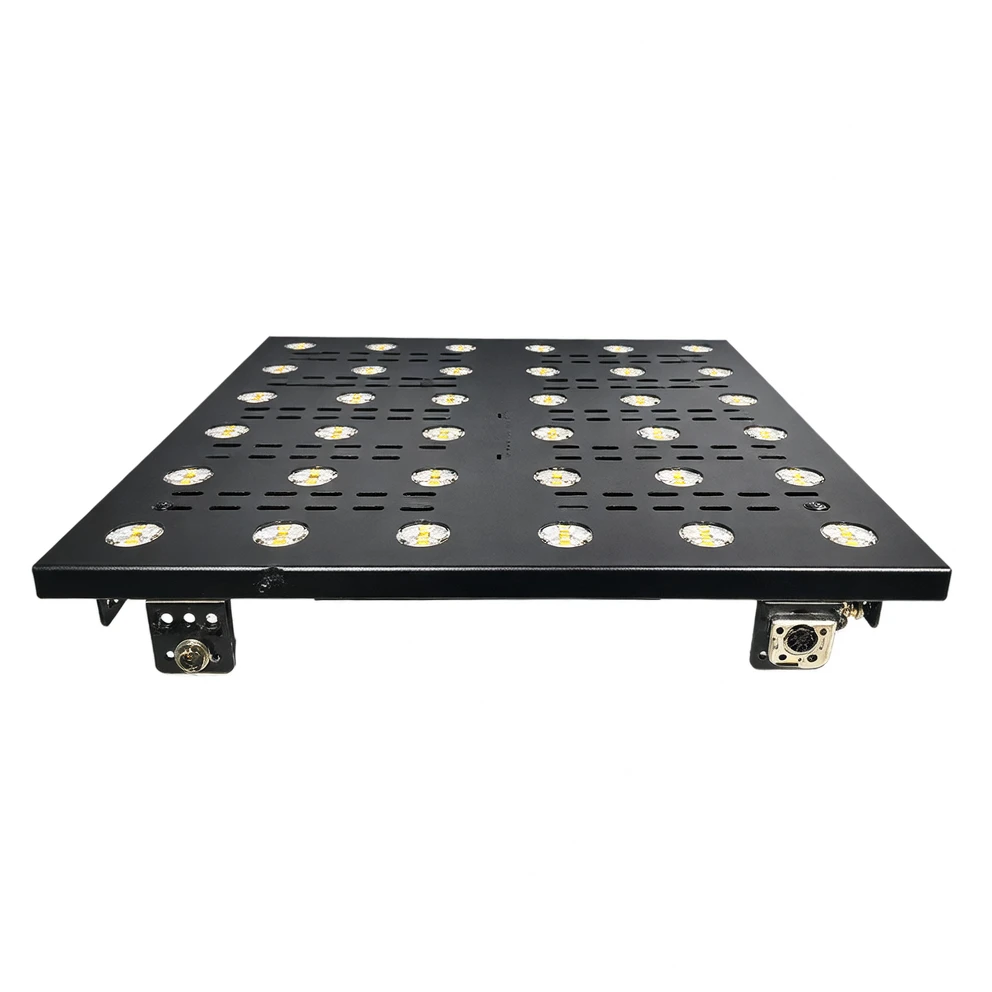

Harmonai 36-LED Full-Color Matrix Light
