Operating Voltage
DC 24V (supplied by main conference host)
Product Overview

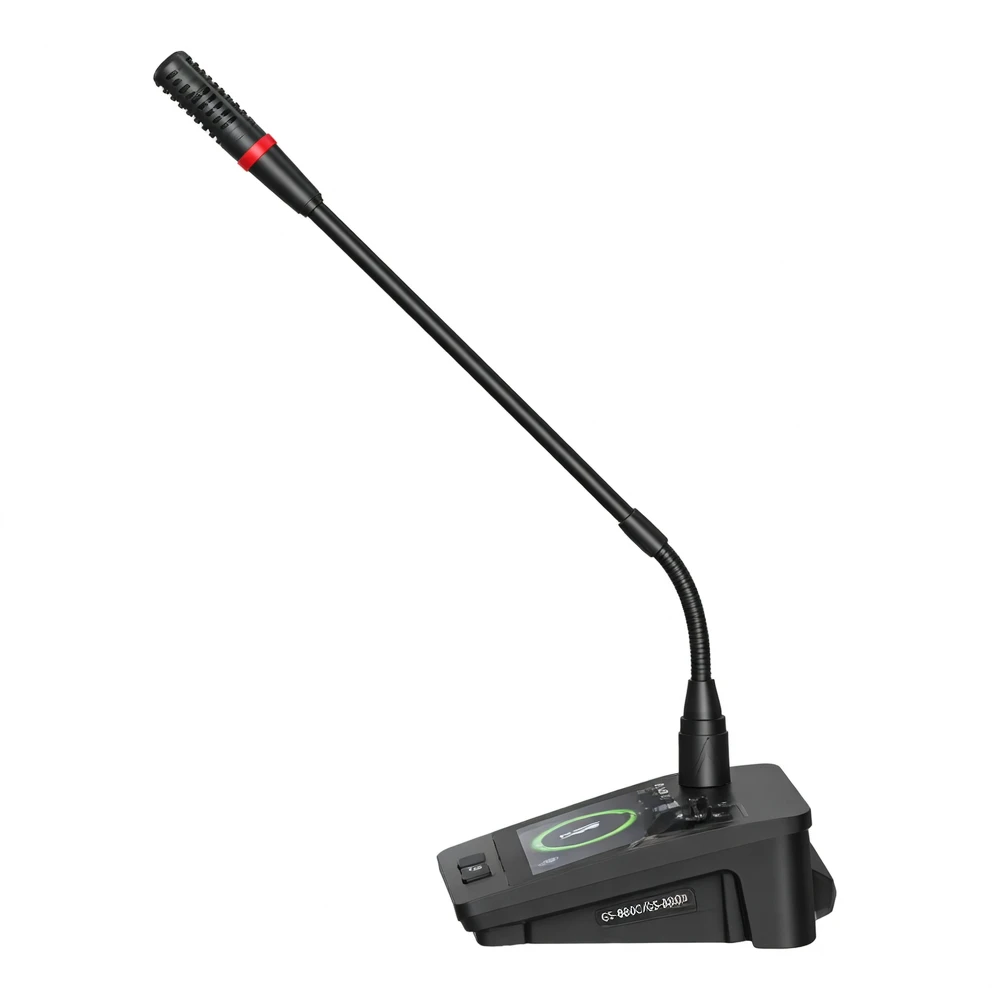

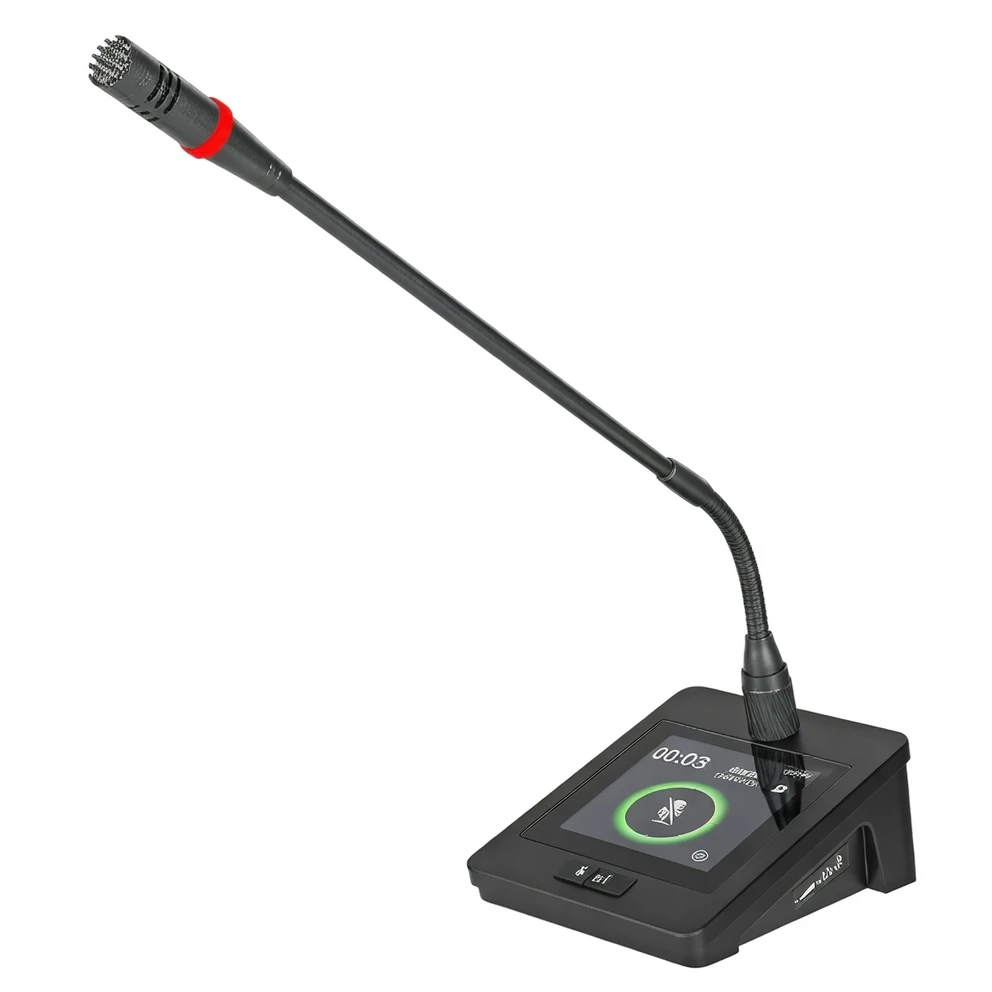

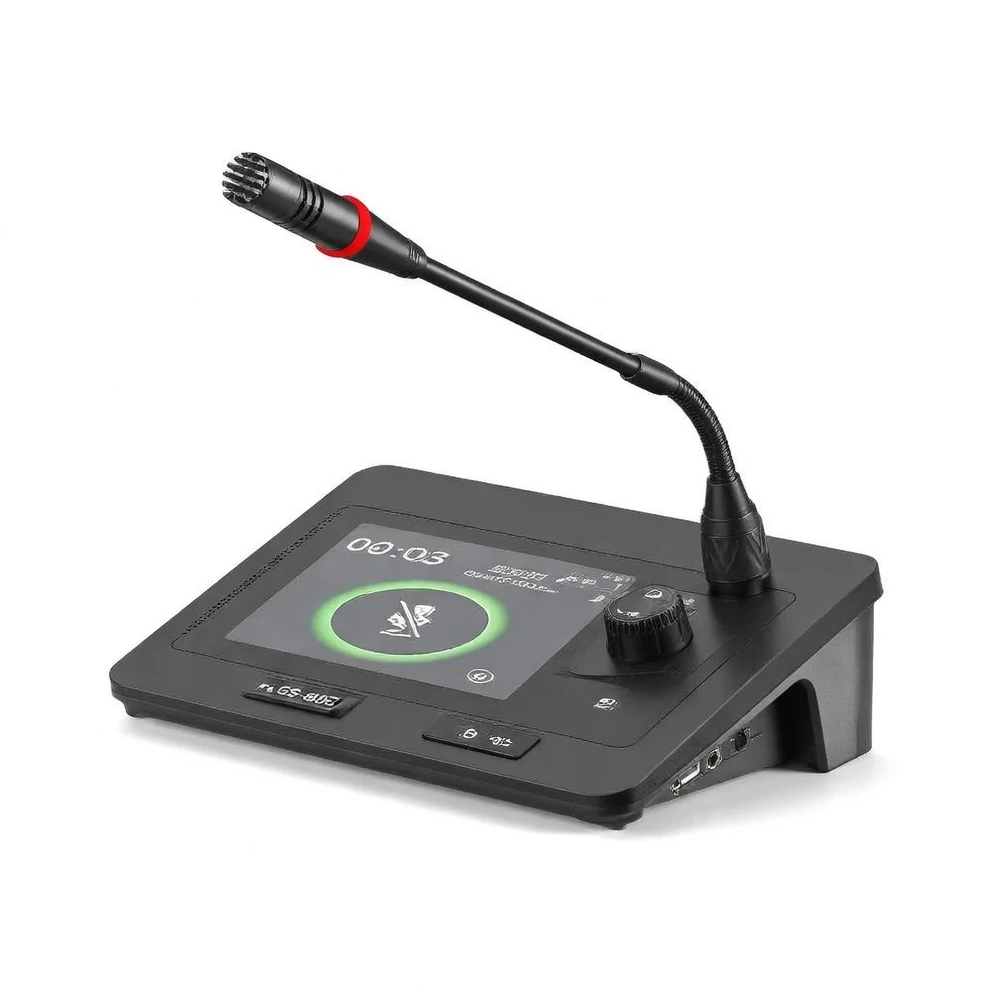

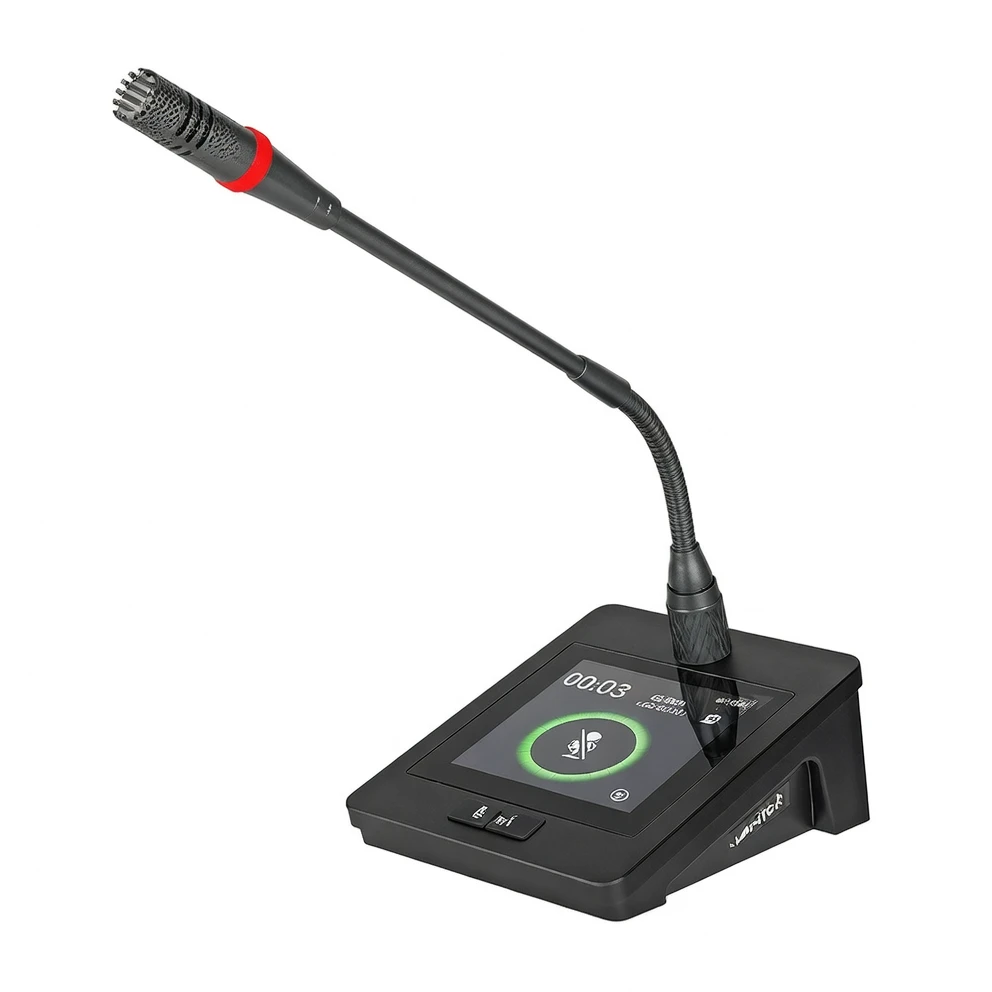

The Harmonai GS-880C/GS-880D is a professional-grade wired daisy-chain conference unit with voting capability, available as a chair unit (GS-880C) and delegate unit (GS-880D), designed for medium-to-large conference systems. Each unit features a high-definition touchscreen control interface paired with a long-boom cardioid electret microphone for clear, precise speech pickup. It supports core meeting functions including voting, check-in, and polling—making it an ideal choice for modern conference rooms and multi-functional halls.
Input/Output Interfaces
8P-DIN cable, Category 6A (Cat6A) Ethernet cable
Microphone Type
Cardioid-directional electret condenser
Sensitivity
-46 dBV/Pa
Frequency Response
20 Hz ~ 20 kHz
Input Impedance
2 kΩ
Directivity (0°/180°)
>20 dB (at 1 kHz)
Equivalent Noise Level
20 dBA (SPL)
Maximum Sound Pressure Level
125 dB (THD < 3%)
Signal-to-Noise Ratio
>80 dB
Channel Crosstalk
>80 dB
Total Harmonic Distortion
< 0.05%
Typical Applications
Ideal for formal voting meetings in government agencies, enterprises, and academic institutions. The daisy-chain topology enables flexible serial deployment of multiple units—scaling seamlessly from small-to-medium conference rooms to large multi-functional halls. Touchscreen operation allows chairs and delegates to perform voting, check-in, and speaking requests efficiently—significantly improving meeting productivity.
For full conference system solutions—including conference host, power amplifier, and loudspeakers—contact the Harmonai professional team for a customized proposal.
