AD/DA Conversion Bandwidth
20Hz–20kHz (full bypass)
Product Overview

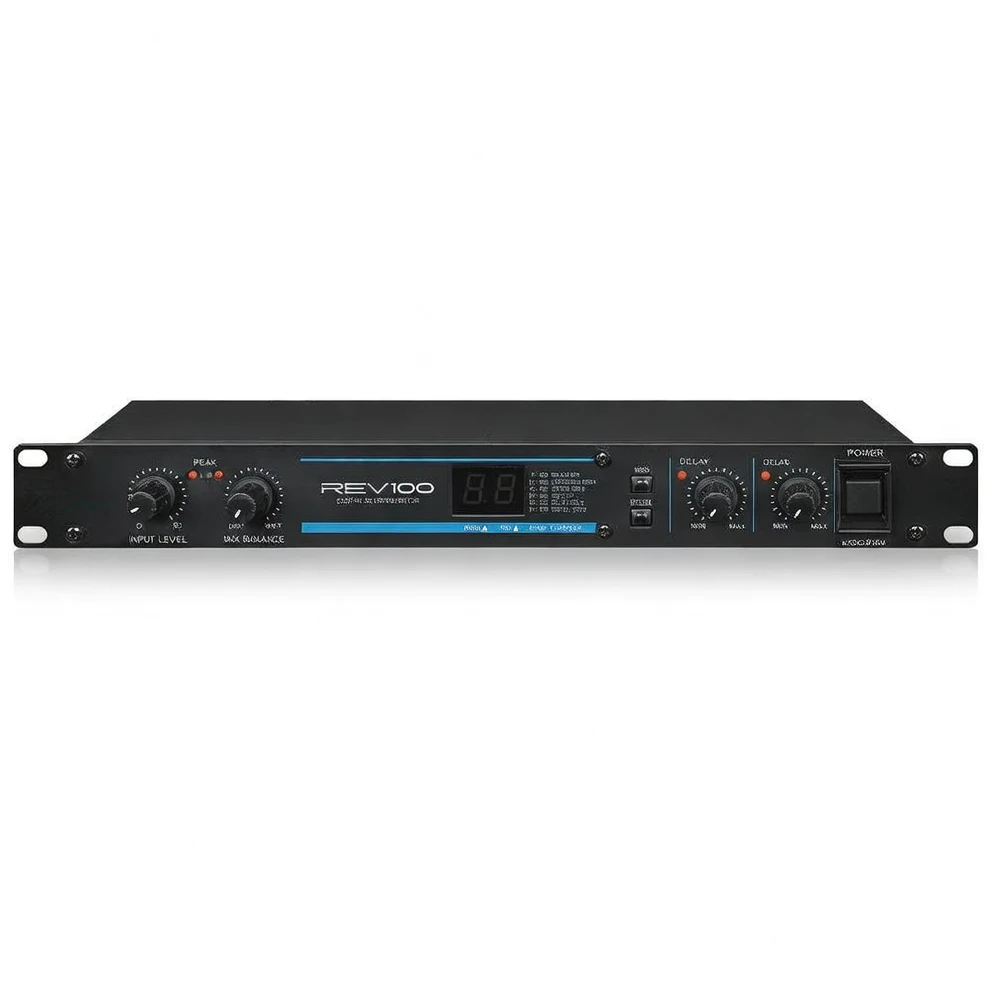

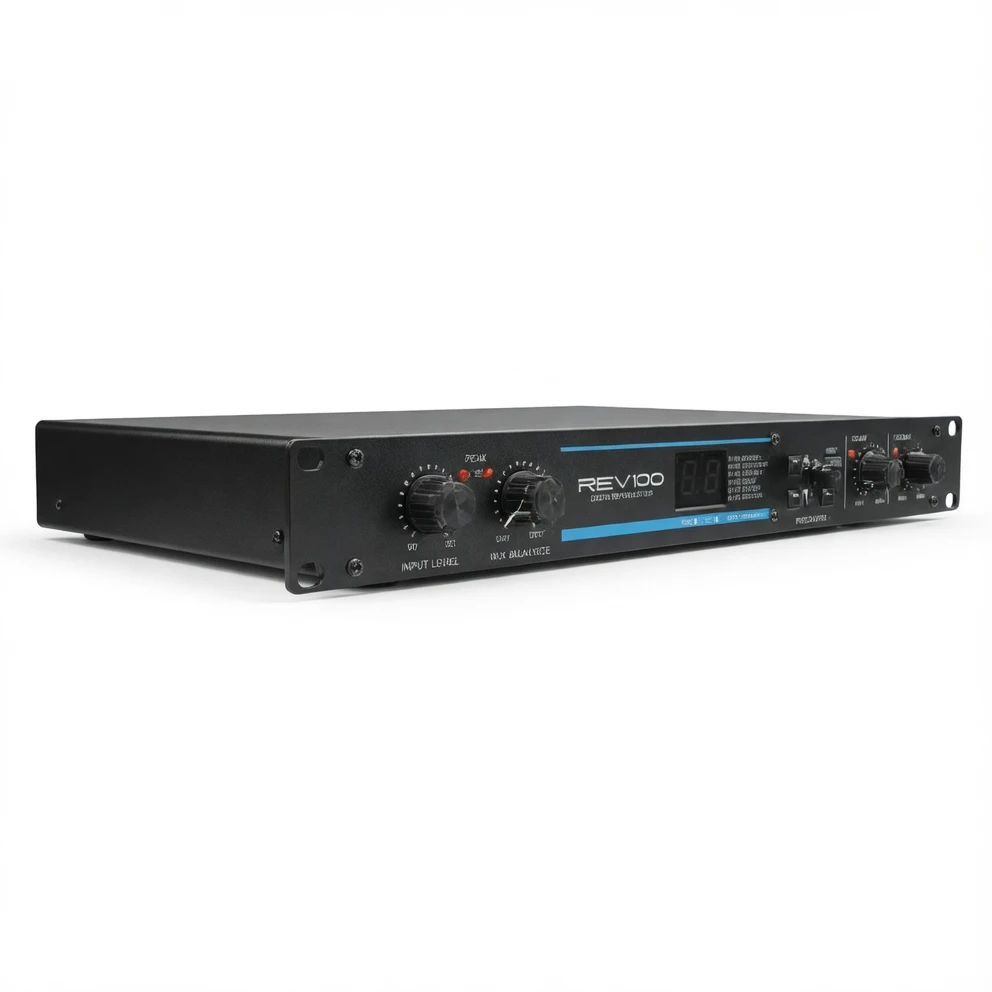

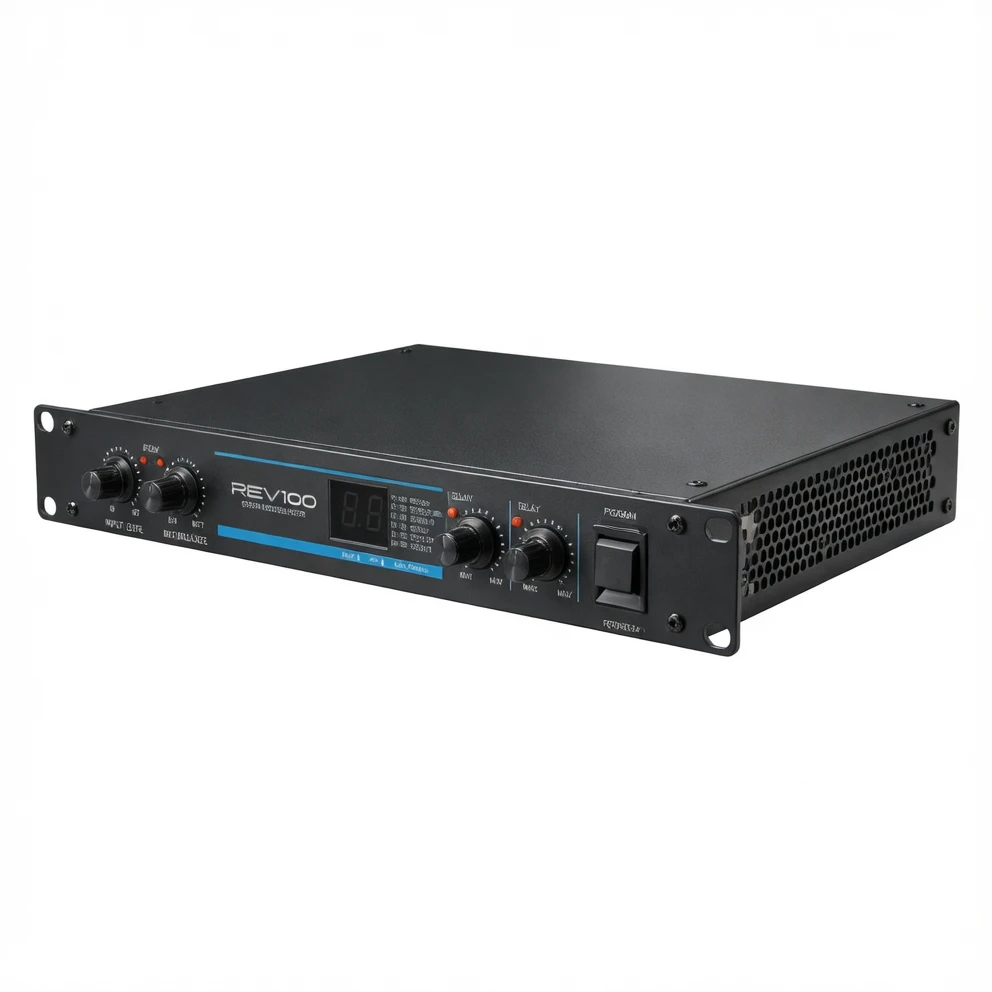

The Harmonai REV-100 DSP Digital Effects Processor is a high-performance digital audio processor designed for karaoke, live stage performance, and professional audio applications. It features 99 built-in effect presets, including stereo reverb, gated reverb, delay, delay + reverb, reverb + flanger, chorus + reverb, and orchestral + reverb—covering a wide range of classic audio enhancement modes to meet diverse acoustic refinement needs.
Equipped with 16-bit high-precision analog-to-digital (AD) and digital-to-analog (DA) conversion chips, a 44.1kHz sampling rate, an 80dB typical dynamic range, and total harmonic distortion (THD) under 0.1% (at 1kHz, maximum level), it ensures exceptional signal purity and audio fidelity throughout processing.
Dynamic Range
80dB (typical)
Total Harmonic Distortion (THD)
<0.1% (1kHz, maximum level)
AD Conversion Resolution
16-bit
DA Conversion Resolution
16-bit
Sampling Rate
44.1kHz
Stored Presets
99 presets
Effect Types
Stereo reverb, reverb, gated reverb, delay, delay + reverb, reverb + flanger, chorus + reverb, orchestral + reverb
Input Connectors
PHONE JACK ×2
Input Level
−20dB (nominal)
Input Impedance
20kΩ (mono: 10kΩ)
Output Connectors
PHONE JACK ×2
Output Level
−20dB (normal)
Output Impedance
2kΩ (mono: 1kΩ)
Display
Two 7-segment LED displays (showing preset number)
Front Panel Controls
Input level, mix balance, delay decay, level
LED Indicators
Peak, left/right channels, delay, decay, level (editable directory)
MIDI Interface
5-pin DIN input
Power Supply
DC 12V
Dimensions
480×232×45.5mm (18.9″×9.1″×1.8″)
Weight
2.5kg
Recommended Applications
The Harmonai REV-100 is ideal for professional karaoke front-end processing, HI-room sound system tuning, live stage audio enhancement, and audio processing in conference rooms or performance venues. Its 99 presets—combined with MIDI integration capability—enable rapid adaptation to varying acoustic environments.
Contact us anytime for technical specifications, pricing, or customized professional support for the Harmonai REV-100 DSP Digital Effects Processor.

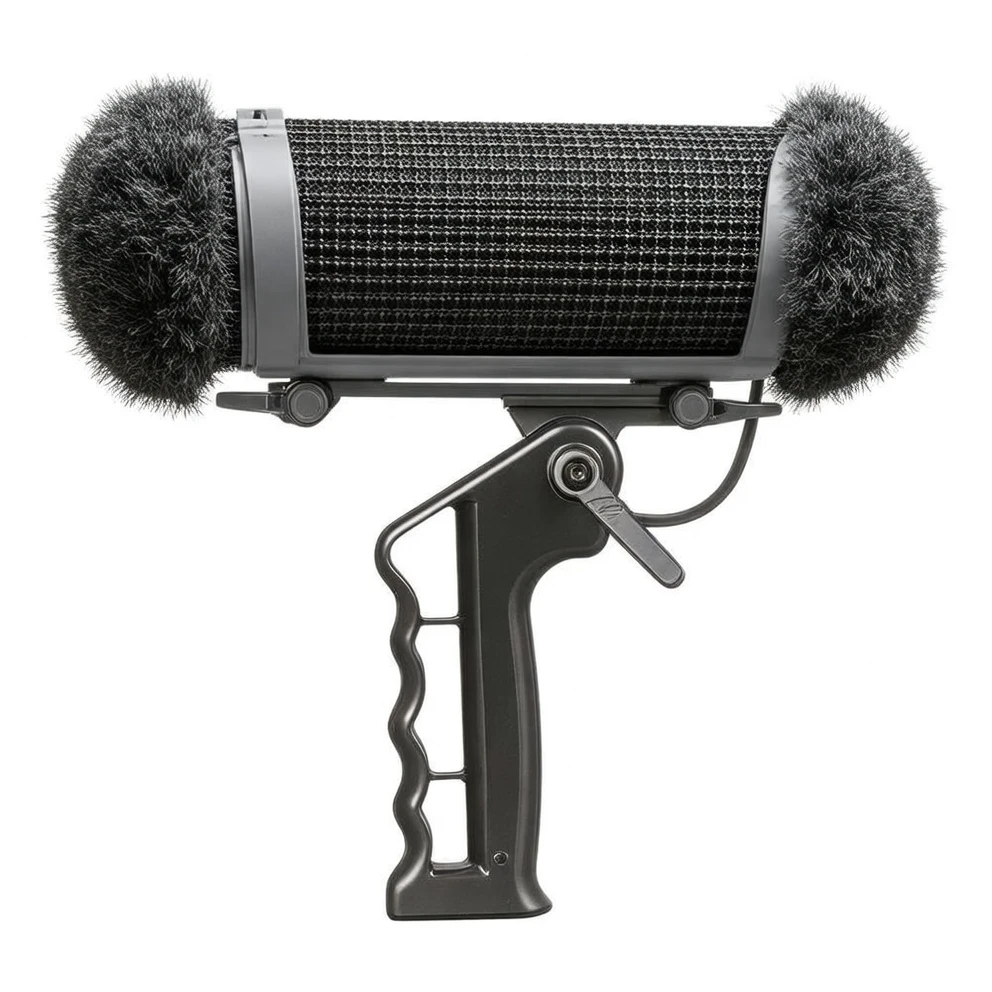

Harmonai KT-7 Plastic Blimp Windscreen Kit — Compatible with EM-835 Interview Microphone
The Harmonai KT-7 plastic blimp windscreen kit is designed specifically for the EM-835 interview microphone. It includes a plastic blimp (basket), boom handle, and fur wind cover to effectively reduce outdoor wind noise and ensure clear, clean interview recordings.$114.71

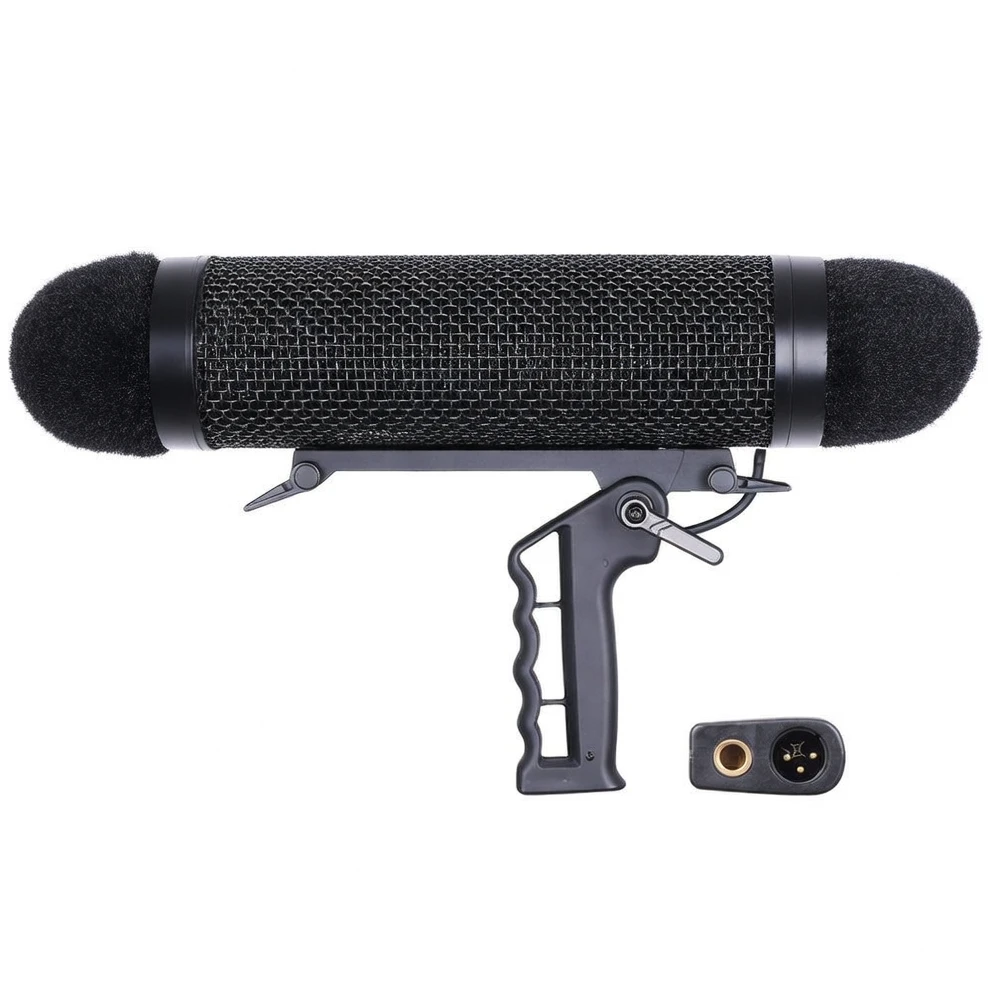

Harmonai KT-8 Professional Windscreen Cage & Shock Mount Kit — Microphone Wind and Vibration Isolation Boom Pole System
The Harmonai KT-8 is a professional microphone wind and vibration isolation kit, combining an efficient windscreen cage, elastic suspension shock mount, and boom pole to suppress wind noise and handling vibrations—ideal for outdoor interviews and film production field recording.$95.59
Harmonai 295W Beam Moving Head Light | 12-Color + White + Dual Prism for Professional Stage Lighting
The Harmonai 295W beam moving head light features a Phoenix imported lamp, 12-color + white color wheel, 13 fixed gobos, and dual independent prism system. Supports sound-active, auto-run, master-slave, and DMX512 control for powerful beam effects in stages, KTVs, bars, and more.$149.12

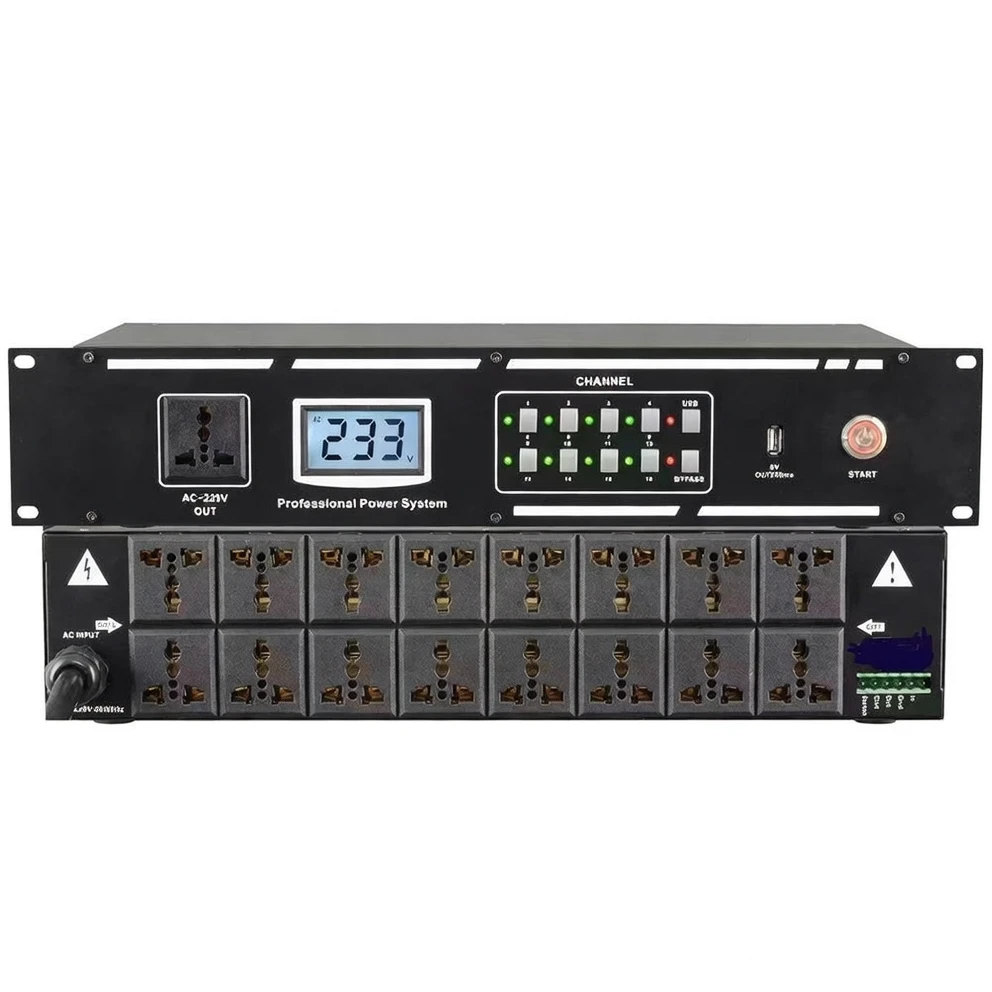

Harmonai L-16 Professional 16-Channel Power Sequencer — 6000W Per Channel, Standard 2U Rack-Mount Design
The Harmonai L-16 is a professional 16-channel power sequencer with 16 relay-controlled universal outlets and 2 direct-pass outlets. Each channel handles up to 6000W (15,000W total), featuring sequential power-on/sequential power-off logic, real-time red LED voltage display, and triple protection (leakage, short-circuit, overcurrent). Designed for stage lighting, audio systems, conference rooms, and broadcast studios.$99.41
Harmonai DSP1616 16×16 Audio Matrix Processor — Professional Digital Audio Signal Processing Platform
A professional 16-in/16-out digital audio matrix processor powered by the ADI SHARC 21489 DSP chip, featuring Dante 16×16 networking, AEC, AFC, and ANS algorithms for large-scale audio systems.$648.57
Harmonai DSP0808 8×8 Professional Audio Matrix Processor — SHARC Floating-Point DSP Engine
The Harmonai DSP0808 is a professional 8-in/8-out audio matrix processor built on the ADI SHARC 21489 chip with a 64-bit floating-point DSP engine (400 MIPS / 1.6 GFLOPS), featuring AFC feedback suppression, AEC echo cancellation, ANS automatic noise reduction, and PEQ parametric equalization. Supports 16×16 analog and Dante digital I/O, plus built-in USB audio interface for conferencing and recording.$428.71
Harmonai 4.8SP 4-in/8-out Digital Audio Processor — Professional DSP Multi-Channel Audio Routing & Processing
The Harmonai 4.8SP is a professional 4-in/8-out digital audio processor featuring 24-bit/48kHz Δ-Σ A/D converters with 128× oversampling, dual 120MHz high-performance DSP chips, and full digital processing including gain, parametric EQ, delay, crossover, compression, limiting, and signal routing — all via balanced XLR I/O.$329.78
Harmonai DAP48 4-in/8-out Digital Audio Processor — 31-band GEQ + 10-band PEQ, Precision Audio Routing
The Harmonai DAP48 is a professional 4-in/8-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent 0–1000 ms delay control, 10-band output EQ with PEQ/LO-shelf/Hi-shelf options, and selectable Linkwitz-Riley/Bessel/Butterworth crossover filters.$303.40

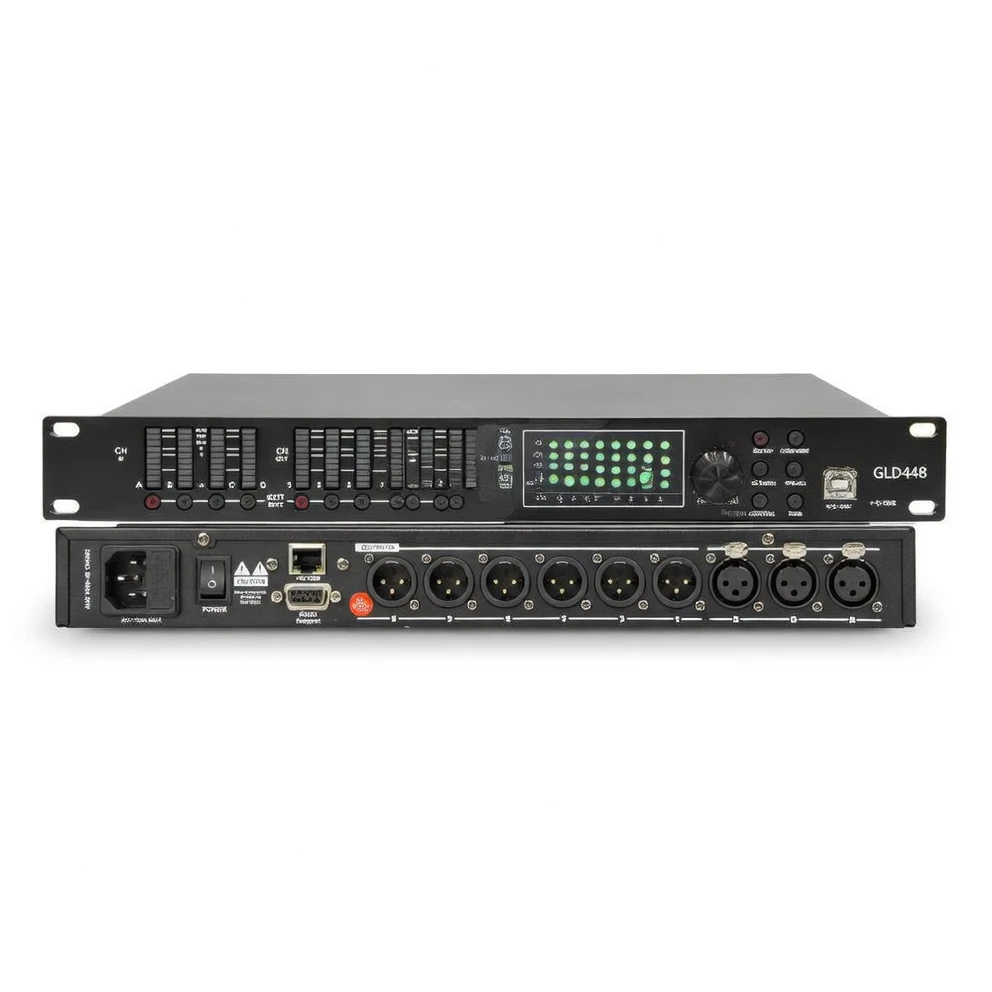

Harmonai GLD-448 4-in/8-out Digital Audio Processor — Professional DSP Audio Signal Management
