Input/Output Interfaces

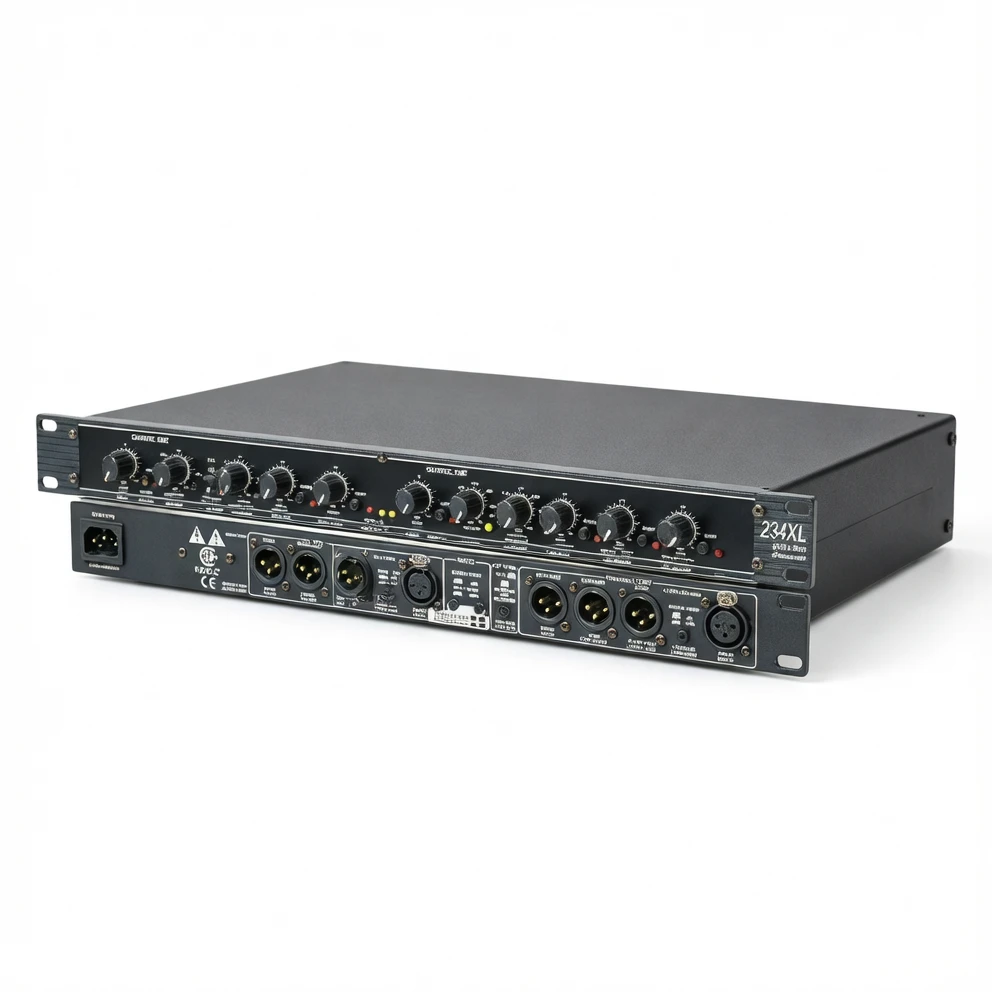

TRS or XLR differential balanced inputs and outputs
Product Overview

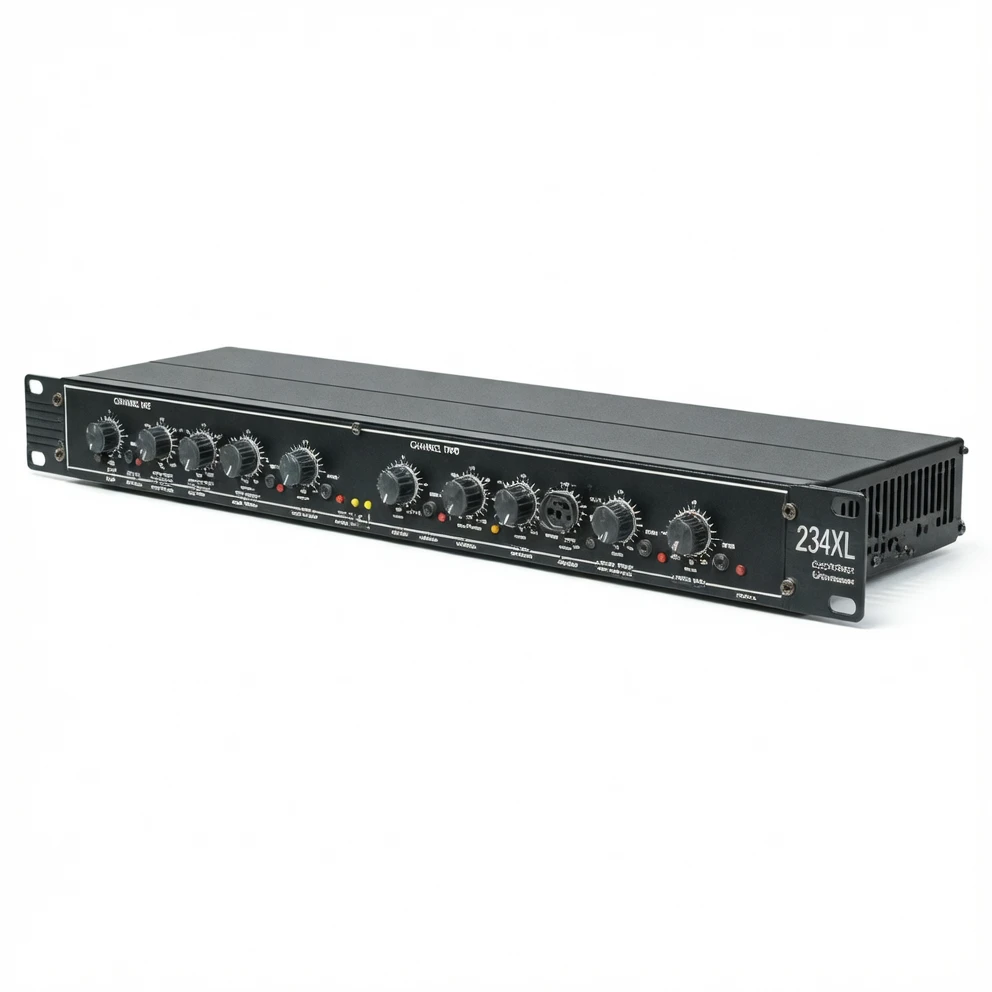

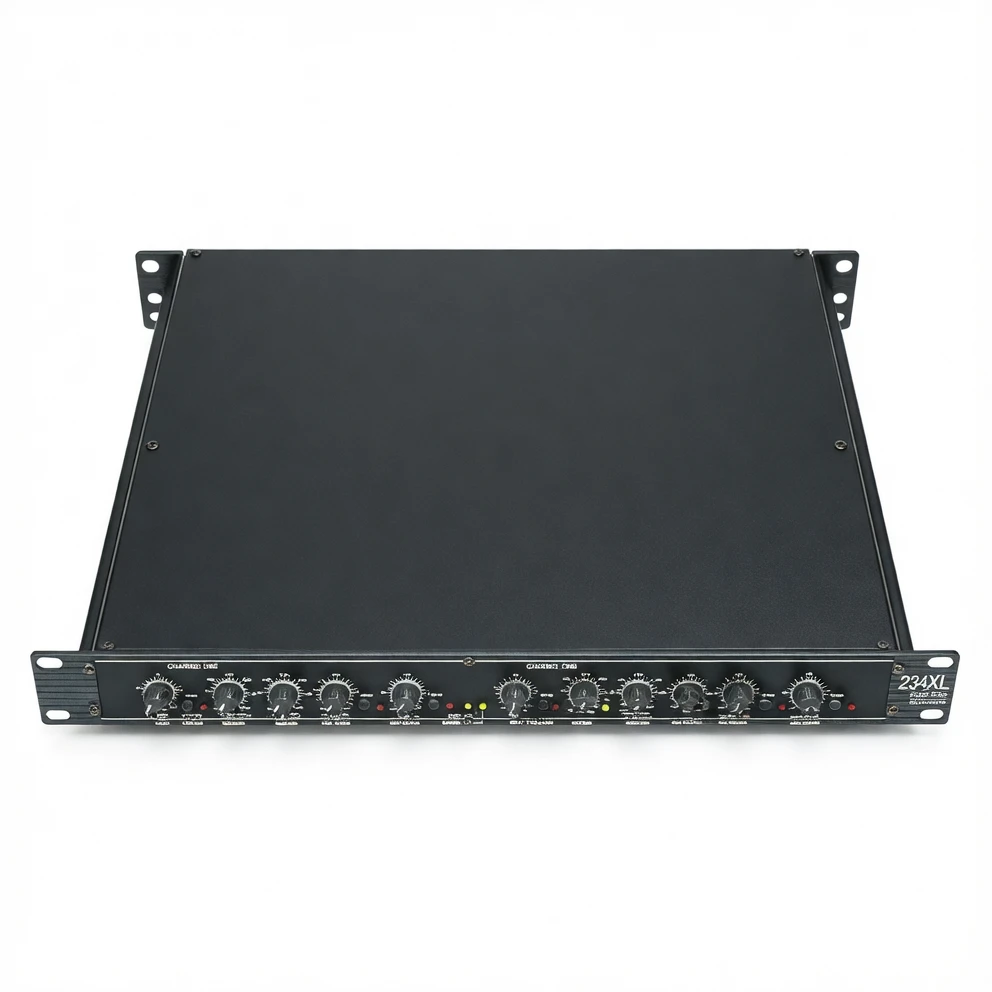

The Harmonai D234XL is a professional-grade stereo 24-octave electronic crossover built to the industry-standard 24dB/oct Linkwitz-Riley filter specification, delivering precise frequency band separation and signal processing for professional audio systems. It features TRS/XLR differential balanced inputs and outputs, effectively suppressing noise interference during signal transmission and ensuring exceptional signal purity. Crossover points are continuously adjustable, and each band’s output level can be independently controlled—enabling exact matching to any loudspeaker system’s crossover requirements. The unit supports flexible switching between stereo mode and subwoofer synthesis mode (summed L+R), making it widely suitable for professional stage productions, large-scale conference systems, Livehouse venues, and premium home theater installations.
Operating Modes
Selectable stereo mode or subwoofer mode (L+R summed)
Frequency Range Switch
Both channels feature an x10 range selection switch
High-Pass Filter
40Hz high-pass filter (low-frequency cut) on both channels
Phase Control
Phase inversion switch on all outputs
Level Adjustment
Independent output level adjustment for all frequency bands
Filter Type
24dB/oct Linkwitz-Riley filter (professional standard)
Status Indication
Stereo/mono status indicator LED
Crossover Point Adjustment
Continuously adjustable crossover point
Operating Voltage
220V
Typical Applications
The D234XL electronic crossover is designed for professional applications requiring precise full-range signal splitting into discrete frequency bands—each routed to dedicated loudspeakers: in professional stage productions, it enables clean high/mid/low three-way active crossover with amplifiers and speakers; in Livehouse venues and bars, it delivers accurate subwoofer and full-range speaker integration; in large conference rooms and auditoriums, it enhances speech intelligibility and musical fidelity; and in home theater and HI-FI audio systems, it provides audiophile-grade crossover processing for refined, detailed sound reproduction.
Contact us anytime for detailed technical specifications, system wiring diagrams, or pricing information for the Harmonai D234XL professional electronic crossover.
