Equalizer Type
Dual-channel 31-band graphic equalizer
Product Overview

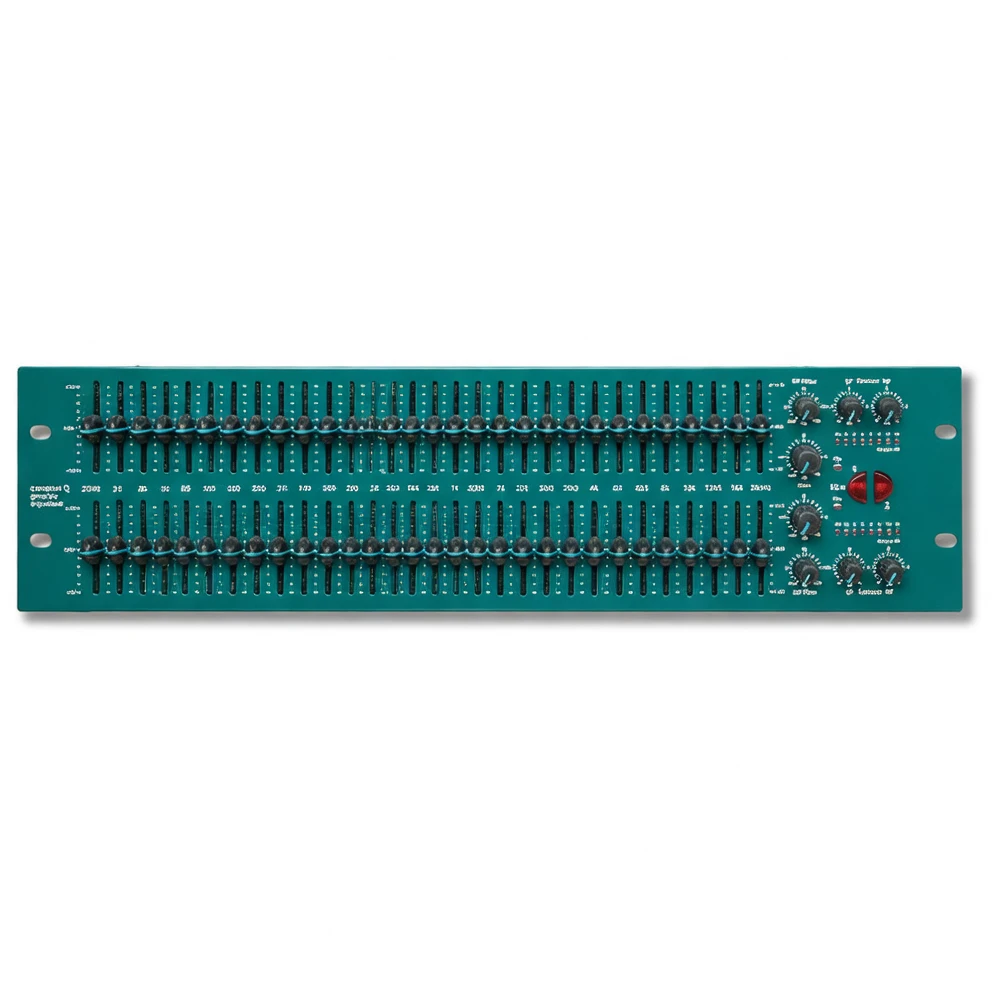

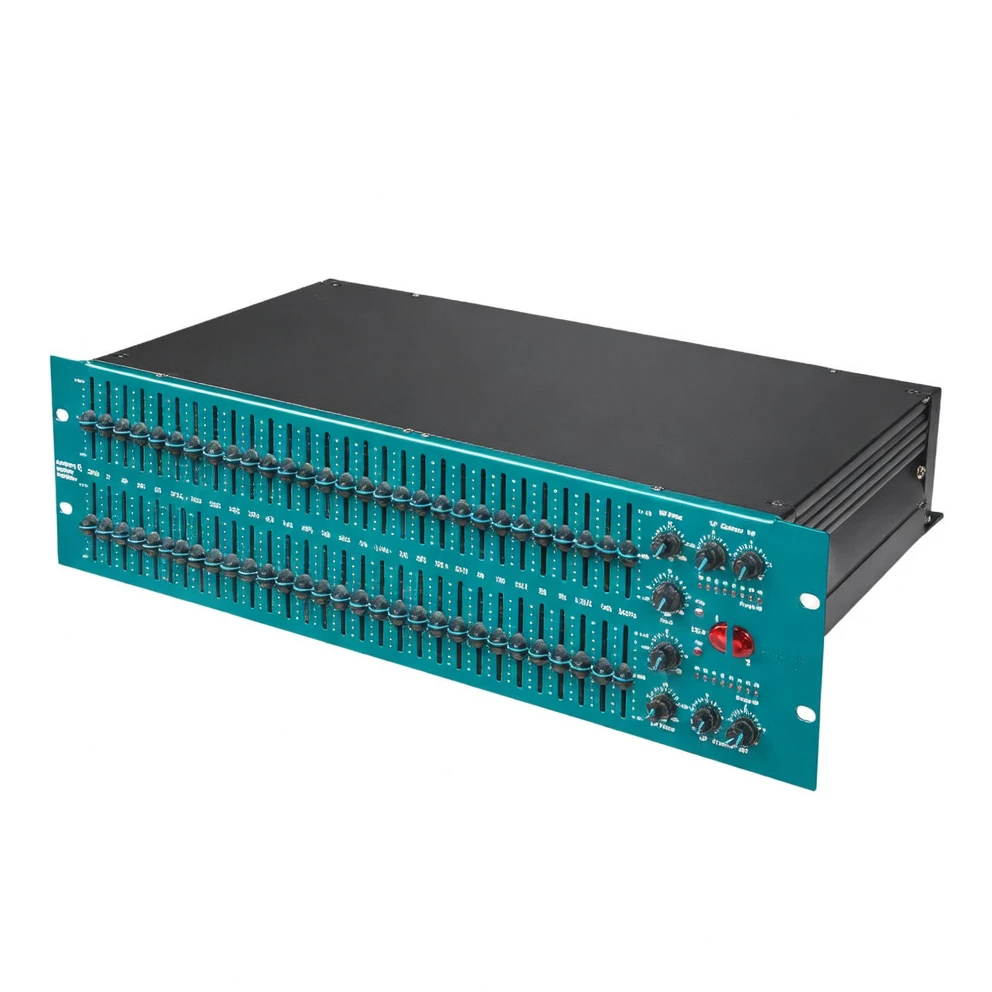

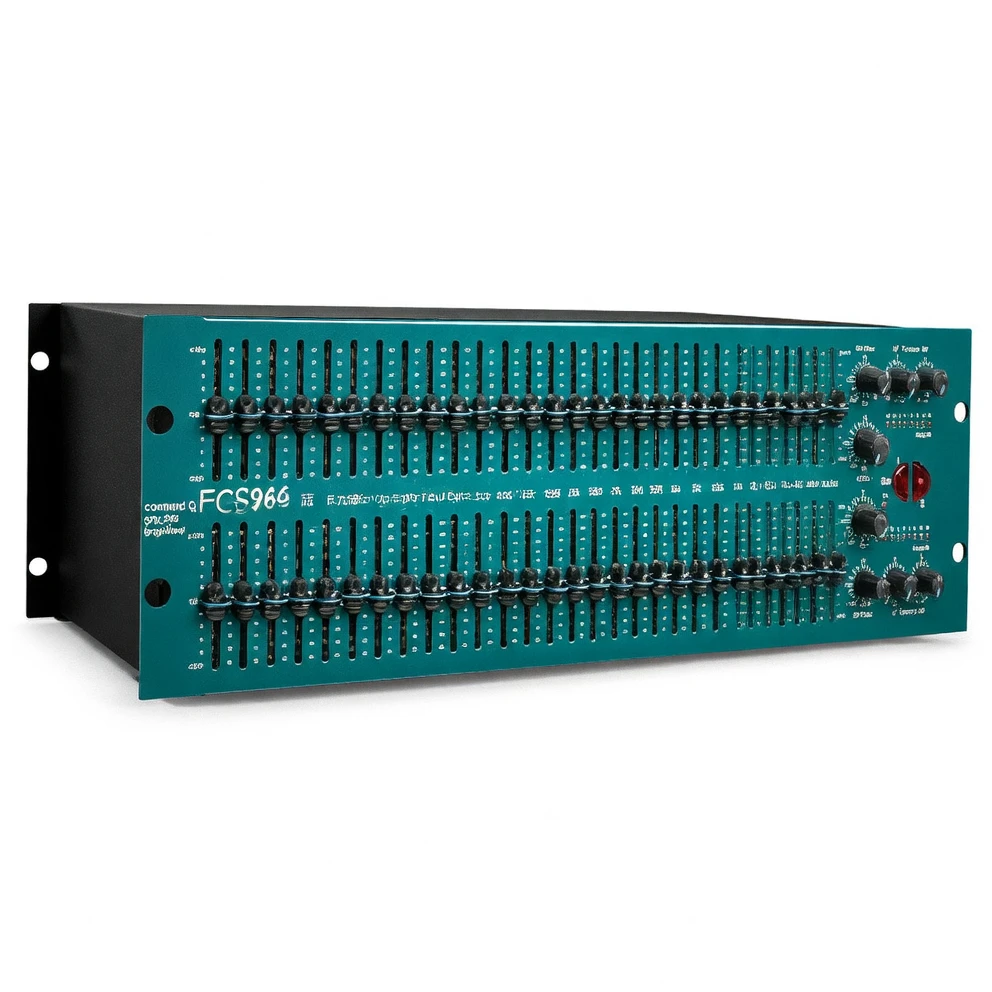

The Harmonai FCS966 Professional Dual 31-Band 3U Equalizer features dual-channel independent 31-band graphic equalization, with 31 precision faders per channel supporting constant gain/attenuation up to ±15dB. Its signal-to-noise ratio exceeds 90dB, total harmonic distortion (THD) is only 0.005%, and it includes balanced XLR and 1/4" input/output connectors, high-pass filtering, and low-/high-frequency tone controls — making it an ideal choice for live sound tuning, studio post-production, broadcast audio optimization, and fixed installation systems.
Q Factor
4 (ISO standard frequency points)
Constant Gain/Attenuation
±15dB
Input Impedance
10kΩ (balanced)
Output Impedance
<50kΩ (balanced)
Maximum Input/Output Level
+20dBu (balanced or unbalanced)
Fader Input Level Control
±15dB
Per-Channel Gain Control
-∞ to +10dB
High-Pass Filter
OFF to 250Hz
Low-Frequency Control
±6dB @ 50Hz, 6dB/octave
High-Frequency Control
±6dB @ 14kHz, 6dB/octave
Total Harmonic Distortion (THD)
0.005% @ 1kHz
Signal-to-Noise Ratio (SNR)
>90dB (ref. 0.775Vrms)
Noise
-94dBu, 22Hz–22kHz
Crosstalk
>-80dB @ 1kHz
Dynamic Range
>115dB
Frequency Response
20Hz–20kHz, +0/-1dB
Connector Types
Balanced XLR / 1/4" TRS inputs and outputs
Electronic Switching
In/Out and Filter (FET-type)
Power Supply
AC 110V/230V, 50/60Hz, 30VA
Dimensions
19" × 5.25" × 7.1" (483mm × 134mm × 180mm)
Weight
3kg
Typical Applications
Ideal for professional live sound system tuning, studio mixing and mastering, broadcast audio equalization, KTV and entertainment venue audio configuration, as well as precise frequency control in fixed-installation environments such as conference rooms, auditoriums, and theaters.
Contact our audio engineering team for technical specifications, application guidance, or pricing information on the Harmonai FCS966 Professional Dual 31-Band Equalizer.
