Front Panel Color
Iron Black
Product Overview

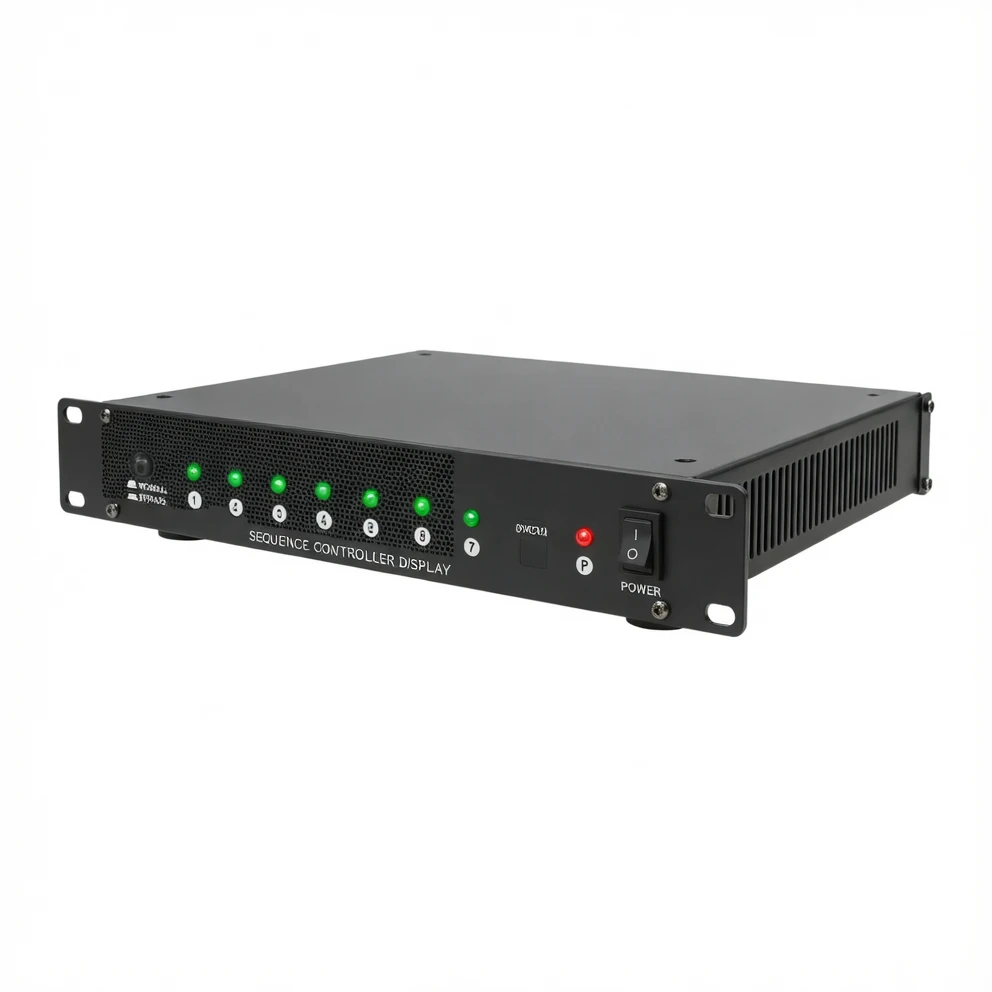

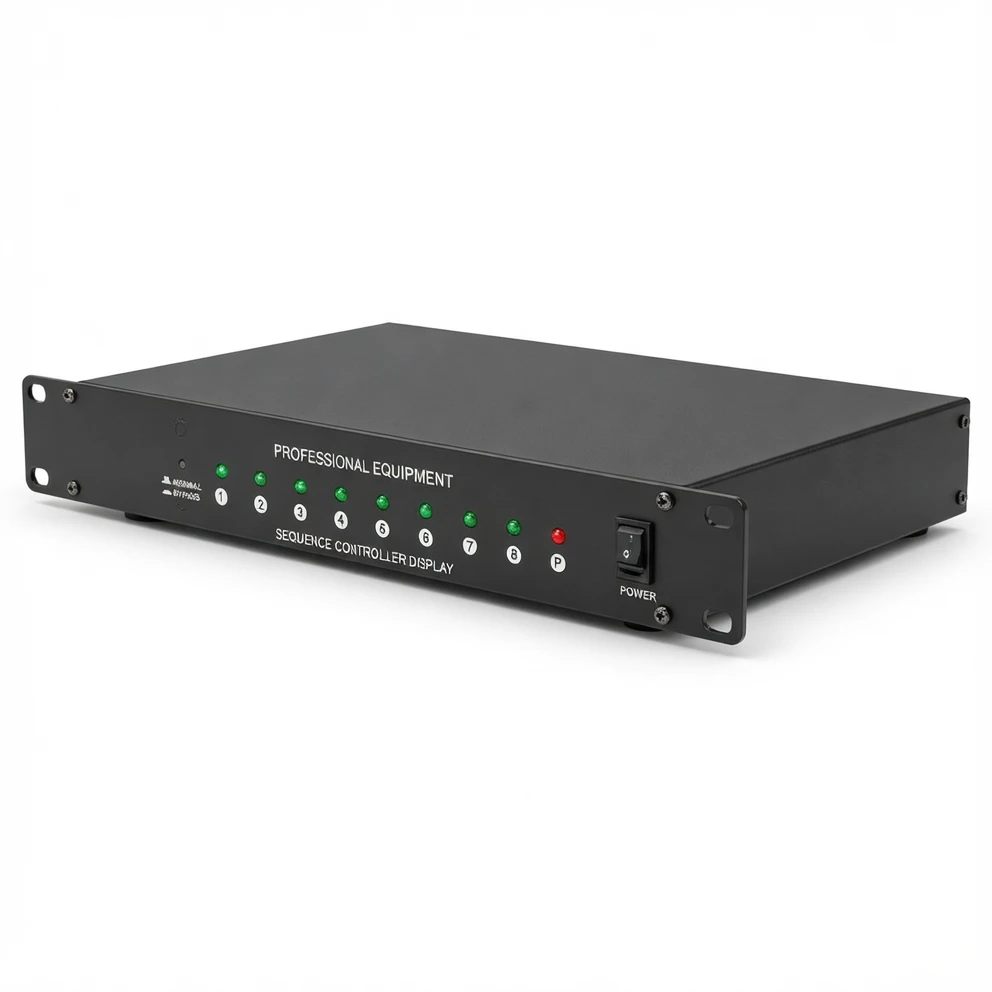

The Harmonai LX-1016 8-Channel 10A Power Sequencer is an intelligent power management device engineered specifically for professional audio systems. Its sequential power-on and reverse-order power-off logic effectively prevents grid surges and audio pops caused by simultaneous power-up or shutdown of multiple devices—fully protecting critical components such as power amplifiers, mixing consoles, and signal processors. Equipped with high-quality high-power relays rated for up to 4500W reactive power per channel, flame-retardant ABS universal outlets, and phosphor bronze contacts, it ensures safe and reliable operation. The chassis conforms to the standard 480mm rack width, making it compatible with all standard equipment racks—making it an indispensable power management tool for live performances, recording studios, conference halls, KTV venues, and more.
Power Input
Single-phase, 3-wire AC90–260V, 50–60Hz (neutral/live/ground)
Number of Channels
8 relay-controlled universal outlets
Maximum Load Capacity
Up to 4500W reactive power per channel
Output Socket Specifications
Flame-retardant ABS material; rated for up to 13A; phosphor bronze contacts; standard universal socket
Key Features
Sequential power-on / reverse-order power-off; PASS button enables simultaneous activation of all channels
Channel Activation Interval
1 second per channel
Relay Contact Rating
30A / 277VAC
PCB Specification
Double-sided fiber board; main power traces reinforced with double-thick copper
Power Supply Specification
Internal switching power supply, compatible with global AC90–260V, 50–60Hz
Main Power Cable
3×3 mm² cable, 1.2 meters long, fitted with a 3-pin CCC plug
Power Switch Type
Square rocker self-locking switch
Chassis Dimensions
480mm (W) × 165mm (D) × 44mm (H) — non-standard 1U height
Packaging Dimensions
530mm (L) × 297mm (W) × 90mm (H), gross weight 2.8 kg (premium kraft cardboard box)
Typical Applications
The LX-1016 Power Sequencer is suitable for any professional audio environment requiring centralized power management: In live stage productions, it powers up amplifiers, mixers, and processors sequentially to eliminate startup pops; In recording studios, it safeguards sensitive audio gear from voltage fluctuations; In conference halls and auditoriums, it simplifies multi-device power control with one-button operation; In KTV and entertainment venues, it ensures stable, safe audio system operation; And in fixed-installation projects, it integrates cleanly into standard racks for tidy, professional power distribution.
For detailed technical specifications, bulk pricing, or custom integration support for the Harmonai LX-1016 Power Sequencer, contact us today for a professional quotation.
