Input Channels
4-channel input (with 48V phantom power)
Product Overview

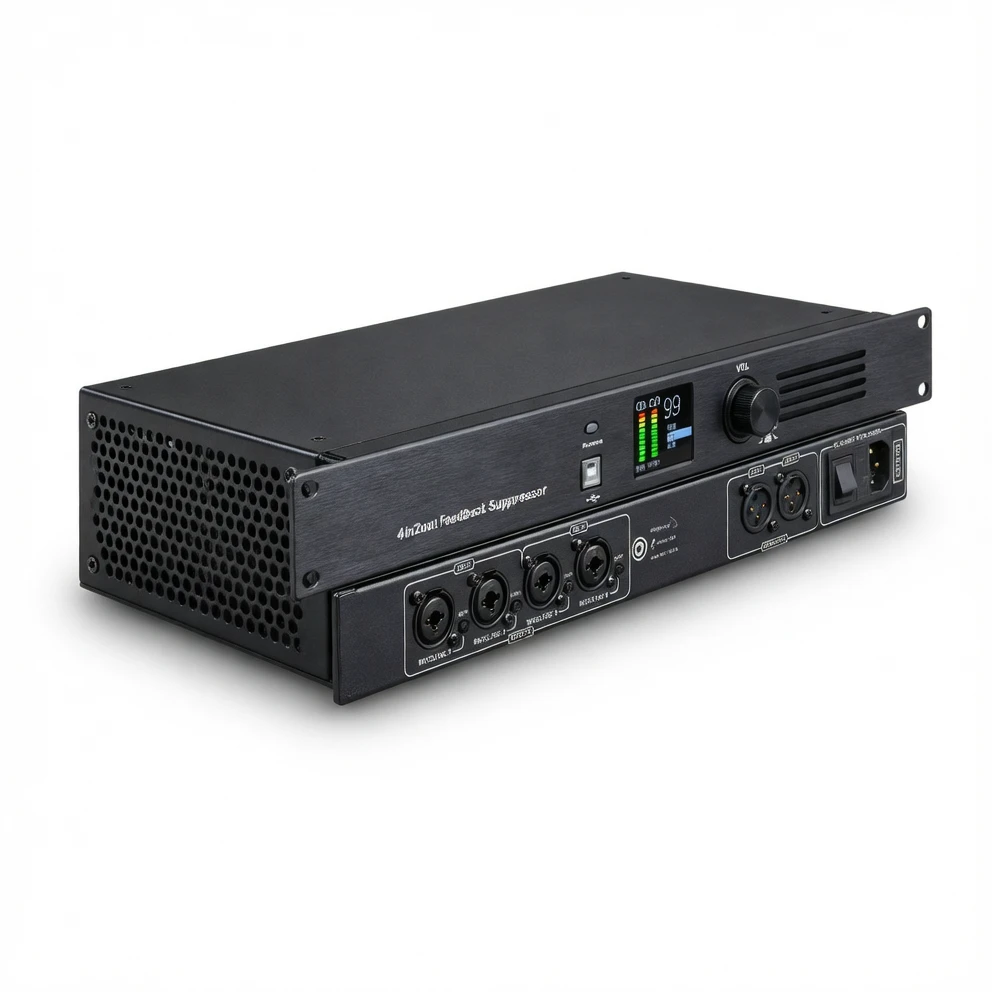

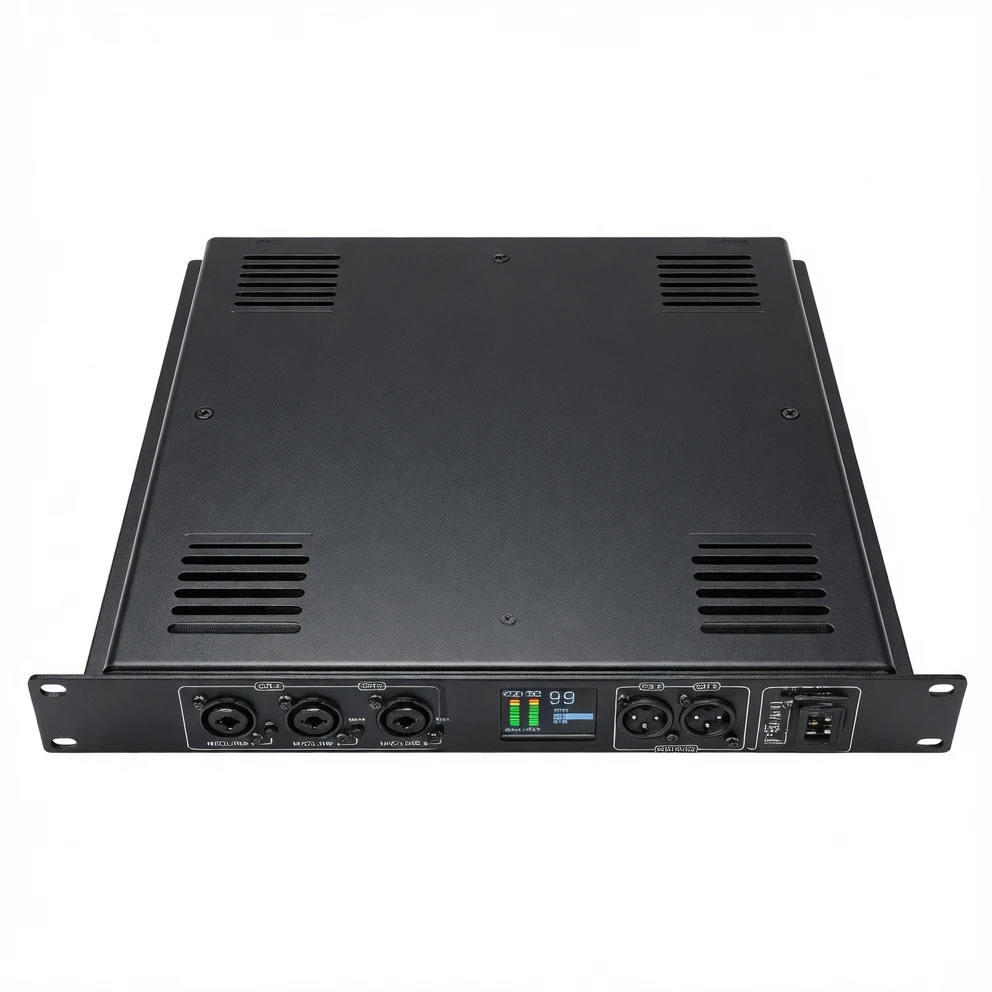

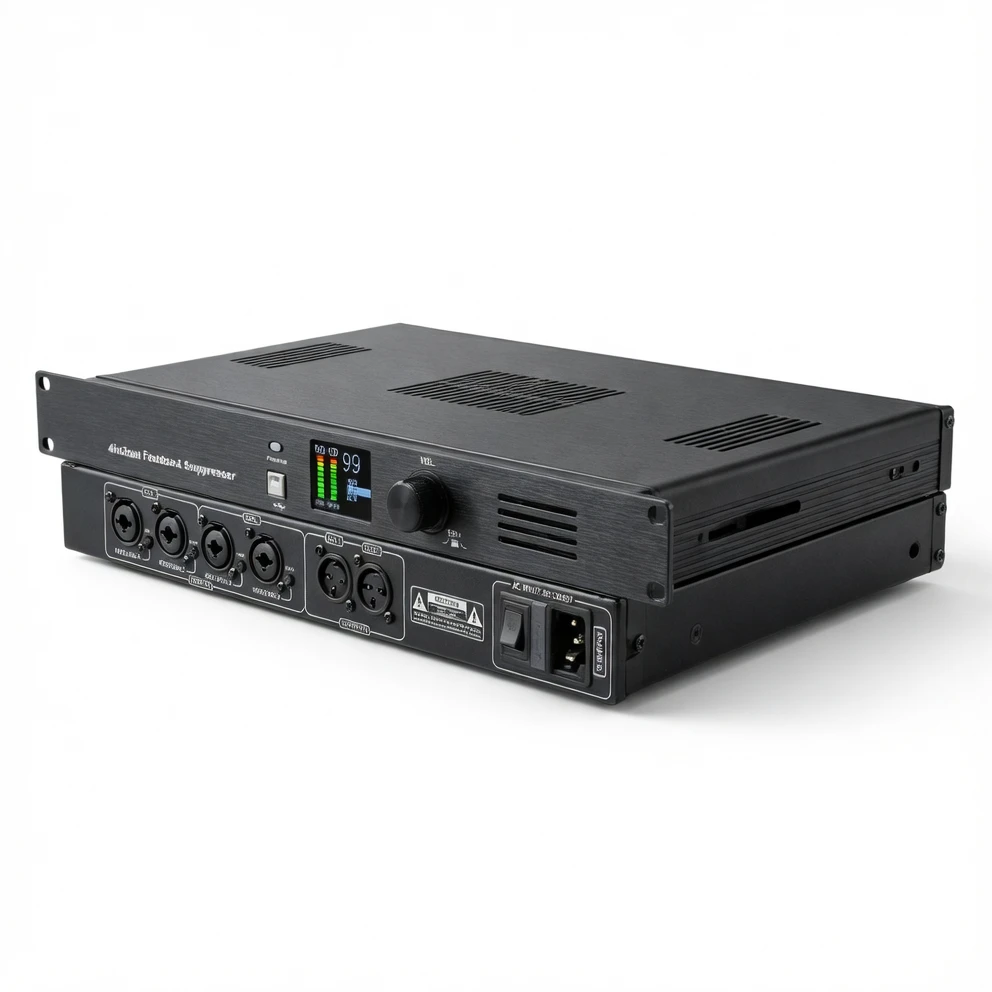

The Harmonai FBX4000 Automatic Feedback Suppressor is a professional audio processing device featuring 24-bit high-performance A/D and D/A conversion, supporting 4-channel input (with 48V phantom power) and 2-channel output. Each channel includes 18 independent high-speed automatic notch filters to rapidly and precisely suppress howling frequencies. Combined with a unique frequency-shift operating mode and noise gate function, it boosts system sound pressure level while preserving exceptional audio clarity. The unit features a 2-inch true-color LCD display with switchable English/Chinese interface and USB plug-and-play PC configuration software for intuitive, efficient operation.
Output Channels
2-channel output
A/D & D/A Conversion
24-bit high-performance
Automatic Notch Filtering
18 independent high-speed automatic notches per channel
Howling Scan
Dual-mode (auto/manual), frequency resolution down to 1 Hz
Gain Adjustment
Per-channel range: -80 dB to 0 dB
Noise Gate
Supported — suppresses faint system noise interference
Input Compression
Supported — eliminates feedback while expanding vocal dynamics
Frequency Shift Mode
Supported — used in conjunction with notch filters
Display
2-inch true-color LCD, English/Chinese selectable
Communication Interface
USB plug-and-play communication
Configuration Software
Customizable PC configuration software
Front Panel Lock
Supported — restricts adjustments after power-on
Typical Applications
The Harmonai FBX4000 is widely deployed in professional sound reinforcement venues including live stages, bars, conference rooms, private karaoke rooms, and multi-purpose halls. It effectively resolves acoustic feedback issues, enhances overall audio performance, and delivers reliable feedback suppression for professional audio engineers and sound systems.
To learn more about the Harmonai FBX4000 Automatic Feedback Suppressor, contact our professional support team for a tailored solution.
Harmonai KT-7 Plastic Blimp Windscreen Kit — Compatible with EM-835 Interview Microphone
The Harmonai KT-7 plastic blimp windscreen kit is designed specifically for the EM-835 interview microphone. It includes a plastic blimp (basket), boom handle, and fur wind cover to effectively reduce outdoor wind noise and ensure clear, clean interview recordings.$114.71
Harmonai KT-8 Professional Windscreen Cage & Shock Mount Kit — Microphone Wind and Vibration Isolation Boom Pole System
The Harmonai KT-8 is a professional microphone wind and vibration isolation kit, combining an efficient windscreen cage, elastic suspension shock mount, and boom pole to suppress wind noise and handling vibrations—ideal for outdoor interviews and film production field recording.$95.59
Harmonai 295W Beam Moving Head Light | 12-Color + White + Dual Prism for Professional Stage Lighting
The Harmonai 295W beam moving head light features a Phoenix imported lamp, 12-color + white color wheel, 13 fixed gobos, and dual independent prism system. Supports sound-active, auto-run, master-slave, and DMX512 control for powerful beam effects in stages, KTVs, bars, and more.$149.12

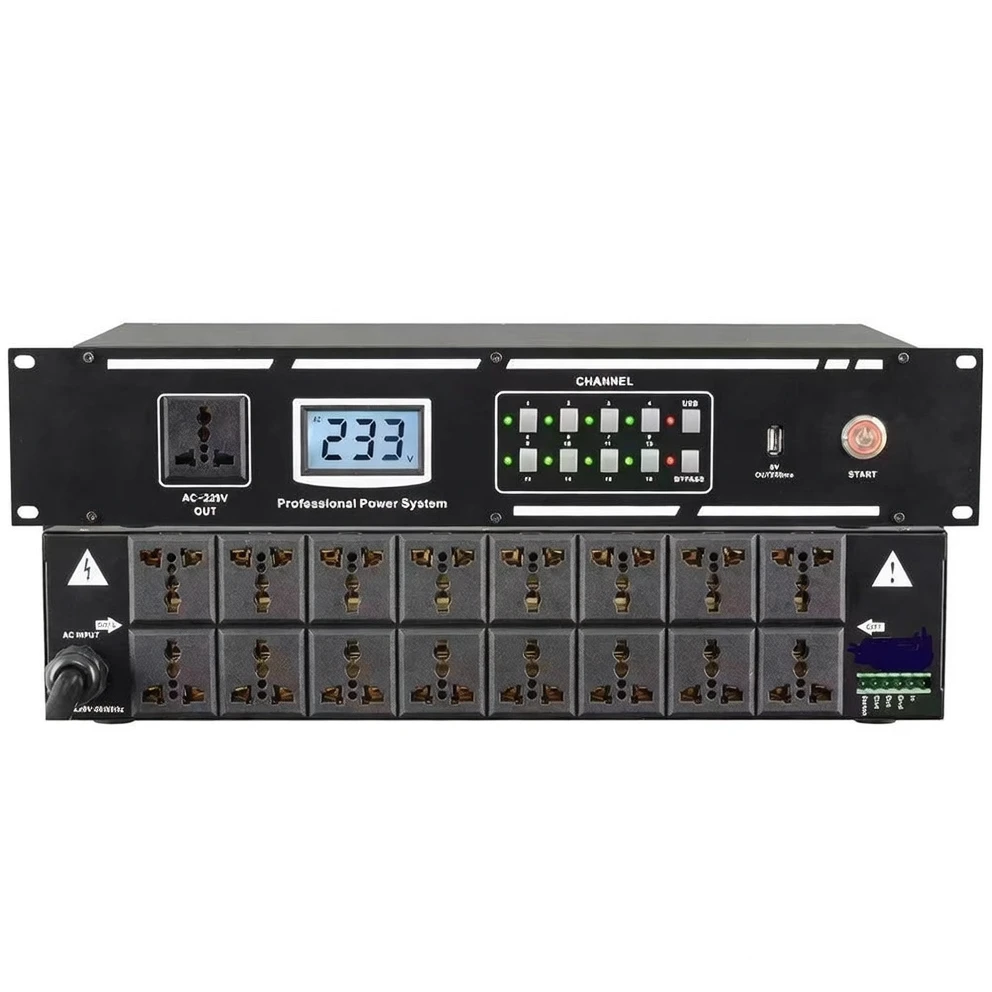

Harmonai L-16 Professional 16-Channel Power Sequencer — 6000W Per Channel, Standard 2U Rack-Mount Design
The Harmonai L-16 is a professional 16-channel power sequencer with 16 relay-controlled universal outlets and 2 direct-pass outlets. Each channel handles up to 6000W (15,000W total), featuring sequential power-on/sequential power-off logic, real-time red LED voltage display, and triple protection (leakage, short-circuit, overcurrent). Designed for stage lighting, audio systems, conference rooms, and broadcast studios.$99.41
Harmonai DSP1616 16×16 Audio Matrix Processor — Professional Digital Audio Signal Processing Platform
A professional 16-in/16-out digital audio matrix processor powered by the ADI SHARC 21489 DSP chip, featuring Dante 16×16 networking, AEC, AFC, and ANS algorithms for large-scale audio systems.$648.57
Harmonai DSP0808 8×8 Professional Audio Matrix Processor — SHARC Floating-Point DSP Engine
The Harmonai DSP0808 is a professional 8-in/8-out audio matrix processor built on the ADI SHARC 21489 chip with a 64-bit floating-point DSP engine (400 MIPS / 1.6 GFLOPS), featuring AFC feedback suppression, AEC echo cancellation, ANS automatic noise reduction, and PEQ parametric equalization. Supports 16×16 analog and Dante digital I/O, plus built-in USB audio interface for conferencing and recording.$428.71
Harmonai 4.8SP 4-in/8-out Digital Audio Processor — Professional DSP Multi-Channel Audio Routing & Processing
The Harmonai 4.8SP is a professional 4-in/8-out digital audio processor featuring 24-bit/48kHz Δ-Σ A/D converters with 128× oversampling, dual 120MHz high-performance DSP chips, and full digital processing including gain, parametric EQ, delay, crossover, compression, limiting, and signal routing — all via balanced XLR I/O.$329.78
Harmonai DAP48 4-in/8-out Digital Audio Processor — 31-band GEQ + 10-band PEQ, Precision Audio Routing
The Harmonai DAP48 is a professional 4-in/8-out digital audio processor featuring 31-band GEQ and 10-band PEQ per input channel, independent 0–1000 ms delay control, 10-band output EQ with PEQ/LO-shelf/Hi-shelf options, and selectable Linkwitz-Riley/Bessel/Butterworth crossover filters.$303.40

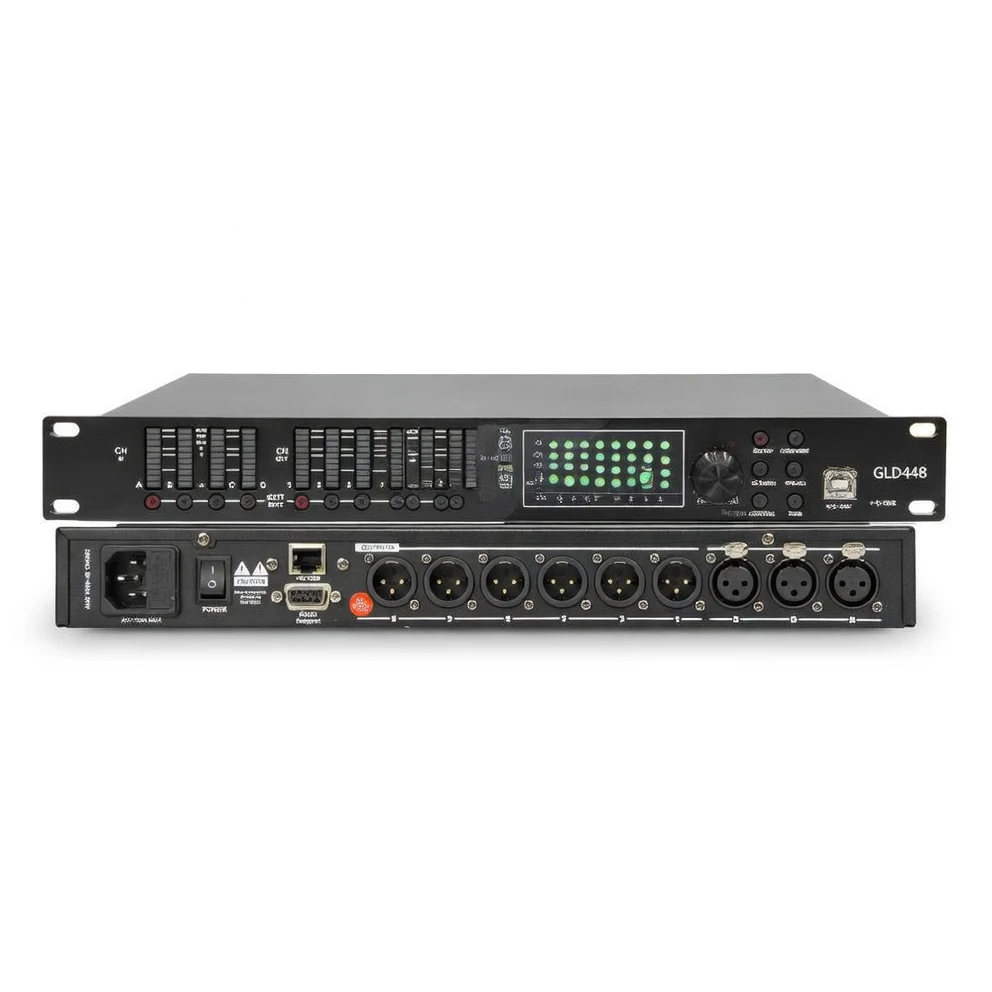

Harmonai GLD-448 4-in/8-out Digital Audio Processor — Professional DSP Audio Signal Management
